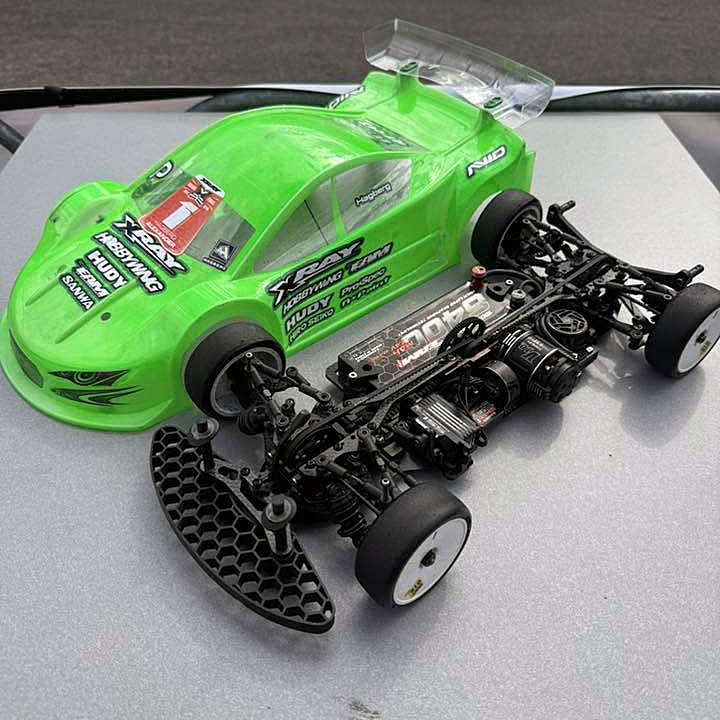

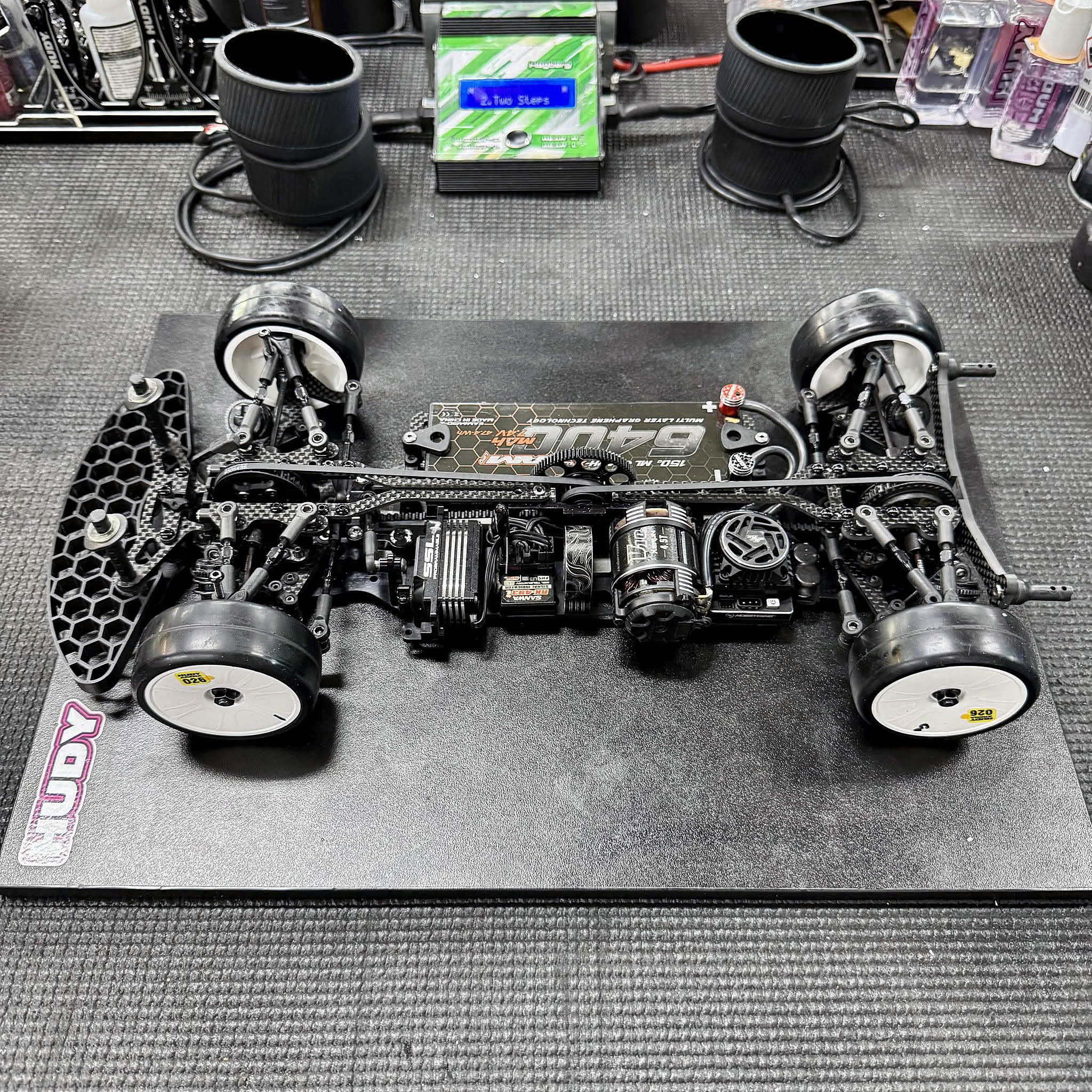

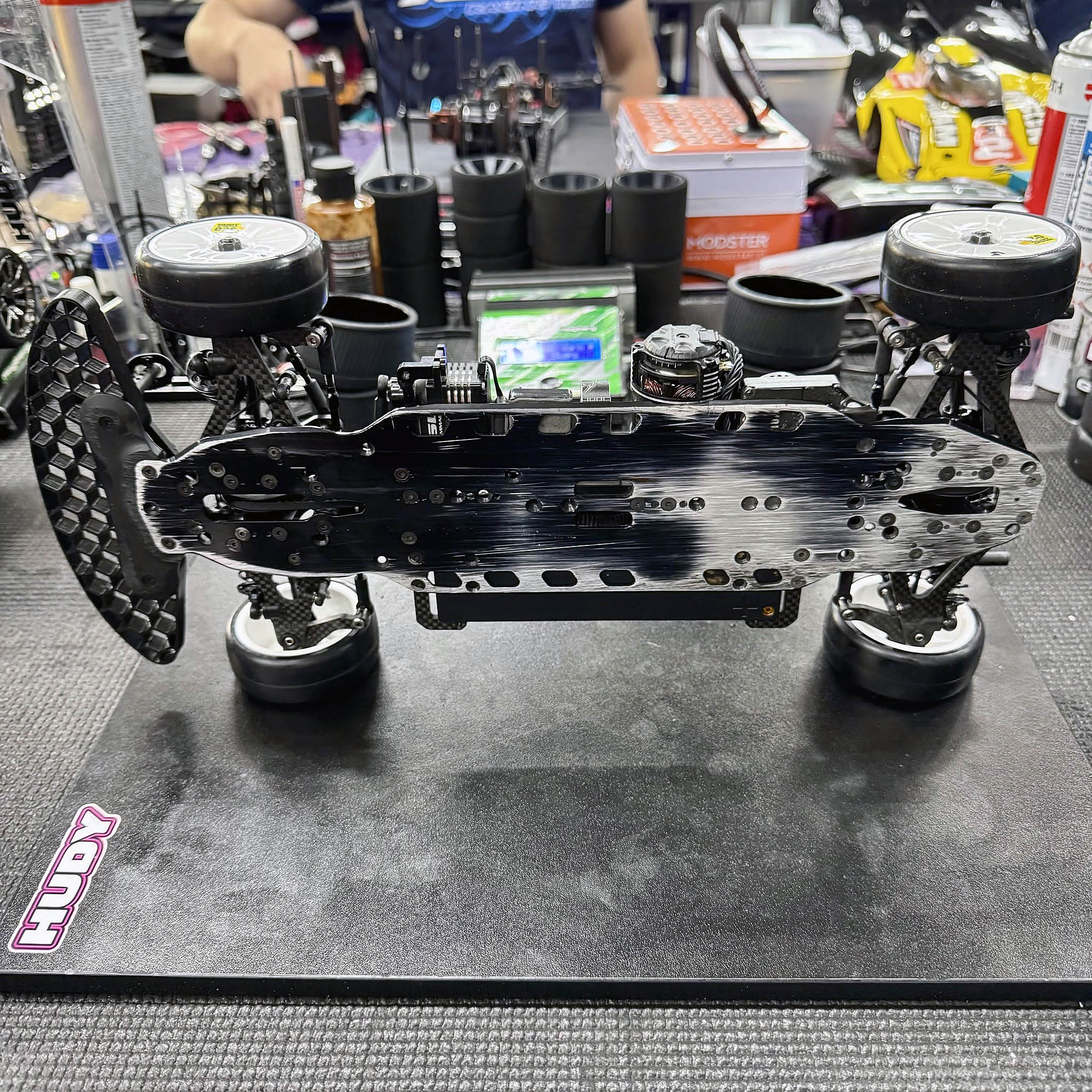

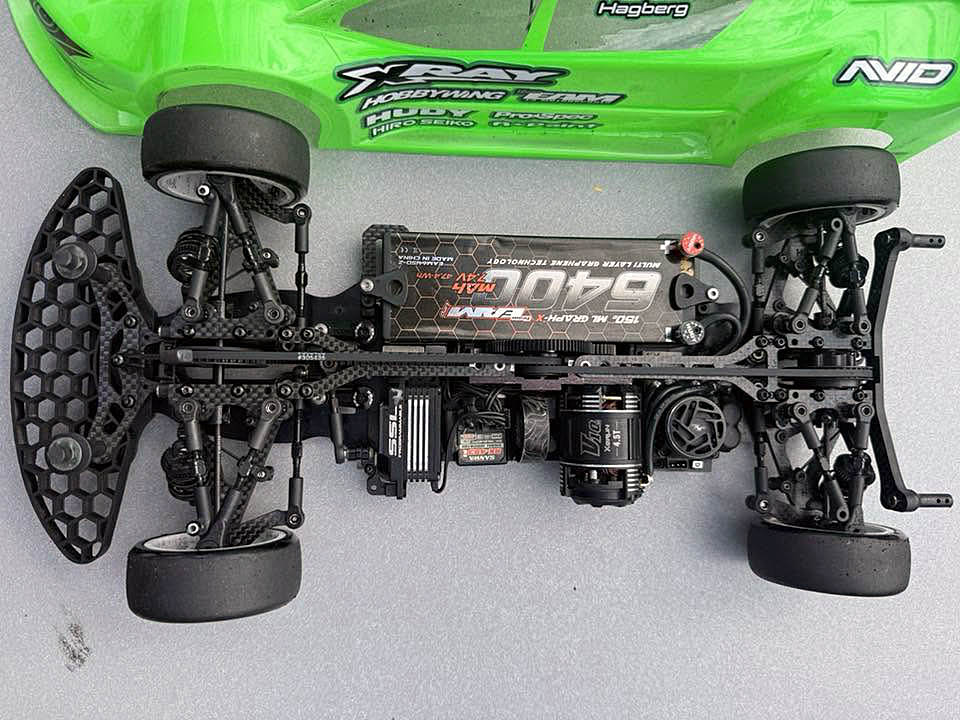

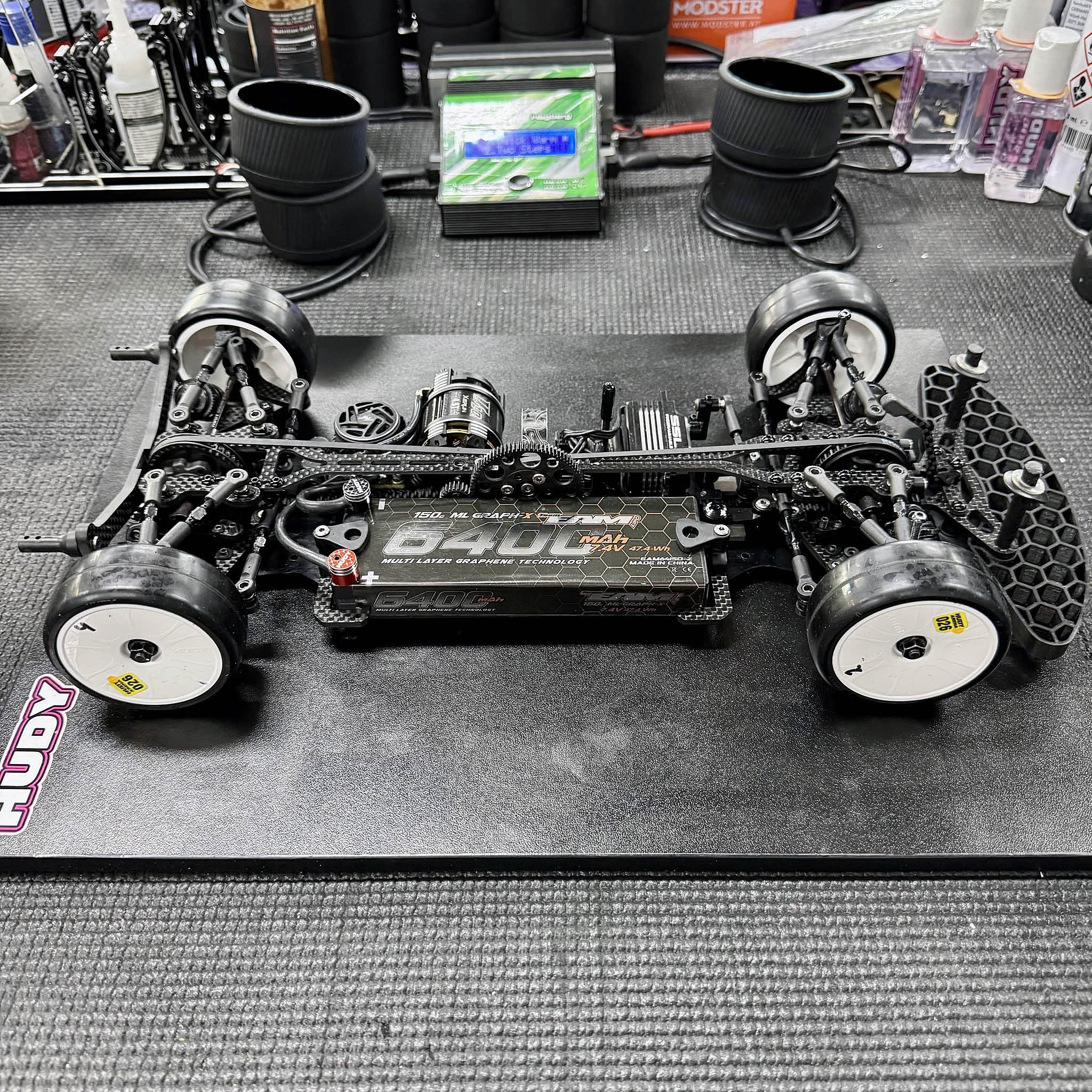

Chassis focus of my XRAY X4'26 that I am running here at the XRS Grand Final! The same 1.5 Alu chassis car that I ran at the ETS in Apeldoorn!

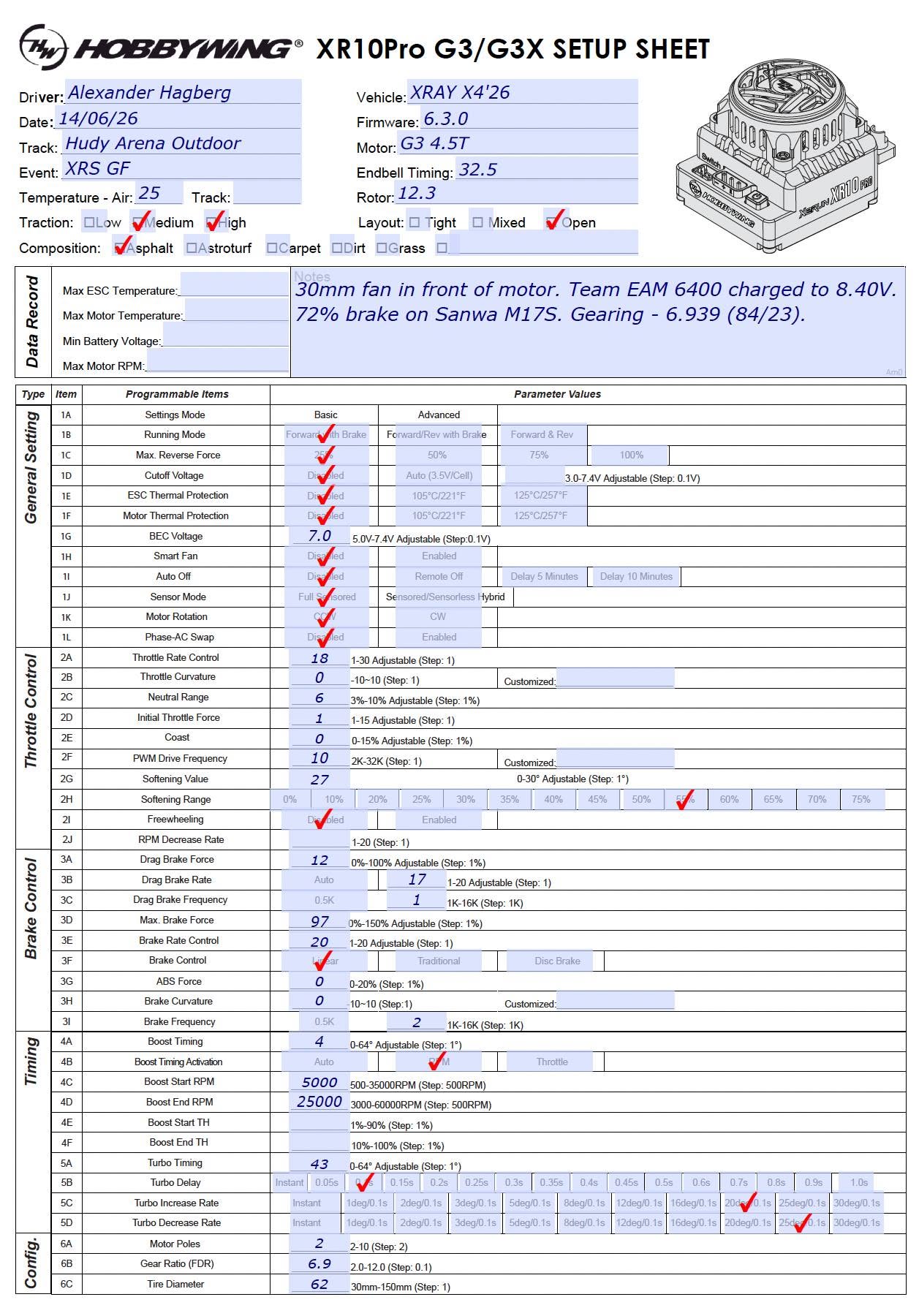

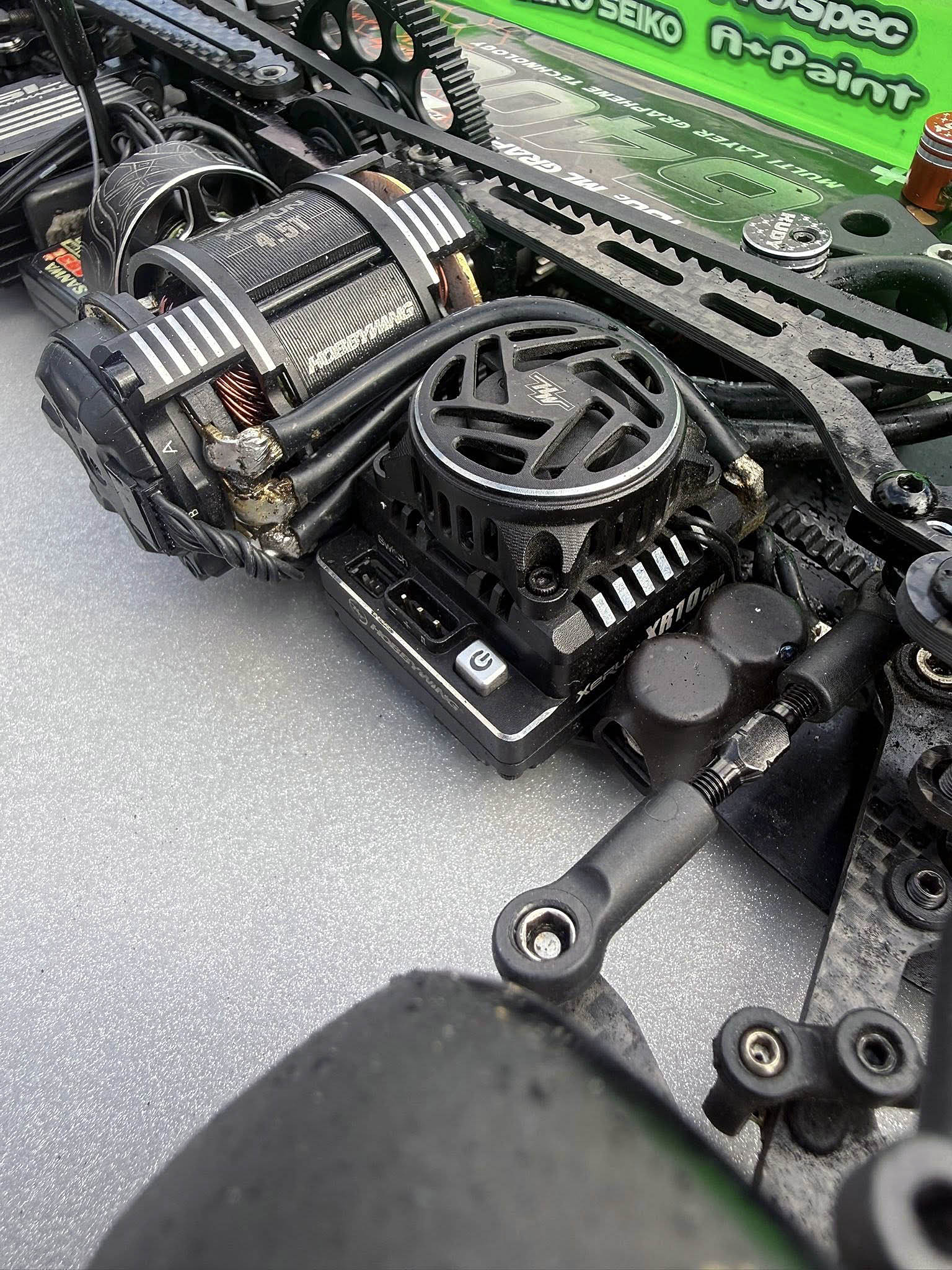

Hobbywing Technology XR10 PRO G3 ESC

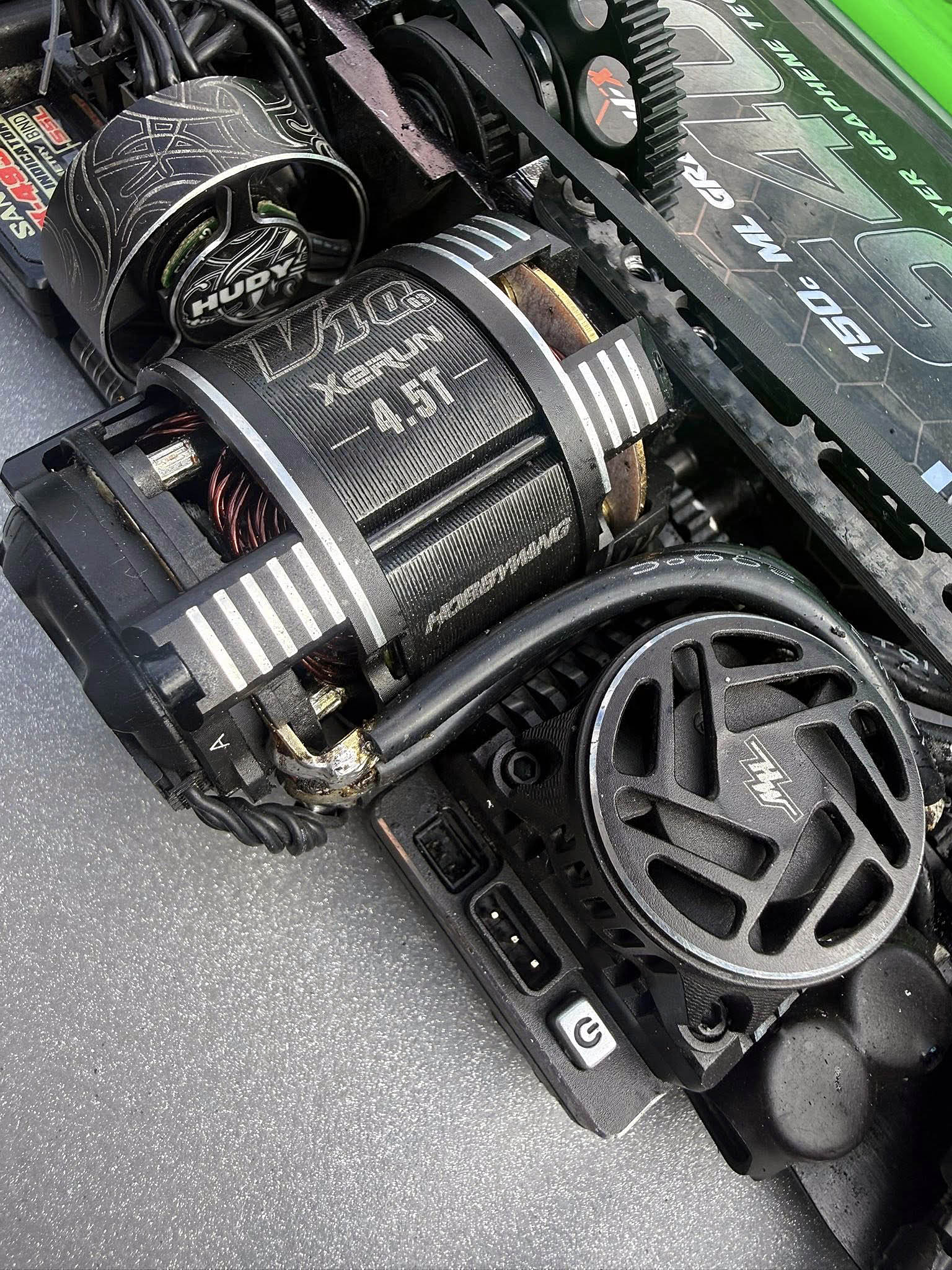

Hobbywing Technology G3 4.5T motor
SANWA Electronic Instrument PGS-LH II servo
Team EAM, Inc 6400 battery
HUDY A2-36 controlled tires & HUDY Asphalt additive

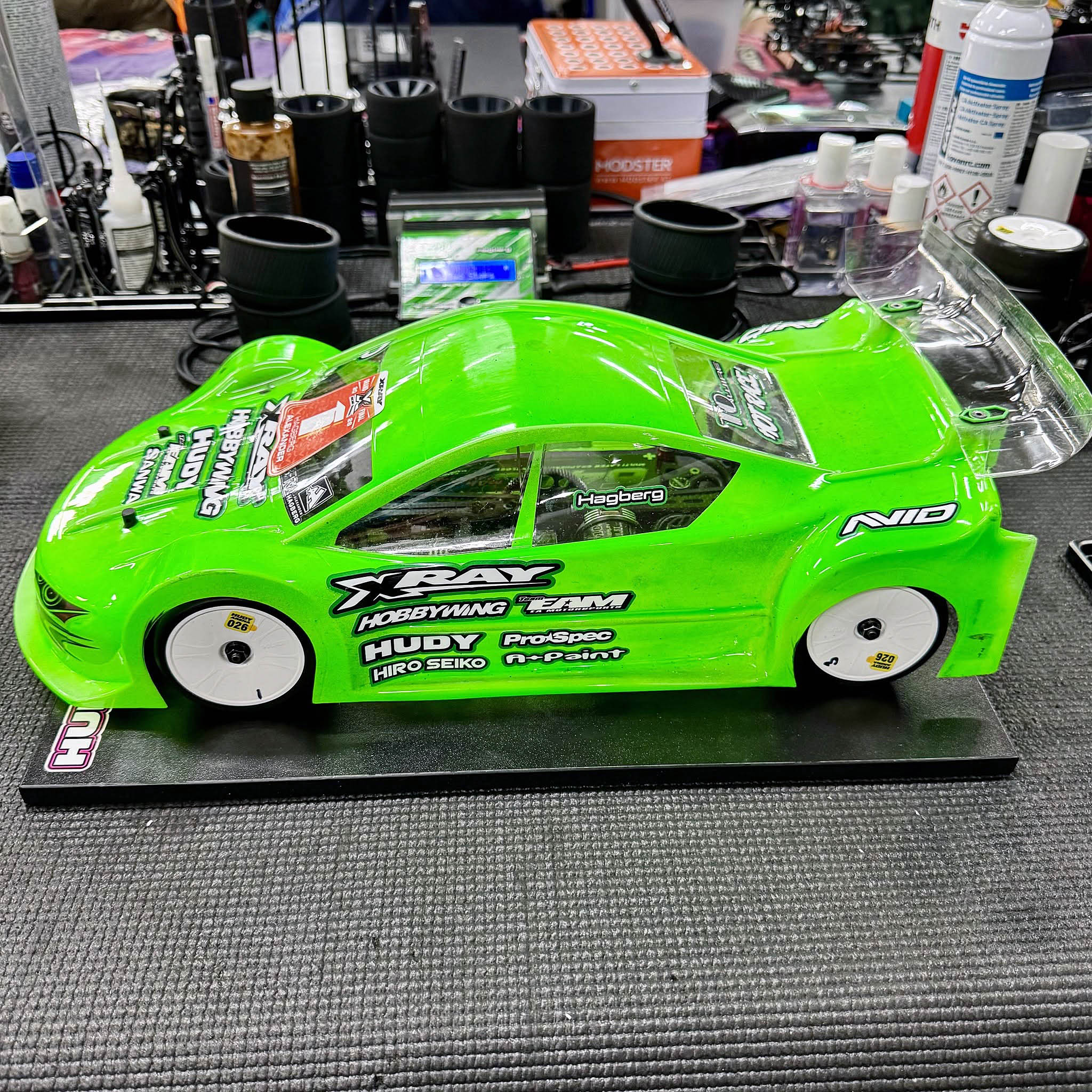

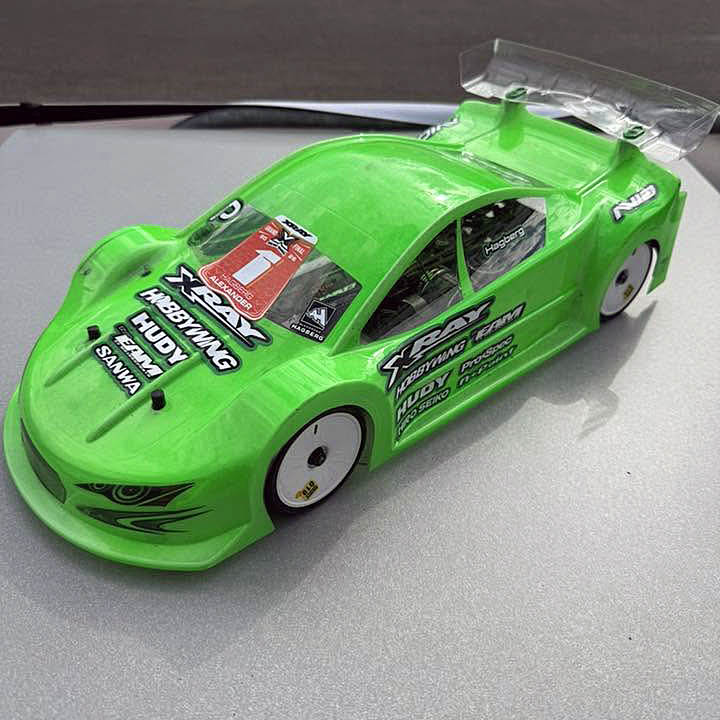

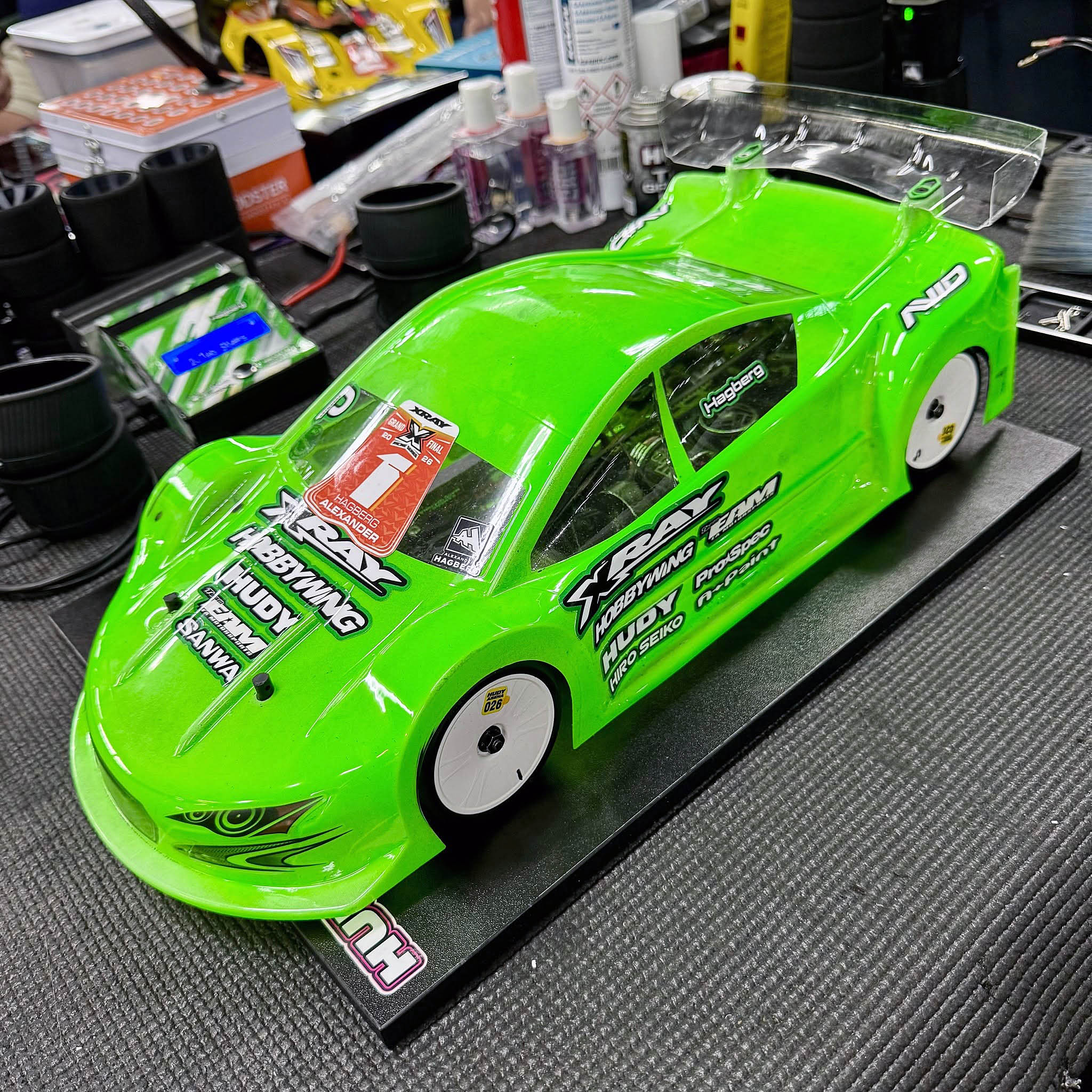

Avalon Vortex 0.5mm bodyshell with a Twister wing

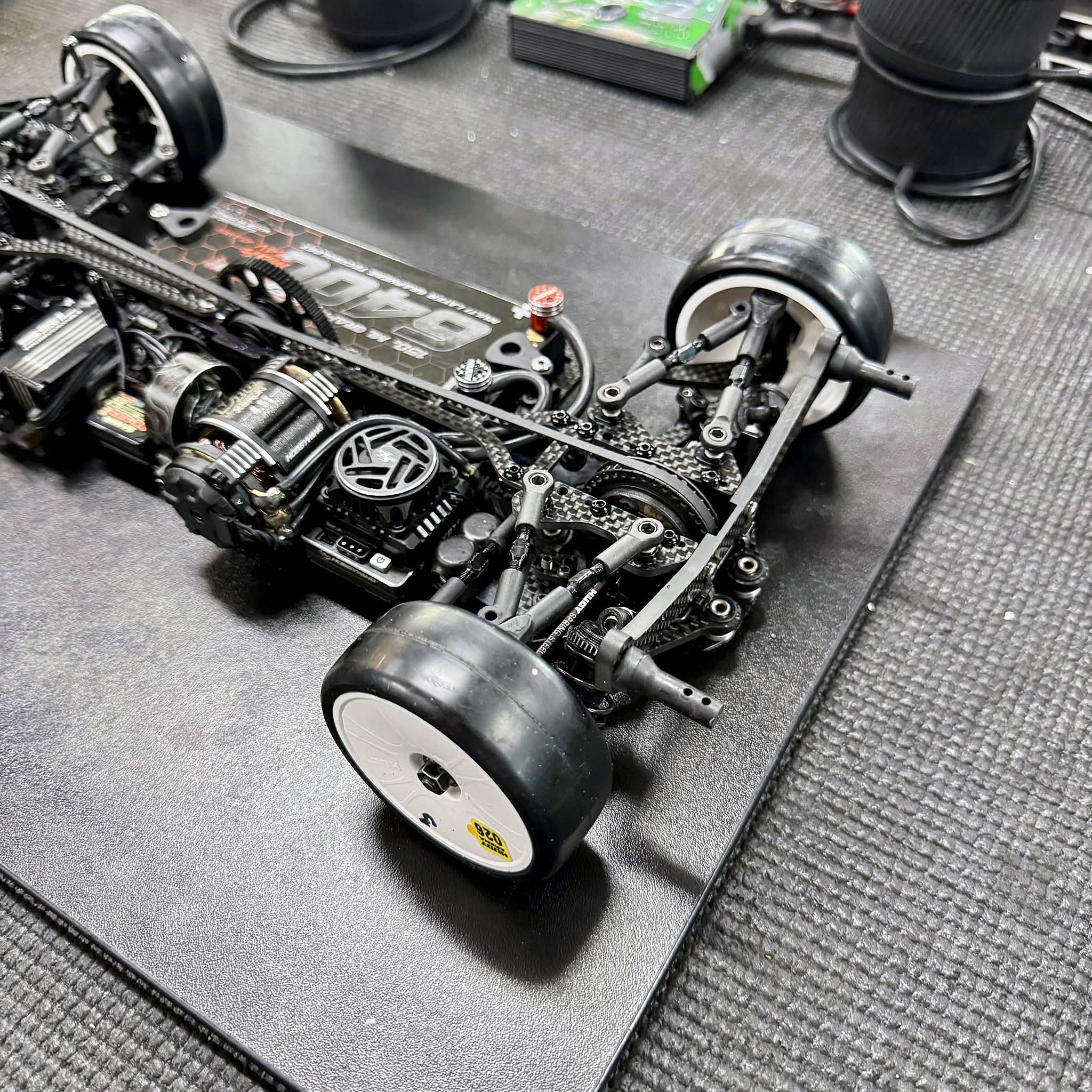

Using some optionals such as -1mm upper clamps to free up the car, a stiffer rear spring (C=2.9) to increase responsiveness and forward traction. The new lightweight Alu hubs for more initial grip. I am also using Alu diff bearing holders for more consistency, and an adjustable Alu servo horn.

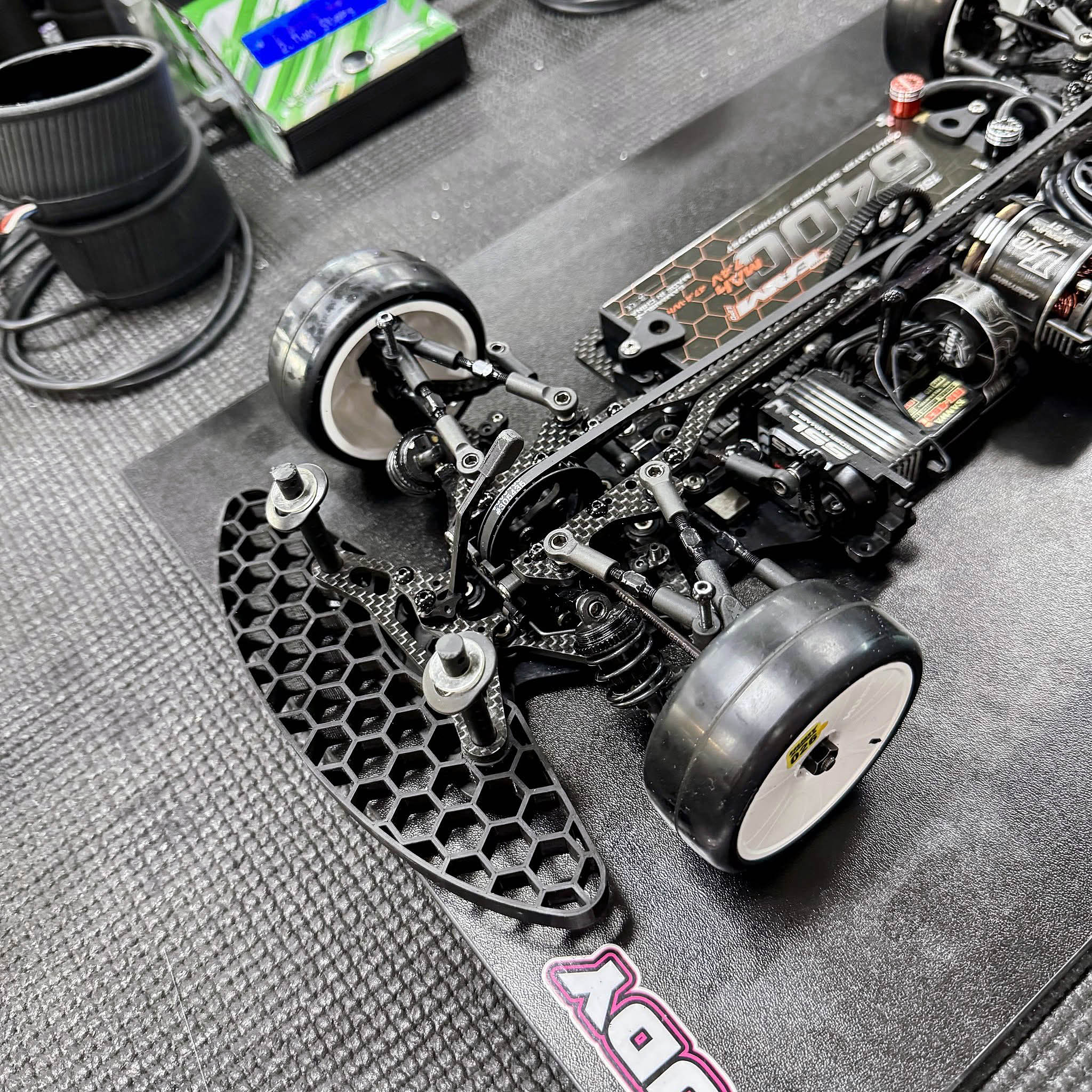

A 1.1mm front anti-roll bar helps to improve mid corner steering.
The only two changes I made from Apeldoorn were: softer rear spring, and 1K lighter rear diff, to better suit the flat, but flowing and high speed track here at Hudy Arena!

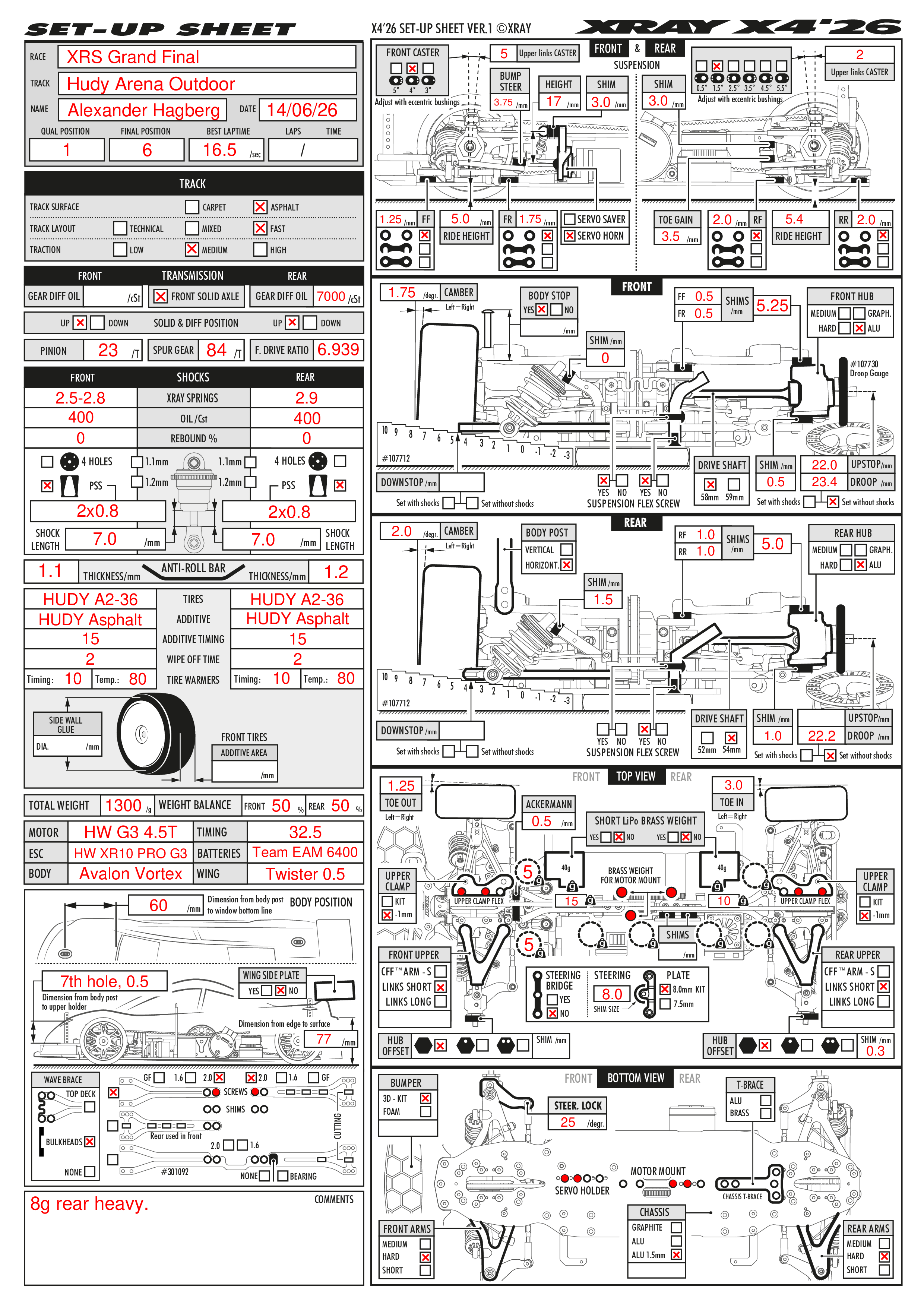

Set-ups for Matrix D36 tires can easily be used with the new HUDY A2-36 tire with minimal or no changes.


|
