Ref: AZ-0037
Objective: to Raise by 2mm the transmission case with aim to obtain higher rear traction
Material: Polycarbonat

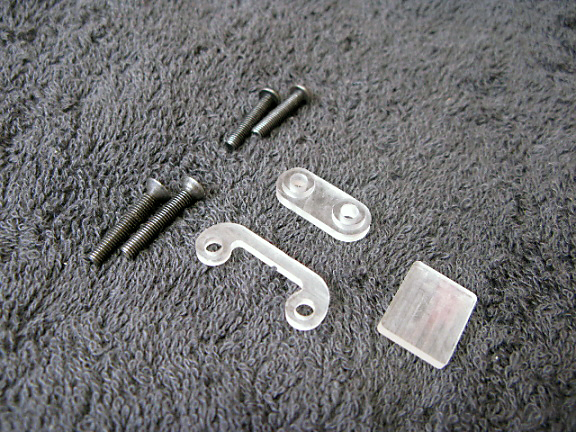

The set contains four screws and the parts made from polycarbonate.

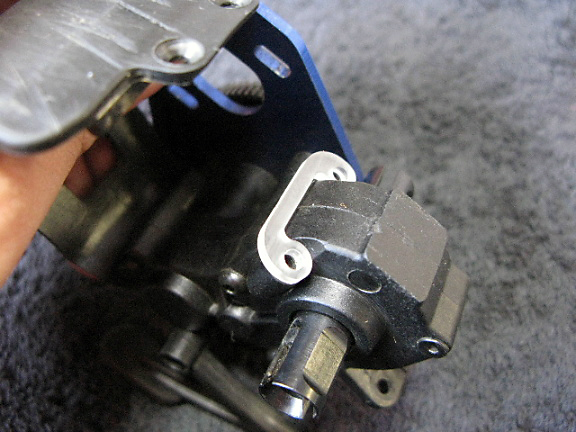

Part A is attached under the transmission case.

Part B is attached to the rear bulkhead .

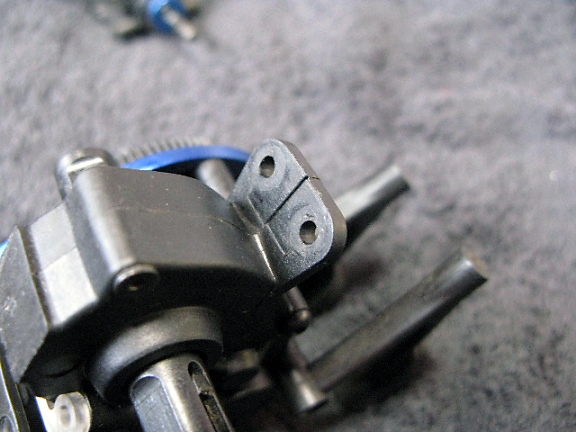

Cut off the transmission case's plugs.

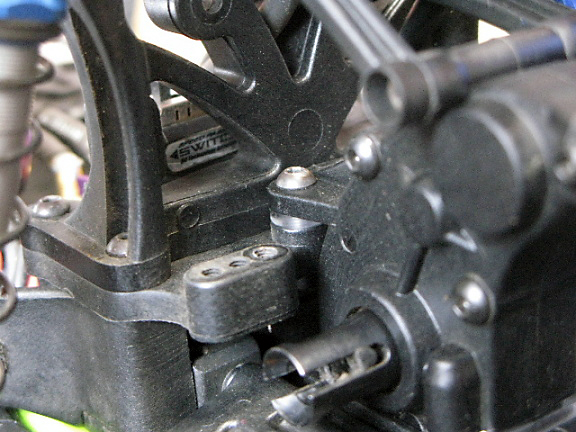

Install the transmission case on the chassis; sitting on both already located part A and B, it will be raised by 2 mm.

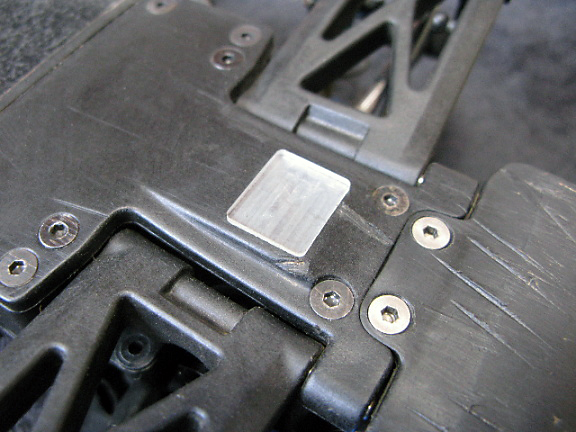

Part C fill the empty space left under the transmission case.
Install it with double-sided tape or little glue.

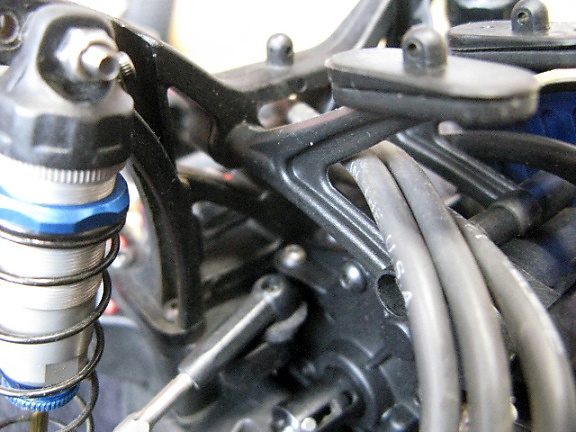

The wing mount are also raised for the same amount as the transmission case
