XB2'26 All-new Features
All-new 2.5 mm chassis lineup with optimized flex — mid-size for carpet, short-size for dirt — engineered for maximum traction and controlReinforced and revised C-block improves durability in demanding race conditionsAll-new rear D-block with optimized suspension geometry: 1° toe for carpet, 3° toe for dirtStronger rear roll center holder for long-lasting reliabilityUltra-lightweight titanium shock pivot balls add strength and precisionAll-new ultra-light titanium turnbuckles on all suspension linksNew lighter differential outdrives reduce rotational mass for faster acceleration, sharper braking, and improved drivetrain efficiencyAll-new -1 mm shorter shock caps extend the up-travel rangeNew spring collars -6 mm allow a wider ride height adjustment windowStiffer 4-dot front & rear springs included in the carpet kit for more consistent handlingAll-new wider offset settings for carpet (rear 5-slot, front 2-slot) for maximum stabilityAll-new 6-dot lower rear shock tower ensures consistent handling on carpetWider, higher downforce rear wing included in the dirt kit for enhanced tractionAll-new HUDY Super Diff Grease for the smoothest, most durable differential performanceThe XB2’26 — developed on the track, built in-house, and engineered to put you on the podium

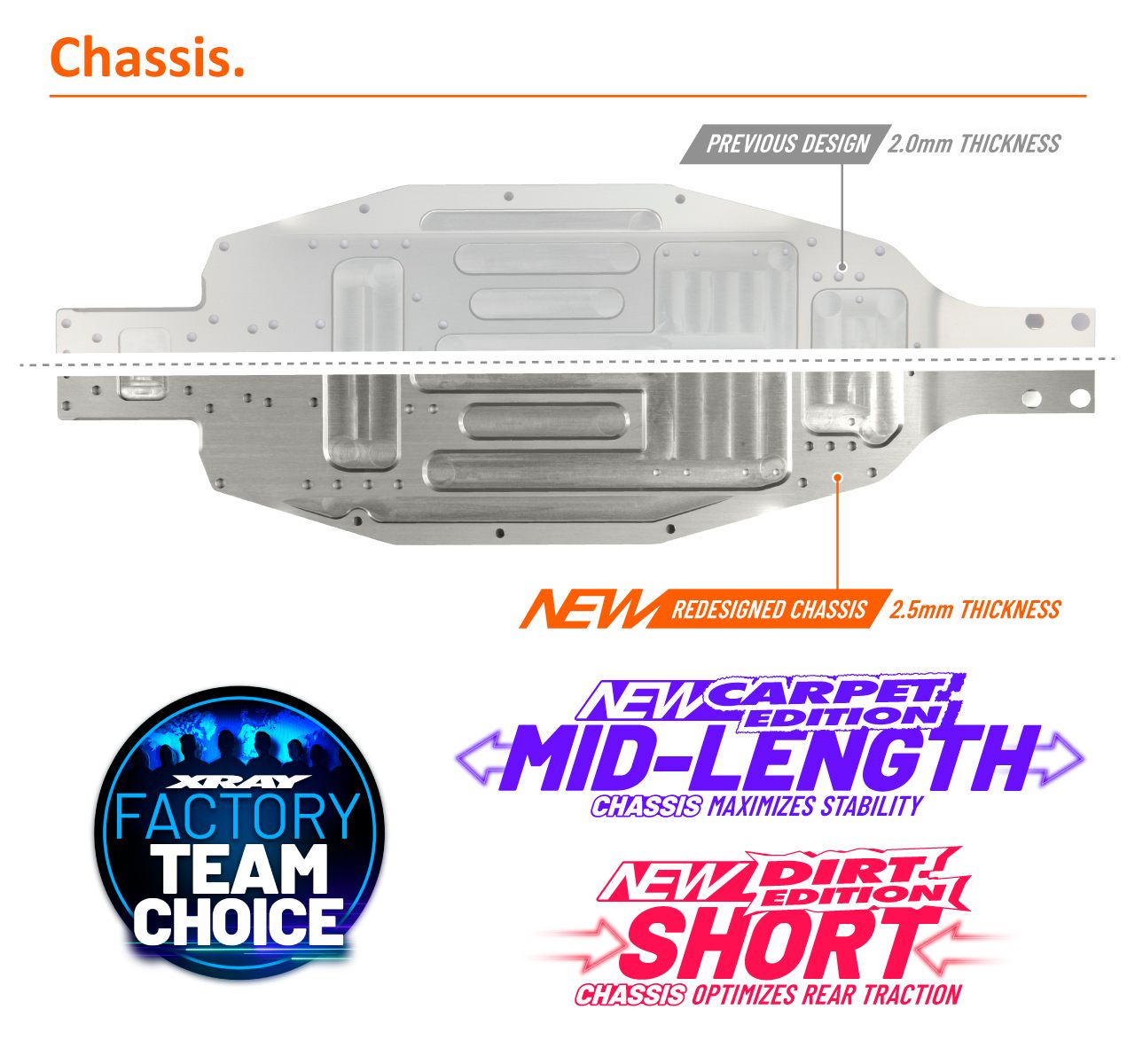

Chassis

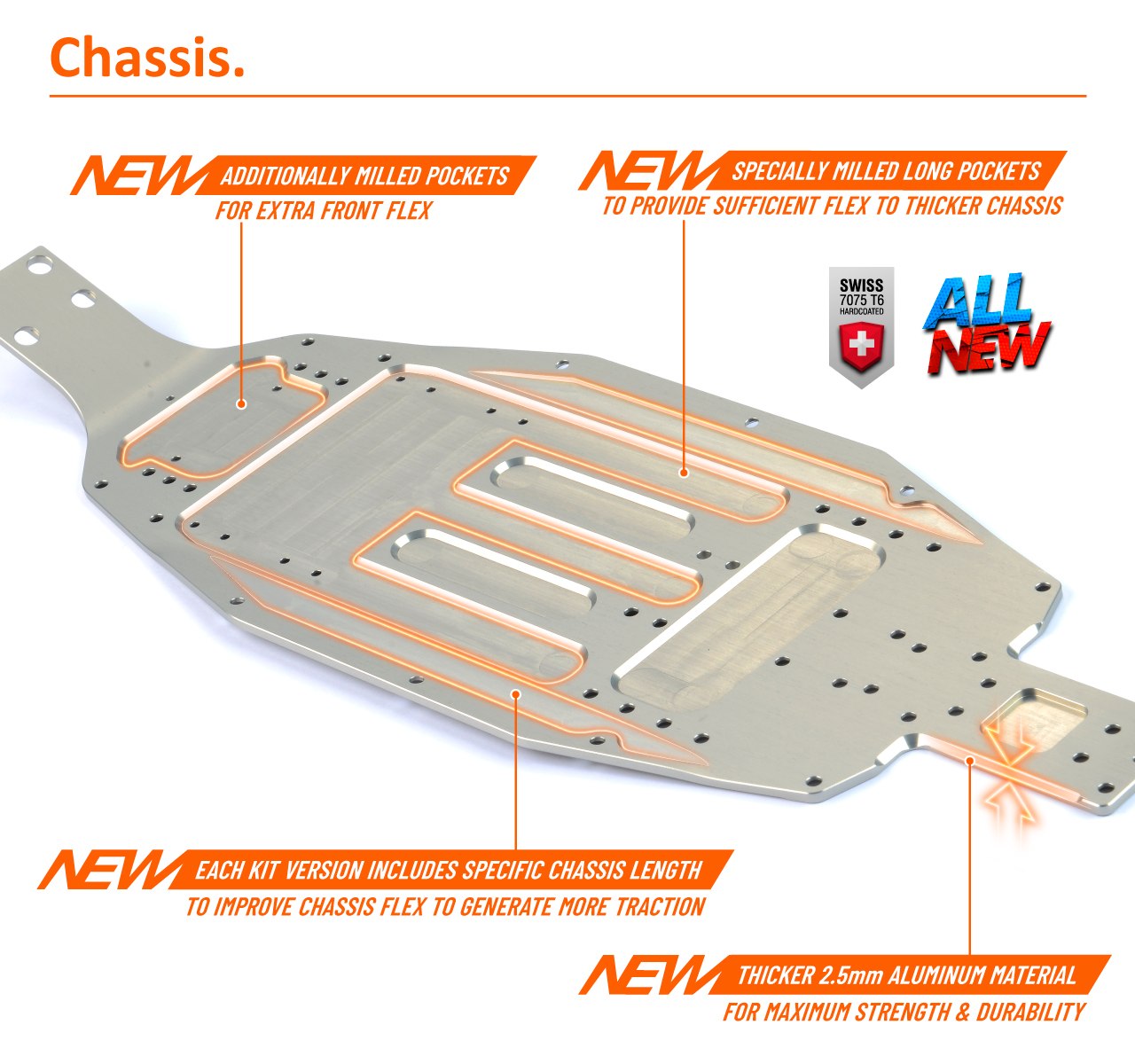

XB2’26 features two all-new 2.5mm chassis plates with each one optimized for different track conditions.
XB2C with a mid-length 2.5mm chassis provides the stability needed in higher traction conditions to maximize cornering speeds & to reduce lap times.
XB2D with short 2.5mm chassis maximizes rear traction on lower traction dirt tracks, improving forward acceleration & stability to produce consistent and fast results on even the most irregular surfaces.

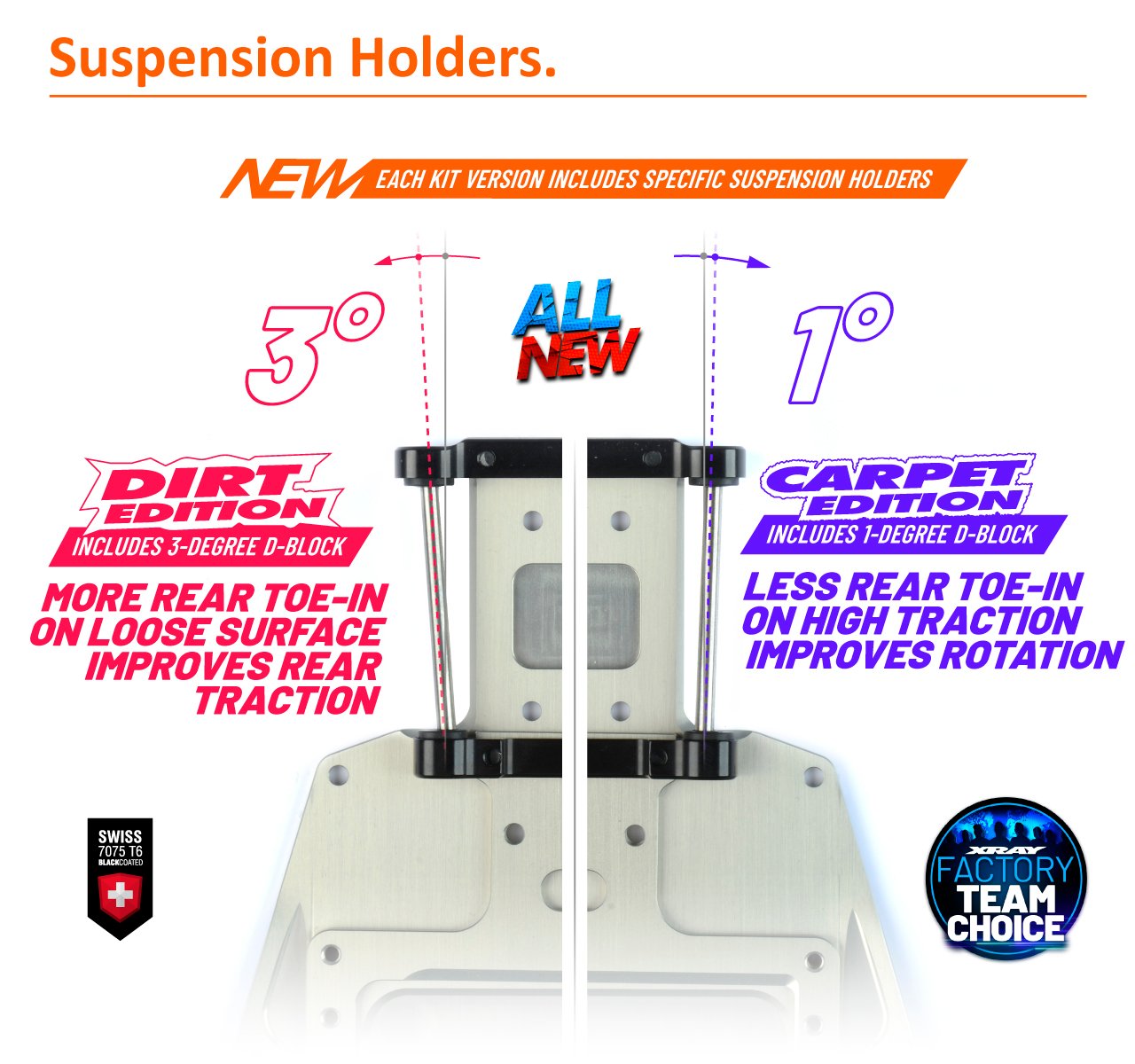

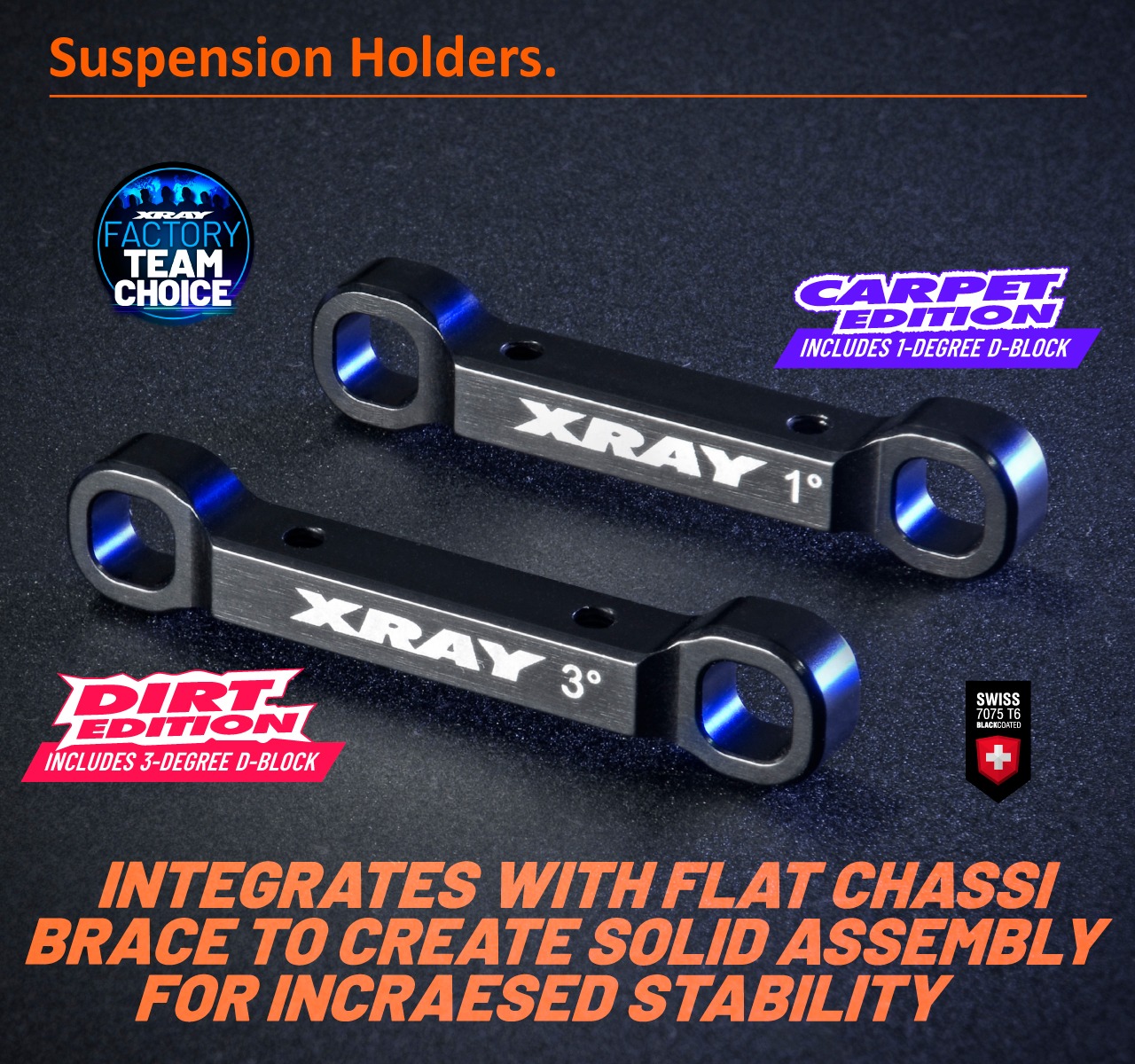

Suspension Holders
The improved suspension holder design maximizes durability. Each respective kit features optimized geometry out of the box, ready to hit the track.
The XB2C comes with a 1-degree D-block while the XB2D includes the 3-degree D-block. Thus, the Carpet kit features less toe-in, to free up the rear on high grip tracks. The Dirt kit has more toe-in, to generate more rear traction on a loose surface. The new blocks also allow for a wider track width range adjustment for both kit versions.

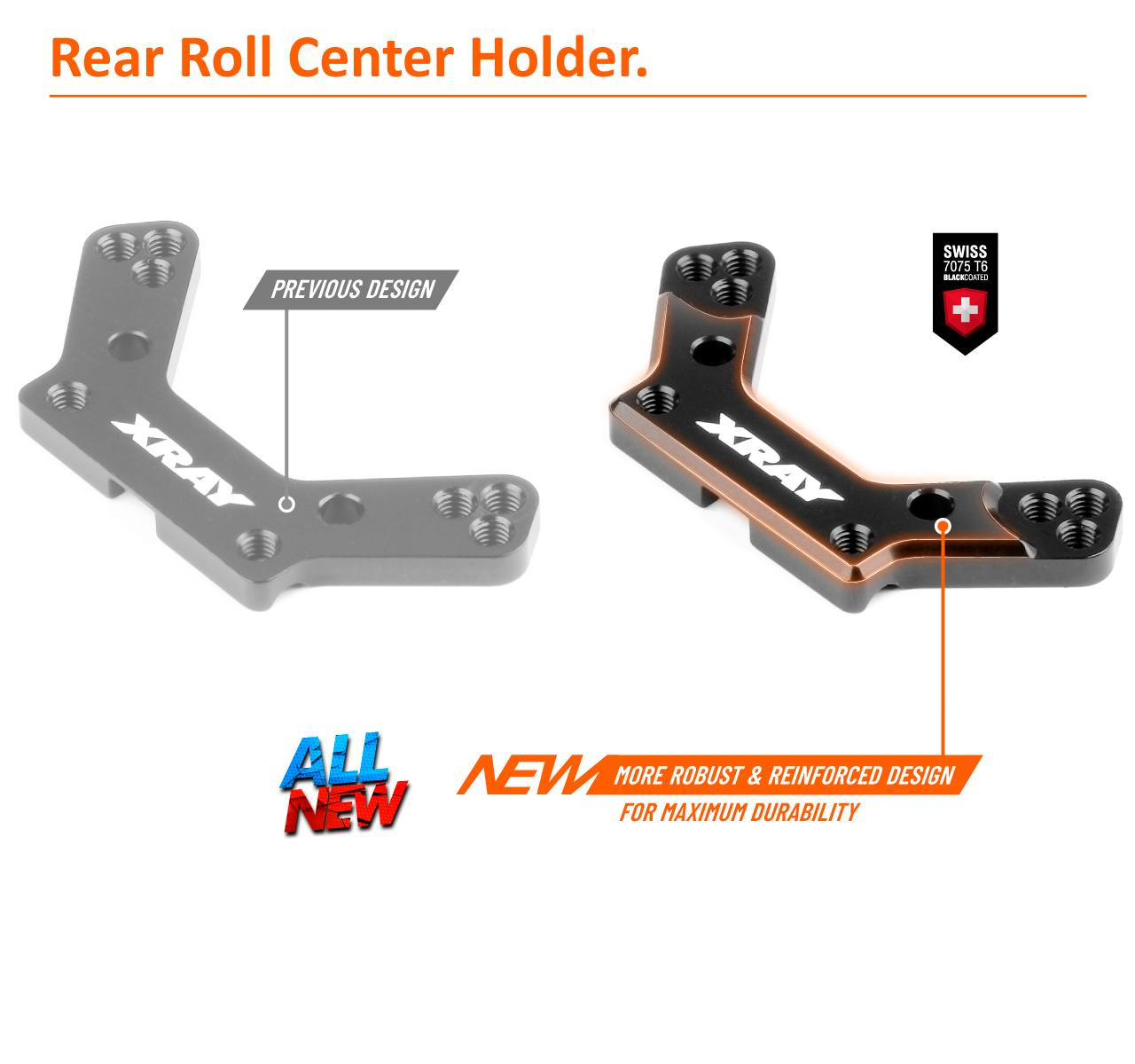

Rear Roll Center Holder
New aluminum Rear Roll Center Holder is included in each kit. Its centering milled area for the anti-roll bar collar eliminates play and improves the precision of the anti-roll bar movement.
The new holder also adds an extra middle pivot ball mounting position for additional roll center tuning.
The aluminum holder increases strength & reliability over the previous composite part.

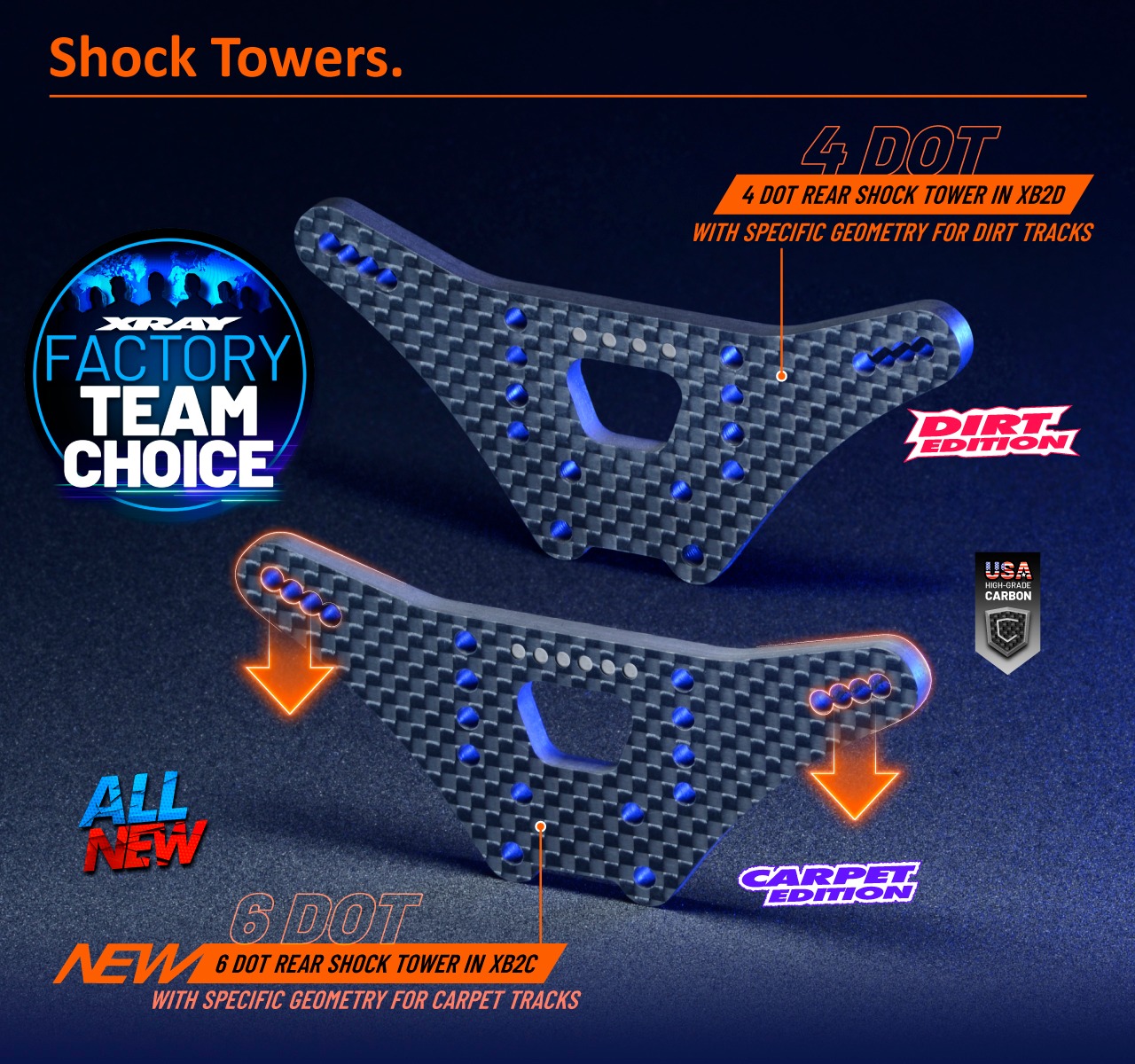

Shock Towers
The rear 6 dot shock tower in the XB2C improves stability and prevents the rear suspension from collapsing during high speed cornering.

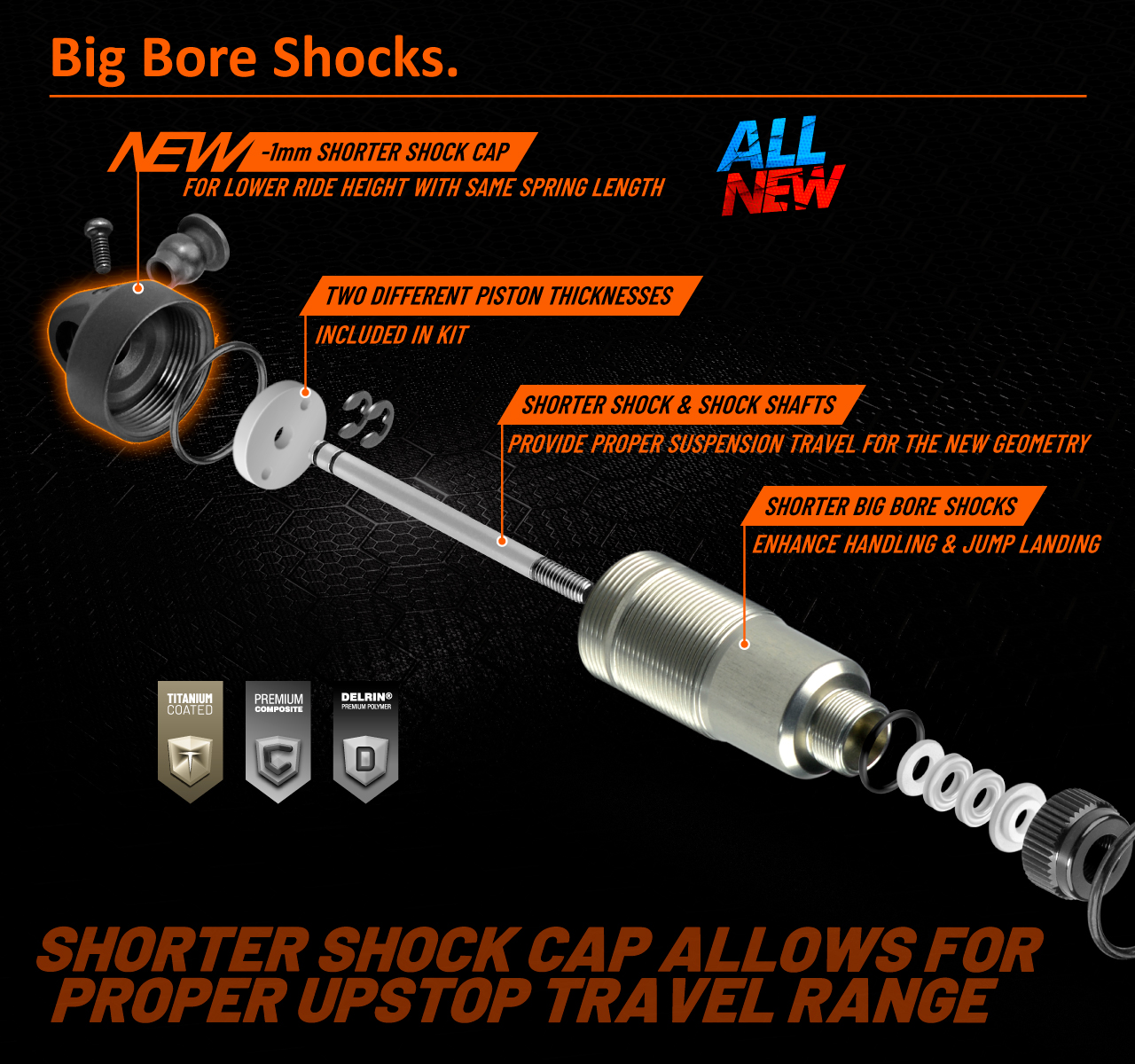

Big Bore Shocks
The shock absorbers feature a new 1mm shorter shock cap. The shorter shock cap gives greater up travel during compression of the suspension that is needed to maximize suspension performance in certain conditions and setups.

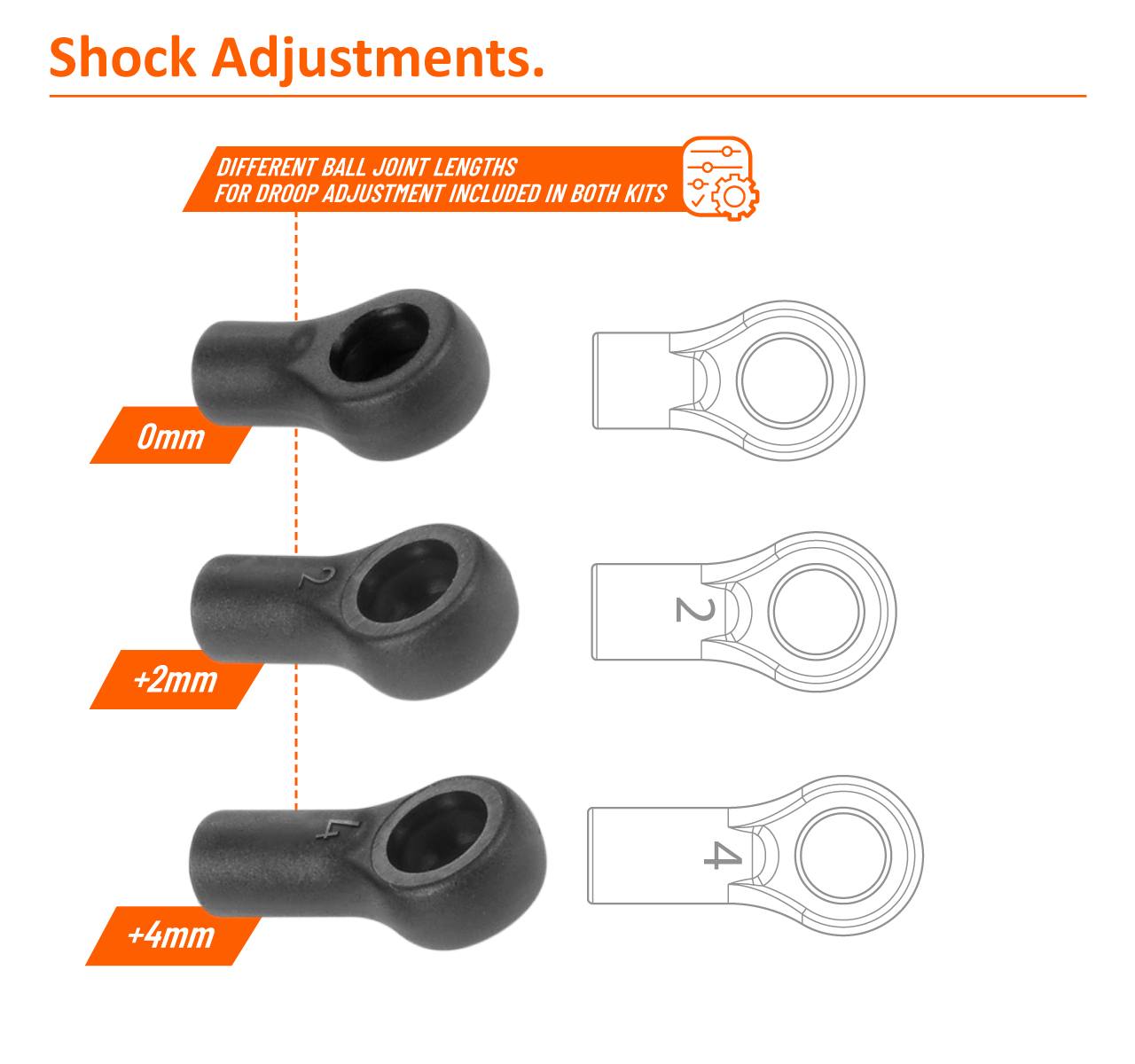

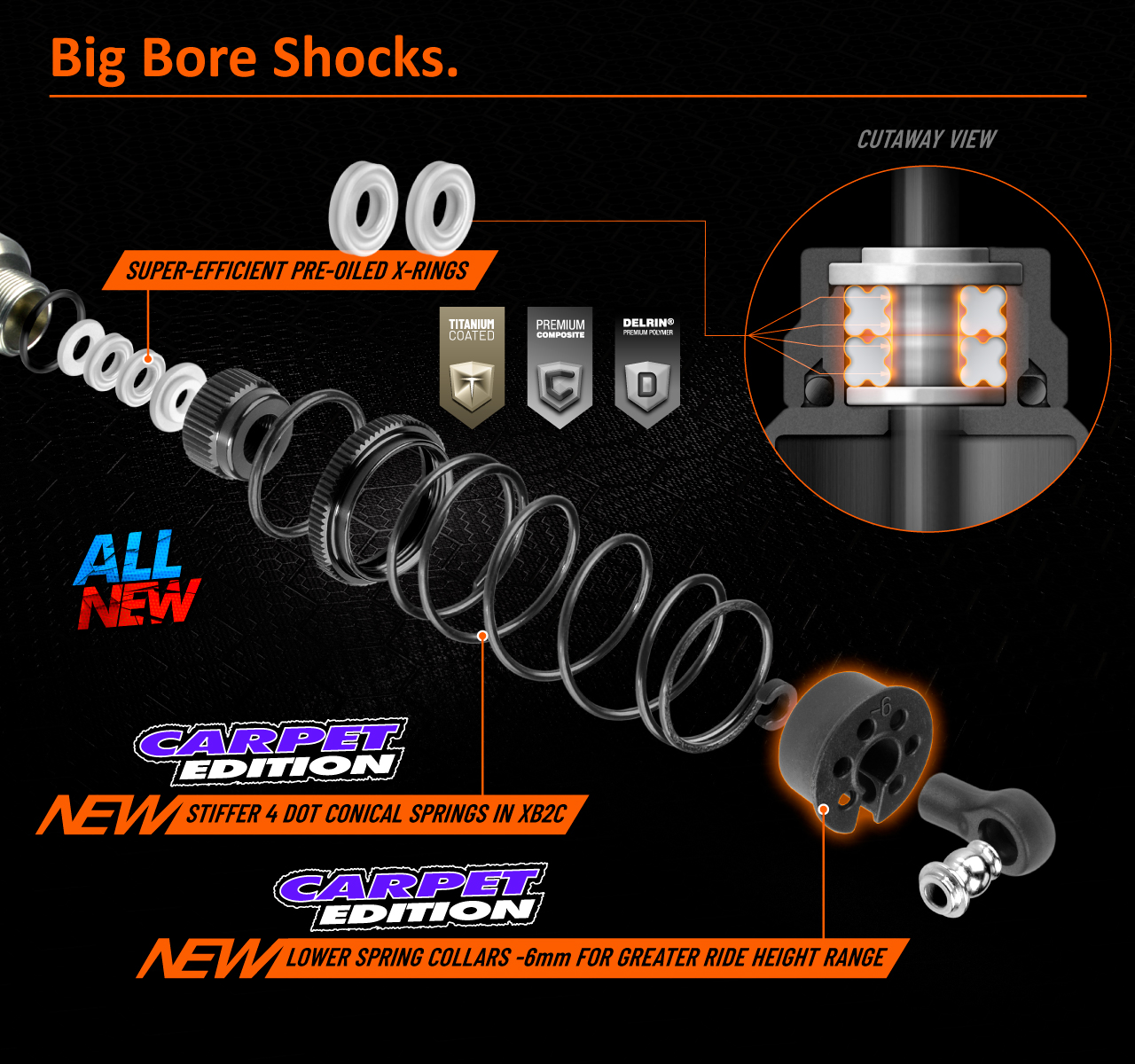

Shock Adjustments
The XB2C features a -6mm lower shock spring collar to reach lower ride height settings needed on smooth high traction surfaces.

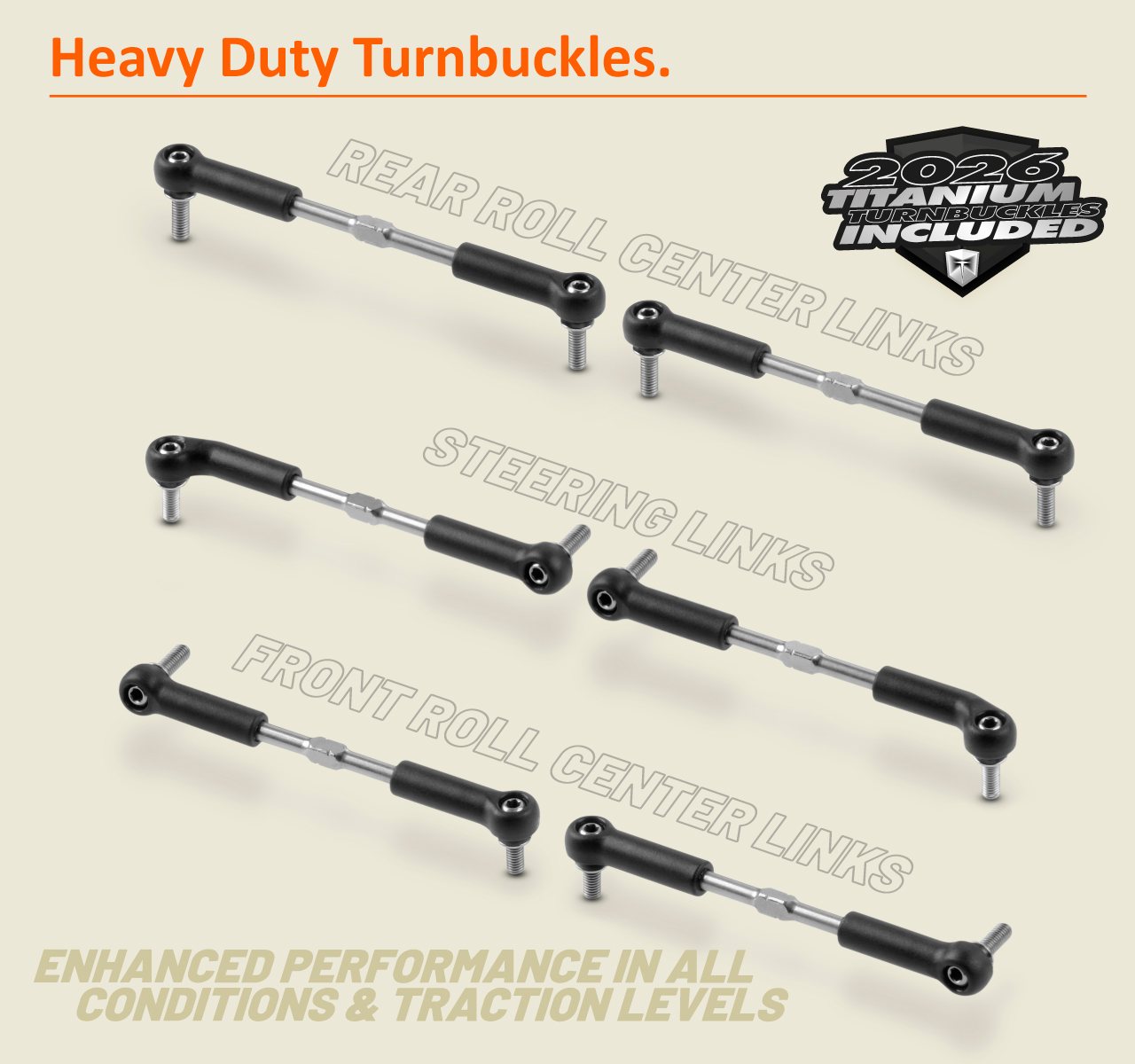

Heavy Duty Titanium Turnbuckles

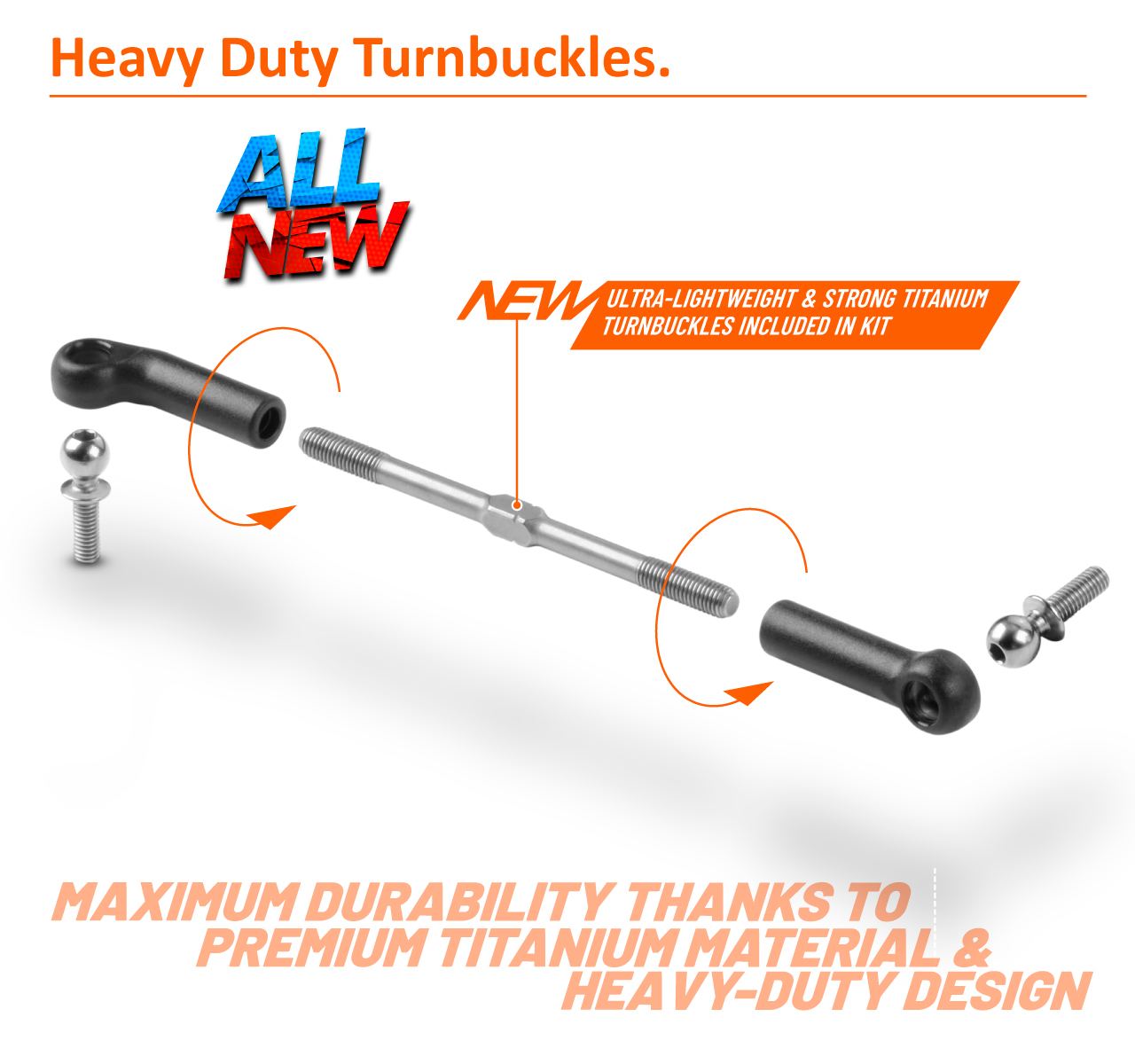

The XB2 now features ultra-lightweight & strong titanium turnbuckles all made in-house in Europe. The titanium turnbuckles enhance performance in all conditions.
The turnbuckles are very durable thanks to their heavy-duty design and the premium titanium materials.

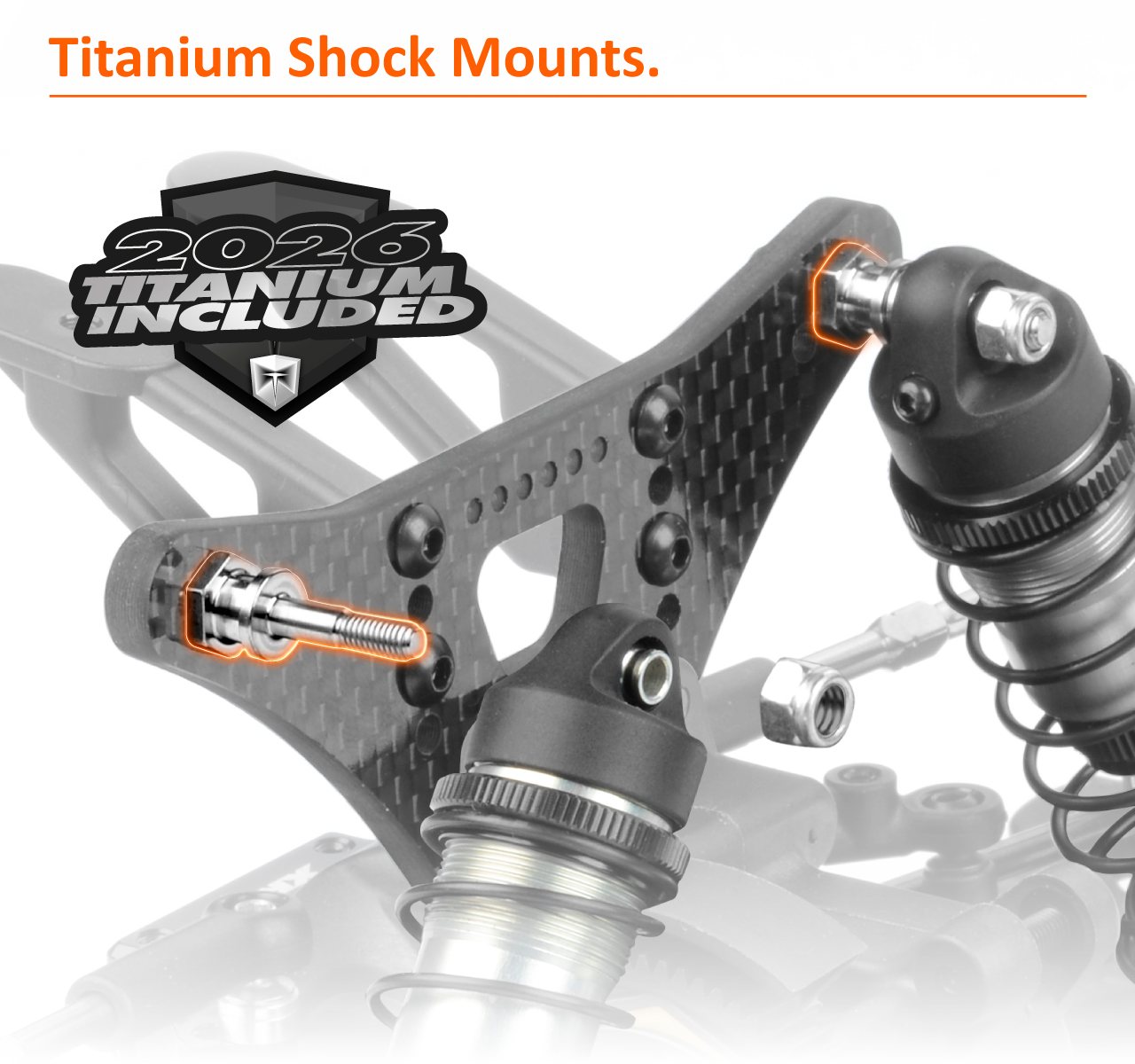

Titanium Shock Mounts

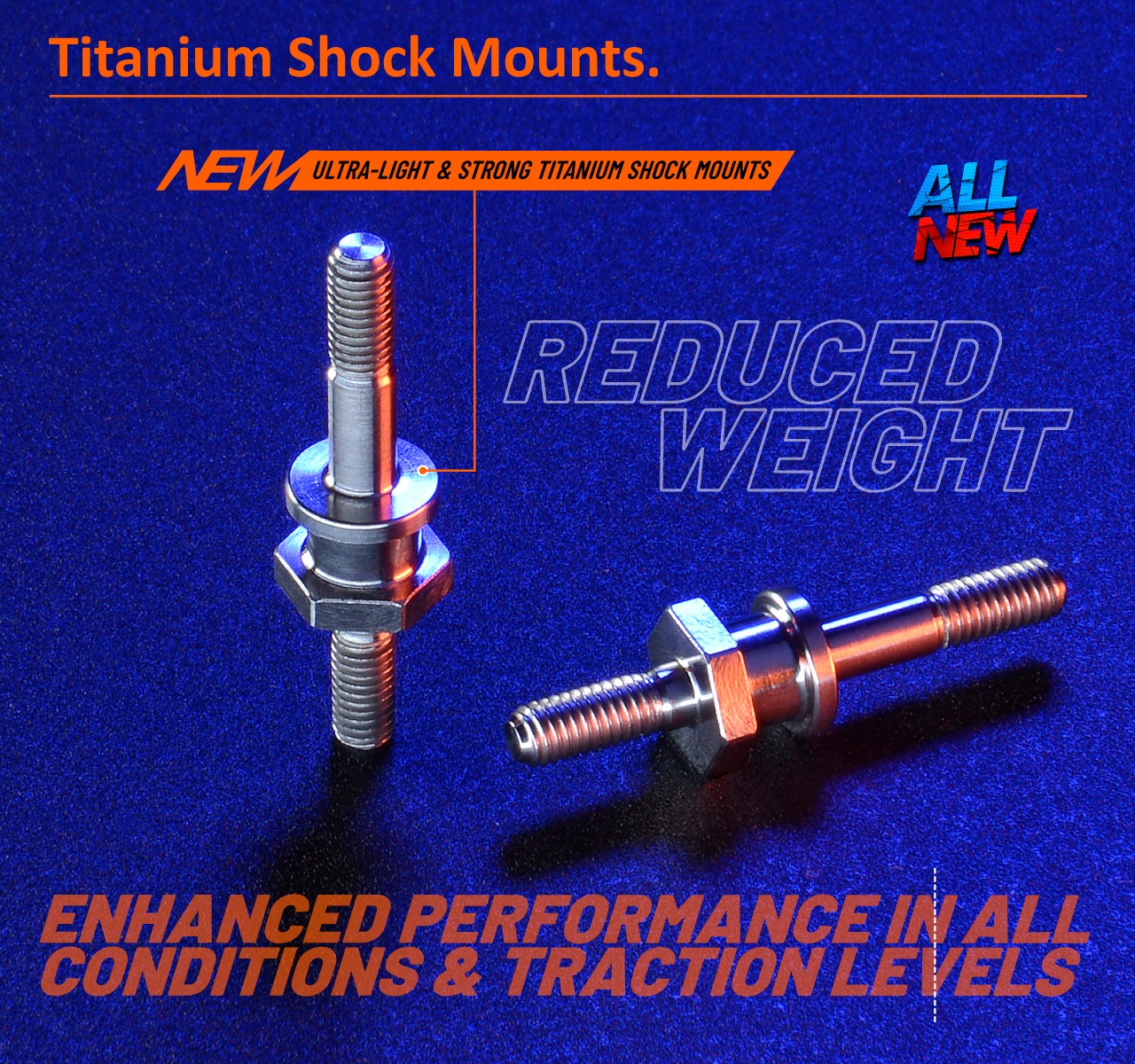

Ultra-light & strong titanium rear shock mounts are now included as standard in the kit to reduce the weight.

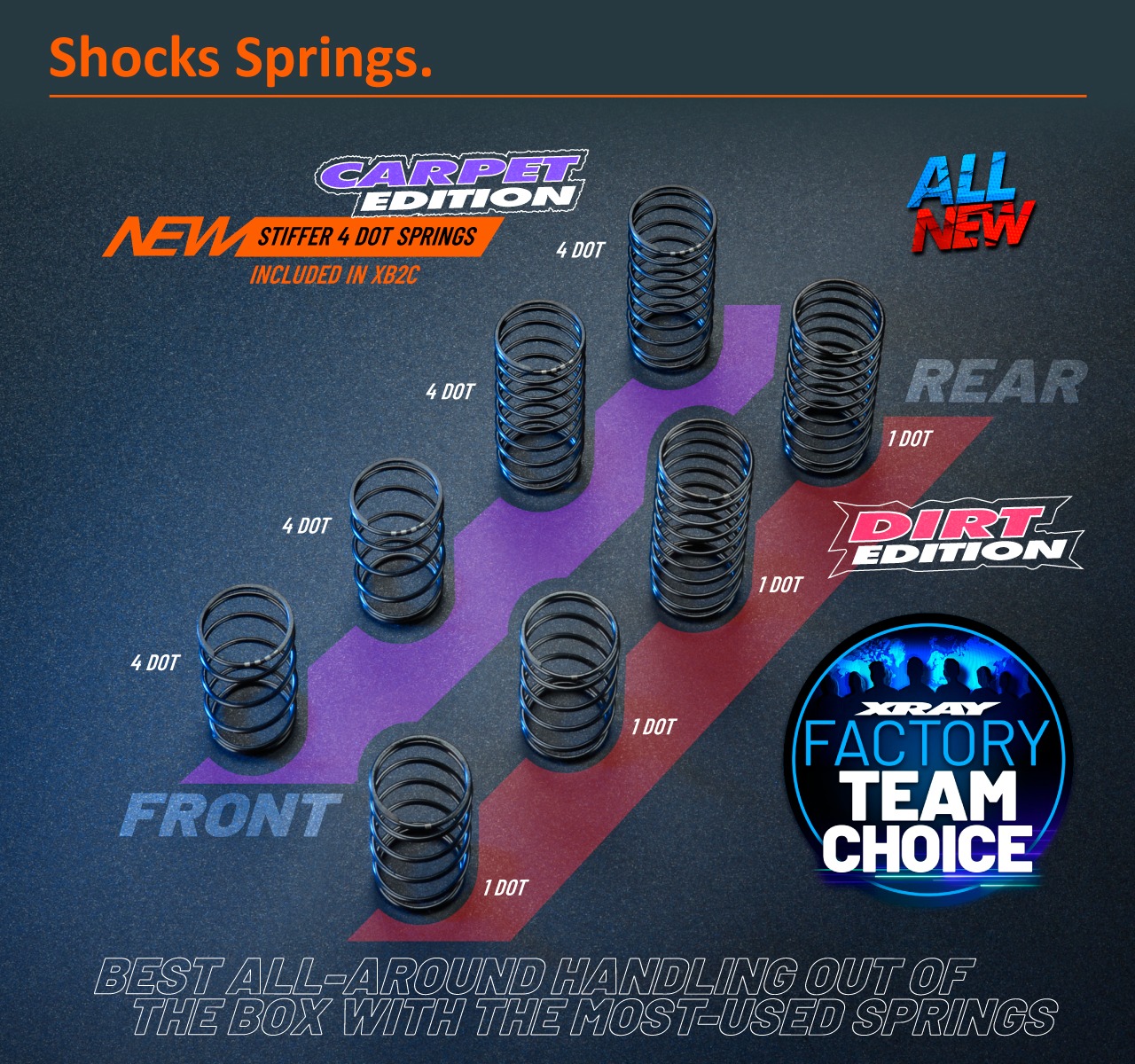

Shocks Springs
4 dot front & rear springs are now included in the XB2C to improve out of the box performance on most carpet tracks. The stiffer spring combination works together with the new shock geometry to provide more consistent handling on carpet and other very high traction conditions.
Wings

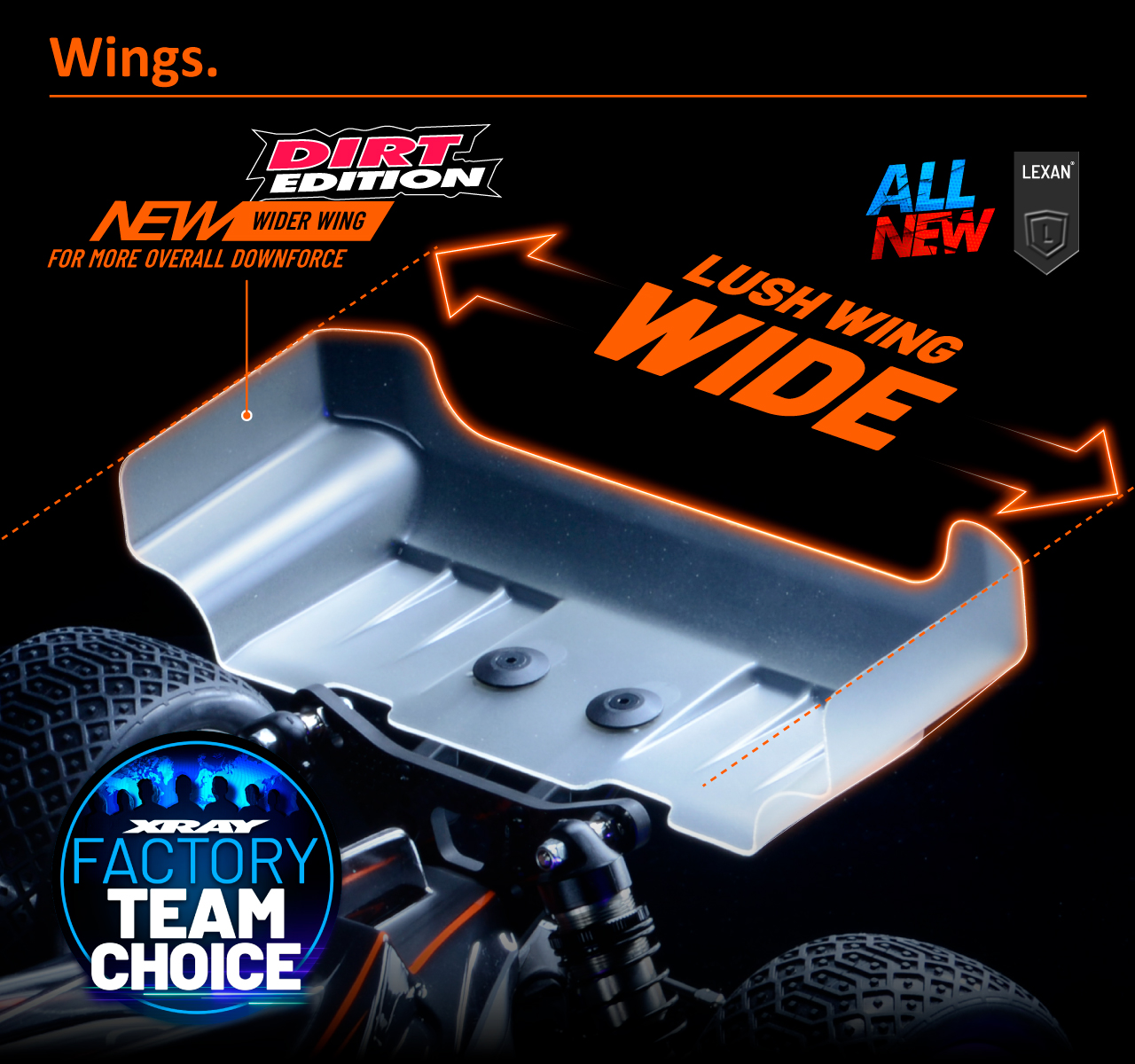

To further improve consistency on lower grip dirt tracks, a all-new wider rear wing is included in the XB2D kit. The wider rear wing provides more overall down force, increases traction and enhances rear stability.
Wheel Hubs

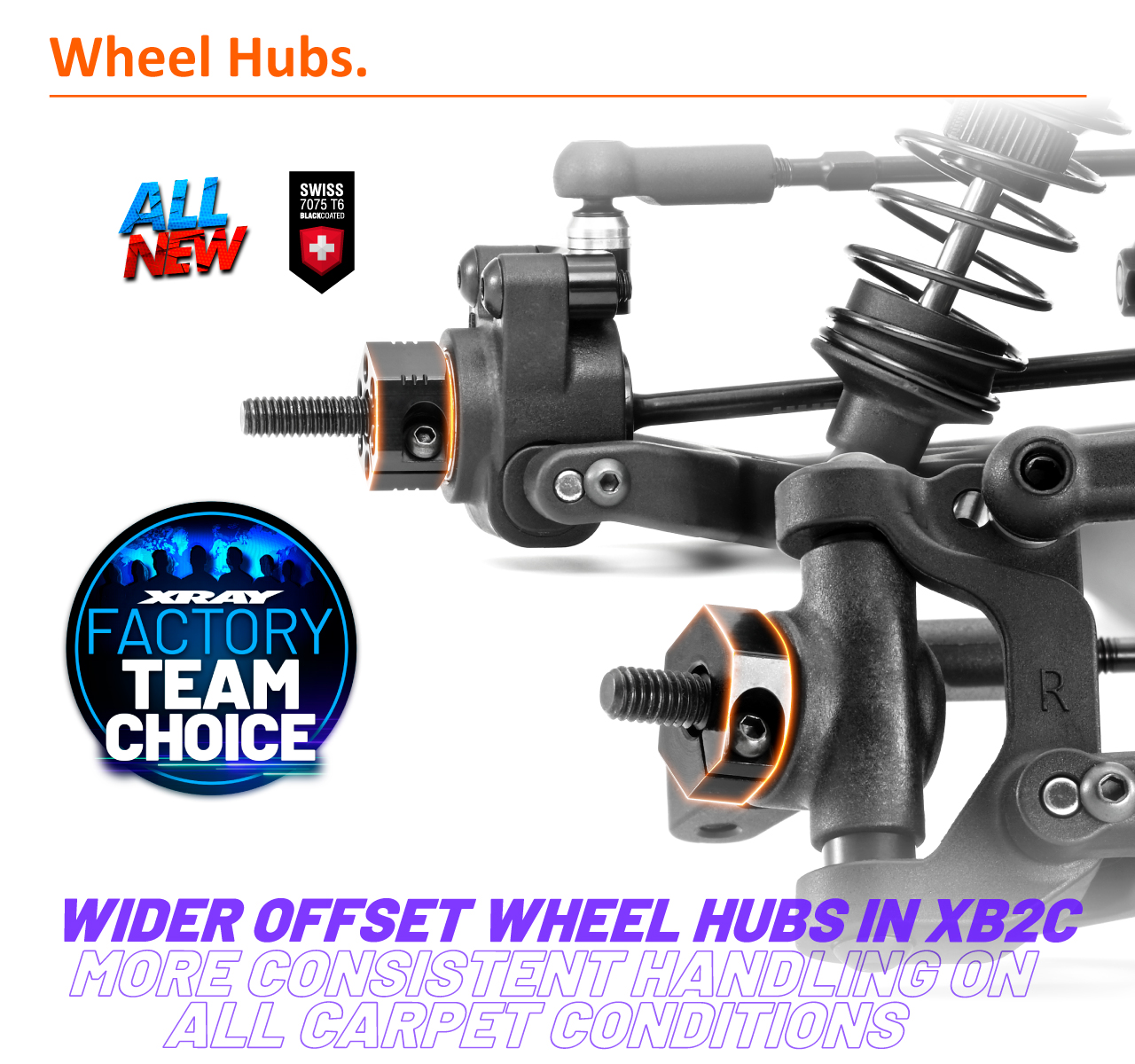

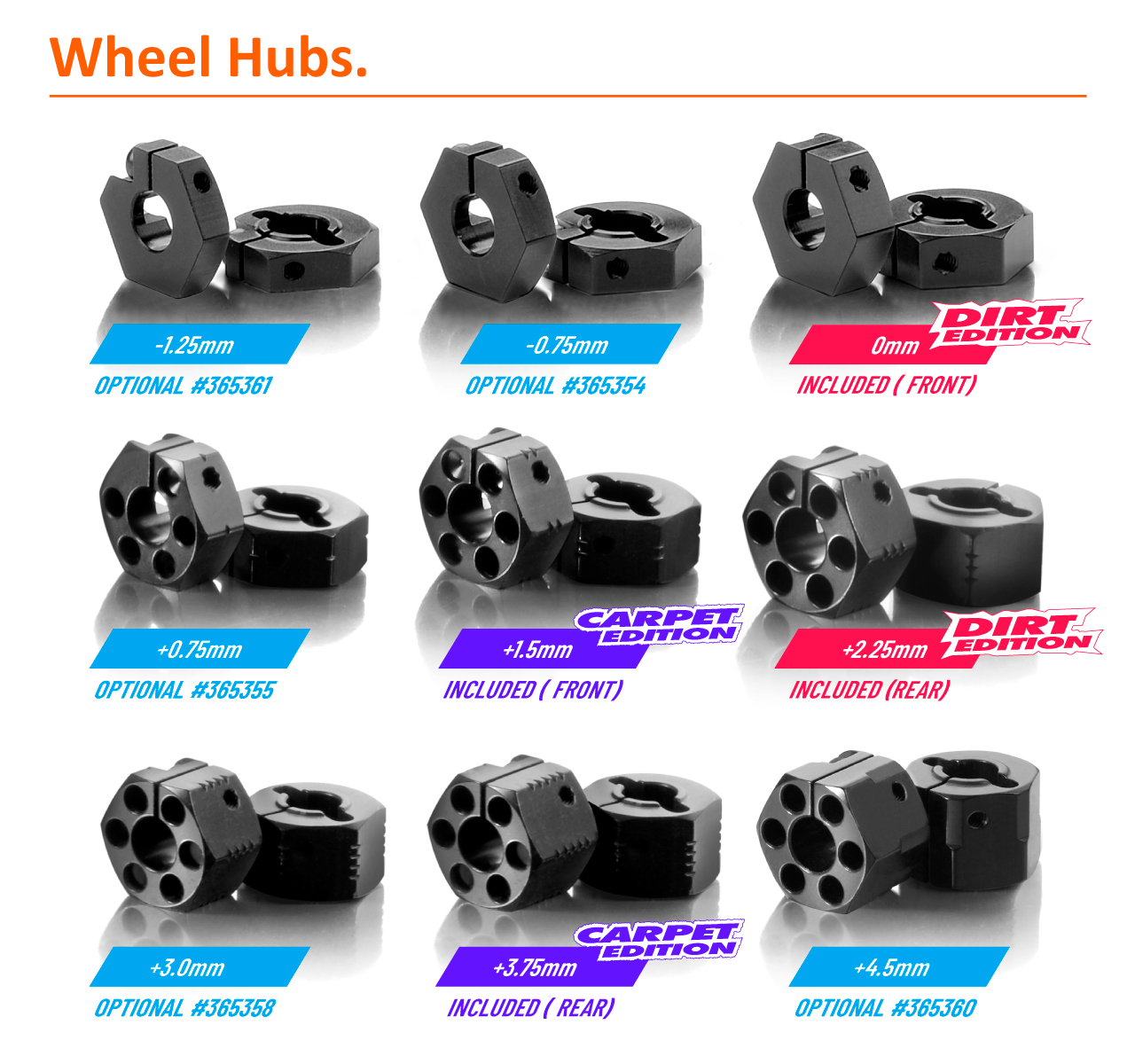

The XB2C comes with wider offset wheel hubs - rear 5 slot & front 2 slot, for a more consistent handling on all carpet conditions.

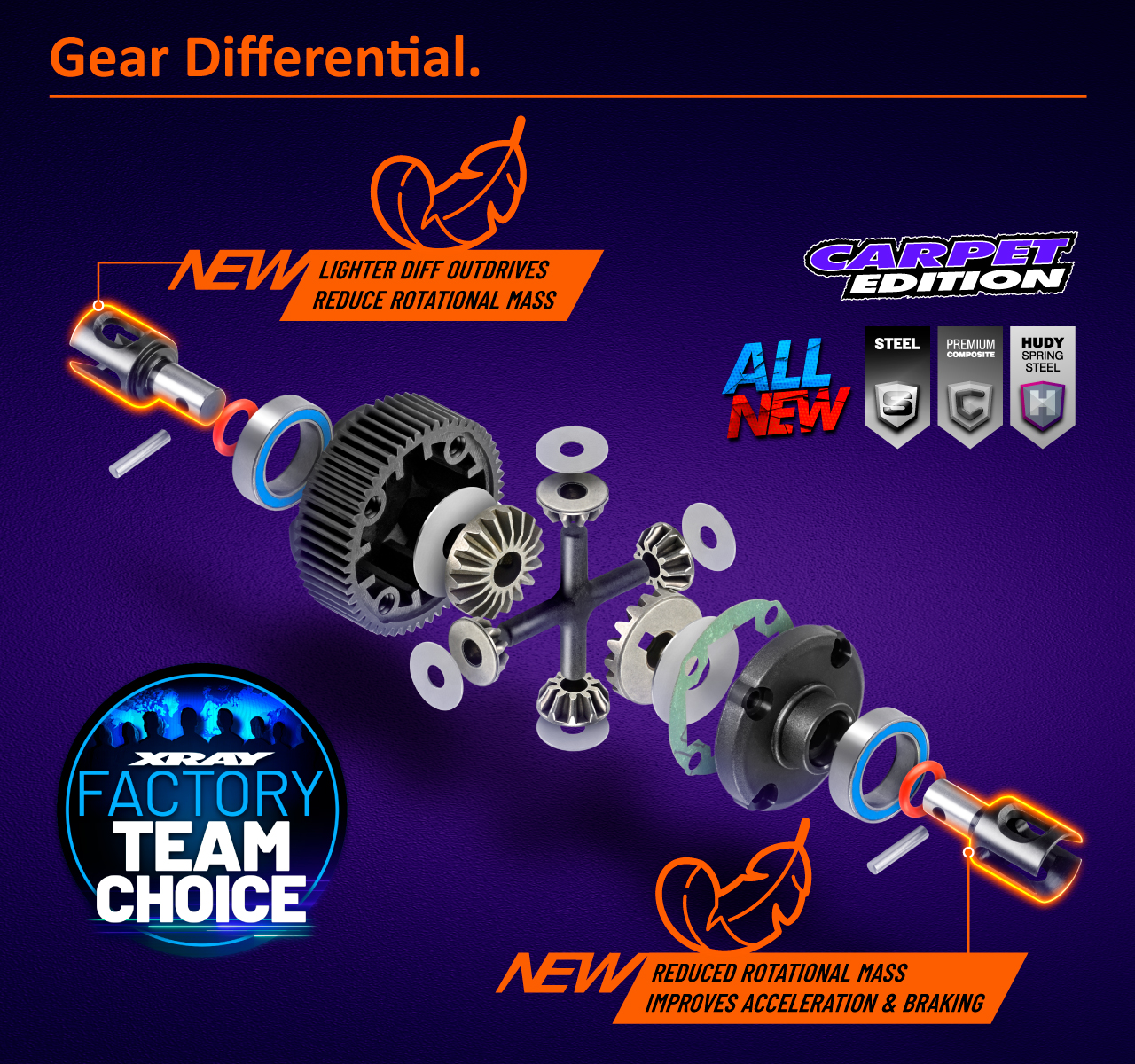

Gear Differential
Lighter diff outdrives reduce rotational mass, improving acceleration, braking, and drivetrain efficiency. The gear differential is suggested for medium to high traction conditions as it increases on-power steering and is beneficial on all carpet tracks.

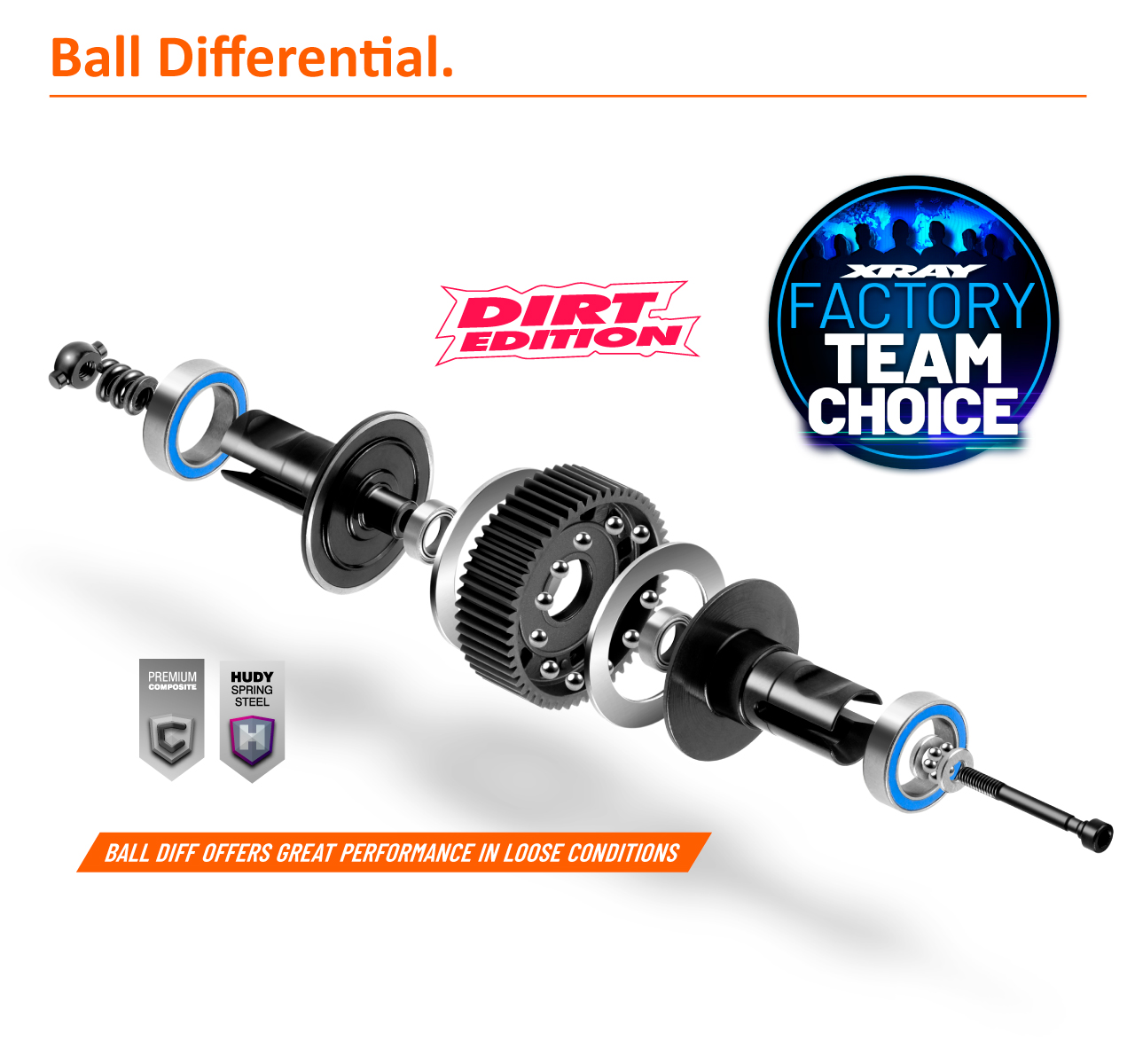

Ball Differential

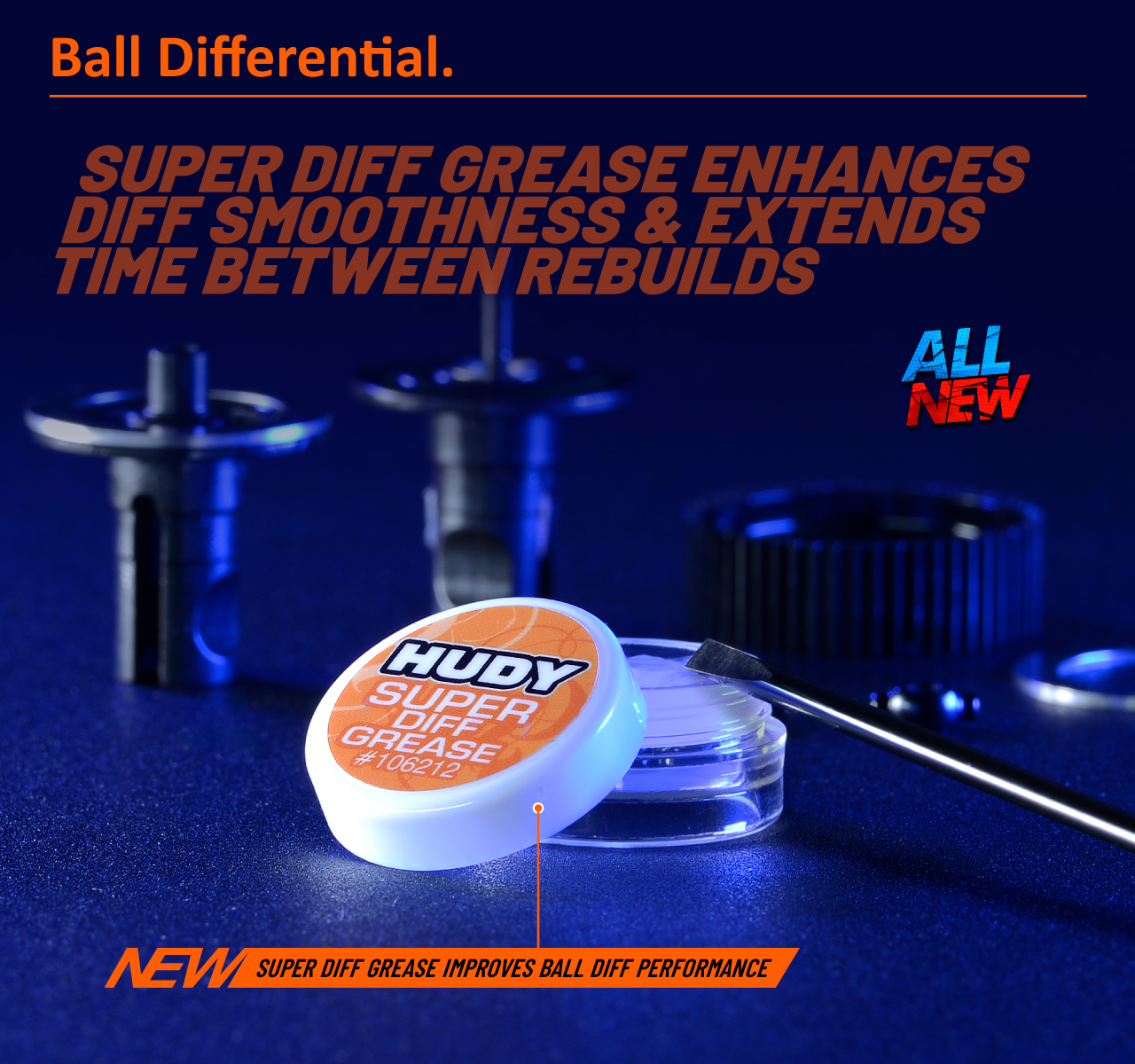

The XB2D ball differential offers great performance & durability. Now HUDY Super Diff Grease is included in the XB2D for the most consistent smooth & longest-lasting ball differential assembly.
|
