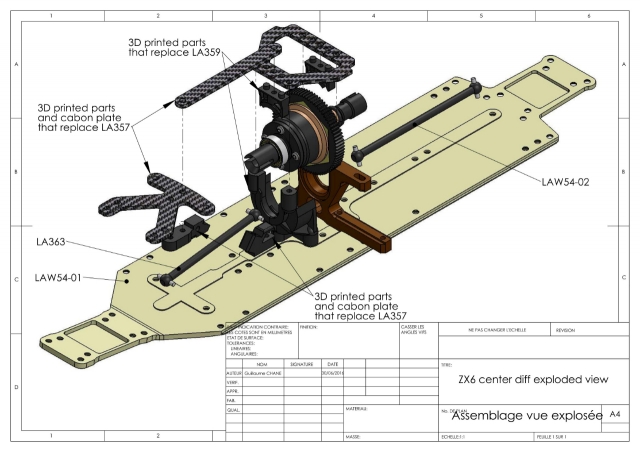

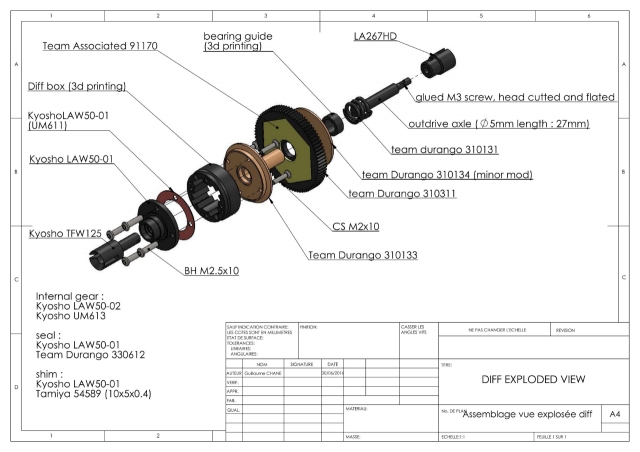

First the slipper/differential, it is made by using some part of the durango DEX410v5 :

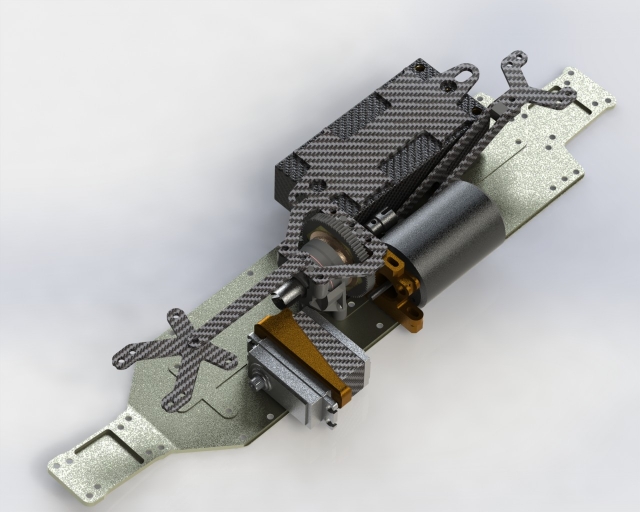

The final render :
Lets make it real :)

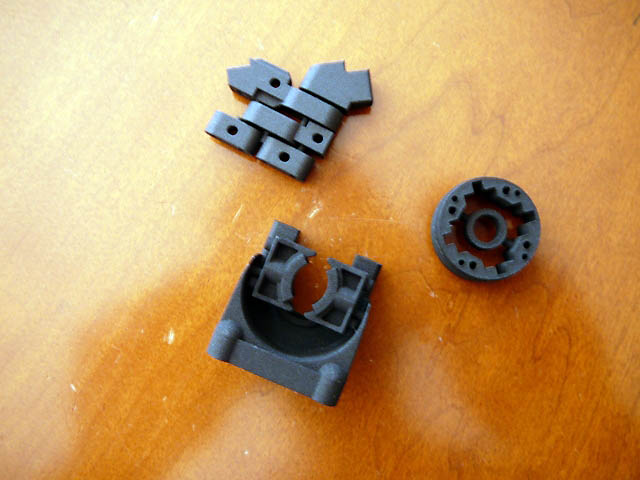

3D printed part :

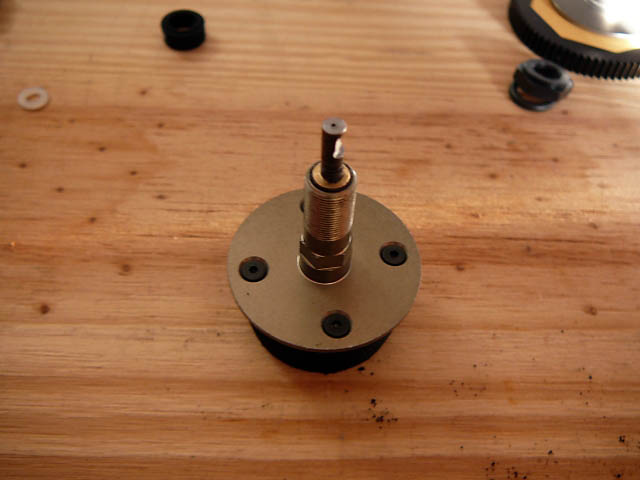

Slipper assembly :

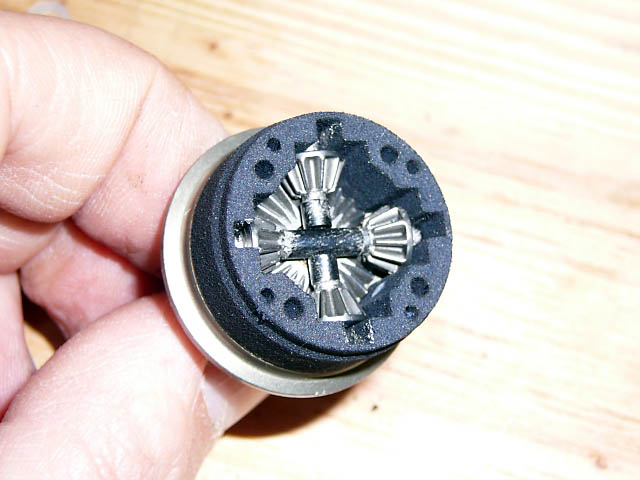

Differential assembly :
Note instead of Durango slipper/differential, we can change diff oil without need of disassemble the slipper clutch

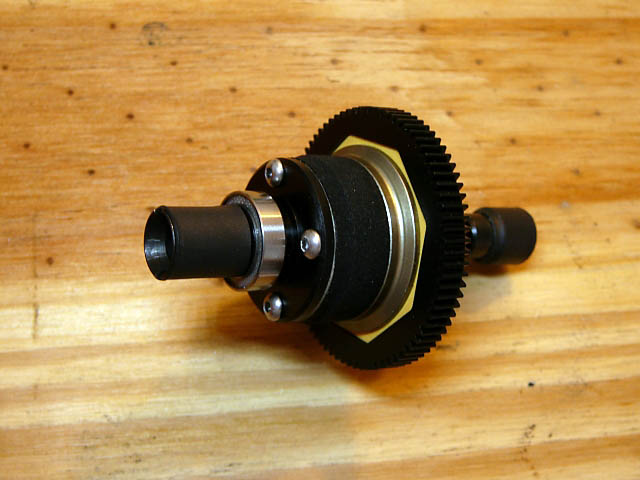

The slipper/differential full assembled :

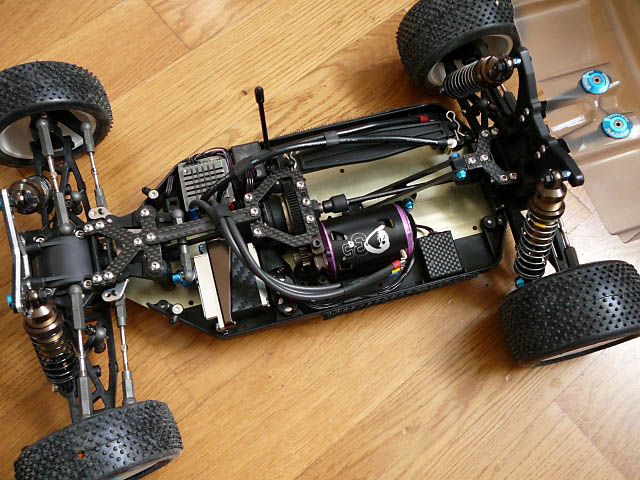

Everything is ready for the test :)
Note the steering plate made for easier bump steer adjustement (and it's stronger here than on the hub side)
|
|
|
|
|
|
|
