P/N Description Qty Price Fit
MRTC-BD716   BD7-2016 BD7-2016 Chassis kit   63,800 -
B7-16C BD7 2016 Conversion kit   43,800 *
B7-2014NS SLF Standard Shock Set   6,200 *
B7-2016S   SLF Short Shock II Set   6,300 o
B7-SACF Front short suspention arm conversion for BD7   3,800 *
B7-SACR Rear short suspention arm conversion for BD7   5,300 *
O = Standard Parts * = Option Parts
BD-001 Bumper   380 o
B7-001FS Urethane Bumper   450 o
BD-001W Wide Bumper   980 *
B7-00216   Main Chassis   8,000 o
B7-00216A   Aluminum Main Chassis   9,800 *
B7-00316   Upper Deck   2,000 o
BD-008F Front Suspension Arm   580 *
BD-008FG Graphite Front Suspension Arm   980 o
BD-008FS Front Short Suspension Arm (Graphite)   980 *
BD-008R Rear Suspension Arm (Damper Pivot 40.5mm)   580 *
BD-008RG Graphite Rear Suspension Arm (Damper Pivot 40.5mm)   980 *
BD-008R1 Rear Suspension Arm (Damper Pivot 39.5mm)   580 *
BD-008RG1 Graphite Rear Suspension Arm (Damper Pivot 39.5mm)   980 o
BD-008RG2 Graphite Rear Suspension Arm (Damper Pivot 41.5mm)   980 *
BD-008RS Rear Short Suspension Arm (Graphite)   980 *
BD-009A Outer Suspension Arm Pin (f2×23mm) 4 300 o
BD-009BF Front Inner Suspension Arm Pin (f3×42mm) 2 300 o
BD-009BR Rear Inner Suspension Arm Pin (f3×45mm) 2 300 o
B7-010FW Front HD double joint universal shaft 2 4,980 o
BD-010RW Rear Double Joint Universal Shaft 2 4,980 *
B7-010BW Front Double Joint Bone 1 780 o
BD-010RBW Rear Double Joint Bone 1 760 *
BD-010AW Front Double Joint Axle 1 800 o
B7-010TWC Front Double Joint/Pin   1,480 o
BD-010PW Front Double Joint Pin/Set screw   250 *
B7-010PWC Front Double Joint Pin/Set screw   320 o
BB-105T2 Bearing for Front Double Joint Universal Shaft   550 o
BD-010F Front Universal Shaft(45.5mm Bone) 2 2,180 *
BD-010R Rear Universal Shaft (44.0mm Bone) 2 2,180 o
BD-010455 45.5mm Bone 1 520 *
BD-010440 44.0mm Bone 1 520 o
BD-010A Axle (F/R) 1 480 o
BD-010TP /(f2)Joint/Pin(f2mm)   250 o
BD-011CB Clamp Wheel Hub (5.0mm Black) 2 1,000 o
BD-01440B Rear Aluminum 44.0mm Bone (Black) 1 900 *
BD-016 Body Mount Set   460 o
BD-016FS Graphite Front Body Mount Support   1,080 *
B7-01716   Front Shock Tower   1,380 *
B7-01716S   Front Shock Tower for SLF Short shock   1,380 o
B7-01816   Rear Shock Tower   1,750 *
B7-01816S   Rear Shock Tower for SLF Short shock   1,750 o

B7-110 Aluminum wing plate   780 *
B7-11815 Battery holder set   2,480 o
B7-118RS Non slip battery rubber tape   200 o
BD-177L   Rear Drive Belt   450 o

B7-201B6   Bell Crank Bridge (Black)   2,100 *
BD-201P7 f5 Bell Crank Post (Black) 2 380 o
B7-201LBA   Center Link (8mm type /w bearingBlack)   2,100 *
B7-202RS Steering bell crank setfor BD7 ver.RS   560 o
B7-202SBA   Bell crank (F8×F5 bearing assembled)   3,300 *
B7-202SS   Steering bell crank set   5,200 *
B7-202S1 Bell crank (1mm longer/F8×F5 bearing assembled) 2 3,200 *
B7-203B Aluminum Special Servo Mount   3,100 *
B7-20314 Plastic servo mount/Belt tensioner/Battery guide   500 o
B7-204 Servo horn/Stabilizer holder/Anthenna mount   580 o
B7-204F Aluminum Servo horn (for FUTABA servo)   880 *
B7-204SK Aluminum Servo horn (for Airtonics/KO servo)   880 *
B7-207 Ball end cap 16 580 o

BD-301B Suspension Arm Pin Ball (f3mm) 4 250 o
B7-3120B Aluminum Suspension mount (42.0mm Black)   1,580 *
B7-3135B (43.5mm)Aluminum Suspension mount (43.5mm Black)   1,580 o
B7-3139B Aluminum Suspension mount (43.9mm Black)   1,580 *
B7-3142B Aluminum Suspension mount (44.2mm Black)   1,580 *
B7-3149B (44.9mm)Aluminum Suspension mount (44.9mm Black)   1,580 *
B7-3157B Aluminum Suspension mount (45.7mm Black)   1,580 *
B7-3164B Aluminum Suspension mount (46.4mm Black)   1,580 o
B7-3172B Aluminum Suspension mount (47.2mm Black)   1,680 *
B7-3179B Aluminum Suspension mount (47.9mm Black)   1,680 *
B7-3187B Aluminum Suspension mount (48.7mm Black)   1,680 *
B7-3194B Aluminum Suspension mount (49.4mm Black)   1,680 *
B7-3113BS   Aluminum Separate Suspension Mount (41.3mm)   1,450 *
B7-30113 Aluminum Separate Suspension Mount (41.3mm)   1,350 *
B7-3120BS Aluminum Separate Suspension Mount (42.0mm)   1,450 o
B7-3135BS Aluminum Separate Suspension Mount (43.5mm)   1,450 o
B7-3139BS Aluminum Separate Suspension Mount (43.9mm)   1,450 *
B7-3142BS   Aluminum Separate Suspension Mount (44.2mm)   1,450 *
B7-30142 Aluminum Separate Suspension Mount (44.2mm)   1,350 *
B7-3150BS Aluminum Separate Suspension Mount (45.0mm)   1,500 *
B7-3164BS Aluminum Separate Suspension Mount (46.4mm)   1,500 *

B7-SS05 Aluminum Suspension Mount Spacer (0.5mm)   1,280 *
B7-SS08 Aluminum Suspension Mount Spacer (0.8mm)   1,280 *
B7-SS10 Aluminum Suspension Mount Spacer (1.0mm)   1,280 *

B7-302A16   Bulkhead A (Front Left/Rear Right/Black)   2,800 o
B7-302B16   Bulkhead B (Front Right/Rear Left/Black)   2,800 o
B7-302C16   Bulkhead B (Front Right/Rear Left/Black)   2,680 o
B7-32FR16   Front Bulkhead Cap (Right)   2,480 o
B7-32FL16   Front Bulkhead Cap (Left)   2,480 o
B7-32RR16   ()
>Rear Bulkhead Cap (Right)		   2,480 o
B7-32RL16   Rear Bulkhead Cap (Left)   2,480 o
B7-32L16   Motor mount   4,200 o

B7-412R   Steel Stabilizer Rod (2pcs) 2 380 o
B7-412RA   Aluminum Stabilizer Rod (2pcs Black) 2 480 *
B7-412S2 Stabilizer Stopper (Black) 1 800 o
B7-412RW   Rear stabilizer wire set (F1.0~1.6/6pcs)   930 o
B7-413W Front Steering Hub Carrier (Double joint universal )   580 o
B7-413W2 Front Steering Hub Carrier (Double joint universal /Caster 2°)   580 *
B7-413W6 Front Steering Hub Carrier (Double joint universal /Caster 6°)   580 *
BD-414B King Pin Ball Set   320 o
BD-414C King Pin Coller   150 o
BD-415S Front Steering Block   580 *
BD-415SG Graphite Front Steering Block   900 o
BD-415R Rear Rear Hub Carrier   580 *
BD-415RG Graphite RearRear Hub Carrier   900 o
BD-415A00 Aluminum Toe-in 0 Rear Hub Carrier   3,200 *
BD-415A05 Aluminum Toe-in 0.5 Rear Hub Carrier   3,200 *

B7-500GS6   (34T)Gear Differential Unit (34T)   4,200 o
B7-500GM6   Gear Differential Maintenance Kit   550 o
BD-500GO Gear Differential O ring (Silicon/Red) 4 200 o
BD-500GOB Gear Differential O ring (Neoprene/Black) 4 200 *
BD-500DPW Diff joint protector (White) 4 360 o
BD-500GA Gear Differential Aluminum Drive Cup   580 *
BD-501GC Gear Differential Aluminum Drive Cup   980 o
BD-501GS Gear Differential Steel Drive Cup   980 *
BD-501GG Gear Differential Gasket   200 o
B7-501L   Low friction front drive belt   650 o
B7-501S6   Aluminum Solid Axle (Black)   3,500 o
BD-503GP Gear Differential Bevel Gear Set   600 o
B7-503GH6   Gear Differential 34T Pulley/Differential Case   820 o

B7-63016   Drive pulley B (17T/Direct main gear adaptor)   2,080 o
BD-641W Front One-Way Housing BD5 World Spec   3,000 *
B7-643F6   34T Drive pulley for One-way/Solid axle   500 o
B7-64416   Main gear shaft   520 o
B7-644T16   Titanium coat main gear shaft   1,200 *

BD-ABM6B Adjustable Body Mount (Black) for f6mm Post   680 *

B7-BTC Light weight Belt Teansion Adjust Cam (4pcs) 4 520 o
B7-BTCB Aluminum Belt Teansion Adjust Cam (1pcs Black) 1 680 *
BD-BTCS Belt Tension Cam Spring 4 200 o
B7-BWF10 Front Balance Weight (L/R 1 each 10g)   2,500 *
B7-BW20 Center Balance Weight (20g)   1,200 *
B7-BW30 Center Balance Weight (30g)   1,480 *
B7-DMS   Digital steering servo for BD7 (Servo mount integral)   19,800 *
B7-FBTS16   Front Belt Tensioner Set (Black)   1,660 *

B7-GW40 GOKURAKU wing 4.0   700 *
B7-GW40SD Side plate for GOKURAKU wing 4.0 4 300 *

BD-S103 f1.0×3 hole Piston for SLF Normal shock 4 450 *
BD-S113 f1.1×3 hole Piston for SLF Normal shock 4 450 *
B7-S113   f1.1×3 hole Piston for SLF Short shock II 4 450 *
BD-S113T f1.1×3 hole Taper Piston for SLF Normal shock 4 450 *
B7-S114   f1.1×4 hole Piston for SLF Short shock II 4 450 o
BD-SBP Blank Piston for SLF Normal shock 4 450 *
B7-SBP   Blank Piston for SLF Normal shock 4 480 *
B7-S2B   P3 O Ring Coller (Thick) for SLF Short shock II 4 450 o
BD-S2B P3 O Ring Coller (Thick) for SLF Normal shock 4 450 o
BD-S2W P3 O Ring Coller (Thin) 4 450 *
B7-S3N Spring cup for SLF normal shock (Black) 2 650 *
B7-S3S16   Spring cup for SLF Short shock II (Black) 2 680 o
B7-S4N Shock cylinder for SLF normal shock 2 1,500 *
B7-S4S16   Shock cylinder for SLF Short shock II 2 1,460 o
B7-S4C O ring cap/Adjust nut/Shock cap nut for SLF Shock   1,200 *
B7-S4C16   O ring cap/Adjust nut/Shock cap nut for SLF Short shock II   1,200 o
B7-S5N Shock shaft for SLF normal shock 1 200 *
B7-S5S16   Shock shaft for SLF short shock II 1 200 o
B7-S5NT Shock shaft for SLF normal shock (Titanium coat/4pcs) 4 1,580 *
B7-S5S16T   Shock shaft for SLF short shock II (Titanium coat/4pcs) 4 1,600 *
B7-S614 Shock cap/ Shock end for SLF Shock 4 460 *
B7-S616   Shock cap/ Shock end for SLF Short shock II 4 460 o
B7-S6AC Aeration shock cap 4 980 *
B7-S8 Pivot ball for BD7 shock cap/end (4pcs) 4 520 o
B7-S8H Lubrication hard coat pivot ball for BD7 shock cap/end (4pcs) 4 980 *
B7-8DS16   Slicone rubber diaphragm for SLF Short shock II 4 350 o
B7-8DF16 Fluorine RubberHyper Diaphragm for SLF Short shock II 4 420 *

B7-14475   Shock spring for SLF Short shock II (White) 2 480 *
B7-14500   Shock spring for SLF Short shock II (Gold) 2 480 *
B7-14525   Shock spring for SLF Short shock II (Pink) 2 480 *
B7-14550   Shock spring for SLF Short shock II (Silver) 2 480 o
B7-14575   Shock spring for SLF Short shock II (Blue) 2 480 *
B7-14600   Shock spring for SLF Short shock II (Black) 2 480 *

B7-TBSA Titanium Turn Buckle Set (9pcs) 9 3,580 *
B7-TSS2   Titanium Screw Set (83pcs) 83 3,200 *
B7-TSSS Titanium/Steel Screw Set (77pcs) 77 2,000 *
B7-TSSS2   Titanium/Steel Screw Set (83pcs) 83 2,200 *

B7-64116 Panaracer spur gear 64pitch 116T 1 550 o
B7-6496 Panaracer spur gear 64pitch 96T *

CS-BG YOKOMO Black Greace   480 o
CS-DG YOKOMO Differential Greace   480 *
CS-HDL High Grade BallDifferential Greace   720 *
CS-DOT1~7 YOKOMO/X GEAR Flex Gear Differential Oil(35cc) DOT1~7   840 *
CS-SLG Seal greace (for O ring/Gasket)   860 *
CS-5000 Super blend silicone oil (#5000)   440 *
CS-7500 Super blend silicone oil (#7500)   *
CS-10000 Super blend silicone oil (#10000)   480 *
CS-15000 Super blend silicone oil (#15000)   *
CS-20000 Super blend silicone oil (#20000)   600 *
CS-30000 Super blend silicone oil (#30000)   660 *
CS-50000 Super blend silicone oil (#50000)   700 *

D-046 Solid Axle Drive Cup (Steel)   900 o
DE-001A   DEANS 2P Connector   500 *

KLD-W Turn Buckle Wrench for Titanium Buckle   300 *

RC-313M Hood Pin (M)   120 o
RP-031   3mm Racing Performer 30mm Cooling fan   980 *
RP-032   4mm Racing Performer 40mm Cooling fan   980 *
RP-033   (30mm) Racing Performer HYPER Cooling fan   1,580 *

SD-414S Short King Pin 2 200 o
SD-011   Wheel hub pin/M4 Nut 4 200 o
SD-TB16 16mm Turn Buckle 2 300 o
SD-TB30 30mm Turn Buckle 2 300 o
SD-TB39 39mm Turn Buckle 2 300 o
ZC-TB16A 16mm Titanium Turn Buckle 2 790 *
ZC-TB29A 29mm Titanium Turn Buckle 2 790 *
ZC-TB39A 39mm Titanium Turn Buckle 2 790 *

YS-1455L PRO Shock Spring (Long TypeYellow)   420 *
YS-14575L PRO Shock Spring (Long Type Blue)   420 o
YS-1460L PRO Shock Spring (Long Type Black)   420 *
YS-1560L PRO Shock Spring (Long Type Orange)   420 *
YS-15625L PRO Shock Spring (Long Type Green)   420 *
YS-1565L PRO Shock Spring (Long Type Pink)   420 *
YS-15675L PRO Shock Spring (Long Type Purple)   420 *

YS-150 Super blend Shock Oil (#150~#700)   350 *
YS-200   *
YS-250   *
YS-300   *
YS-350   *
YS-400   *
YS-450   o
YS-500   *
YS-550   *
YS-600   *
YS-650   *
YS-700   o
YS-1000 Super blend Shock Oil (#1000)   380 *
YS-1500 Super blend Shock Oil (#1500~#3000)   420 *
YS-2000   *
YS-3000   *

YS-7B Down Stop O-Ring 8 120 *
YS-7HG High Grade O-Ring (Oil-Free) 8 380 *
YS-7S O-Ring (Soft) 8 120 o
YS-8HD Fluorine RubberHyper Diaphragm 4 380 *
YS-8DMH Silicon Diaphragm (Hard Type) 4 350 *

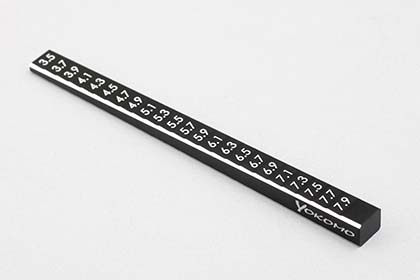

YT-HGTC Aluminum Hight Gauge for Touring car   1,600 *

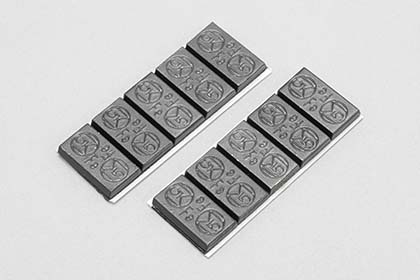

YT-RWF5 Steel racing weight (5g) 10 300 *
YT-STBM2   Setting board 2   3,800 *
YT-YPMA   Pit mat (YOKOMO Logo/600×900mm)   3,200 *
YT-25PB3   Racing pit bag III   16,800 *

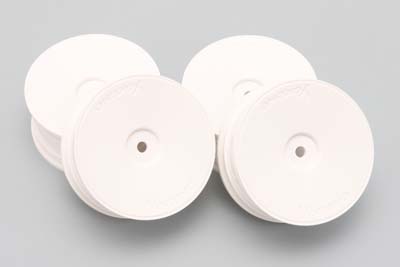

TW-1012-2 Super Precision Wheel (Medium Narrow) 4 480 *

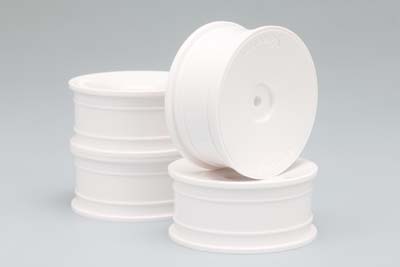

TW-1012H2 Super Precision Wheel (Medium Narrow)Hard Type 4 480 *

ZC-206AB   Stabilizer aluminum ball (Black) 2 320 o
ZC-206SSH

Hex socket Rod End Ball (SS Size/9.8mm)

 6 480 *
ZC-206SH Hex socket Rod End Ball (S Size/11.3mm) 6 480 o
ZC-206MH Hex socket Rod End Ball (M Size/12.7mm) 6 480 o
ZC-206LH Hex socket Rod End Ball (L Size/14.7mm) 6 480 o
ZC-207S Rod end plastic parts for stabilizer (Short type)   250 o

ZC-A3605B f3×f6×0.5mm Aluminum Shim (8pcs Black) 8 420 o
ZC-A3610B f3×f6×1.0mm Aluminum Shim (8pcs Black) 8 420 *
ZC-A3620B f3×f6×2.0mm Aluminum Shim (8pcs Black) 8 420 o
ZC-A3630B f3×f6×3.0mm Aluminum Shim (8pcs Black) 8 420 -

ZC-BD7-1 BD7 Decal   580 o
ZC-D15BL   TEAM YOKOMO Decal (Blue)   480 *
ZC-D15Y   TEAM YOKOMO Decal (Blue)   480 *
ZC-D15R   TEAM YOKOMO Decal (Blue)   480 *
ZC-D15W   TEAM YOKOMO Decal (Blue)   480 *
ZC-D16   YOKOMO Logo decal 2015   480 *


ZC-C25 M2×5mm Cap Screw (F3.8mm Head) 10 150 o
ZC-C25M M2×5mm Cap Screw (F3.2mmHead) 8 320 o
ZC-C25N M2.5×5mm Cap Screw (F2.9mm? Head) 8 150 o
ZC-M3DW   M3 ?Aluminum M3 taper washer 8 460 o
ZC-N4AFB Aluminum Flange Lock Nut (Blue) 4mm 4 280 *

ZC-N3APB

Aluminum Nut (Blue) 3mm

 4 150 *
ZC-N3AB Aluminum Lock Nut (Thin/Blue) 3mm 4 150 *
ZC-N4FBL Serrate Aluminum Flanged Nut (Blue 4pcs) 4 380 *
ZC-N4FR Serrate Aluminum Flanged Nut (Red 4pcs) 4 380 *
ZC-N4FP Serrate Aluminum Flanged Nut (Purple 4pcs) 4 380 *
ZC-N4FBK Serrate Aluminum Flanged Nut (Black 4pcs) 4 380 *

ZC-S50S F5mm spacer shimm (0.05mm 0.1mm 0.2mm)   450 *
ZC-S100S F10mm spacer shimm (0.05mm 0.1mm 0.2mm)   450 *

ZR-200G Black Anthenna Set   100 o
ZS-011CM Cramp Wheel Hub Maintenance Kit   150 *
ZS-011NM Maintenance kit for Narrow Cramp Wheel Hub   240 o
ZS-642T HD Front one-way drive cup 2 680 *

B7-BBC15 Ceramic bearing set 15 6,800 *
B7-BBP14   Precision bearing set 17 5,500 *
BB-105-2 f10×f5mm Ball Bearing 2 450 o
BB-1050CB f10×f5mm Ceramic Ball Bearing 2 1,000 *
BB-B105T2 Bearing for Front Double Joint Universal Shaft 2 550 o
BB-1510 f10×f15mm Ball Bearing 2 600 o
BB-1510CB f15×f10mm Ceramic Ball Bearing 2 1,200 *
BB-63-2   f3×f3mm Ball Bearing 2 420 o
BB-85-4 f8×f5mm Ball Bearing 4 980 o
BB-850CB f8×f5mm Ceramic Ball Bearing 2 1,000 *

Source:
