X1'25 All-new features:

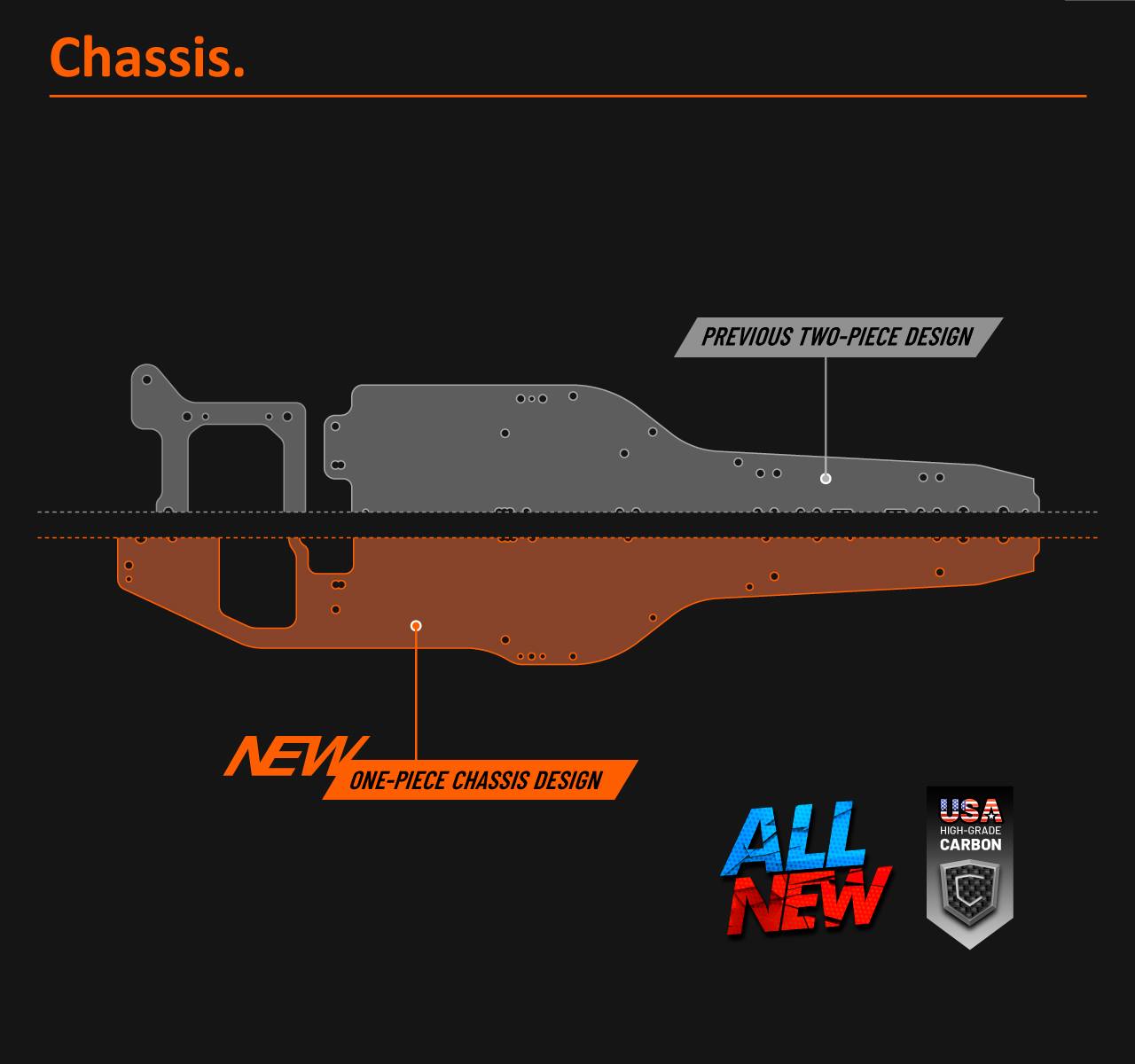

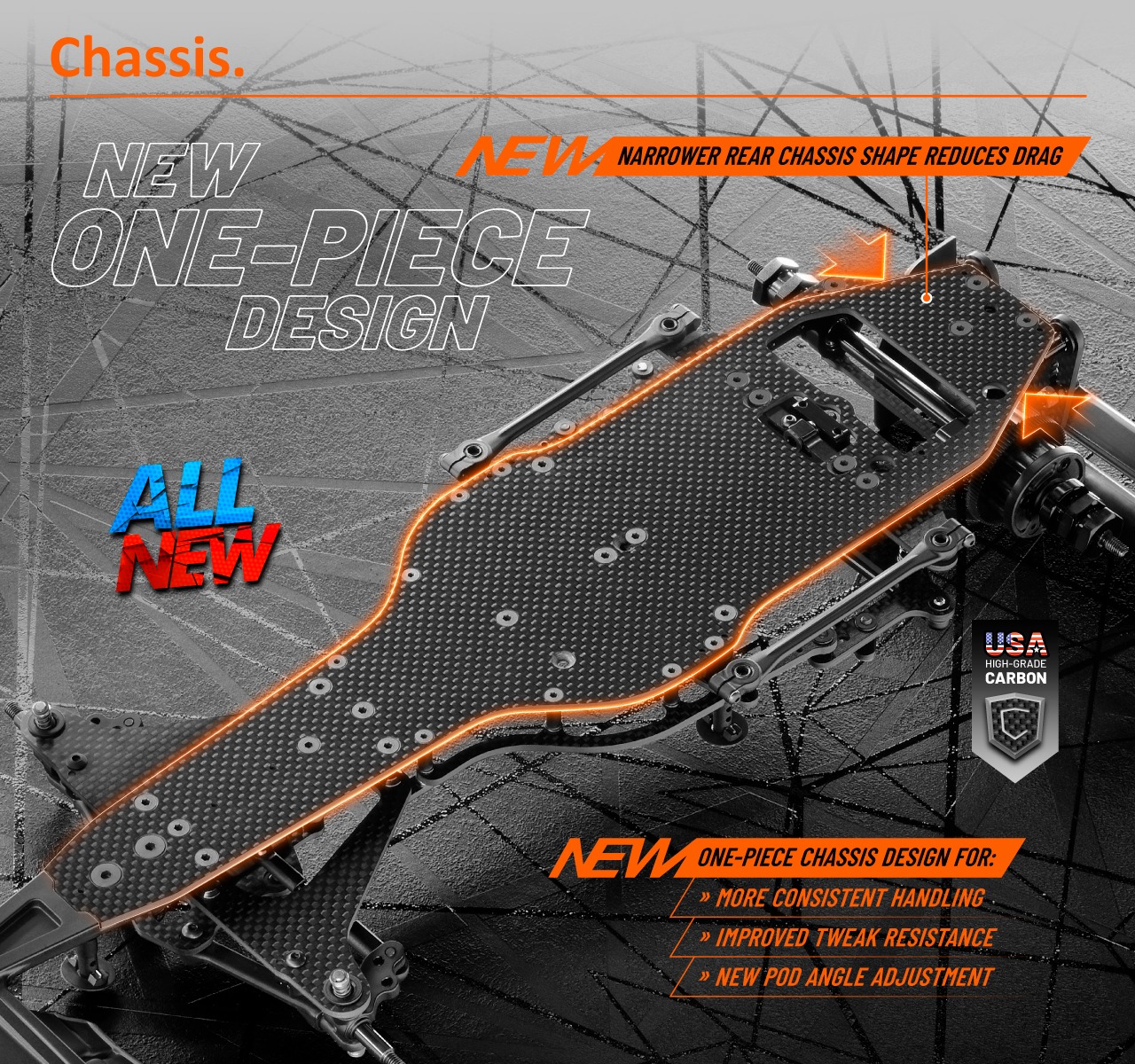

  • All-new one-piece chassis design with more consistent handling in all conditions and improved tweak resistance
  • Narrower chassis shape reduces chassis drag during cornering

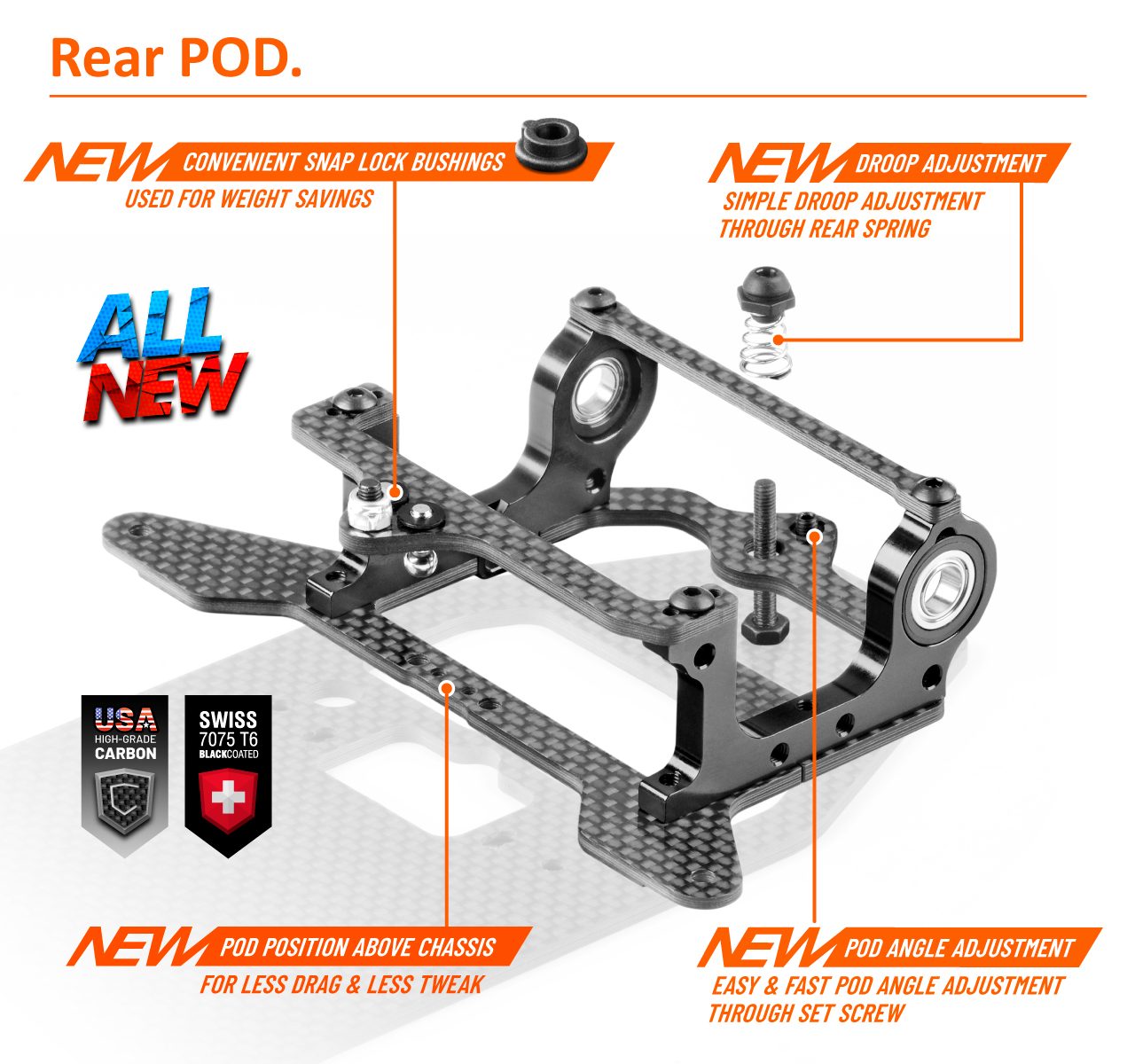

  • Rear POD concept on top of chassis for less drag and improved tweak resistance

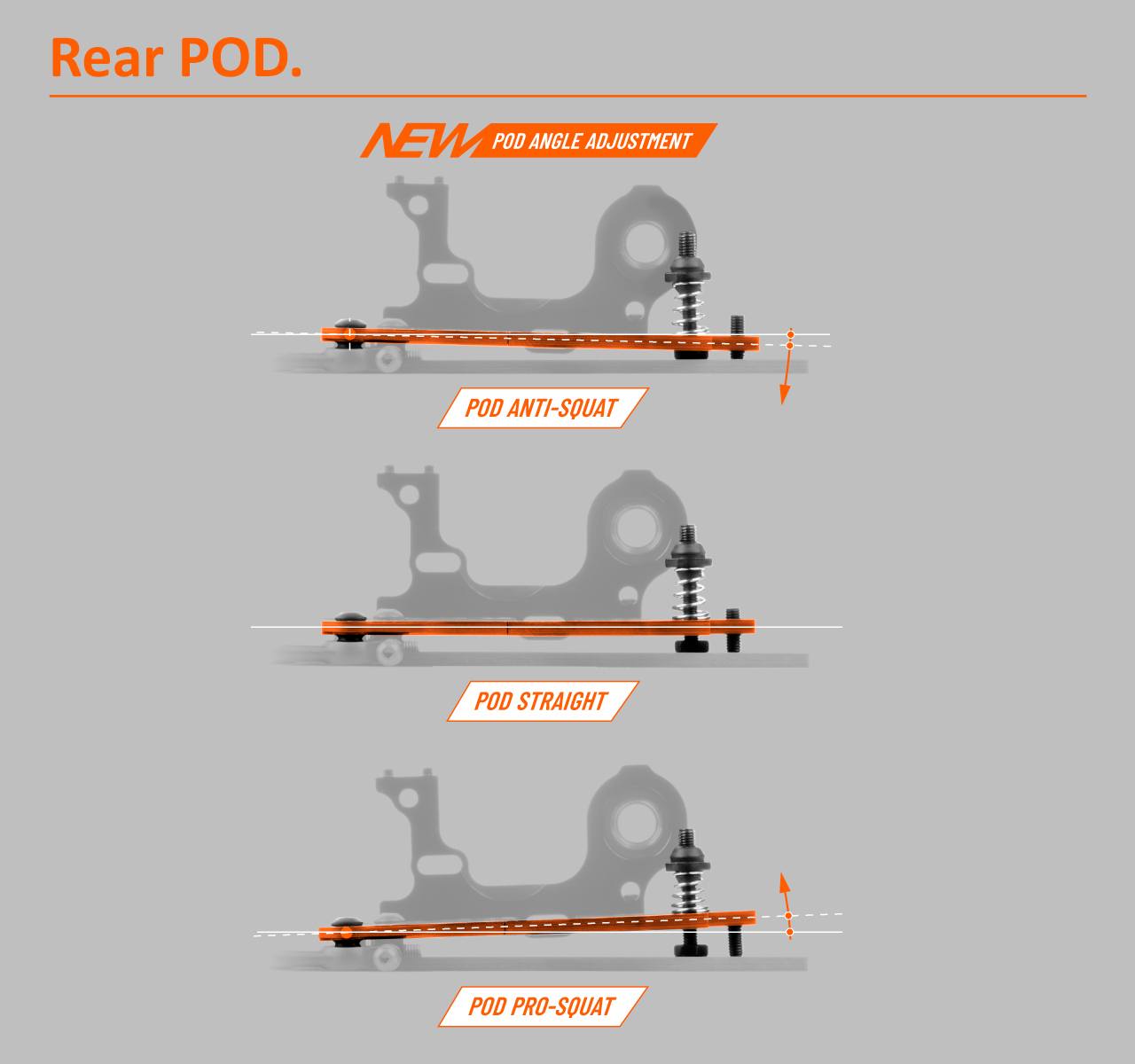

  • Adjustable POD angle controlled by set screw at the rear of chassis for fine tuning
  • Rear spring location improves forward traction with increased adjustability and lower CG
  • Rear droop adjustment through rear POD spring tension that sits in a special composite adjuster

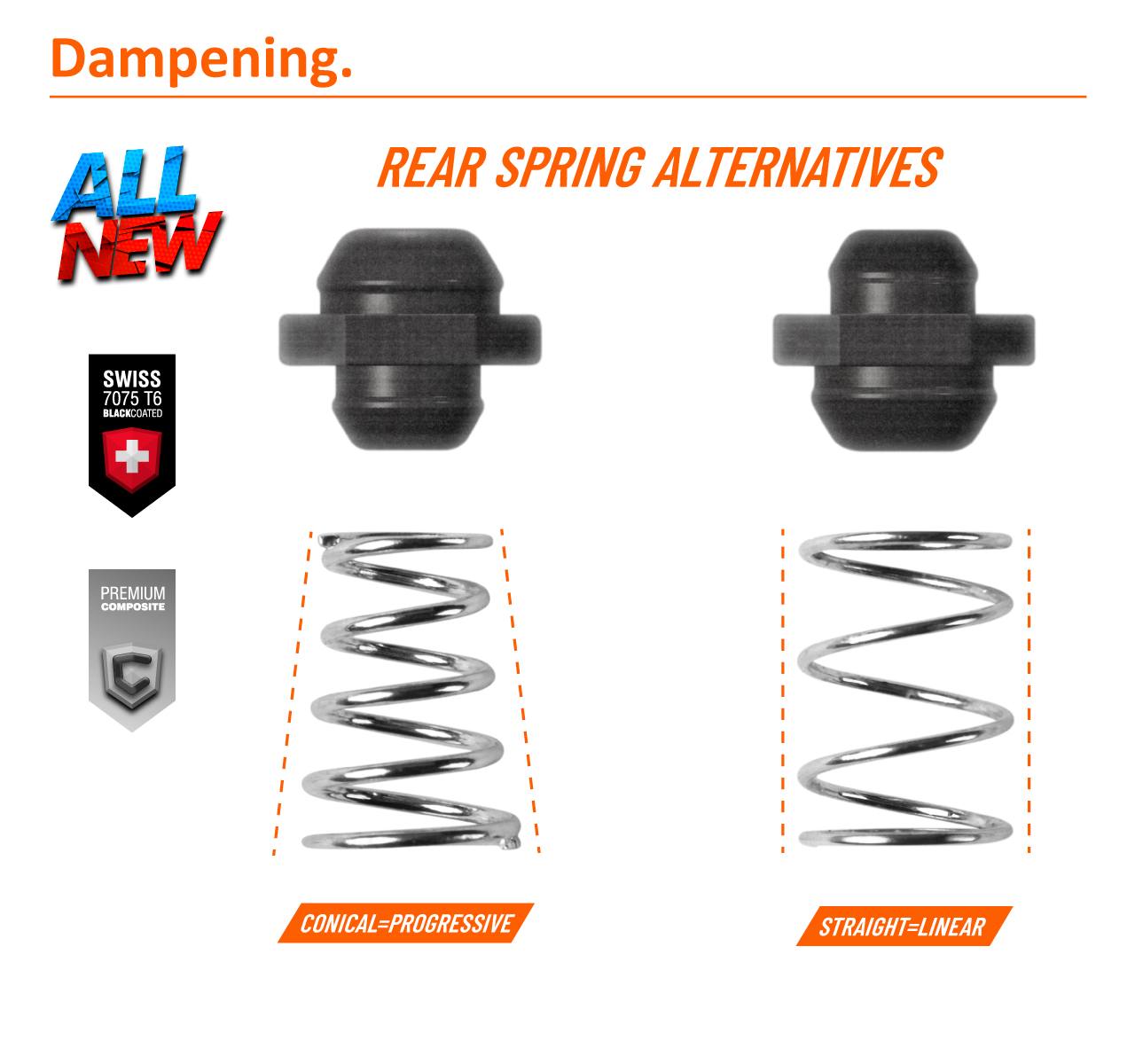

  • Universal rear spring nut holder works for both conical and linear springs
  • 2-piece lower pod plate mounts to the bulkheads, offering droop and pod angle adjustments with support for the side springs

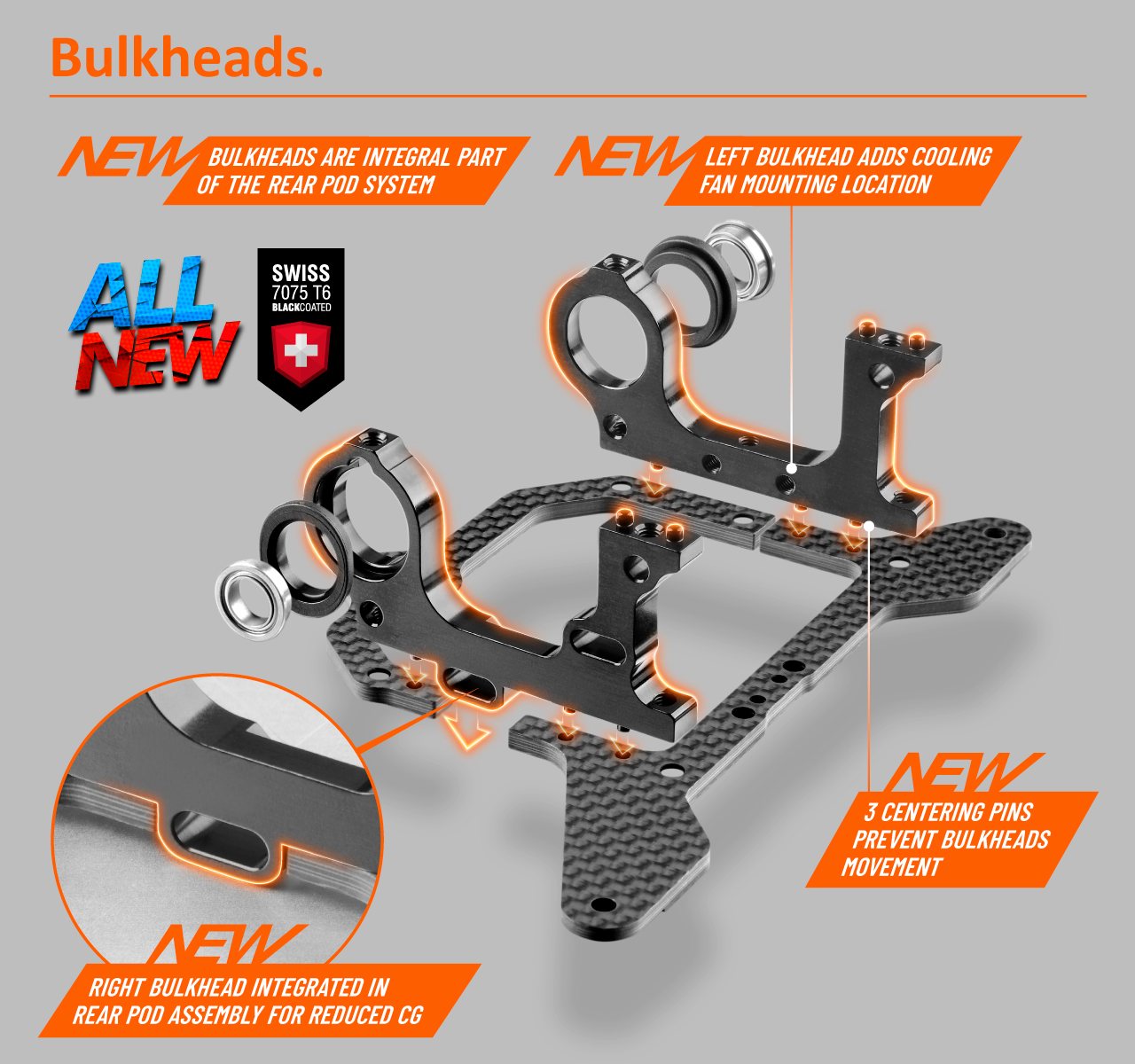

  • Ultra-light, lower CG bulkheads are foundation of new POD system
  • Left side bulkhead has mounting holes incorporated to mount optional motor cooling fan

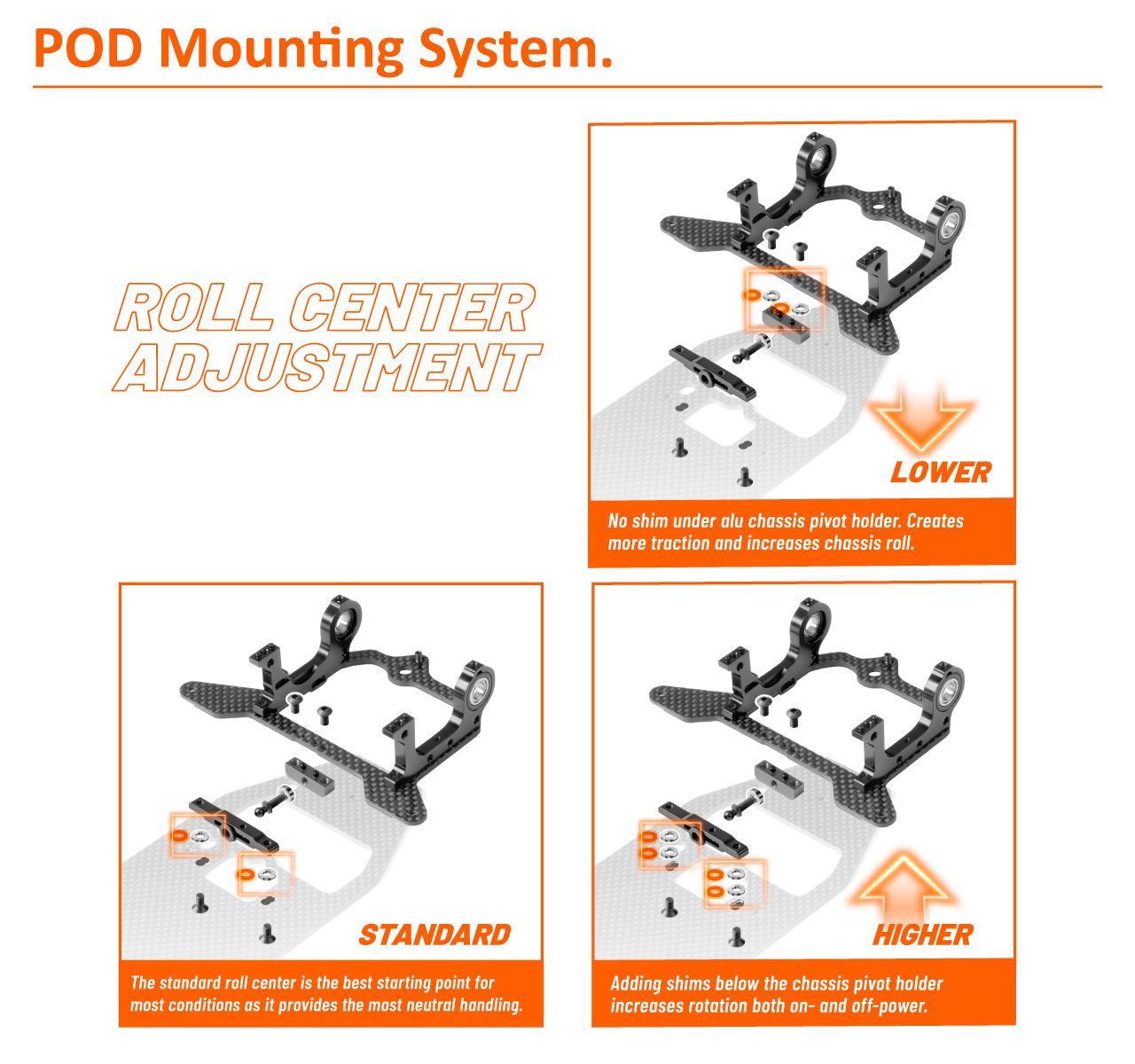

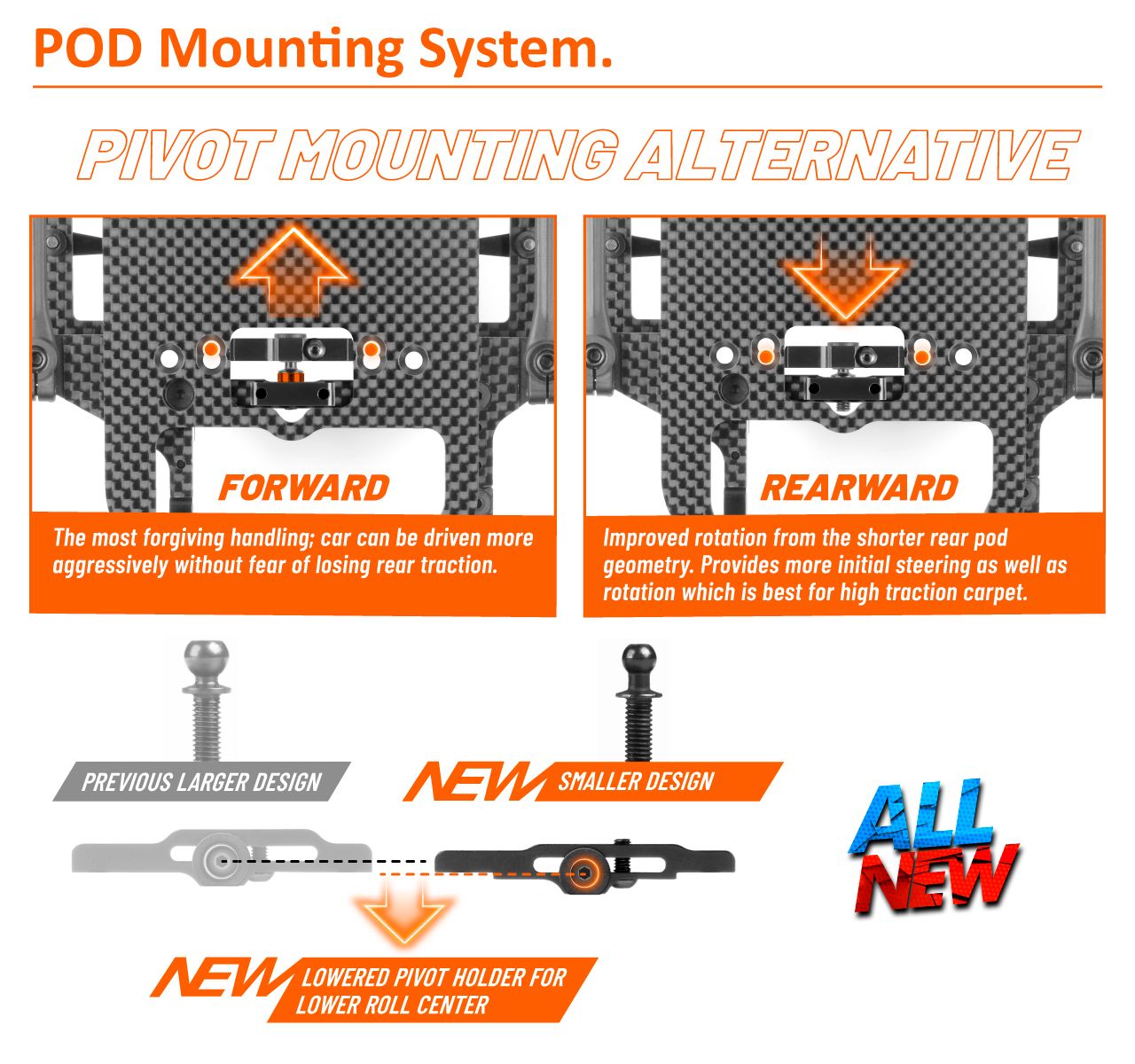

  • Lowered pivot holder and small diameter pivot ball offer lower roll center positions and greater adjustment range
  • Carbon Fiber top plate for center shock and side damper mountings

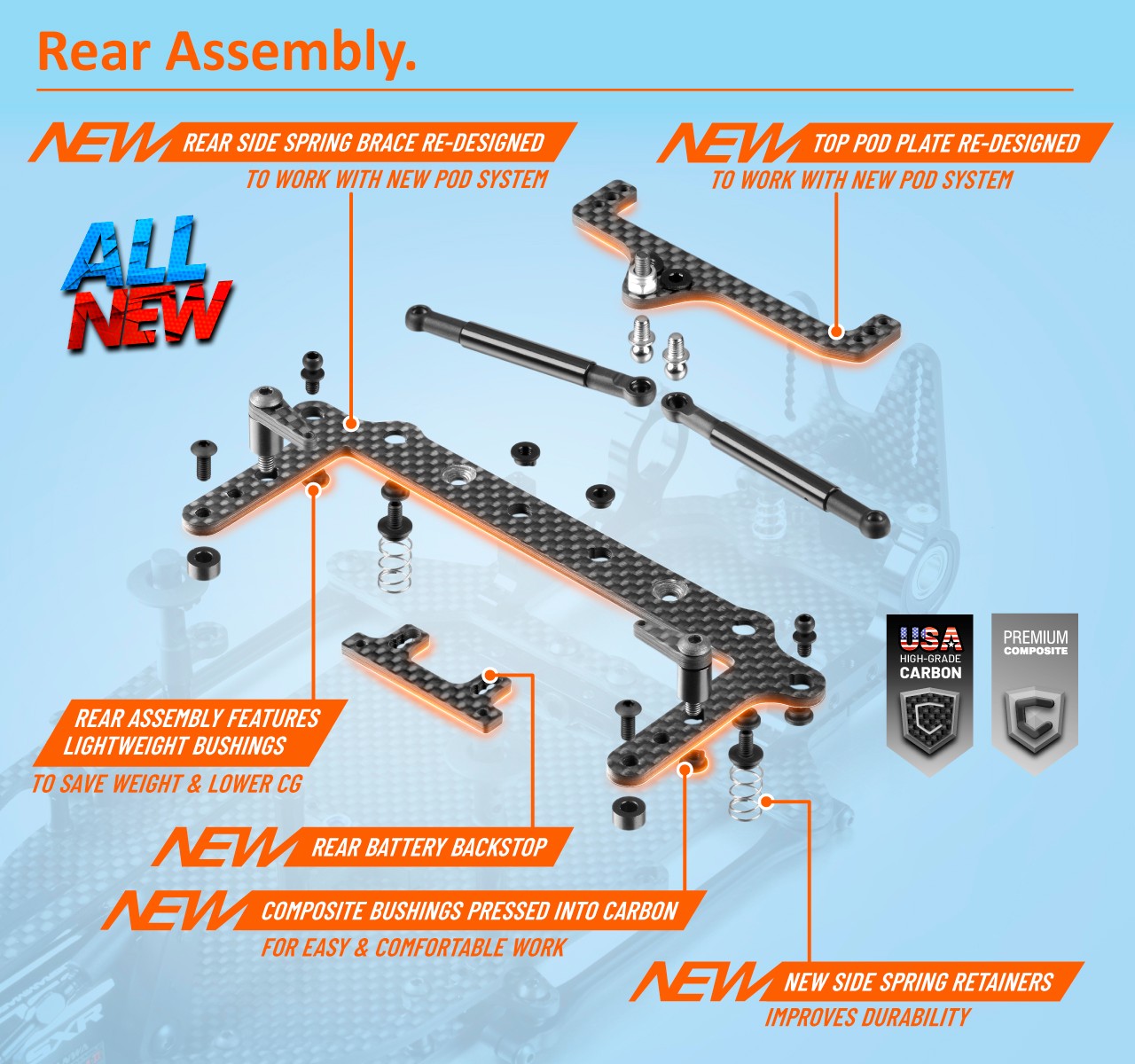

  • New rear carbon side spring brace aligns with new POD geometry

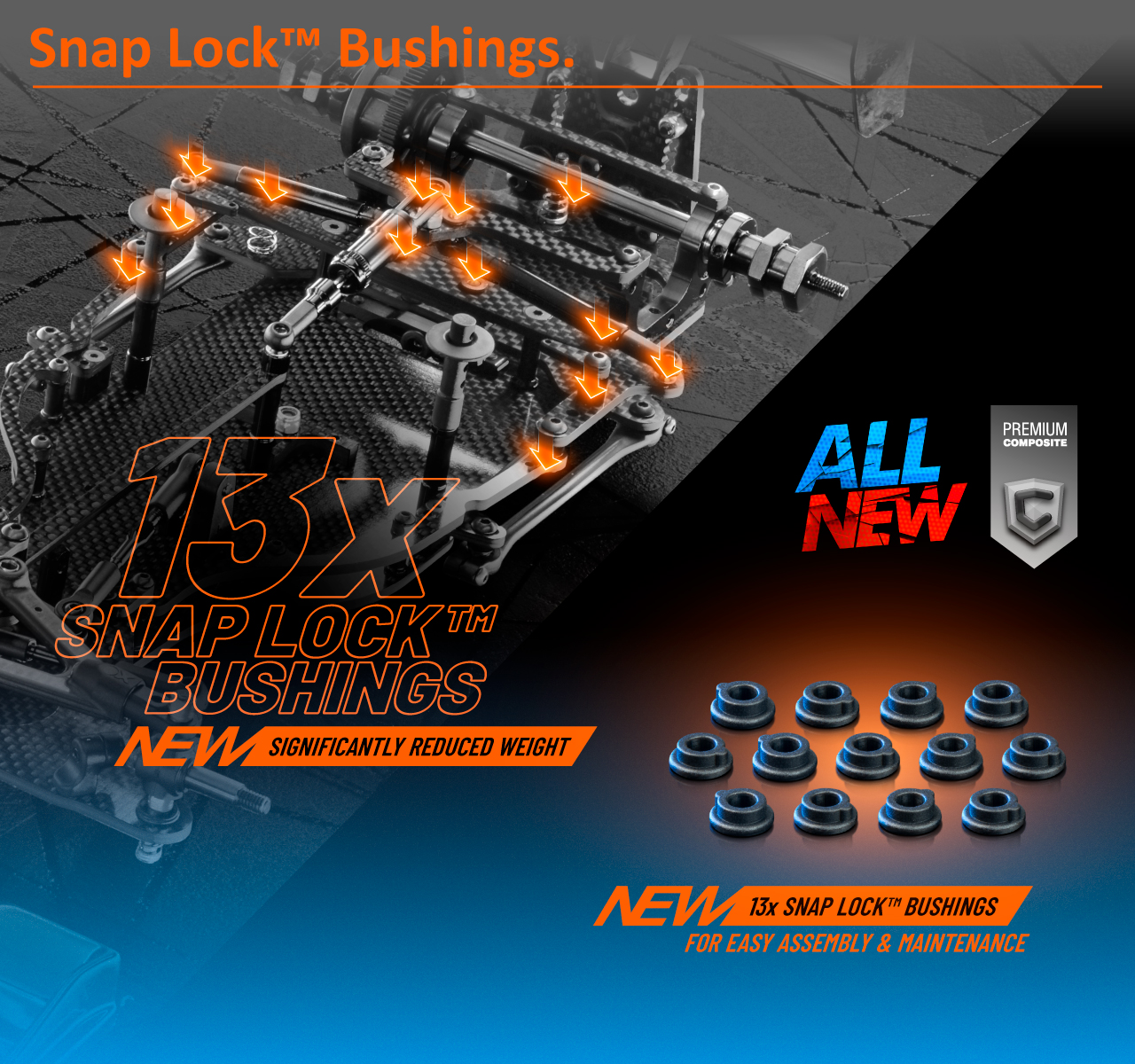

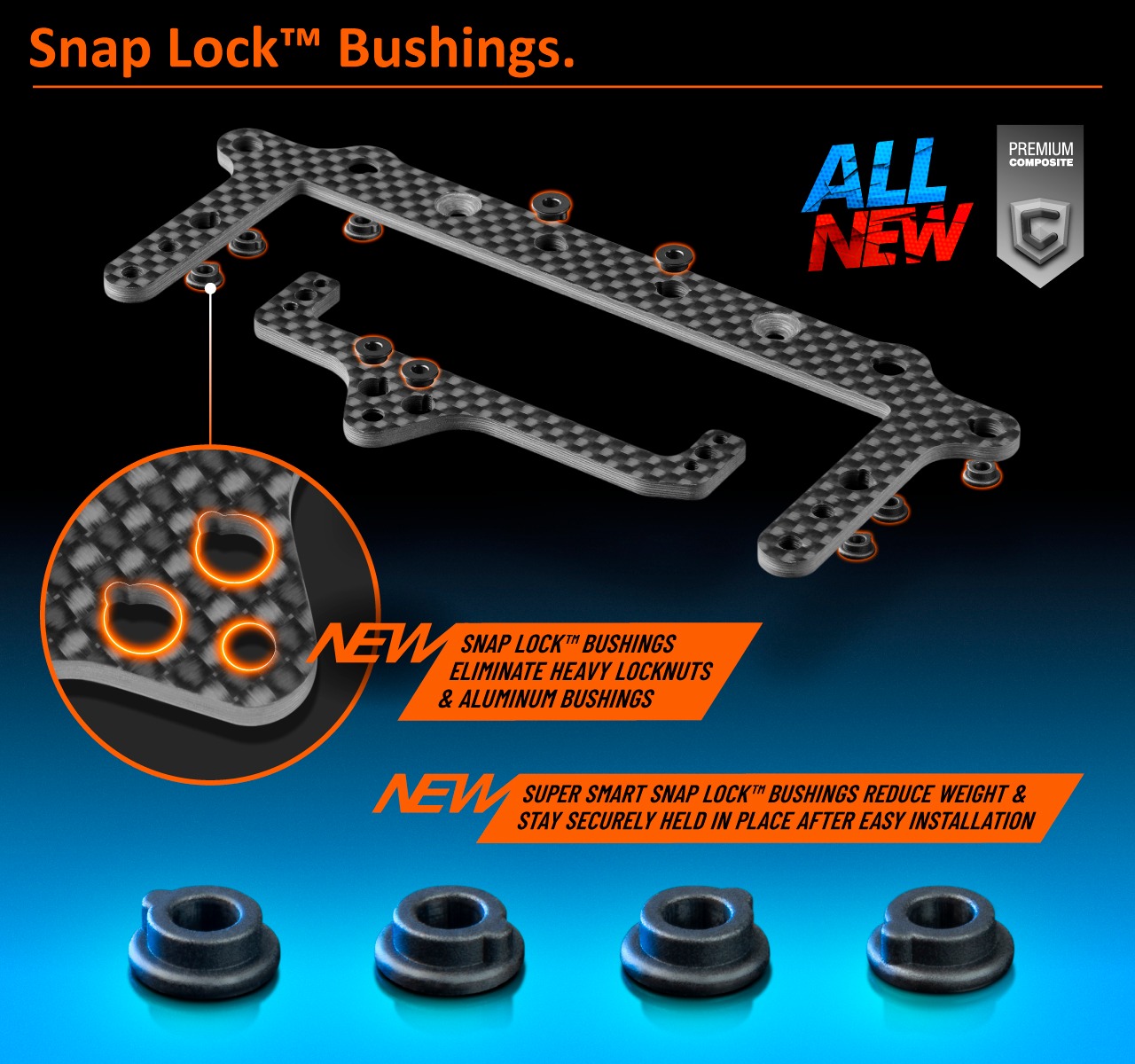

  • Composite Snap Lock™ bushings press into carbon fiber parts for secure and reliable hardware installation

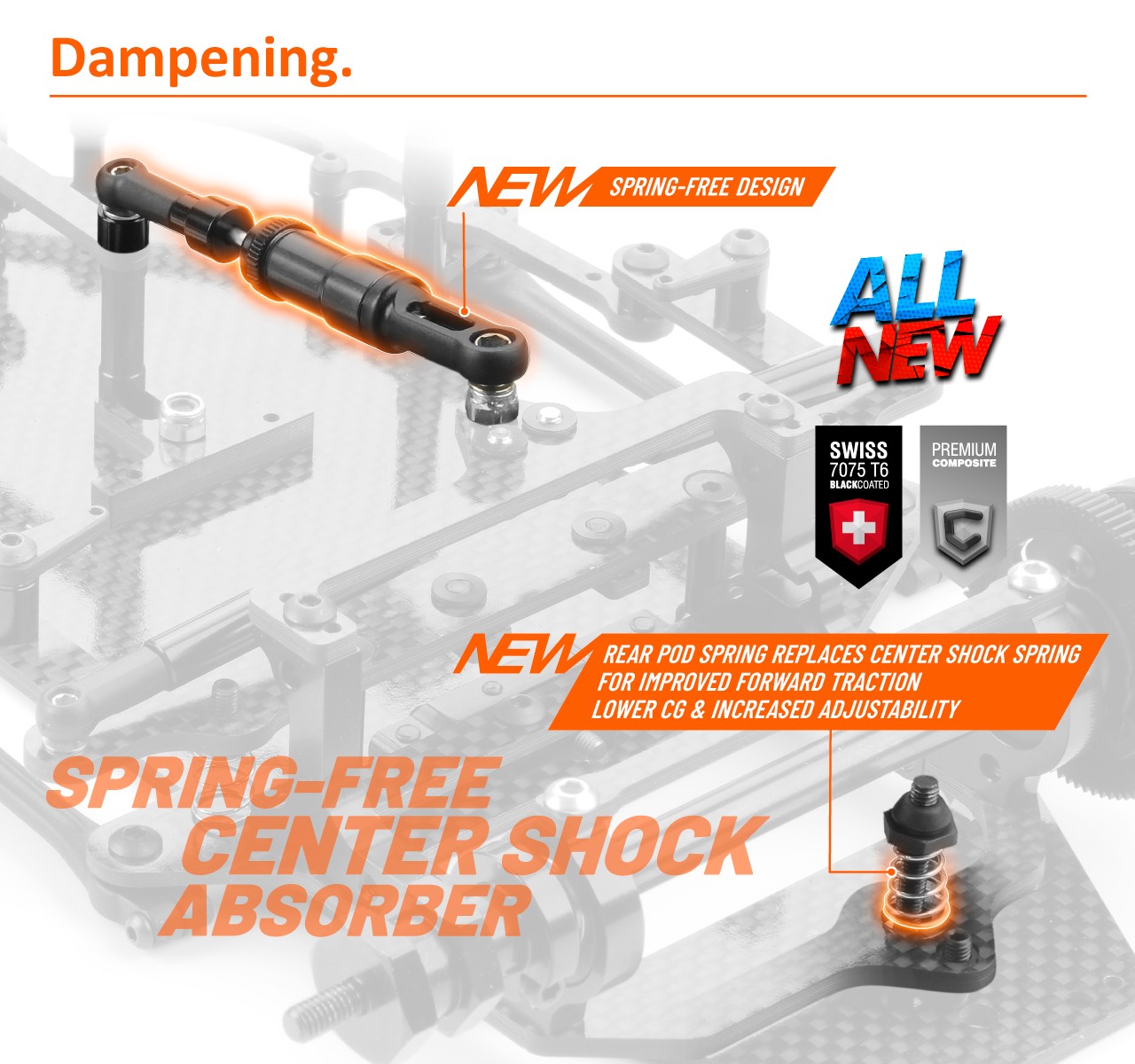

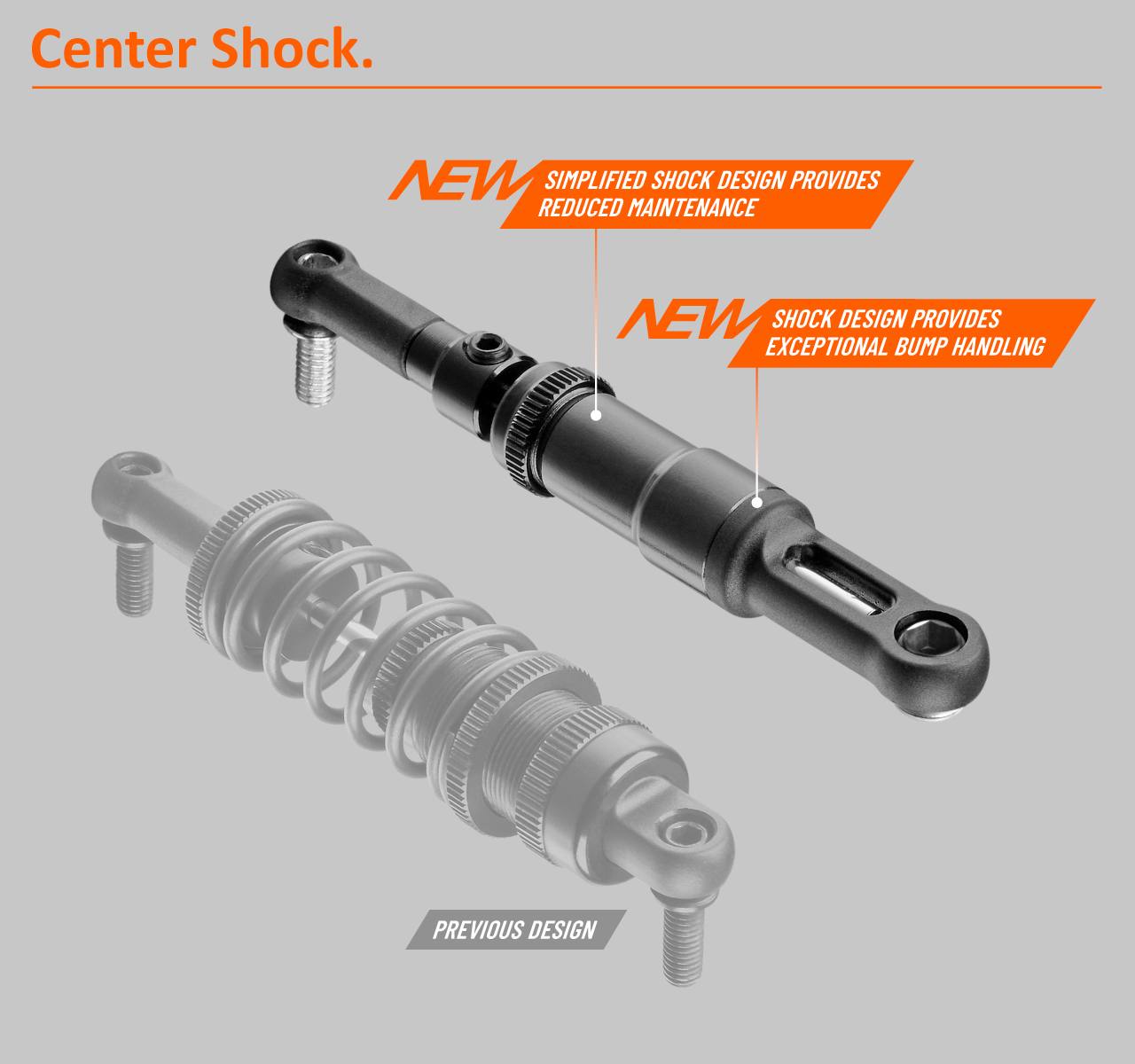

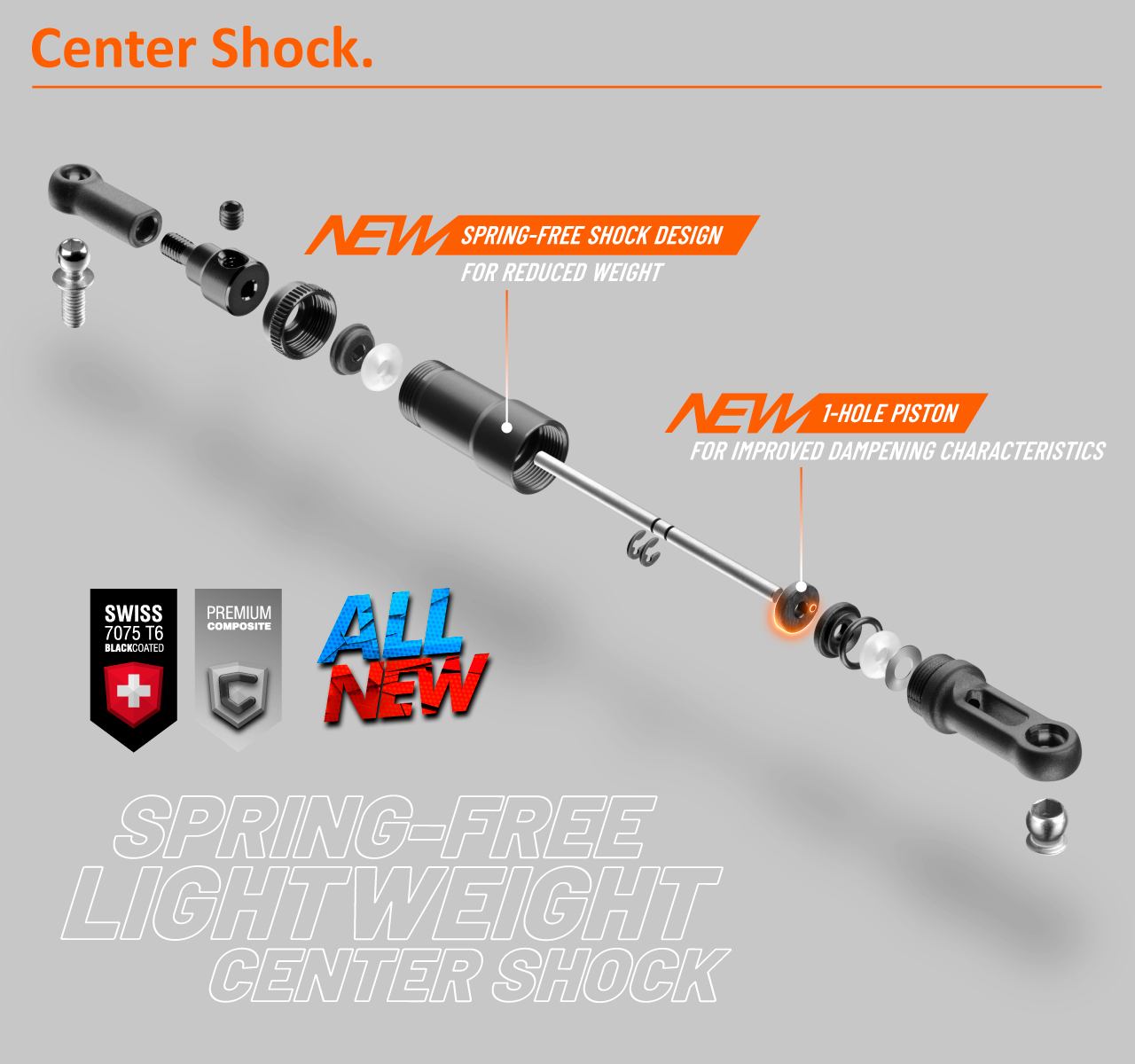

  • All-new spring-free center shock absorber with 1-hole piston provides exceptional bump handling, low maintenance, and helps lower CG.

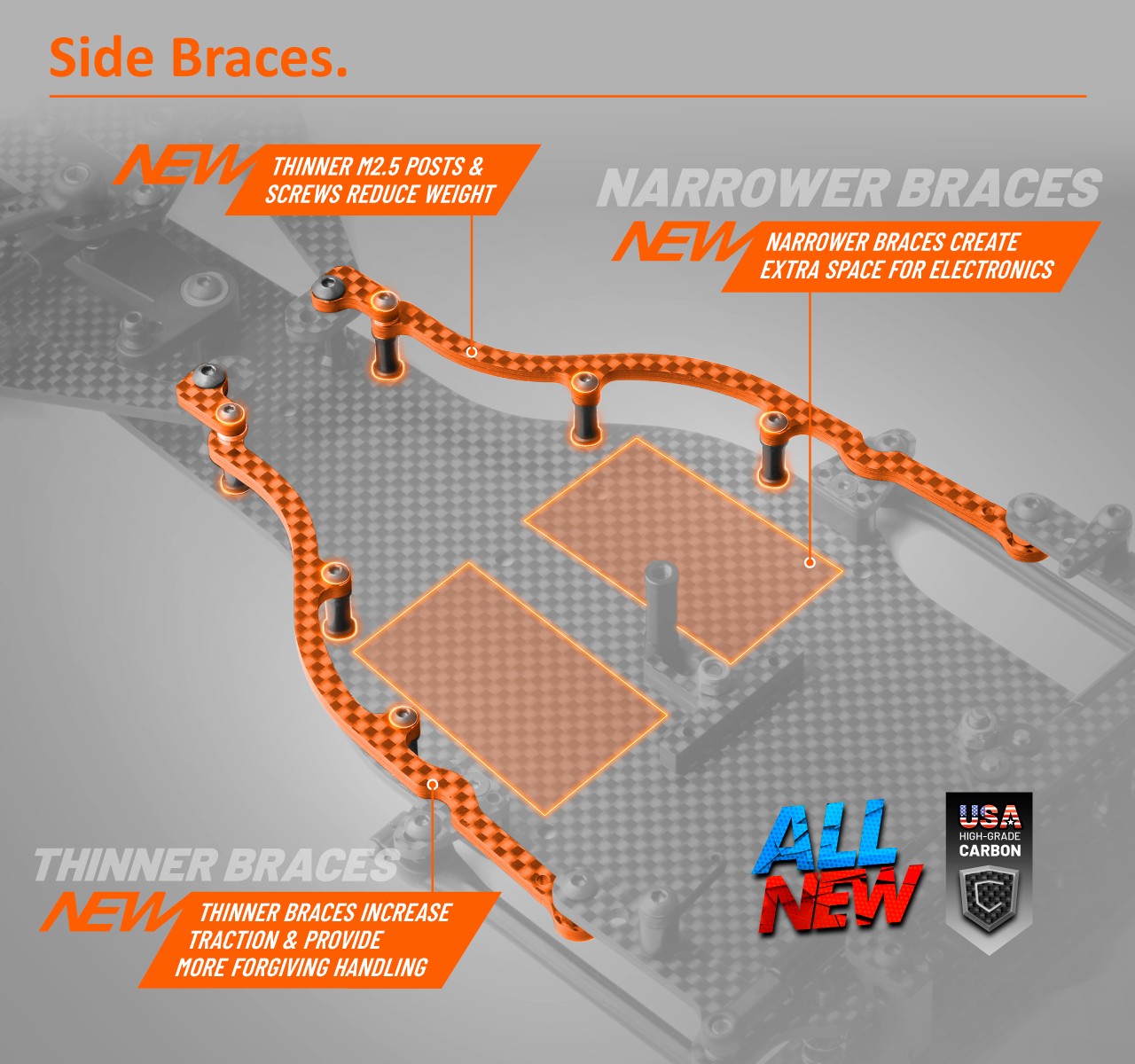

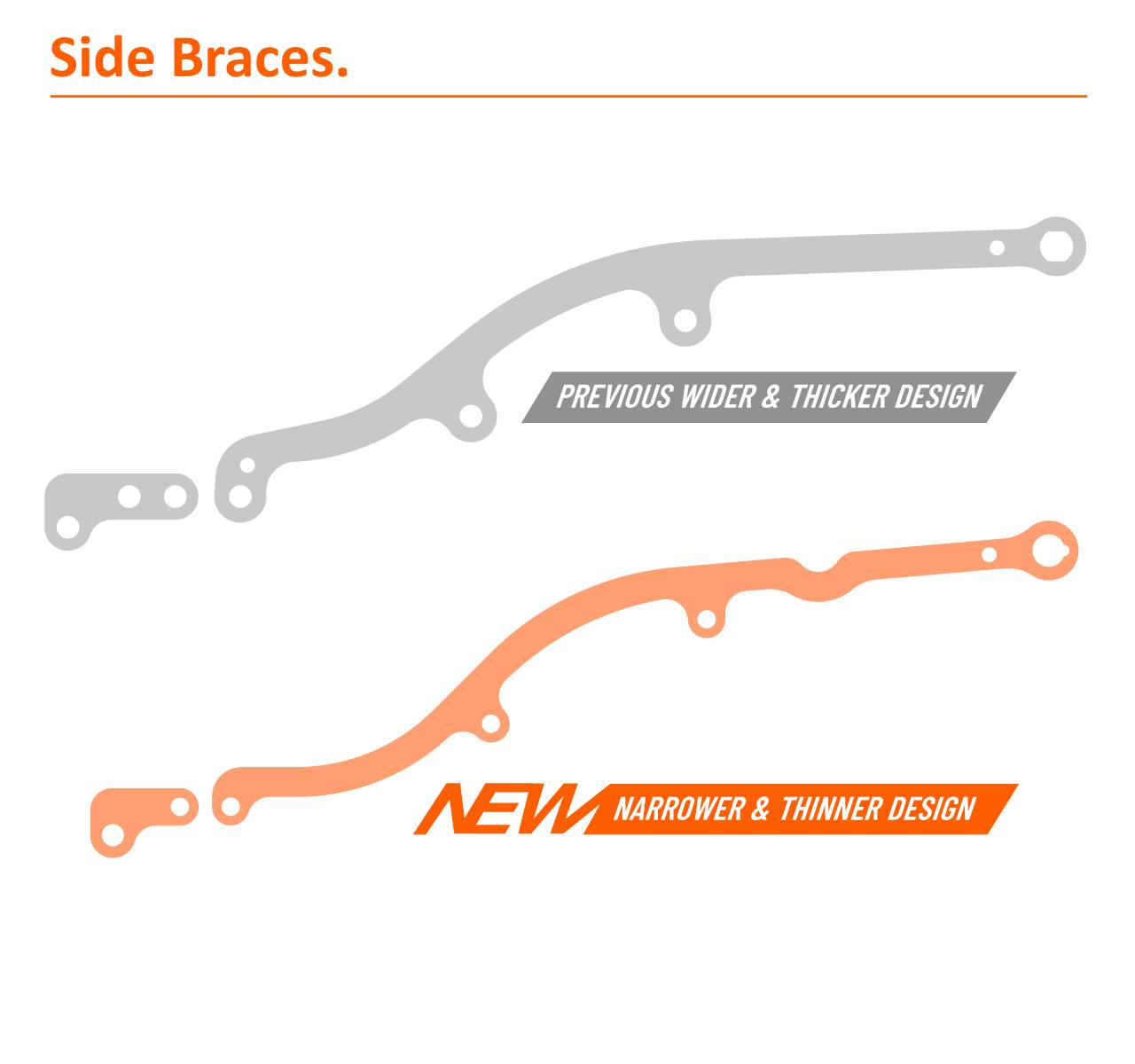

  • Side braces with a narrower design save weight and leave more space for electronics and also allows better body fitment
  • Narrower side brace mounting holders use M2.5 screws for weight savings

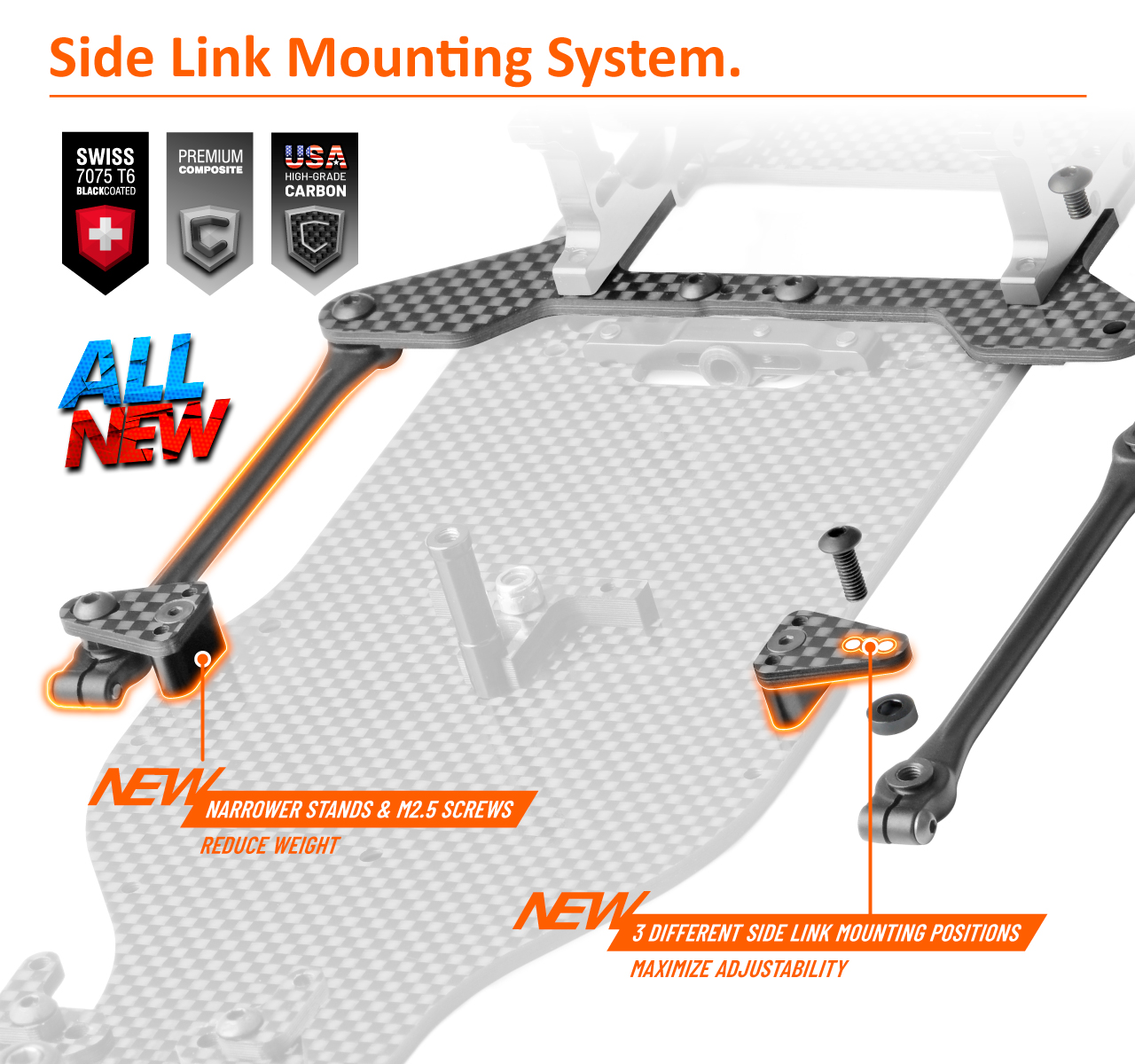

  • Aluminum side link holders with 2-pin design for more rigidity and improved tweak resistance

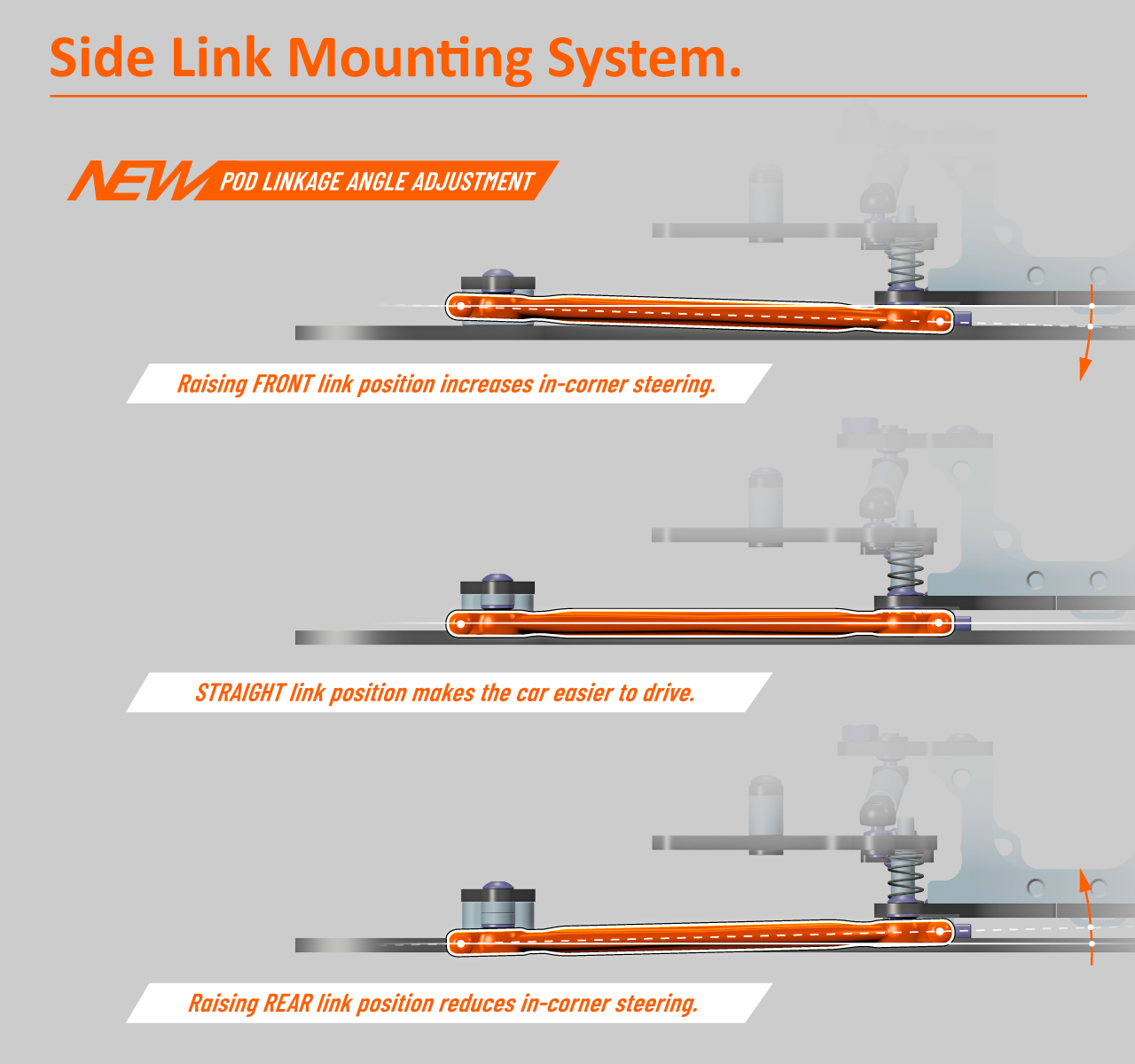

  • 2-pin carbon fiber side link plates integrate with aluminum holders for reliable alignment and offer 3 side link front pivot mounting positions for maximum adjustability

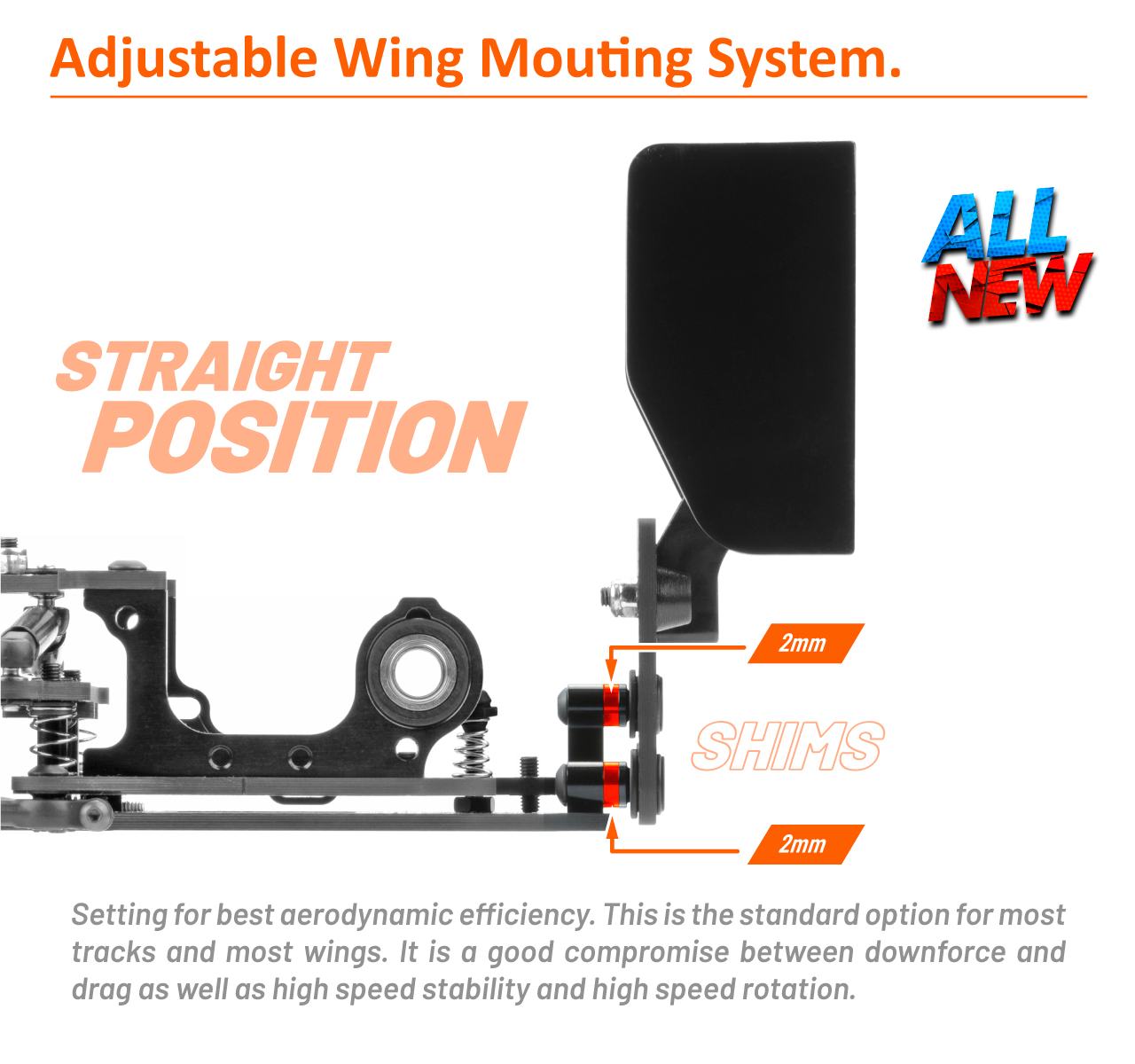

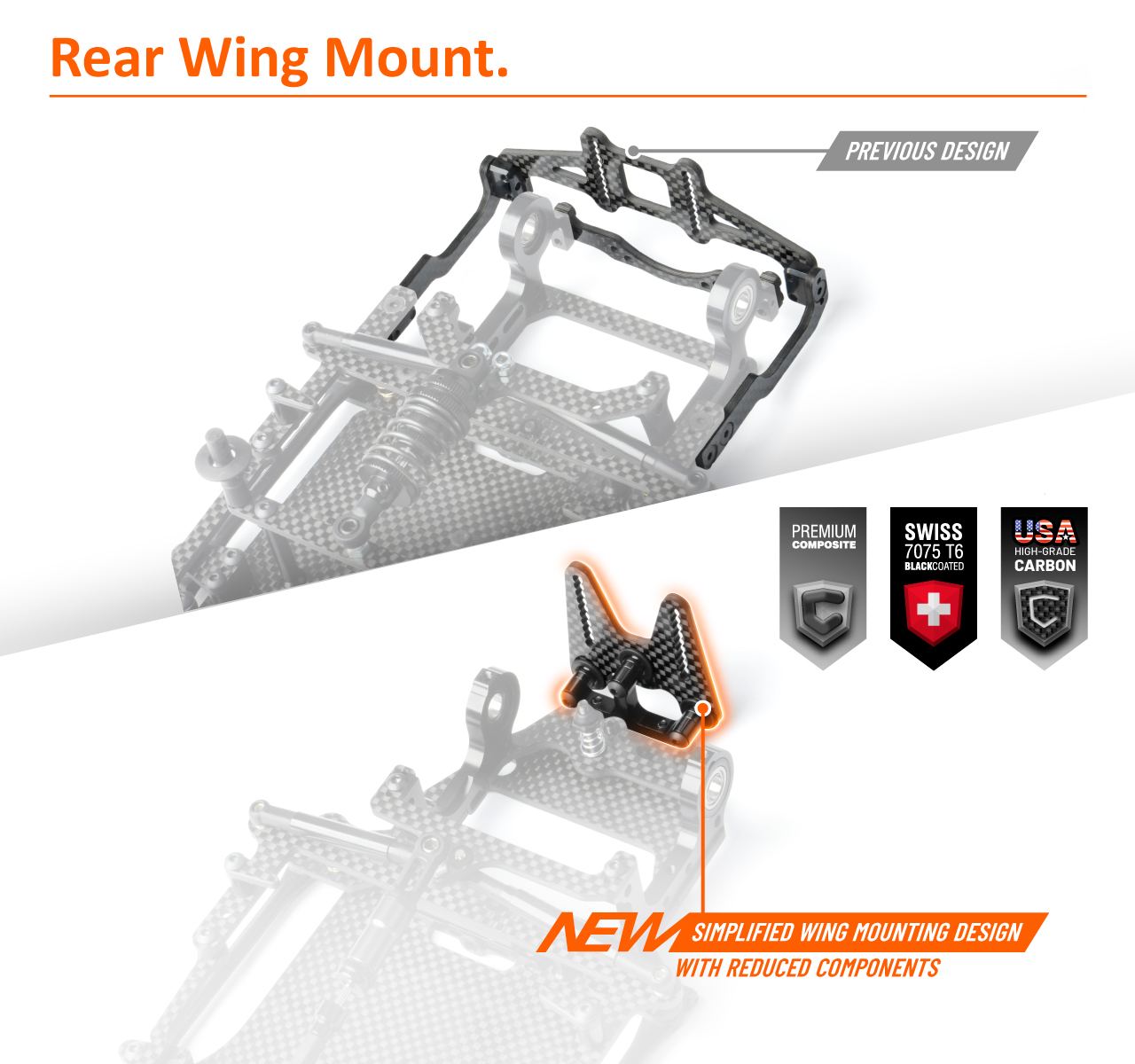

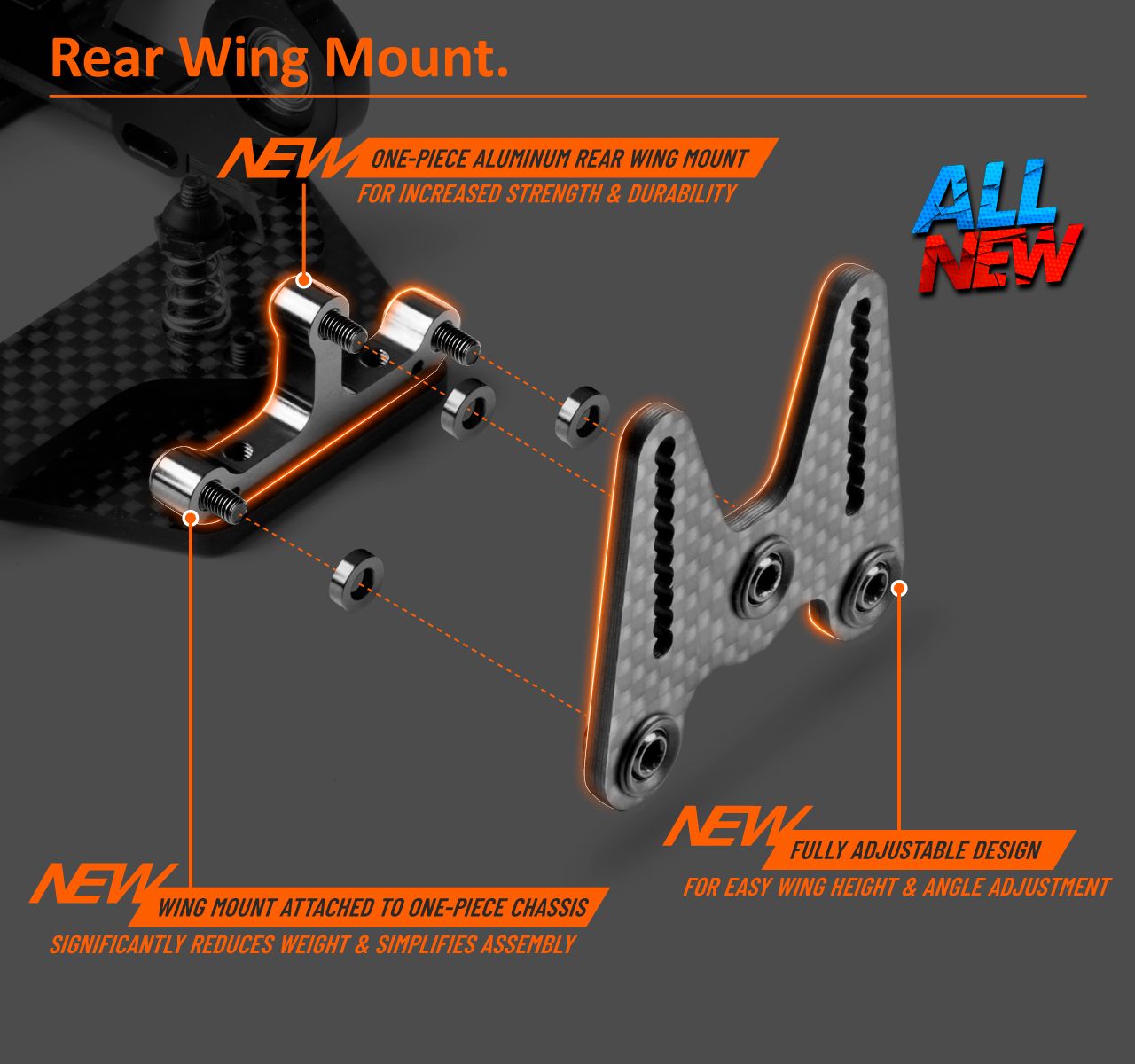

  • New wing mounting system which saves weight and provides cleaner design and improves the durability and track width adjustment possibilities

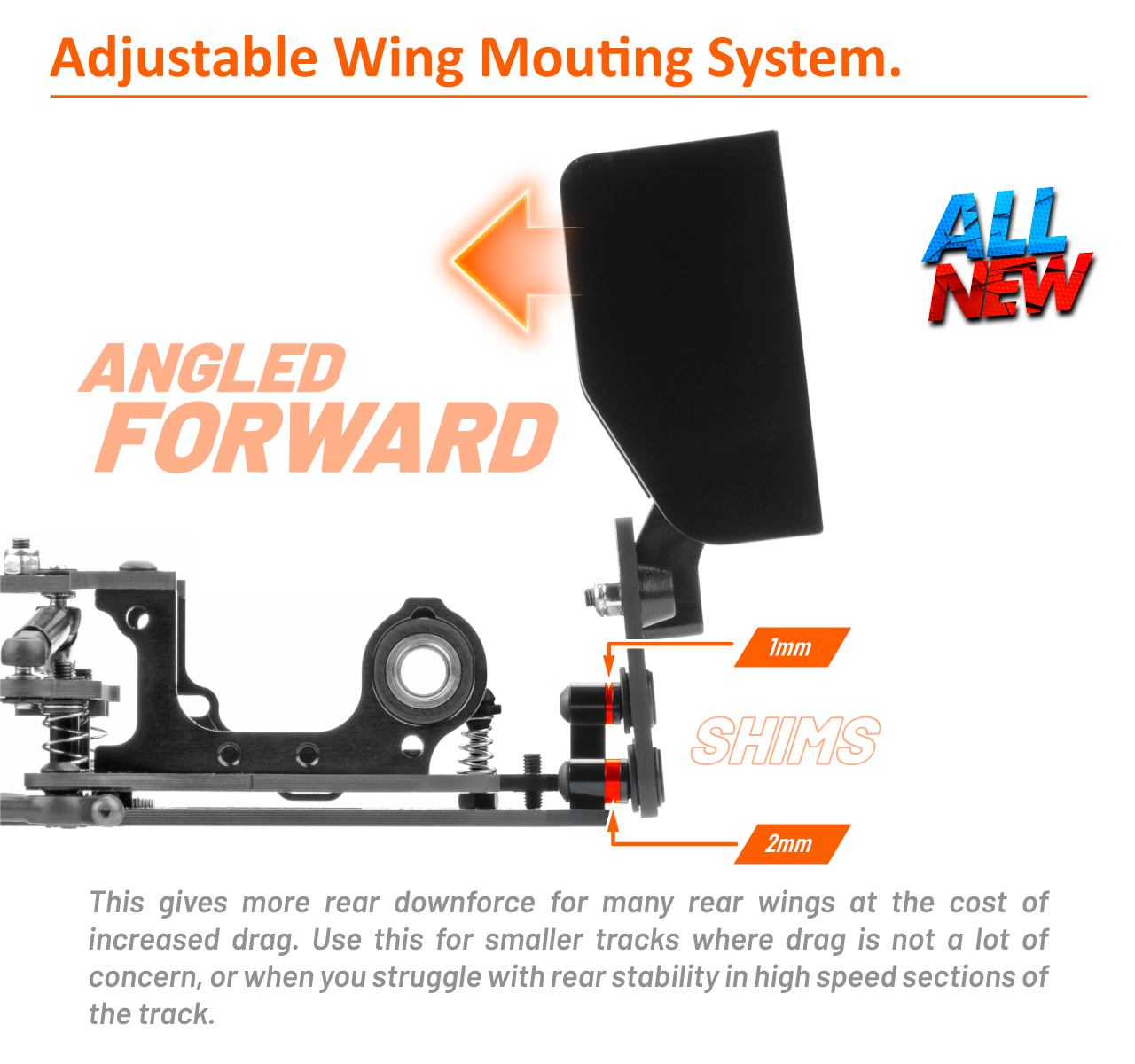

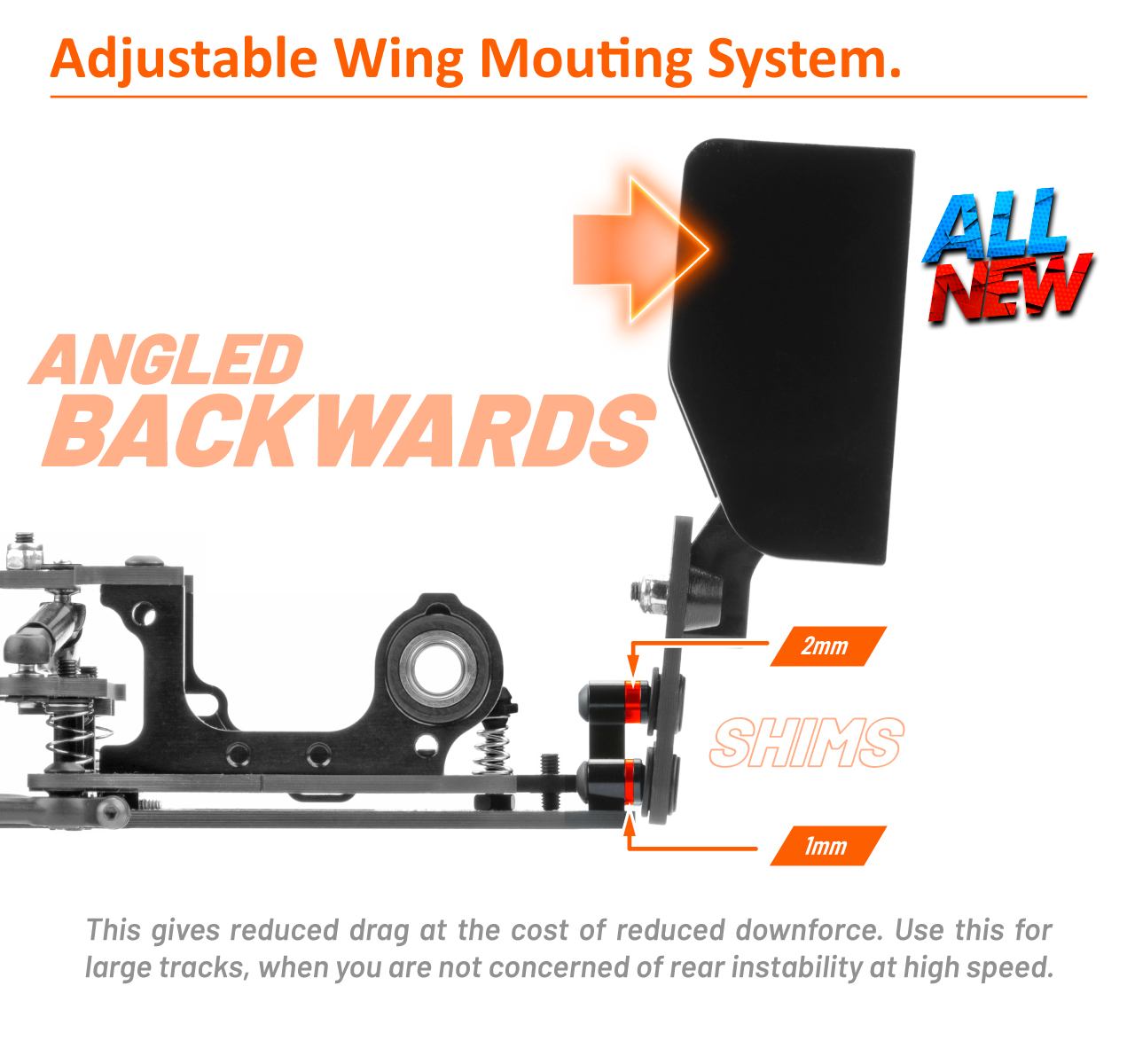

  • New adjustable wing angle for greater adjustment possibilities

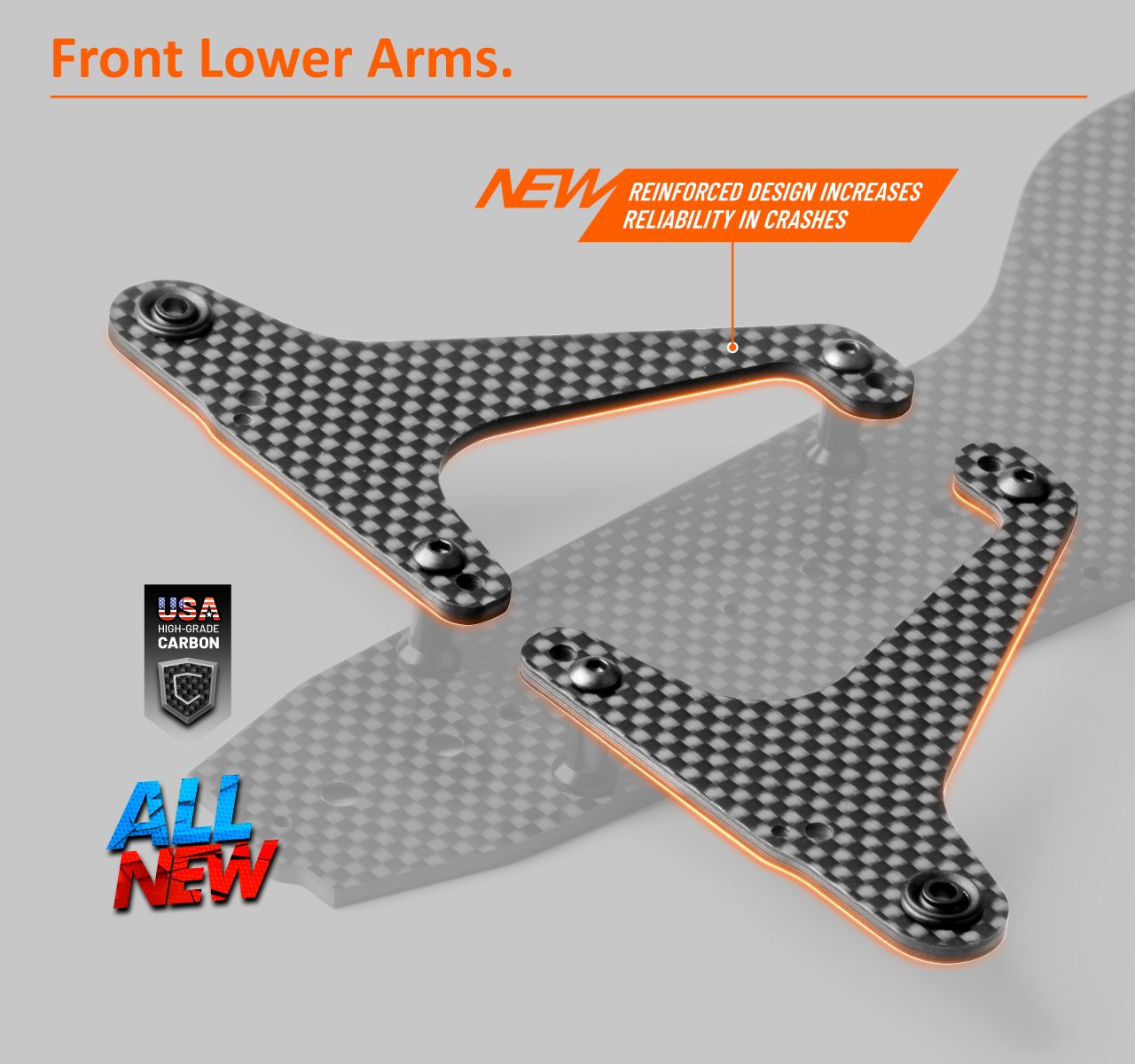

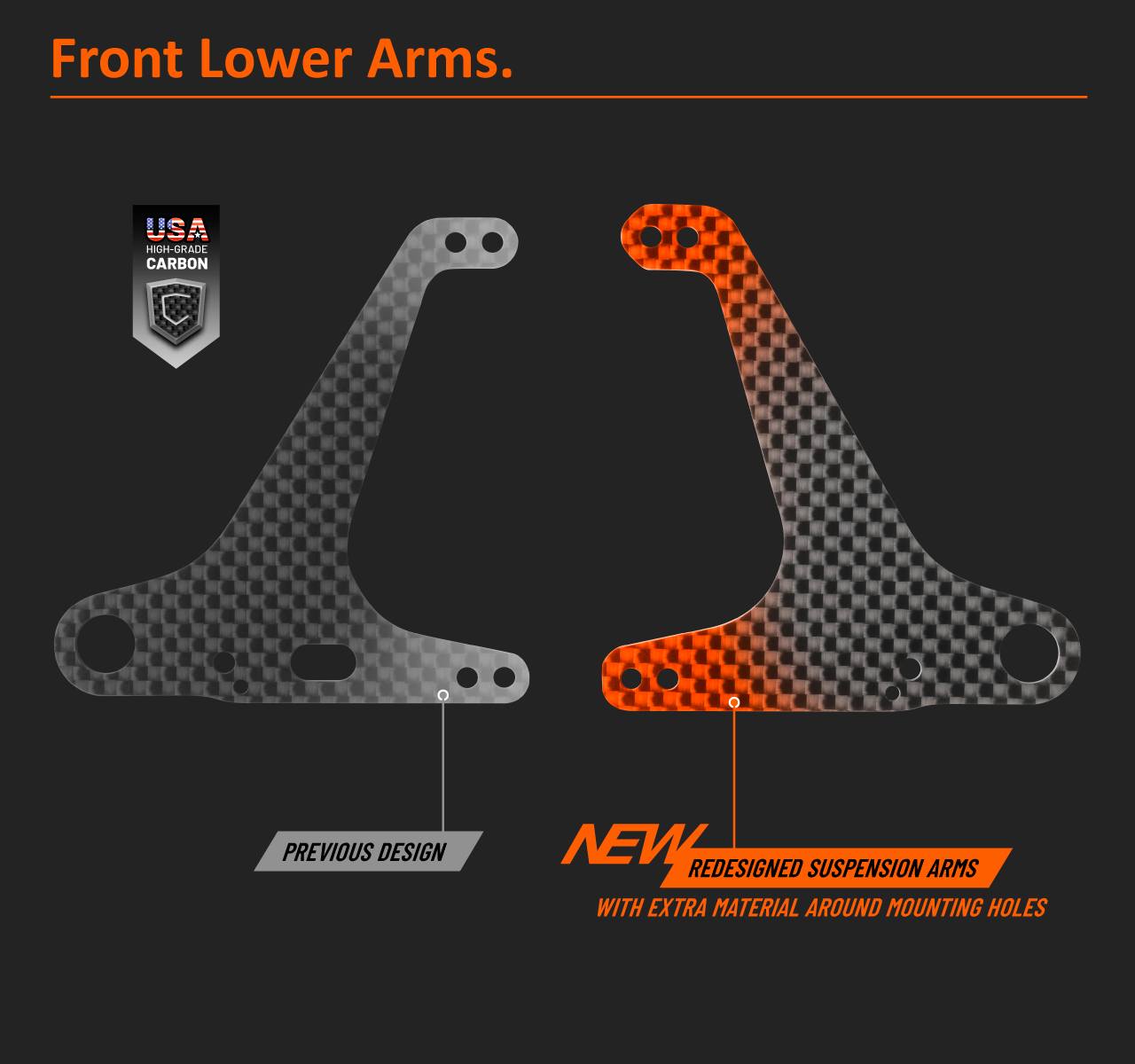

  • New redesigned lower arms with more material around the holes for improved durability in serious crashes

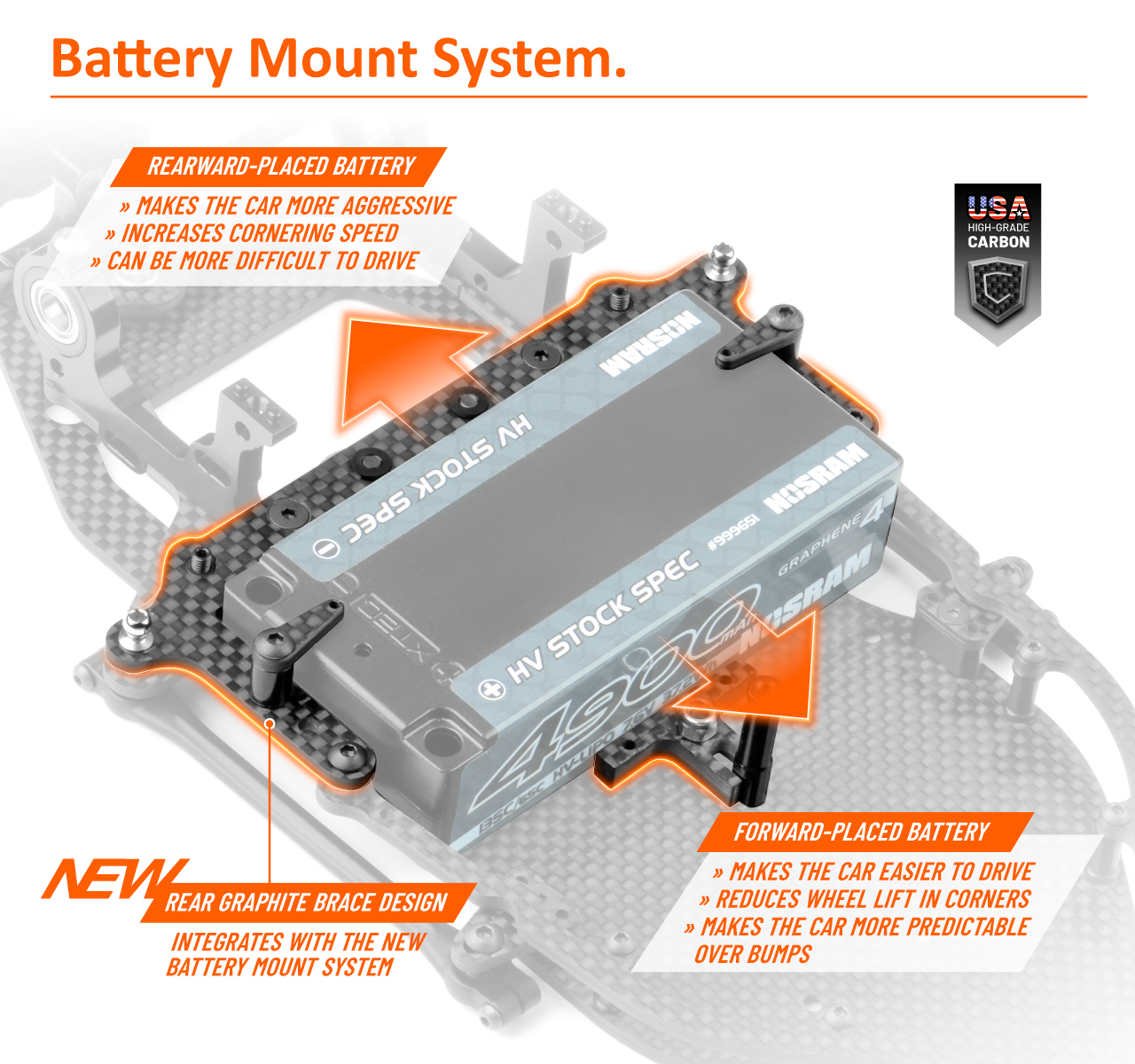

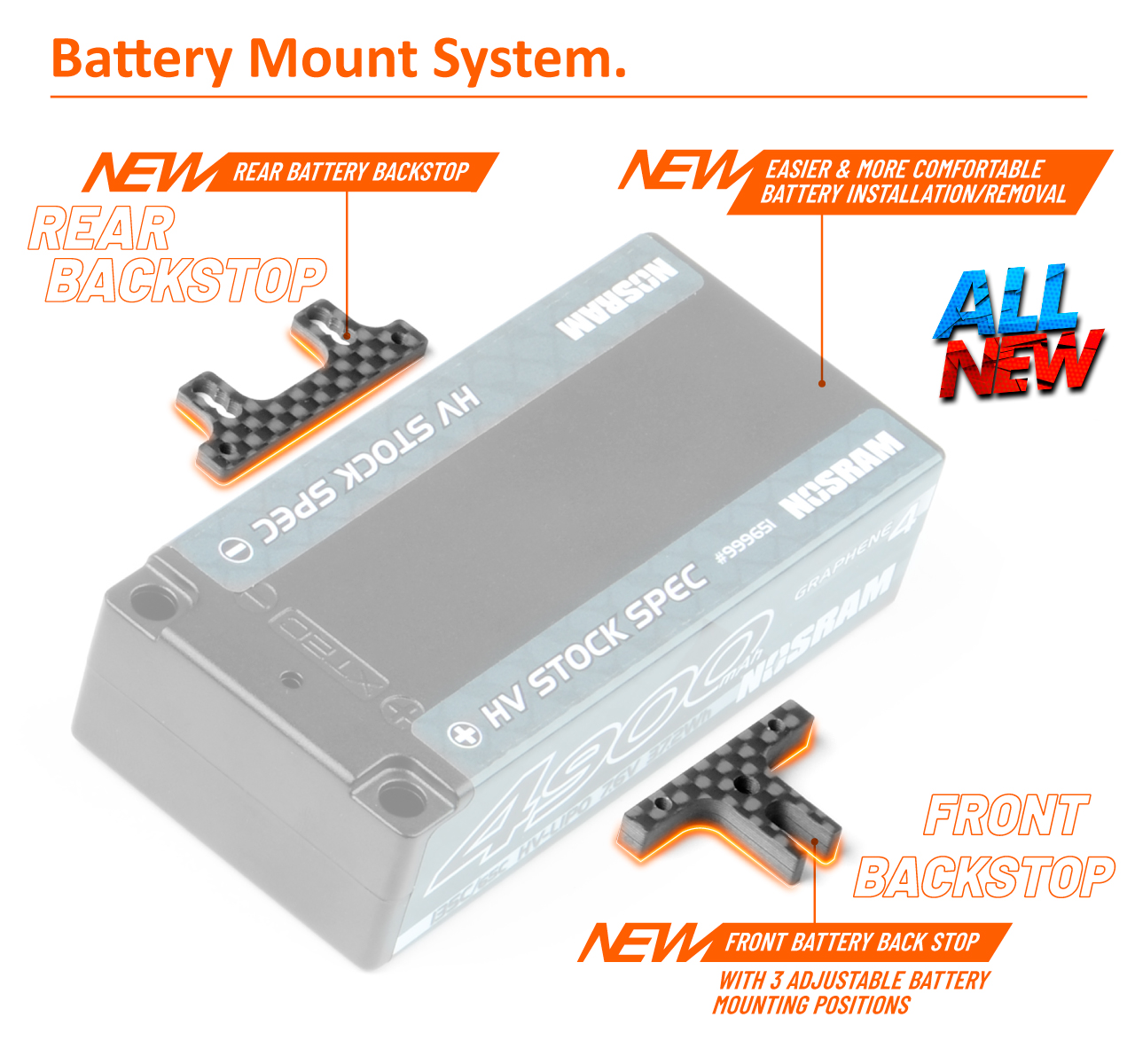

  • New battery mounting system works with rear brace and front backstop for convenient installation

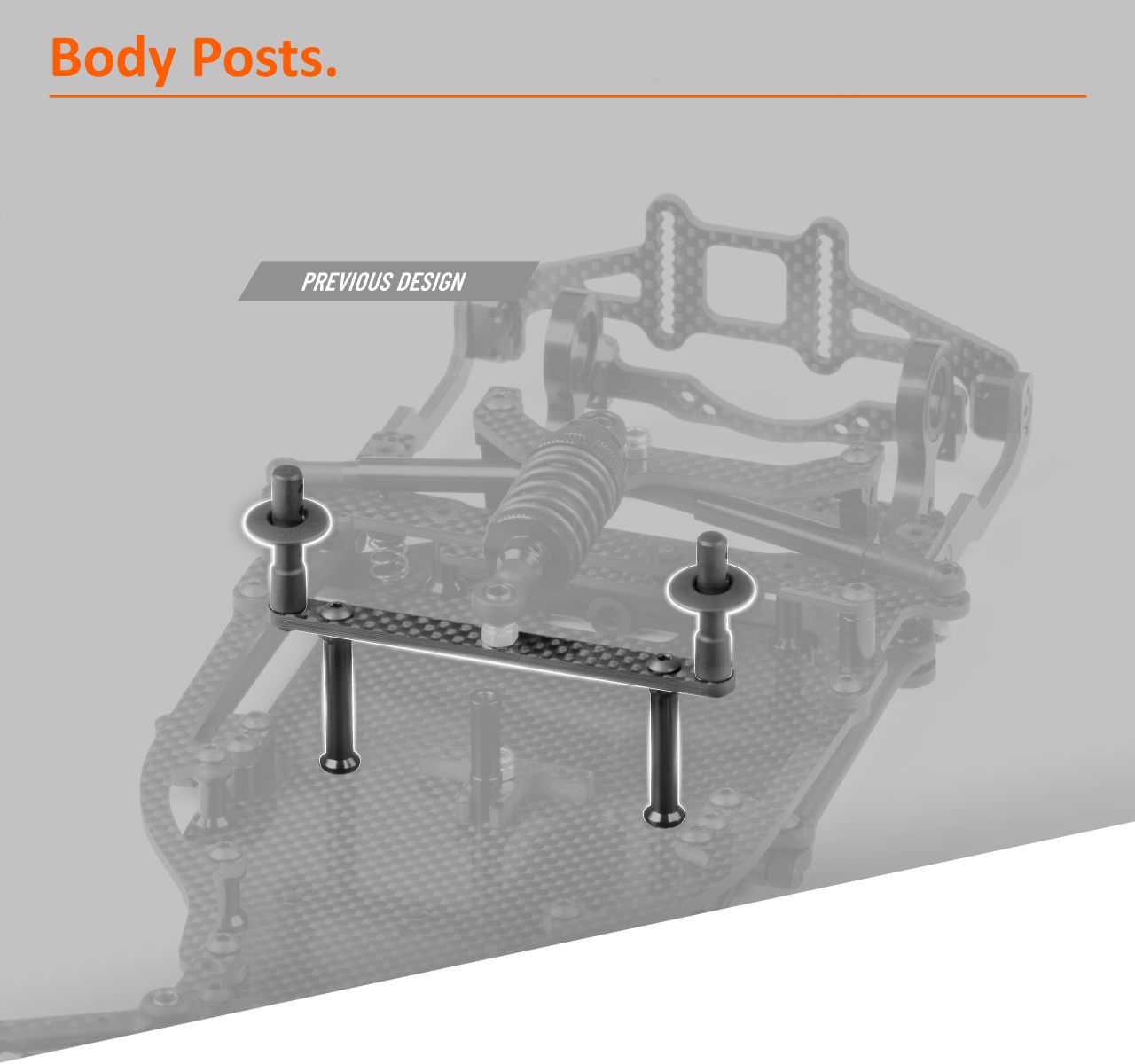

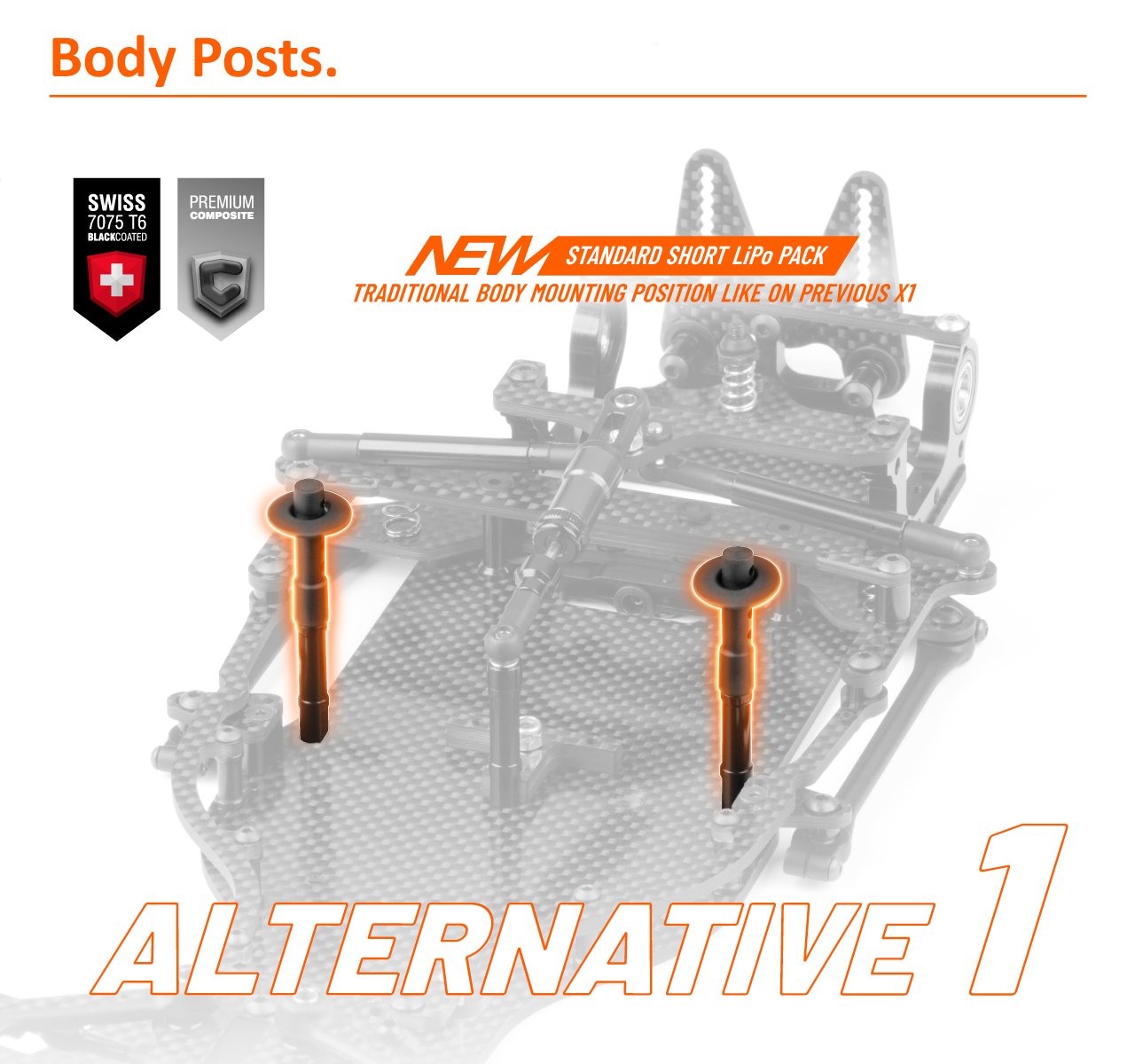

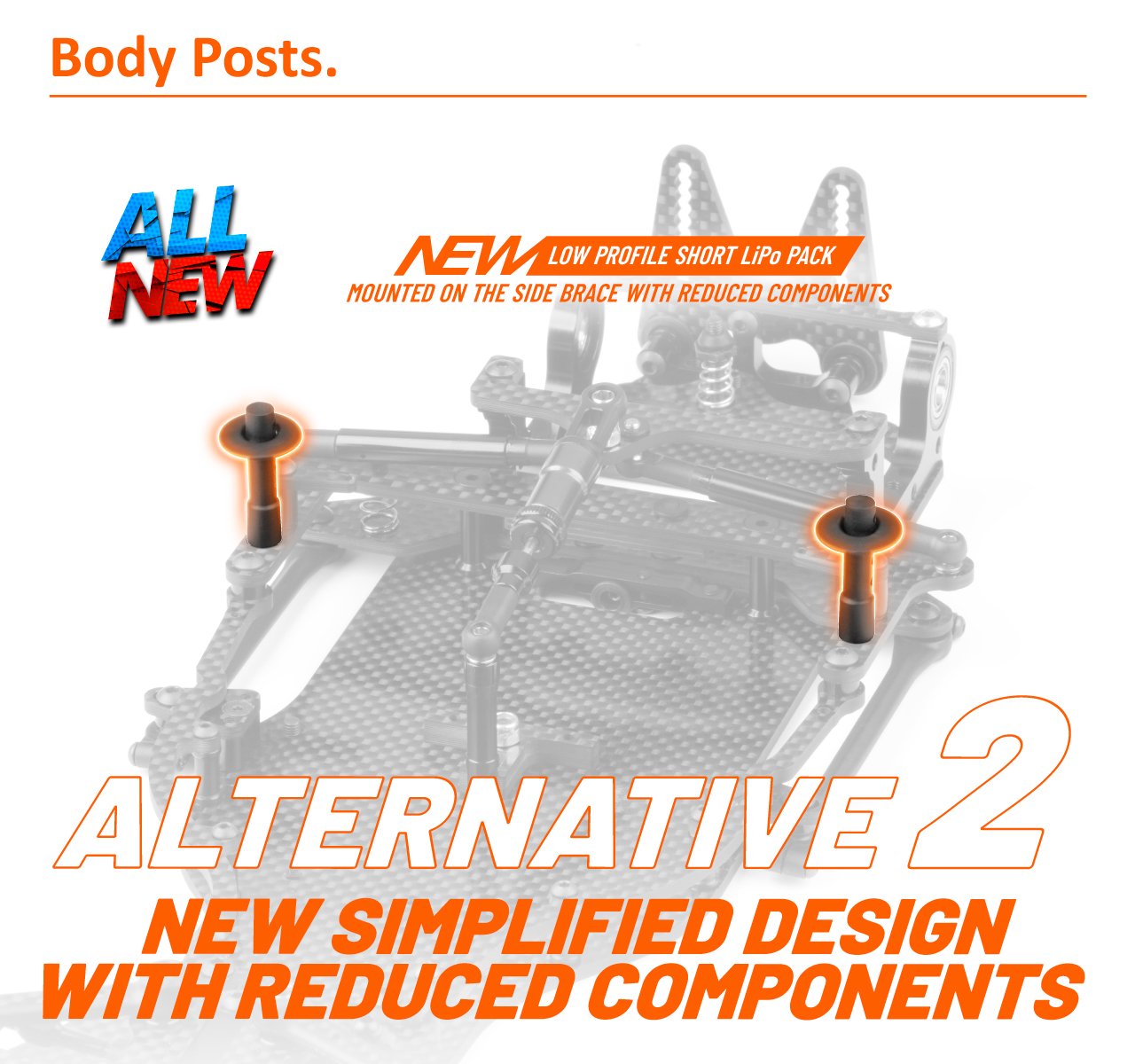

  • Two body post mounting position options for different battery packs allows for different configurations

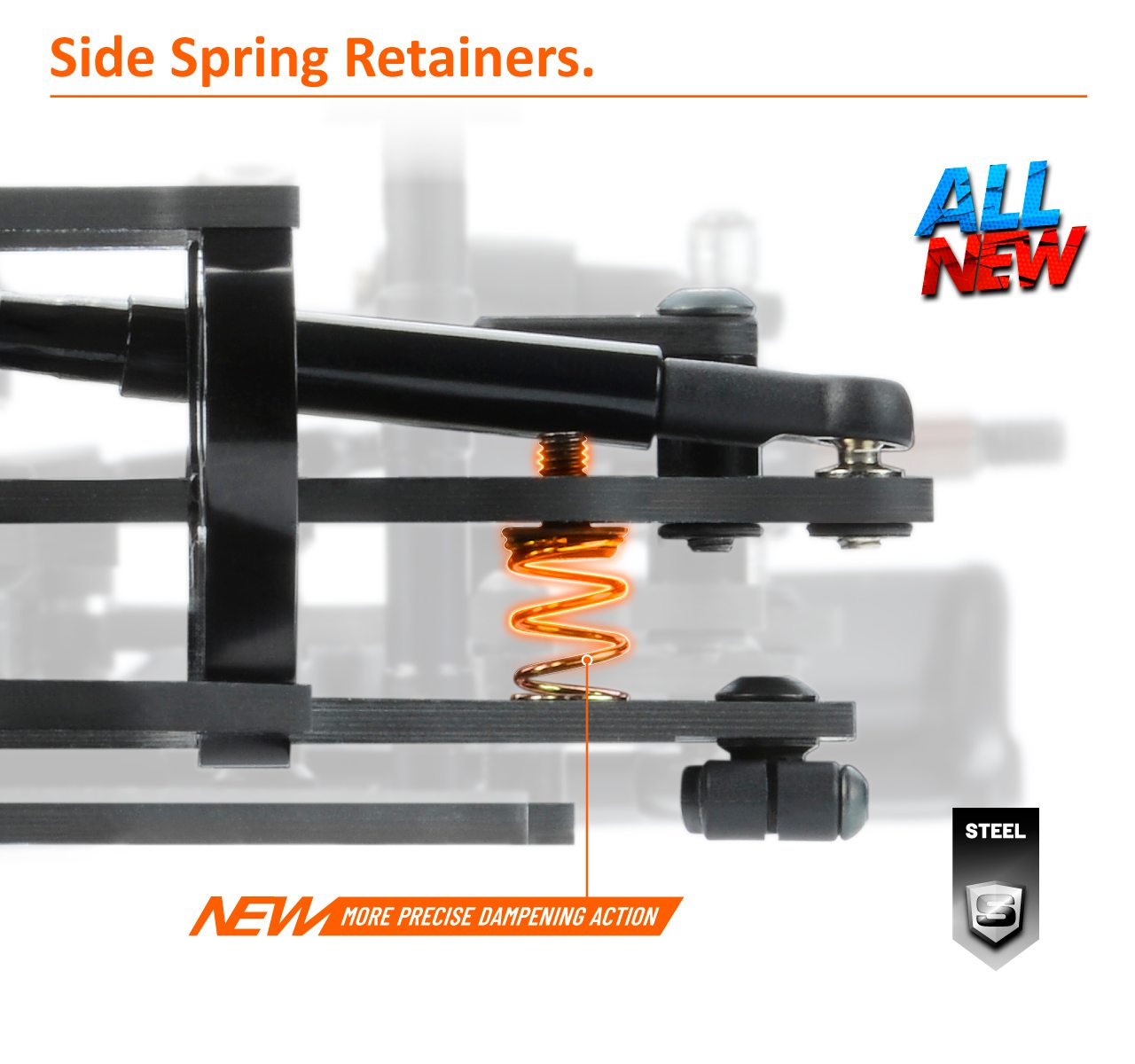

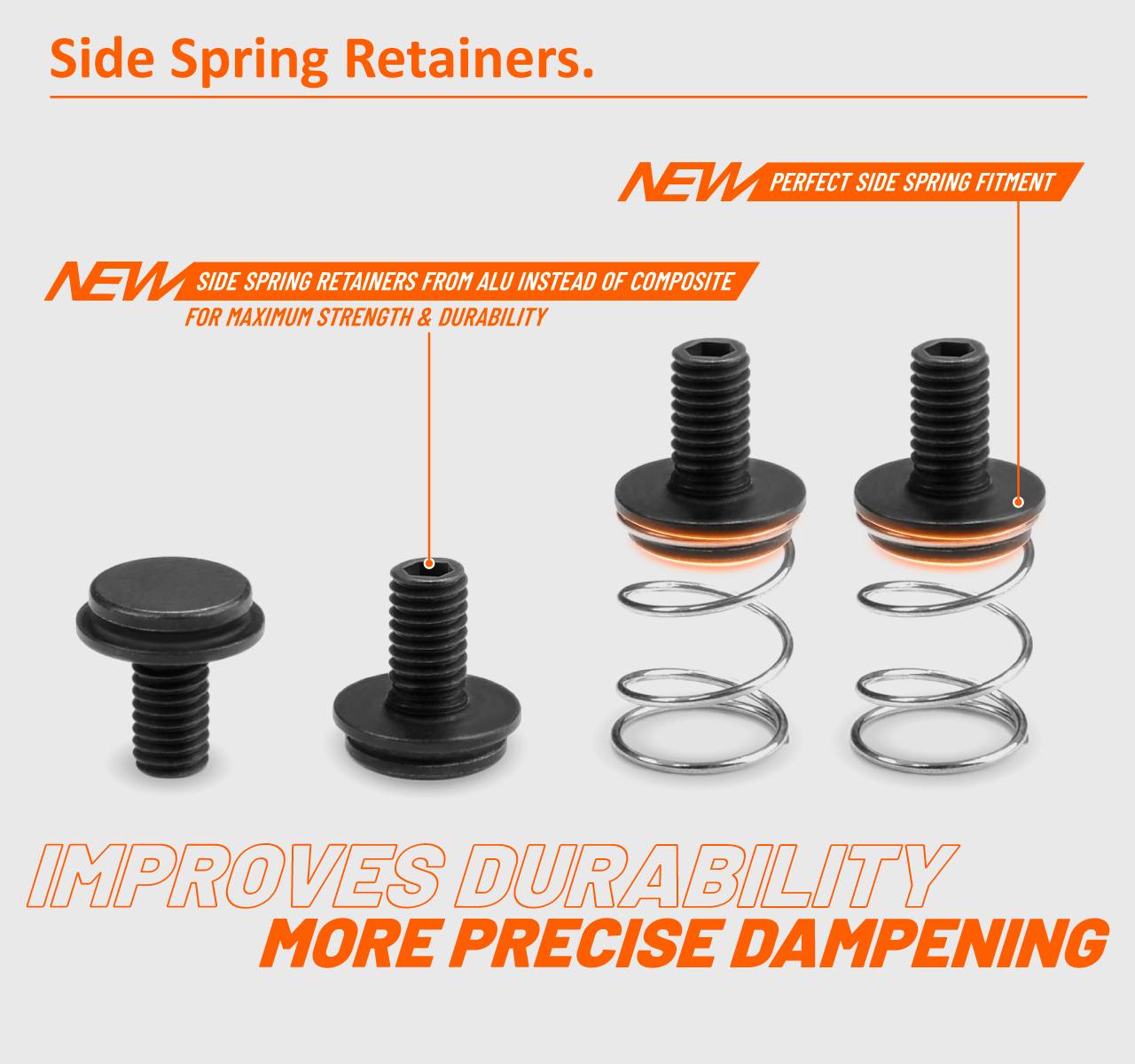

  • Aluminum side spring retainers for more precise and consistent side spring mounting

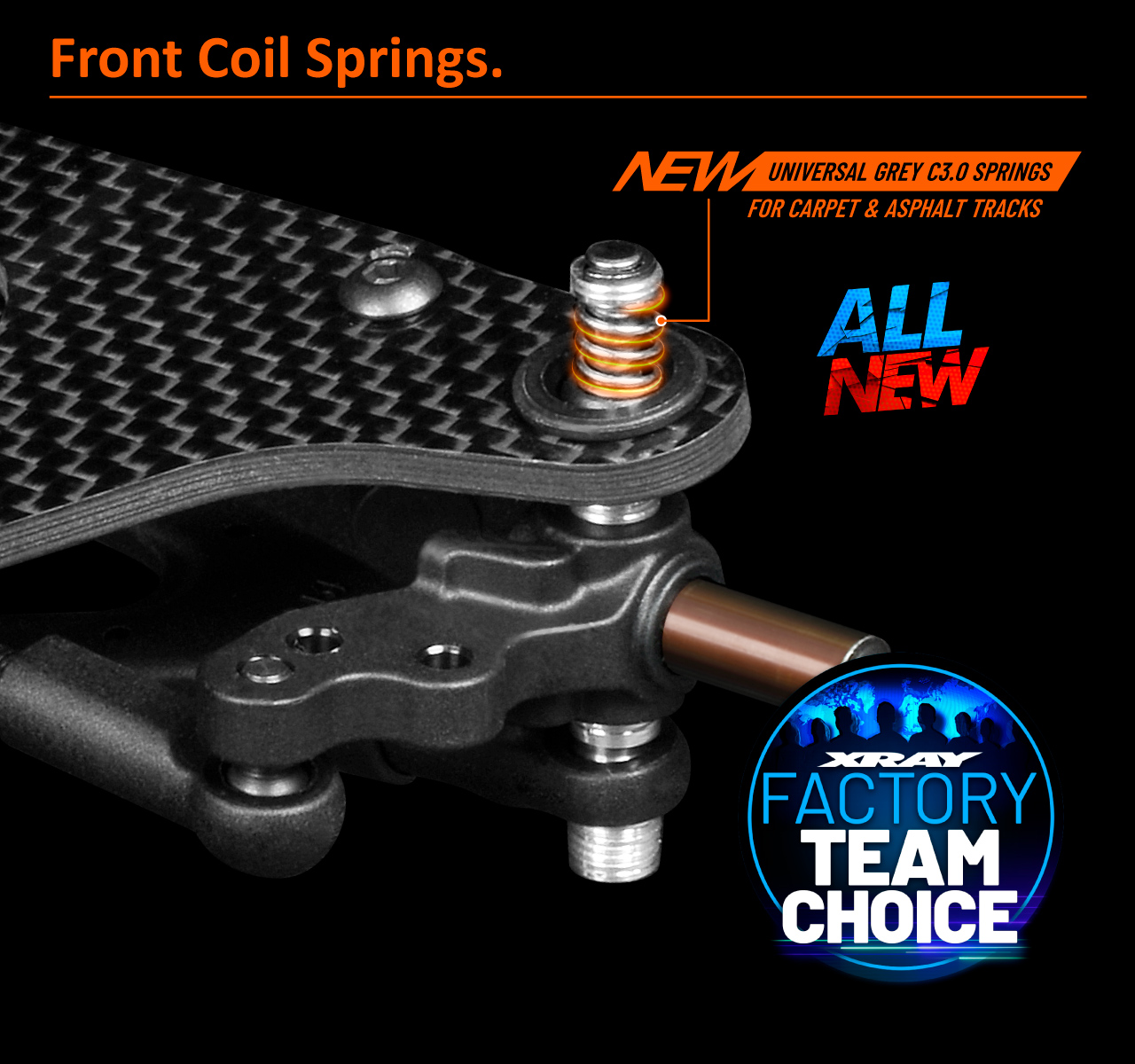

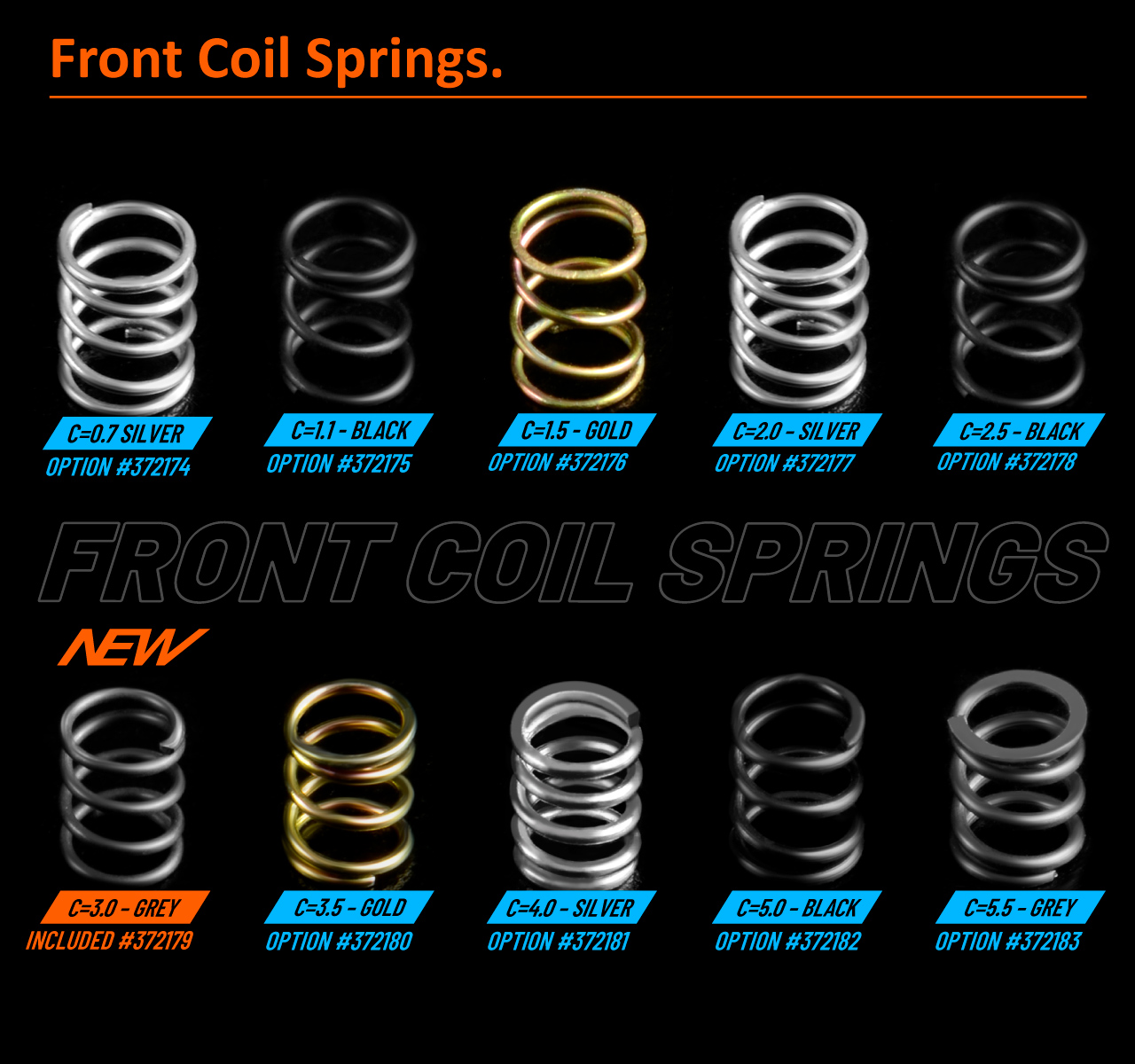

  • Most commonly used soft front springs included in kit for best all-around starting set-up

    		•
