This is for a very high traction track. My next setting change was to be bars and diff oil. The car is VERY balanced and reactive. Not too edgy or hard to drive. This was for Blinky 17.5

I did not have chance to try the setup with yellow/yellow, or gray/gray yet.

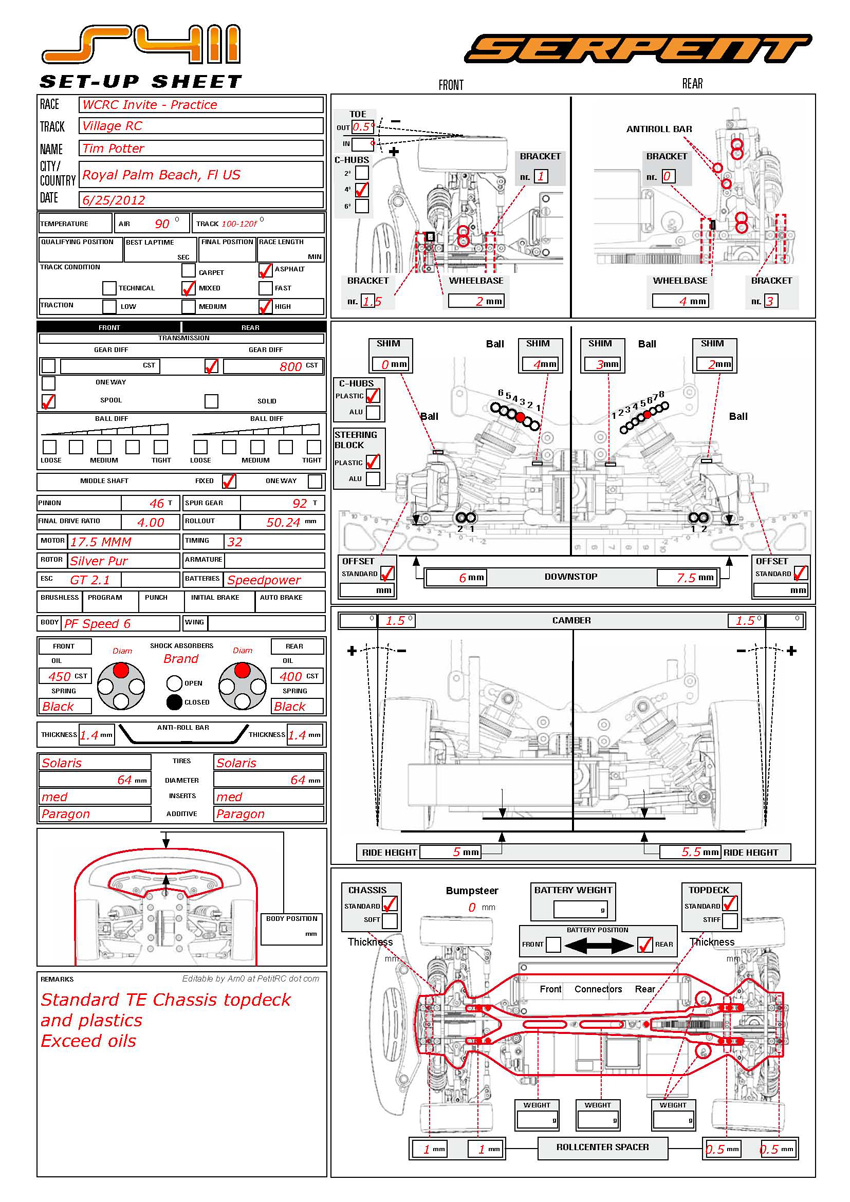

Standard TE Chassis topdeck and plastics.

Front
1.5 Camber
0.5 toe out
1.5 FF Block
1.0 FR Block
No Shim outer camber link -4mm inside in the innner hole
450 Exceed Oil 3 hole piston Black Spring
Hole #3 on the tower - outer on the arm
2mm front, 2mm rear spacers - wheelbase
1mm rollcenter shim
5mm ride height
1mm droop over ride height
1.4 Bar

Rear
1.5 Camber
0 RF Block
3.0 RR Block
2mm shim outer camber link -3mm inside in the innner hole
400 Exceed Oil 3 hole piston Black Spring
Hole #5 on the tower - outer on the arm
4mm front, 2mm rear spacers - wheelbase
.5mm rollcenter shims
5.5mm ride height
2mm droop over ride height
1.4 Bar

Solaris Tires/Speed 6 Body
