- Serpent S400 - Randy Castor - 2008 Reedy Race - Roseville - 25.05.2008 -

Back to S400 Setups

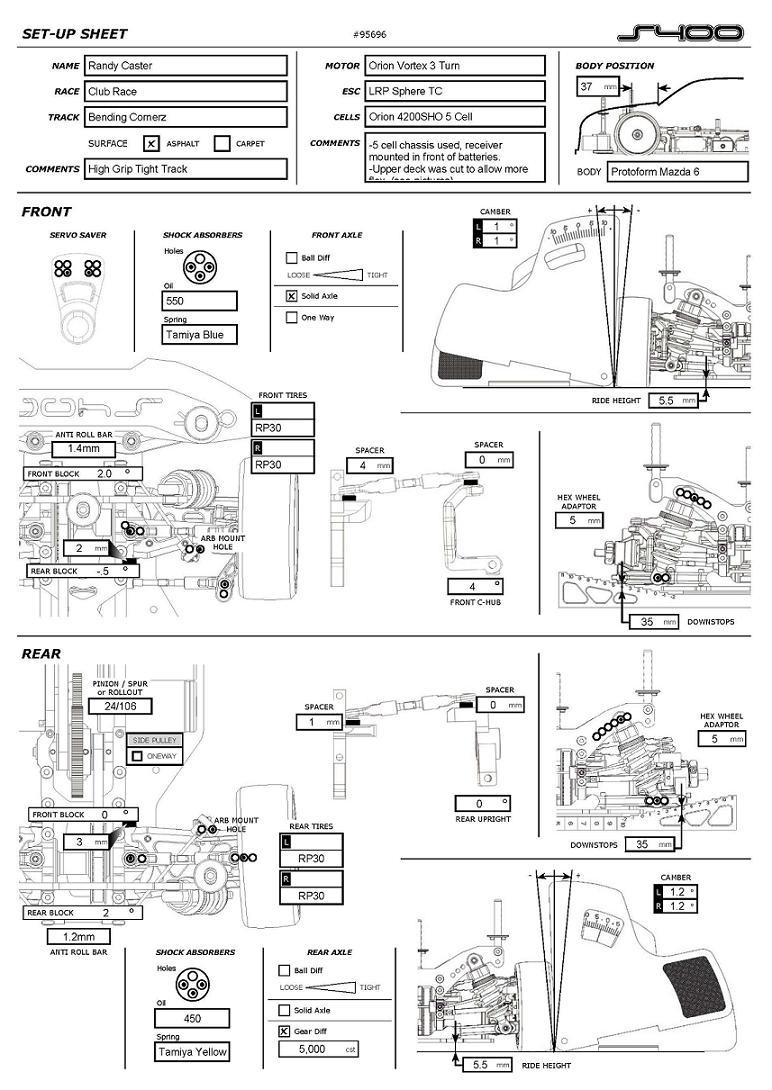

Randy Caster original setup which is fairly easy to drive, should be able to get around the track well for anyone. His Reedy setup is more aggressive and will be a bit harder to drive, but is capable of some fast laps.

Notes:

5 cell chassis used, receiver mounted in front of batteries.
Upper deck was cut to allow more flex. (see pictures)
Used 2 gears in rear diff.
TRF shocks with stock Tamiya bladders with nothing above.
Tamiya pistons used.
AE lower spring retainers, and shock ends with 2mm cut.
.5mm anti-squat.
Front pivots raised .5mm + .5mm anti-dive.
Steering limited 1mm on knuckle.

Reedy Updates:

-2° caster blocks.
600wt front oil, 550wt rear oil
Body position 34mm
Ackerman still in back row but outside holes
-3° rear toe block
Front swaybar mounted inner hole on arm
Front arms forward
Rear arms centered
5mm ride height
Droop 34.7mm
Full throw on steering
Camber 1.5° front, 1° rear
Handout tire was a Sorex 36R premount on Speedmind wheel "SpeedRex 36"
