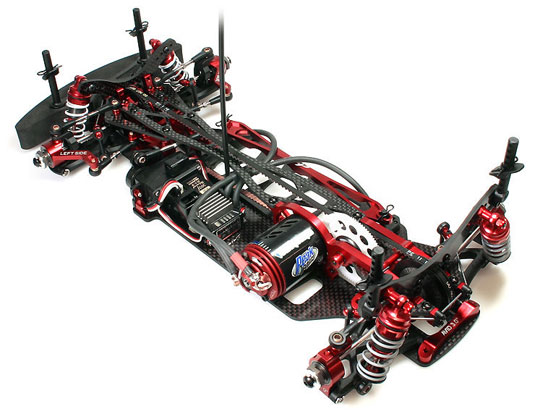

Avid 1/10 Touring car
| The Avid is a high-end touring car designed specially for
professional drivers. Many special features making the difference
to most other electric touring cars. We started the design with the
question: What can we do better? So the Avid is designed for maximum
performance, easy handling and a lot of new features in the touring car
sector.
The high-efficiency drivetrain with extra large belt pulleys,
superstrong and smooth aluminium differentials and a improved suspension/steering-geometry
for maximum cornerspeed makes this car ready for competition.
The chassis is highly complex manufactured. The new form-fit technology
for all chassis- and suspension-parts is a special-feature.
Aluminium-steering knuckles and rear hubs and battery mount is a matter
of course for the Avid.
See, feel and drive this machine! It´s a Robitronic!
|
Features
• two belt drive train for higher efficiency
• super size belt pulleys for less friction and maximum torque
• lightweight design means less rotating mass for maximum acceleration
• aluminium high-torque-differential for smooth operation
• large diff-balls for long life and smooth operation
• One-Way diff front for more steering and higher corner speed
• steel universal joints with removable blades for maximum power and
durability
• super lock system for wheel screws
• central nut attaches spur gear and reduces gear wobble
• central weight-distribution allows for optimum balance
• precicision aluminium front steering knuckles and rear hubs
• extra-large ball bearings for less friction, longer life and reduces
slop
• ultra narrow and low chassis layout for lowest center of gravity and
predefined flex zones
• clear layout of rc-components
• large air intakes for better motor cooling
• super low carbon fiber upper deck form-fit to the gear plates allows
for perfect positioning and avoids tweak when crashing
• lightweight aluminium one-piece gearplates with carbon fiber
strenghtening plates are form-fit to the chassis for anti-tweak and
perfect positioning when assembling
• aluminium steering arms with ball bearings and adjustable ackermann
• super strong 3mm carbon shock stays are form-fit to the gear plates
for anti tweak and perfect positioning when assembling
• battery-fixing-system with tweak-free battery-strap, can also use
strapping tape
• aluminium suspension mounts are form-fit to the chassis plate for
perfect positioning
• 3 different rollcenter plates allow quick adjustment of kick-up and
rollcenter
• Sway bars front and rear
• large ball ends allow for silky smooth operation of suspension,
steering and less play
• teflon coated precision aluminium shock bodies for less wear and
friction
• shock cap with bleed-function for easier oil-filling
• easy and quick adjustment of suspension geometry |
| Specification |
| • Length: |
360mm |
| • Width: |
188mm |
| • Wheelbase: |
252-260mm |
| • Gear ratio: |
1.77 |
| • Toe-in front inside: |
0°~ -3° |
| • Toe-in rear inside: |
0°~ -3° |
| • Kick-Up front: |
-3°~ +3° |
| • Anti-Dive rear: |
0°~ +3° |
| • Caster rear: |
2°, 3°, 4° and 5° |
| • Rollcenterposition: |
3 |
| • Ackermannposition: |
2 |
| No. R39100 |
 |
|
|
|
