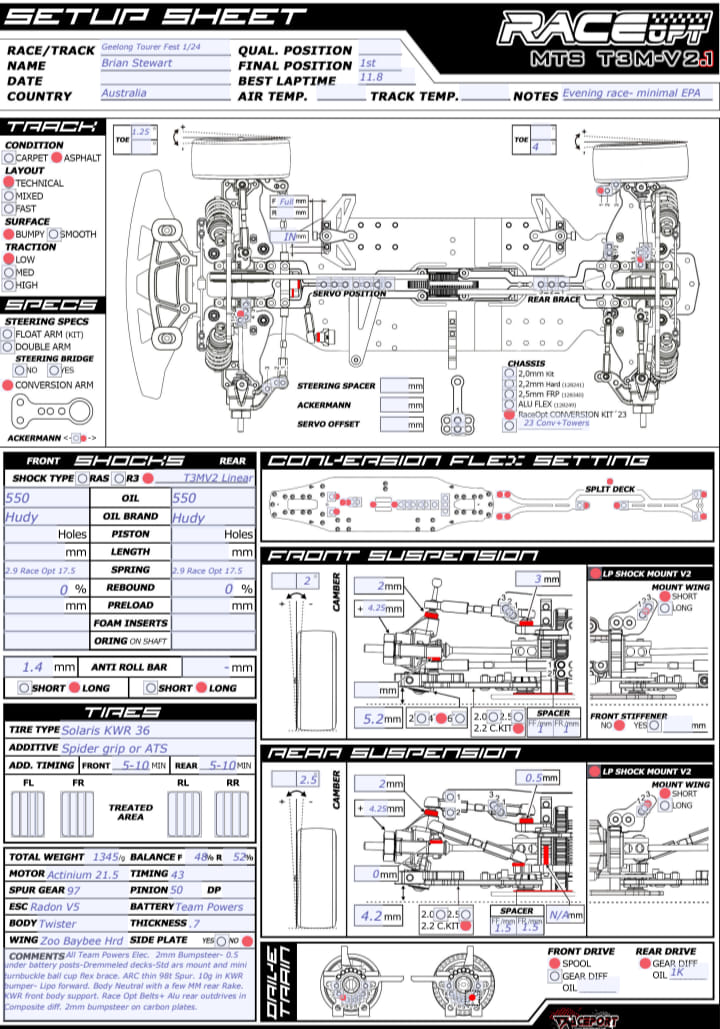

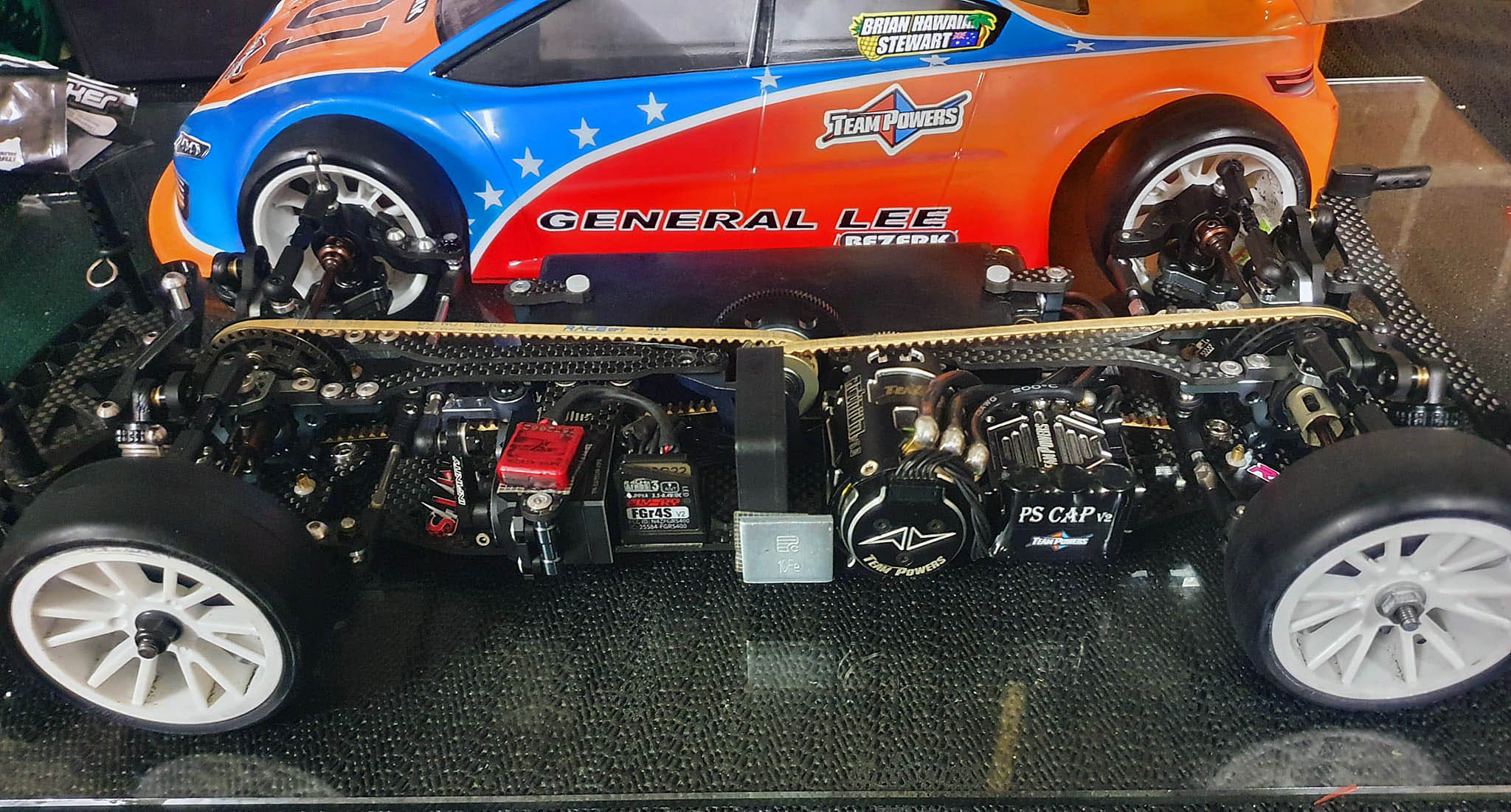

Great Base Setup for the local indoor track at Geelong RC Racers GRCR Friday Night Tourers ( Geetroit!) . Initially super low grip as the venue Is multi purpose, but the bite does evolve rapidly. It is also very bumpy but is a lot of fun! Due to the format, no time to adjust much at all- just check ride height and do the tyre/charge thing.

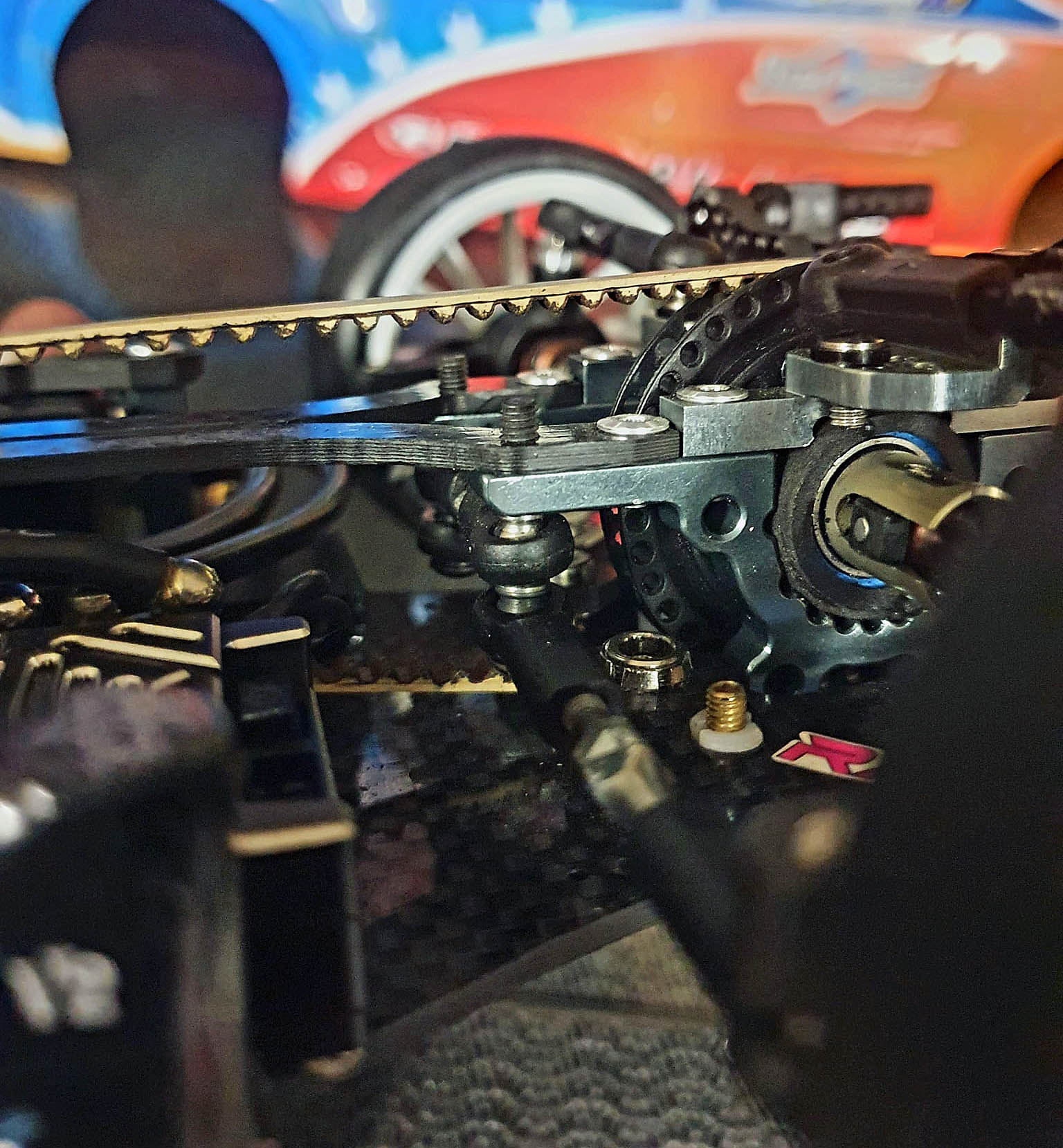

Composite diff with Race Opt alu. Machined outdrives. Minimal rear weight
SNRC also market solid Alu outdrives.

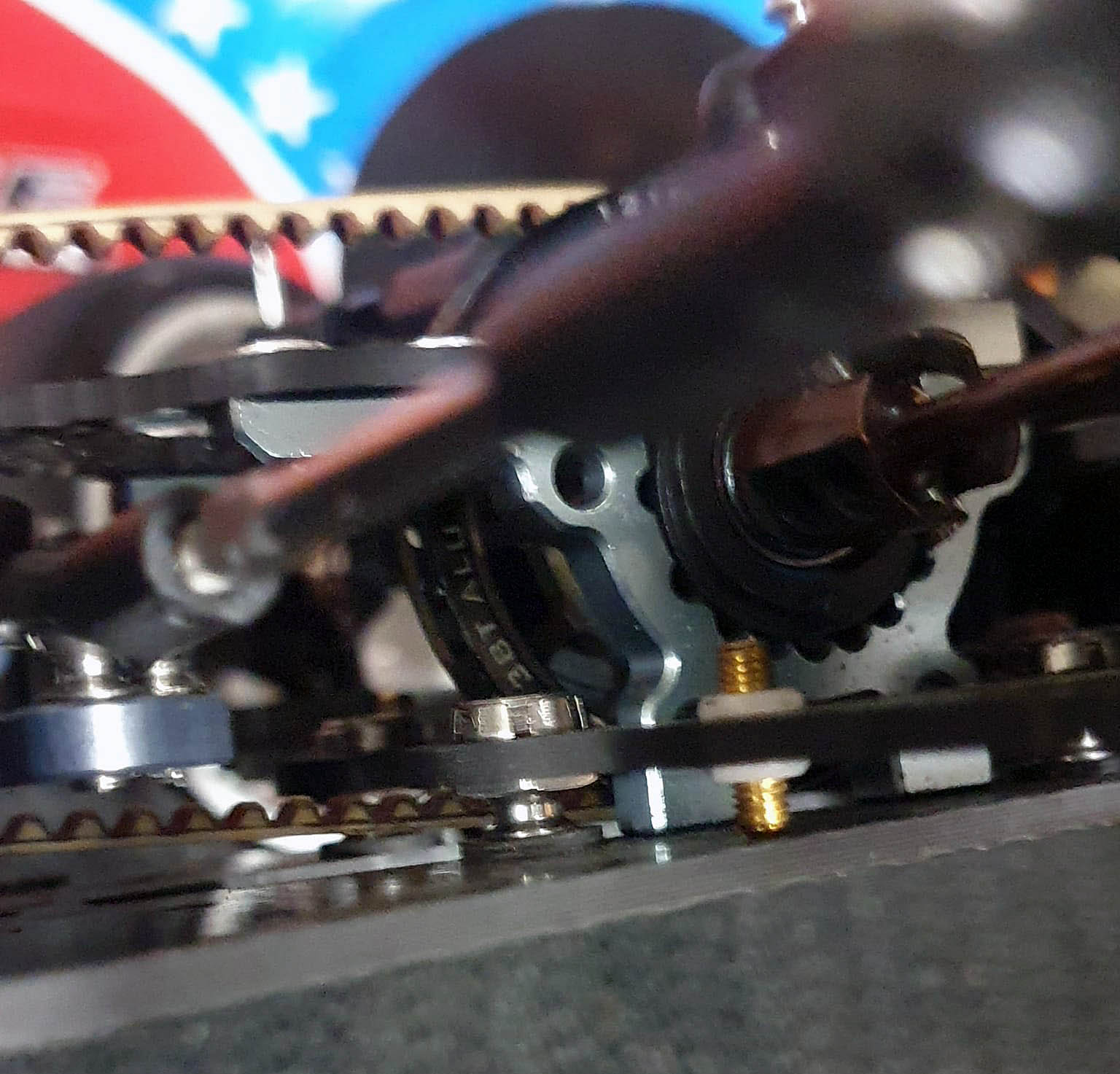

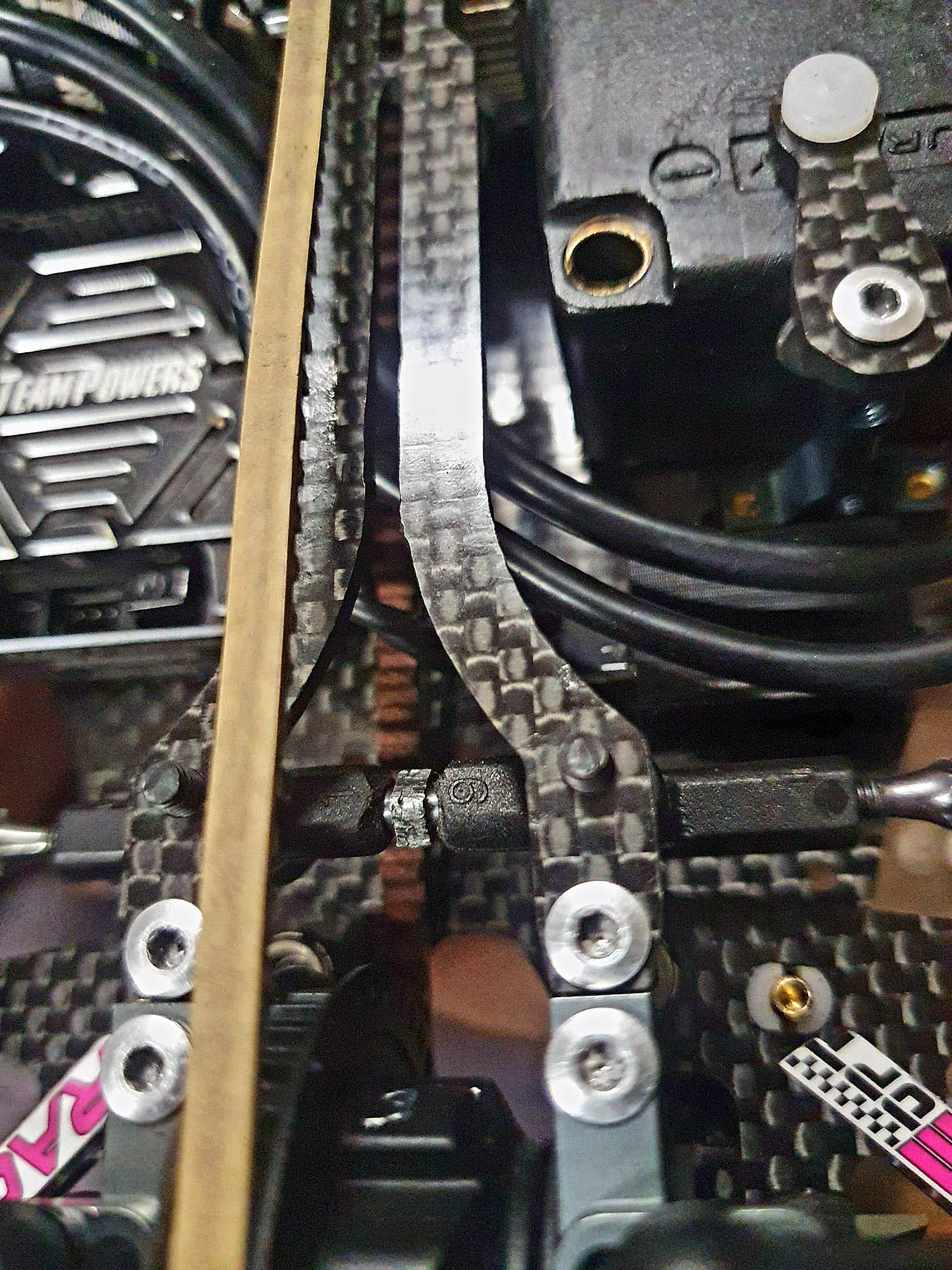

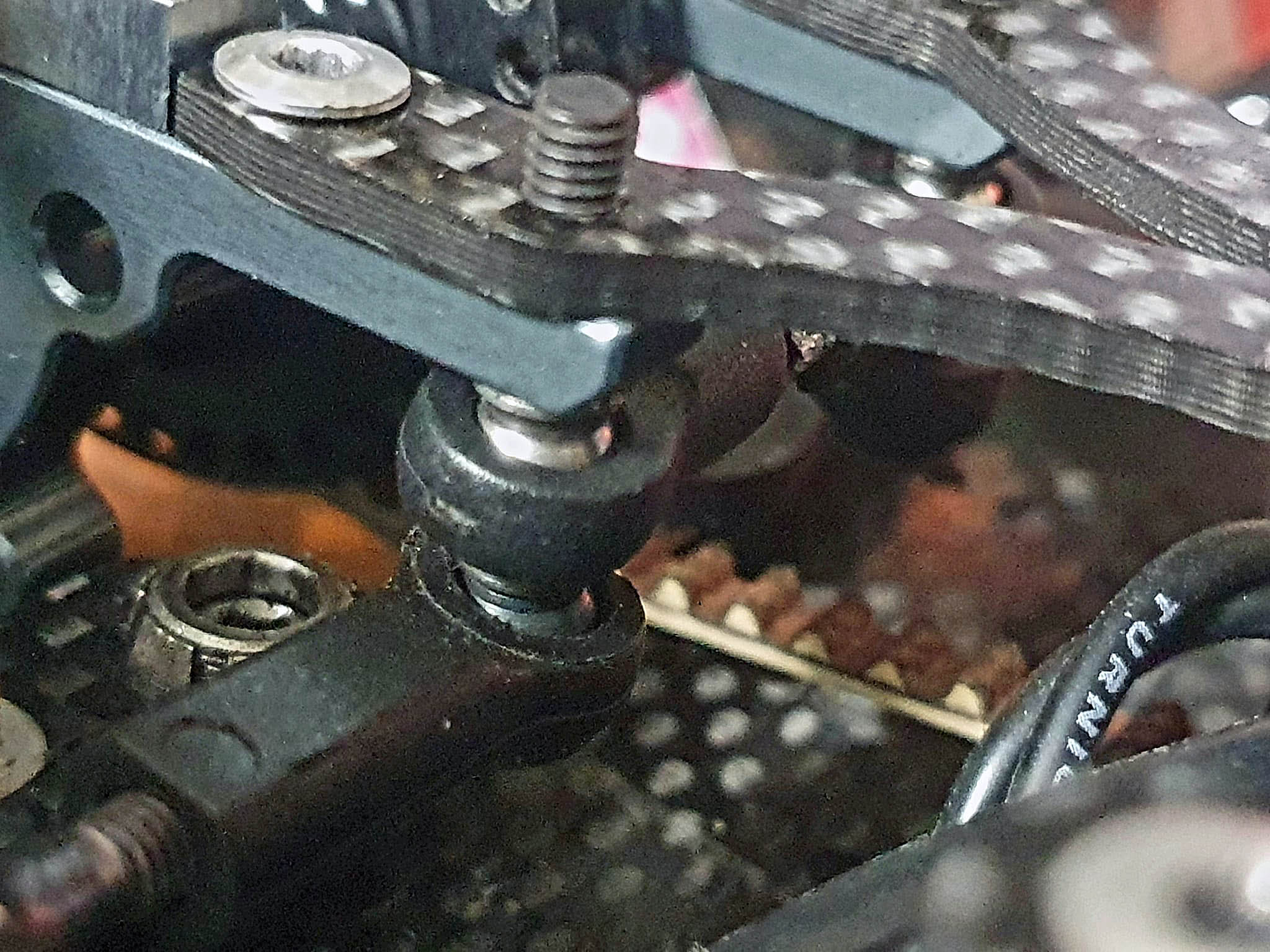

Rear ARS brace setup
Allows full bulkhead flex and neutral-minor toe gain ( or active steering if required)
- Only 2 screws securing rear deck or low profile nuts can be used.

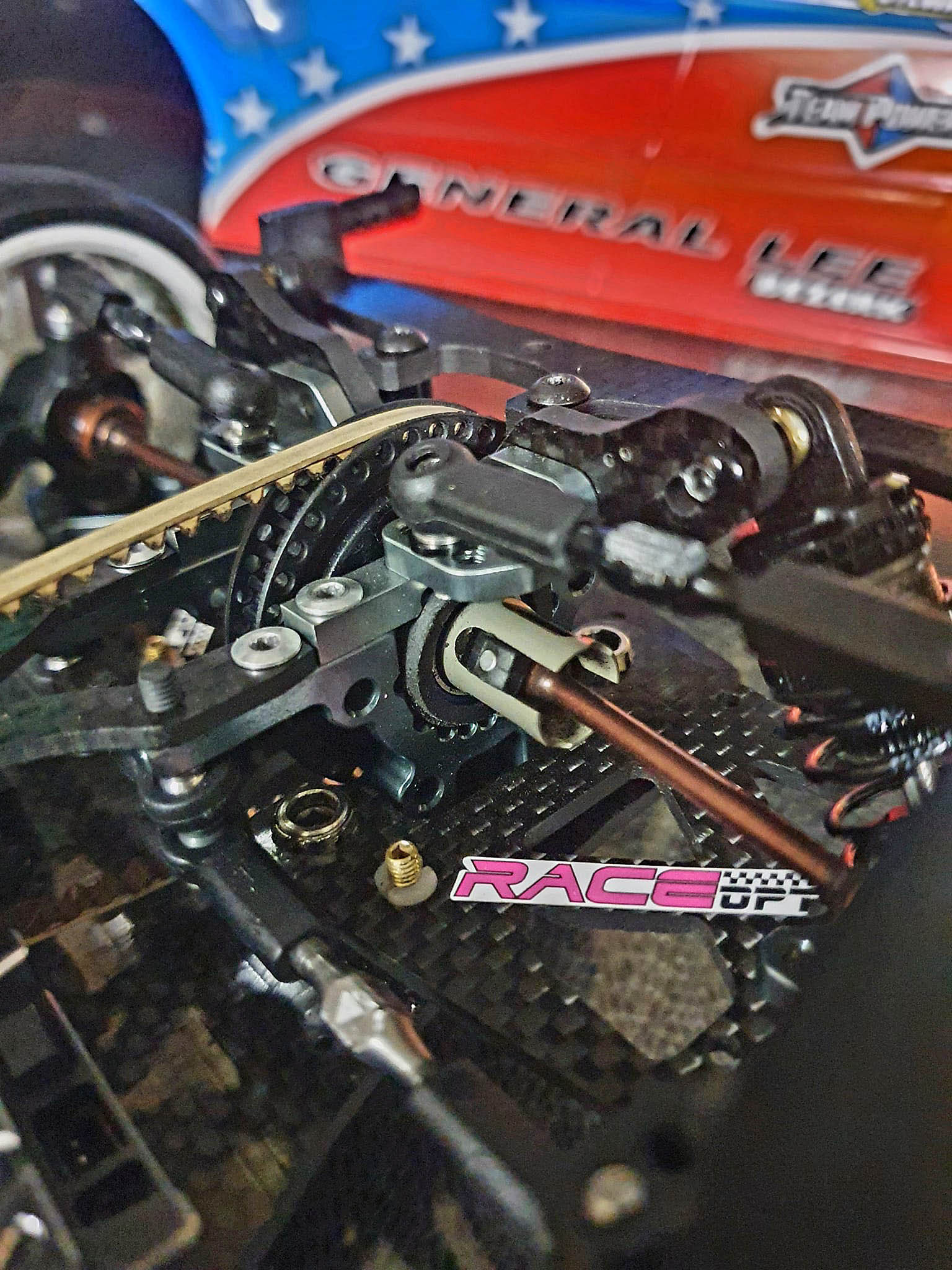

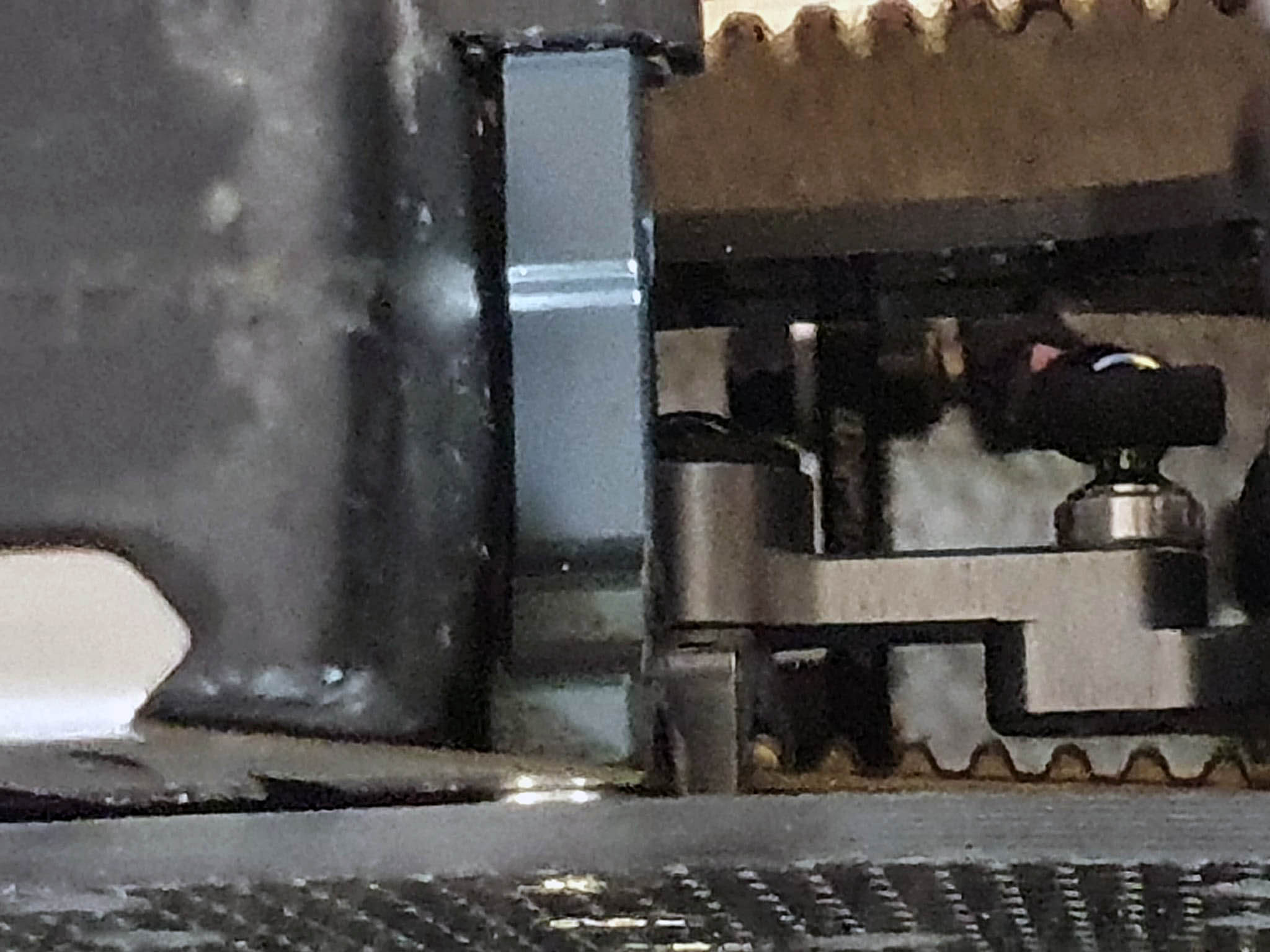

Standard style rear ARS setup on this car.

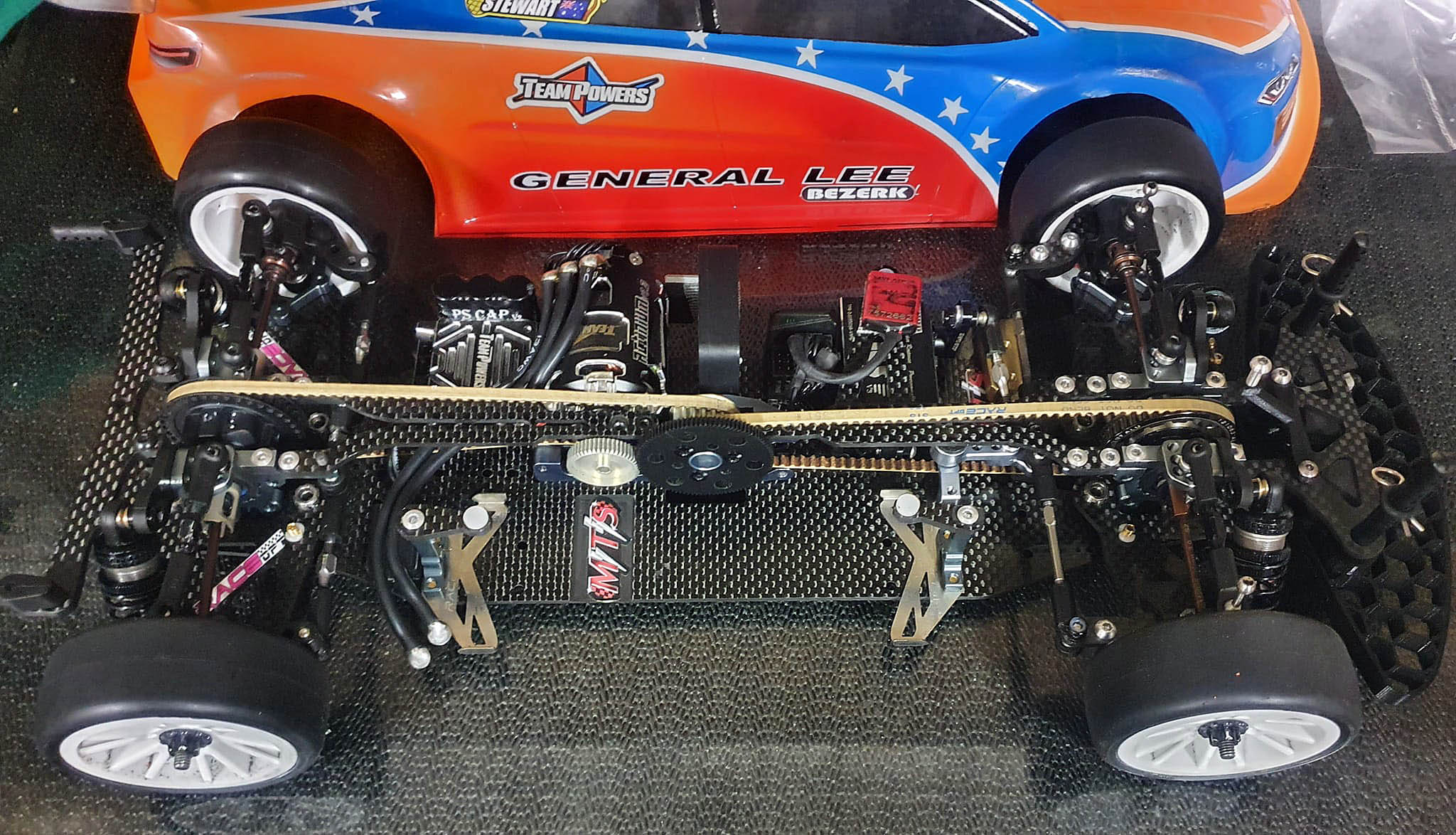

Phatdad Allcaps++ 2100

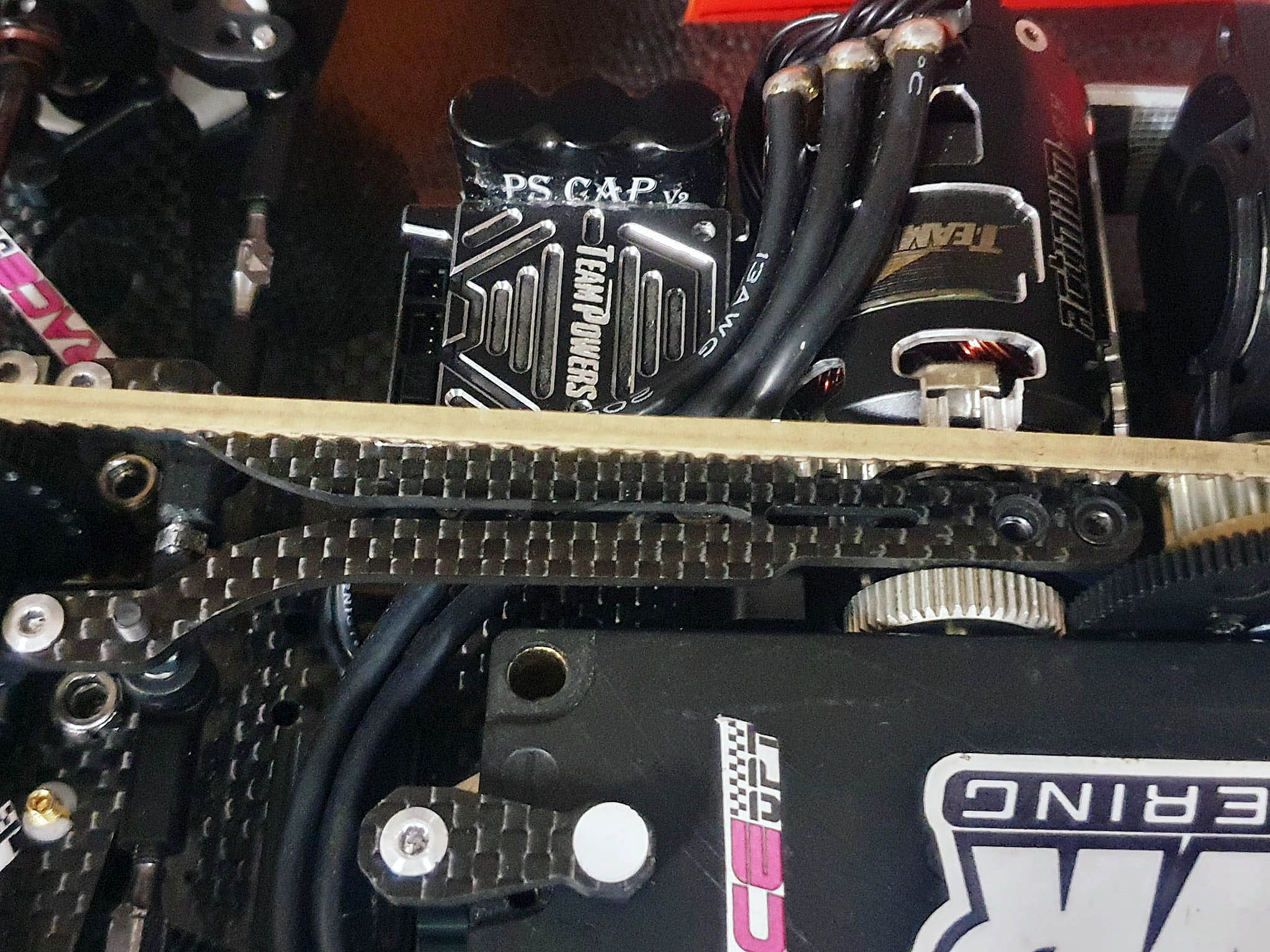

Custom Dremel cut decks

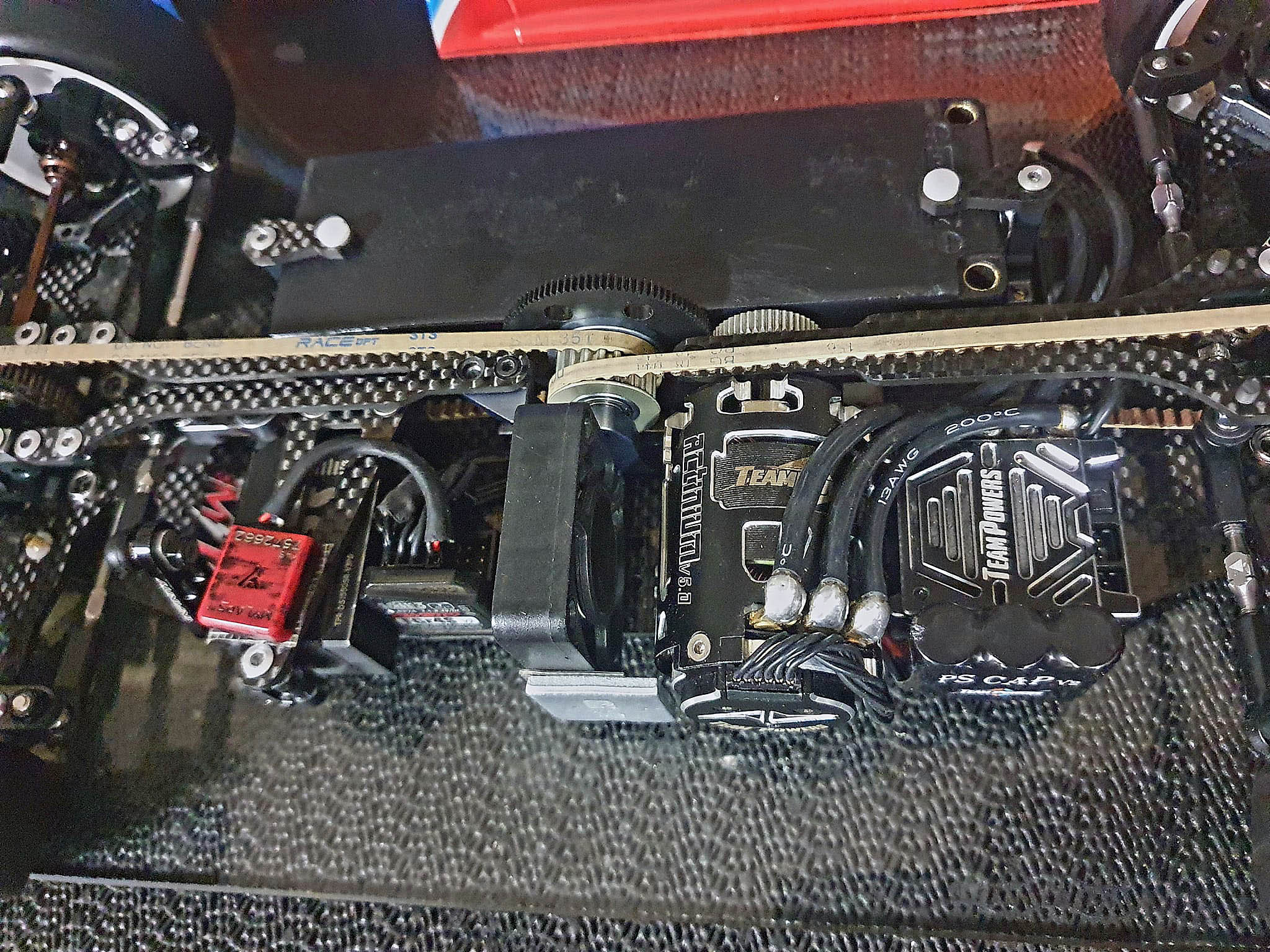

Team Powers
SRS V3 Servo
40mm Fan
Actinium V4 21.5
Radon V5 Pro-BT
PS Booster Cap V2

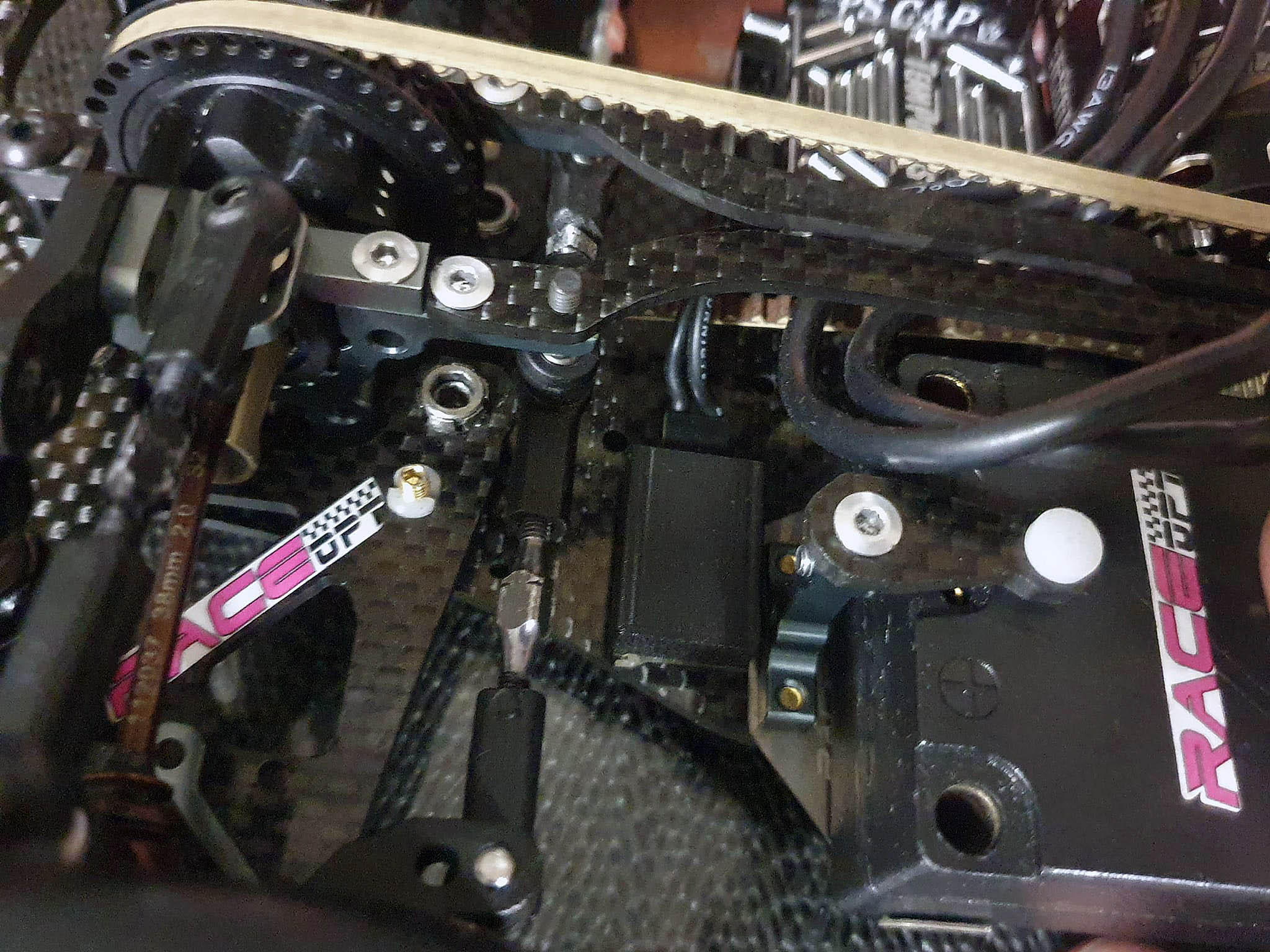

1x Outer screw on front 1.4 roll bar- inner screw reversed as a locator. Can also mount on a .5mm washer for slightly softer tuning.
Other rod diameters available.

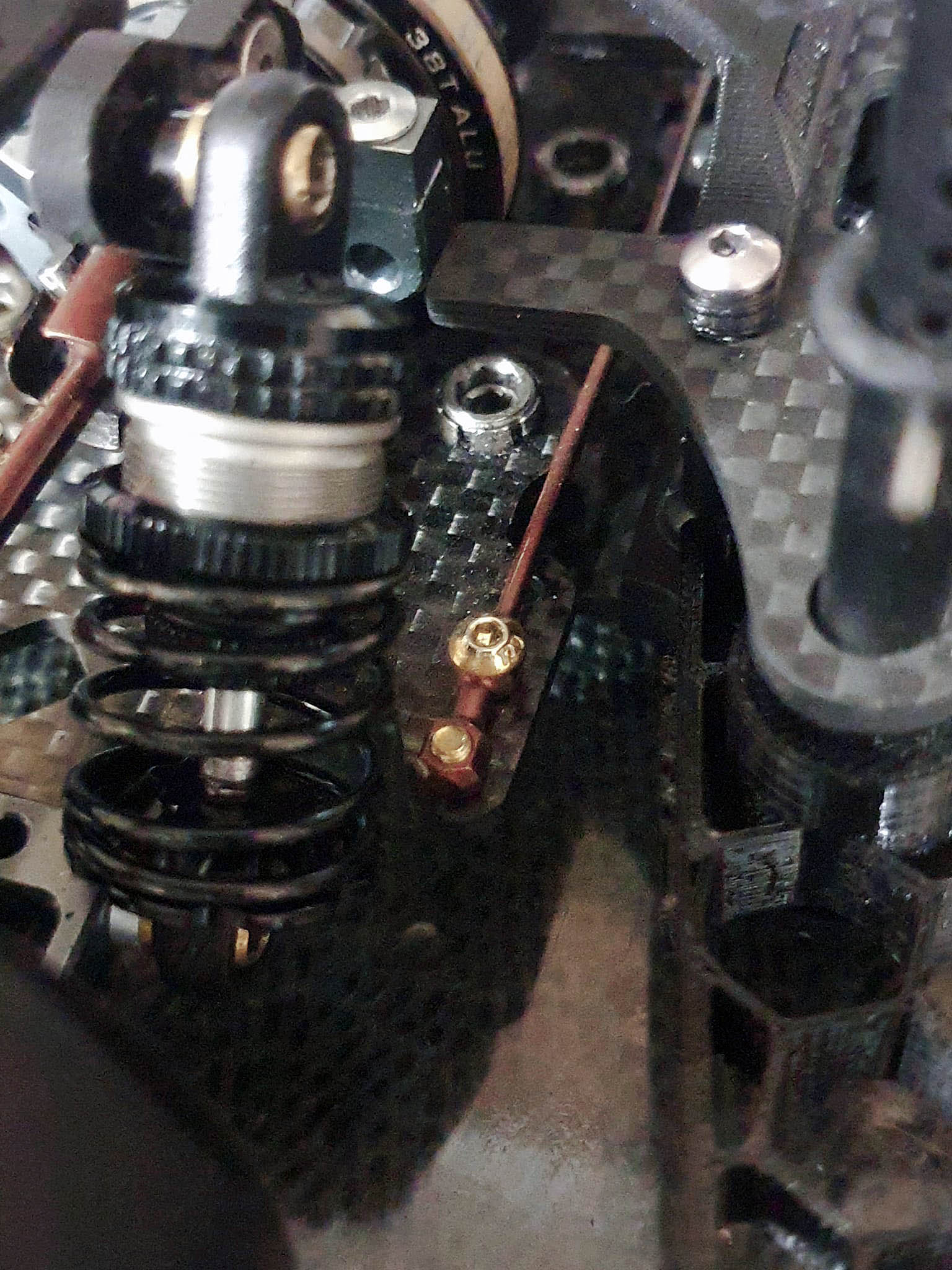

Linear V2 shocks with custom cut eyelet- spring retainer slot just clears mount. I only did 2 packs of testing a few weeks ago but those springs and roll centres were Lazy for these conditions. I switched to the Race Opt 2.9-175 ( 17.5mm ultra short) and they're perfect.

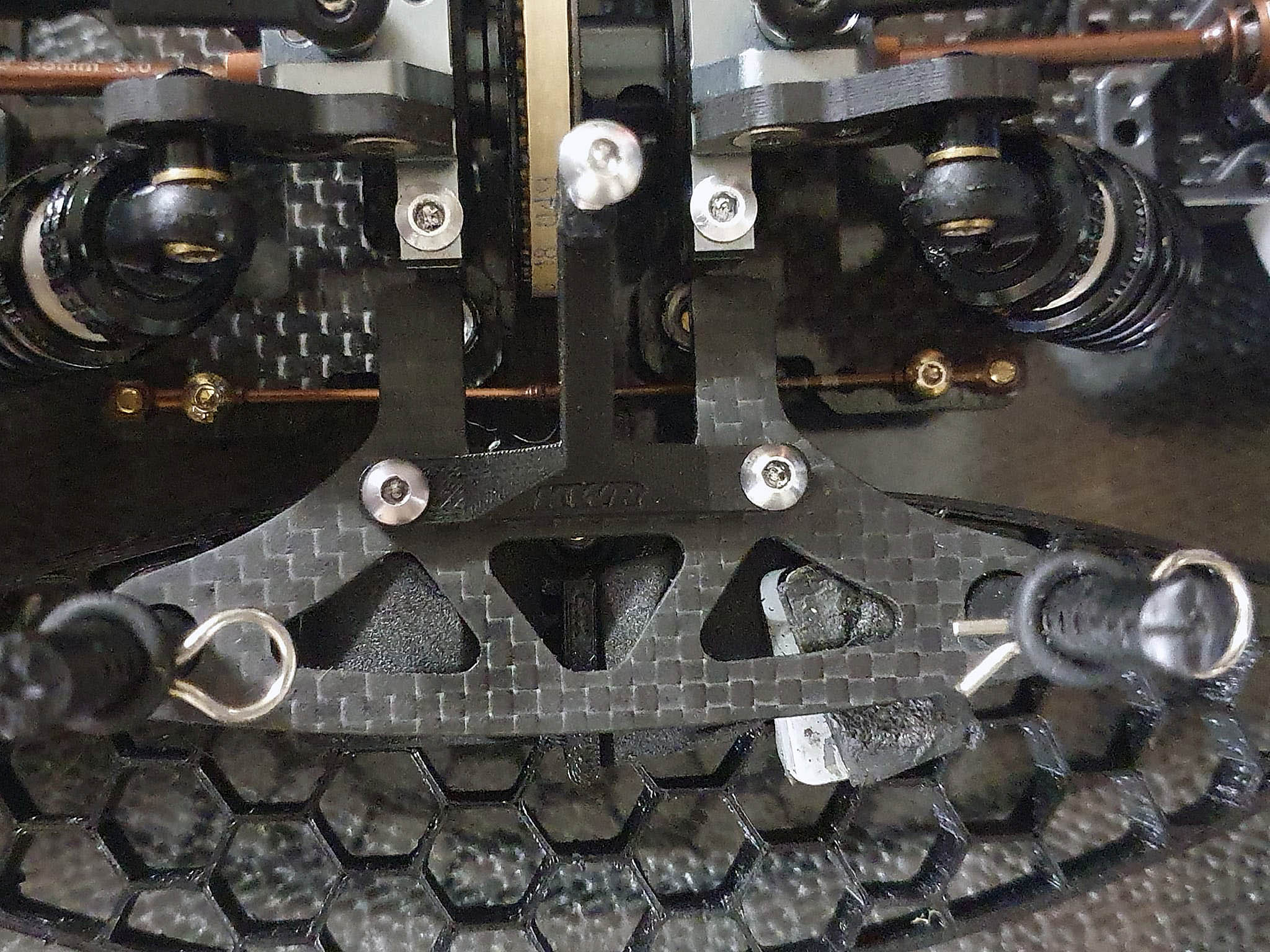

Legacy Bezerk bumper brace from T2 days- KWR T4/X4 standard bumper and body support. 10g test weight- nice balance for this track. T3MV2 front spool is Machined Alu and the axle is lightened.
1mm carbon front roll centre washers from Bezerk - 1.5mm at rear

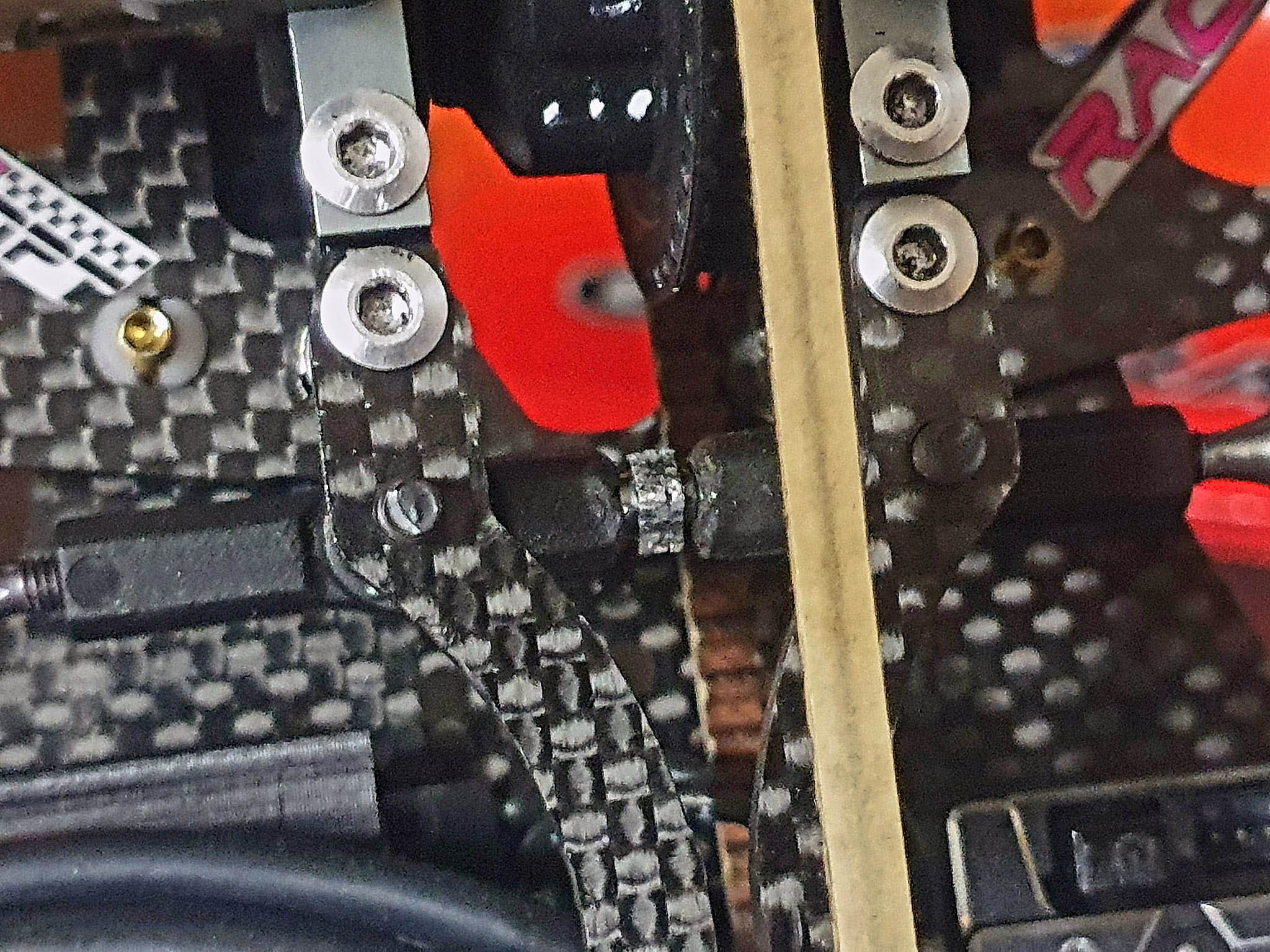

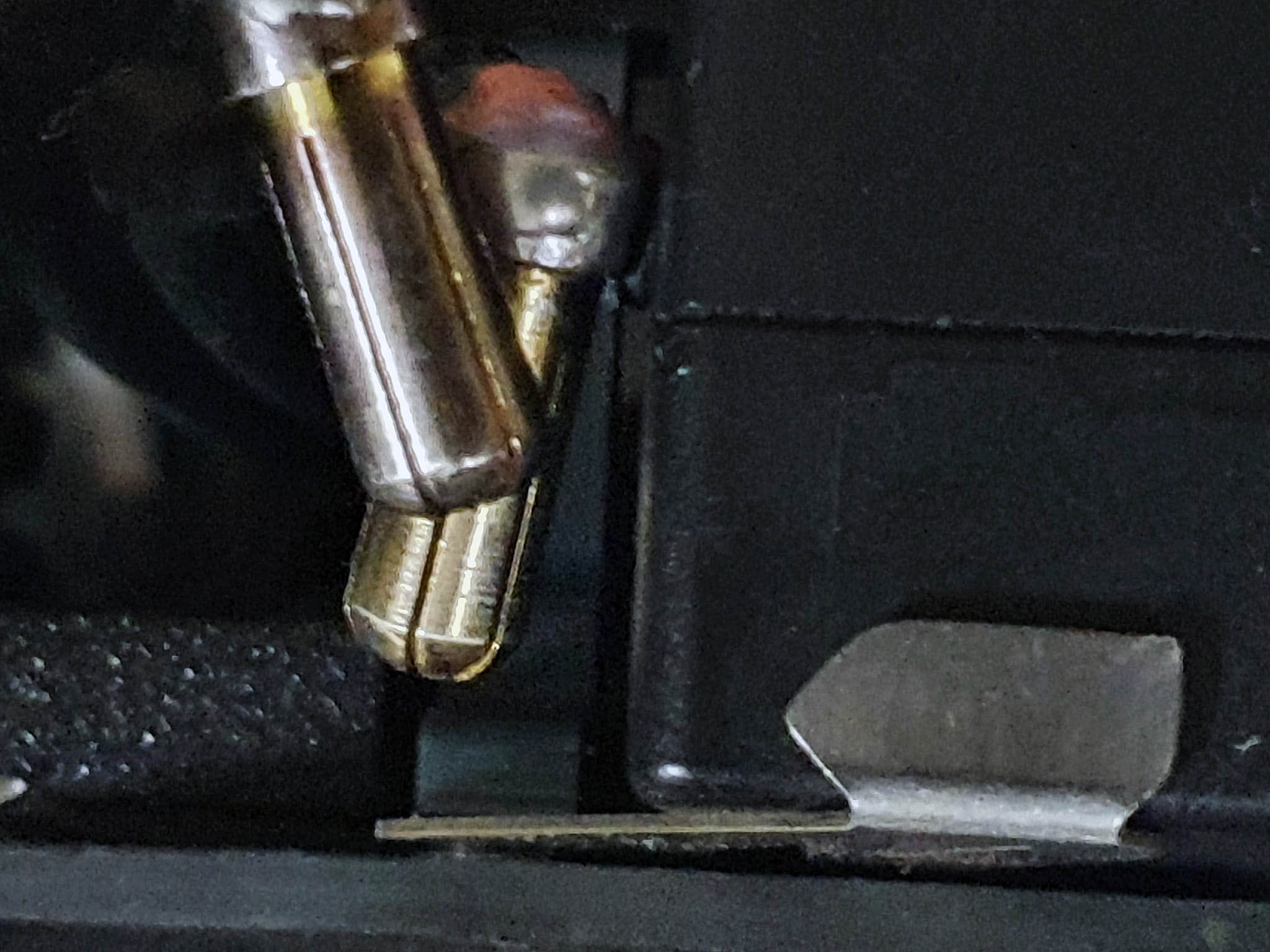

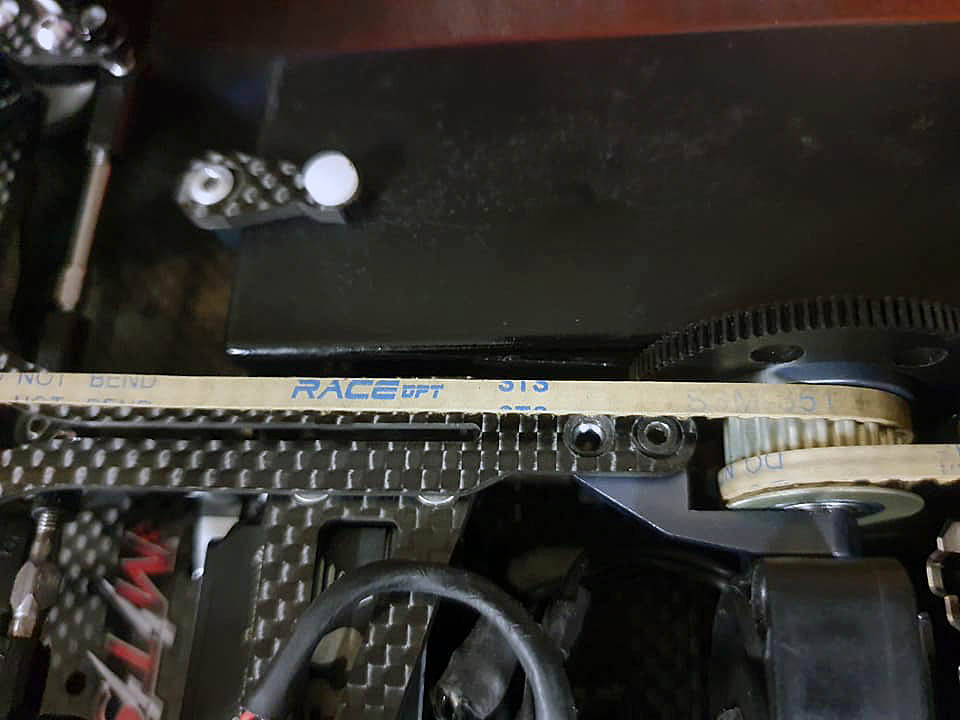

The kit floating battery mount tray system can be spaced up if you believe it tweaks- inner screw hole can use a loctite grub screw.

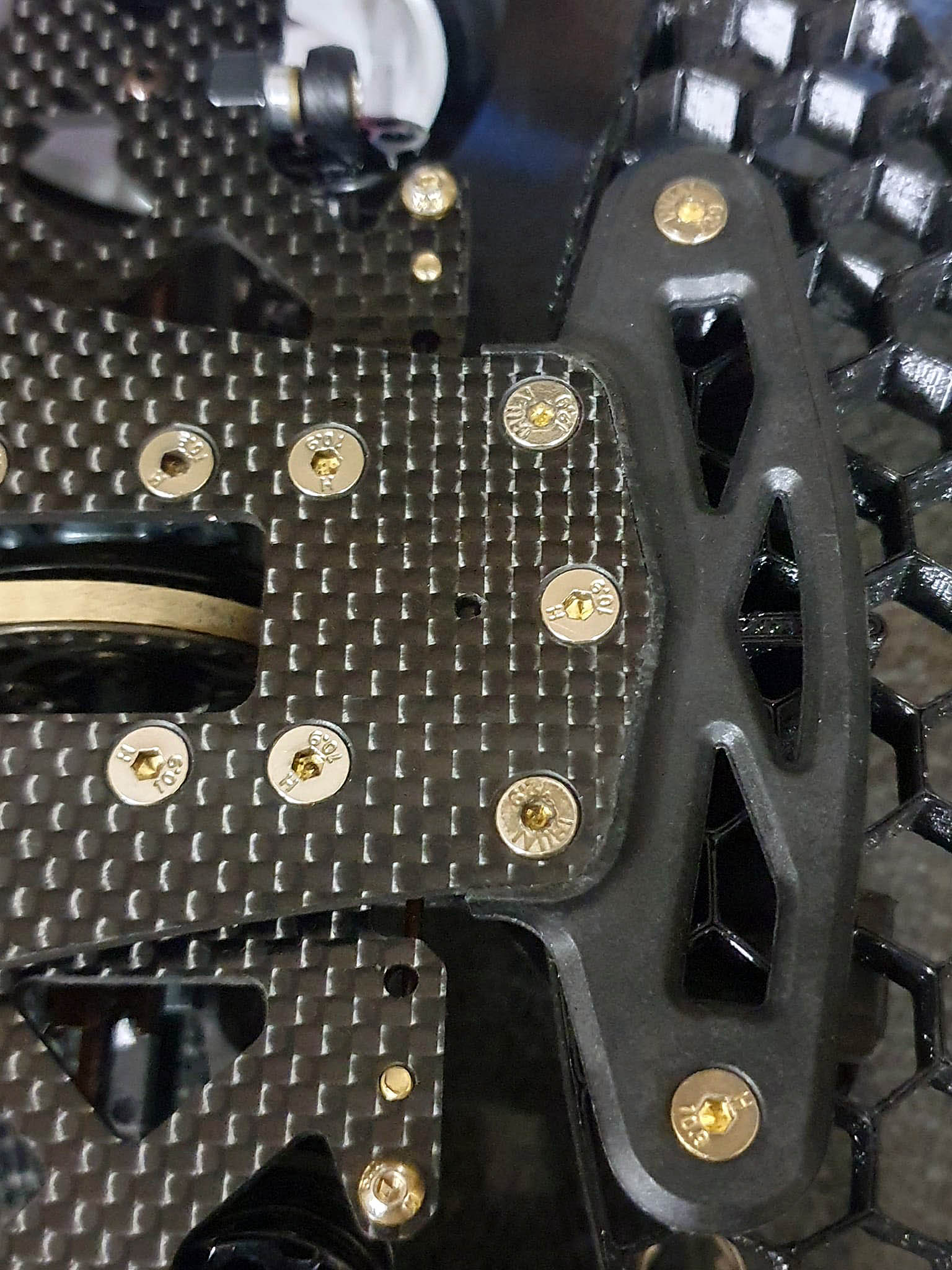

Front deck cuts.
|
