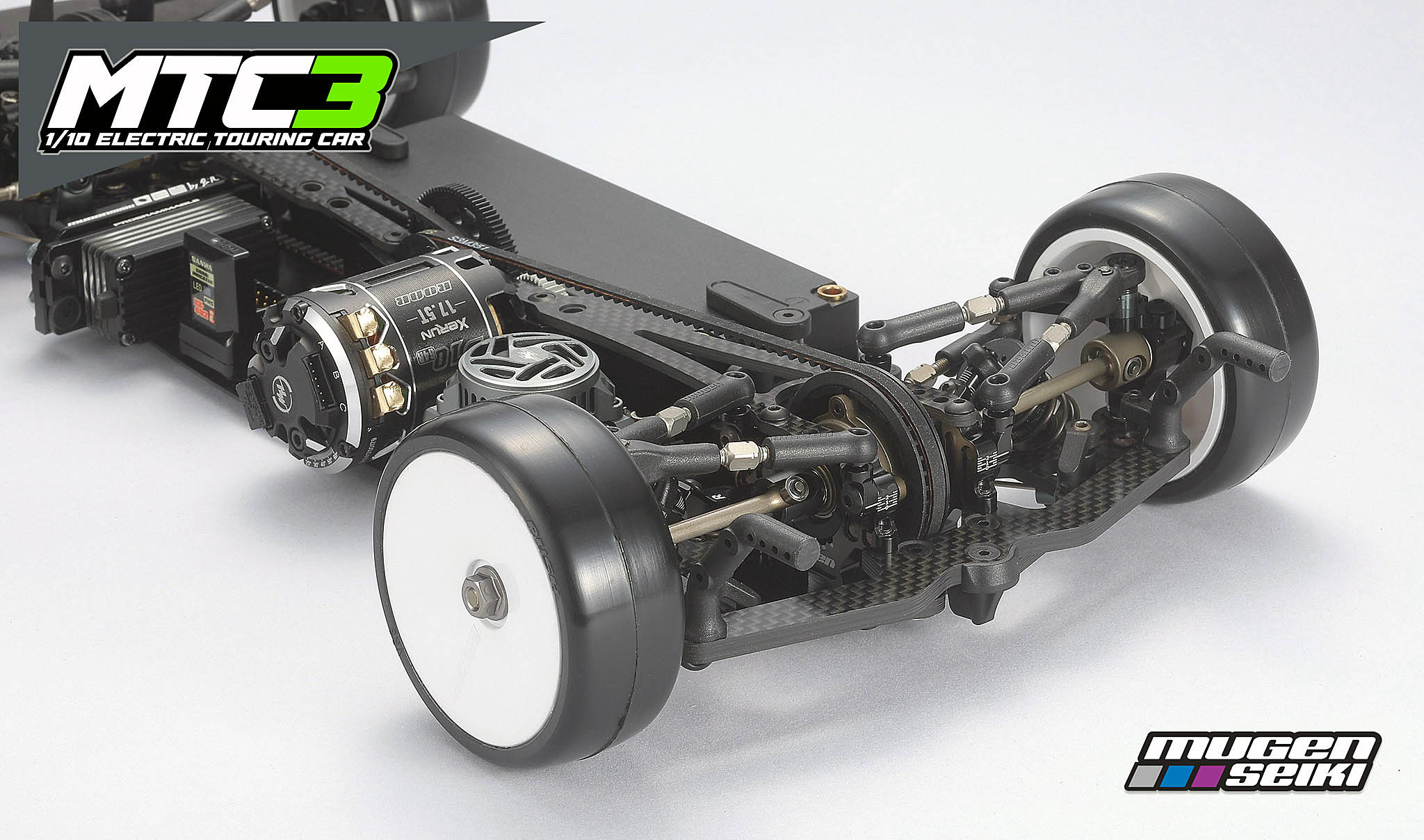

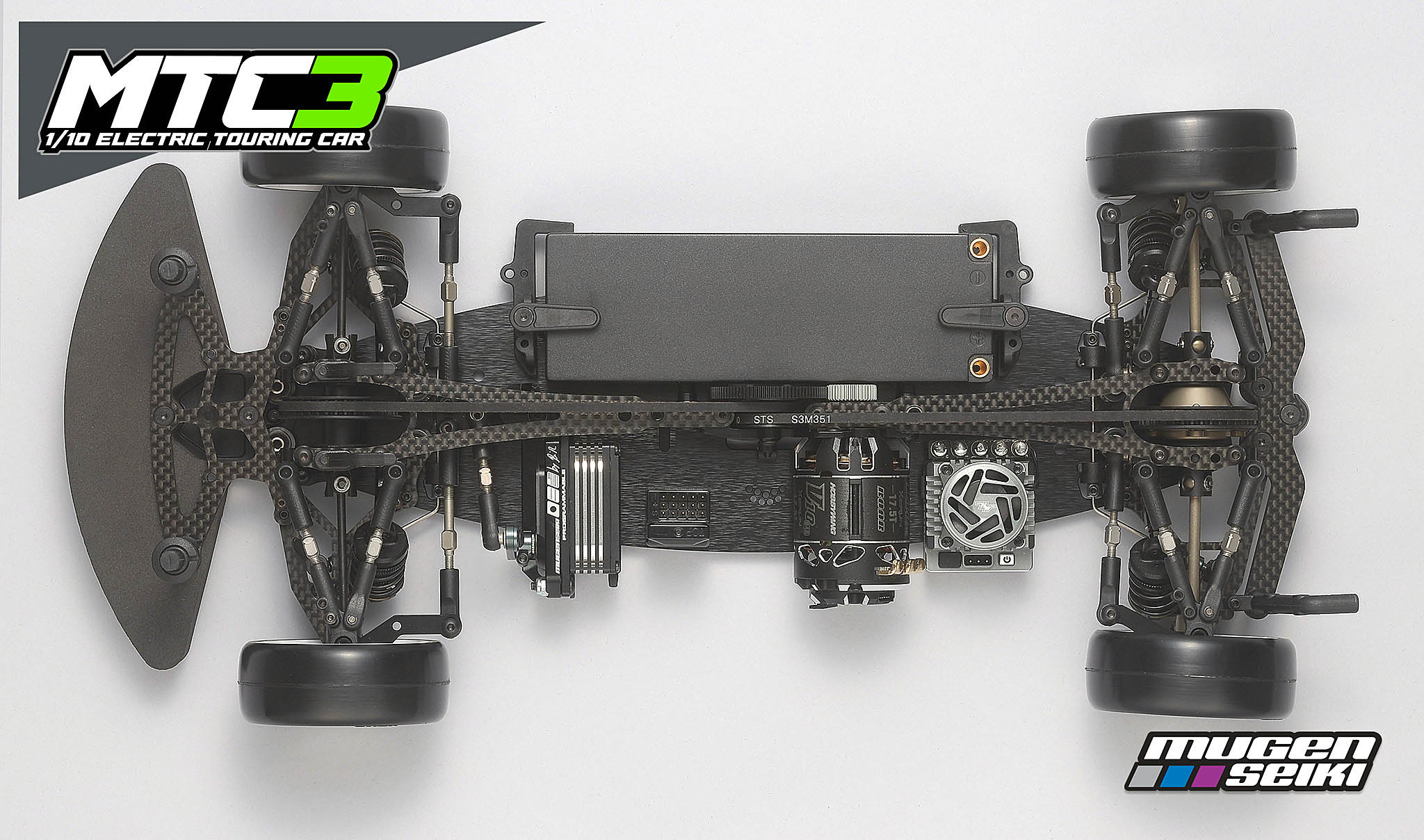

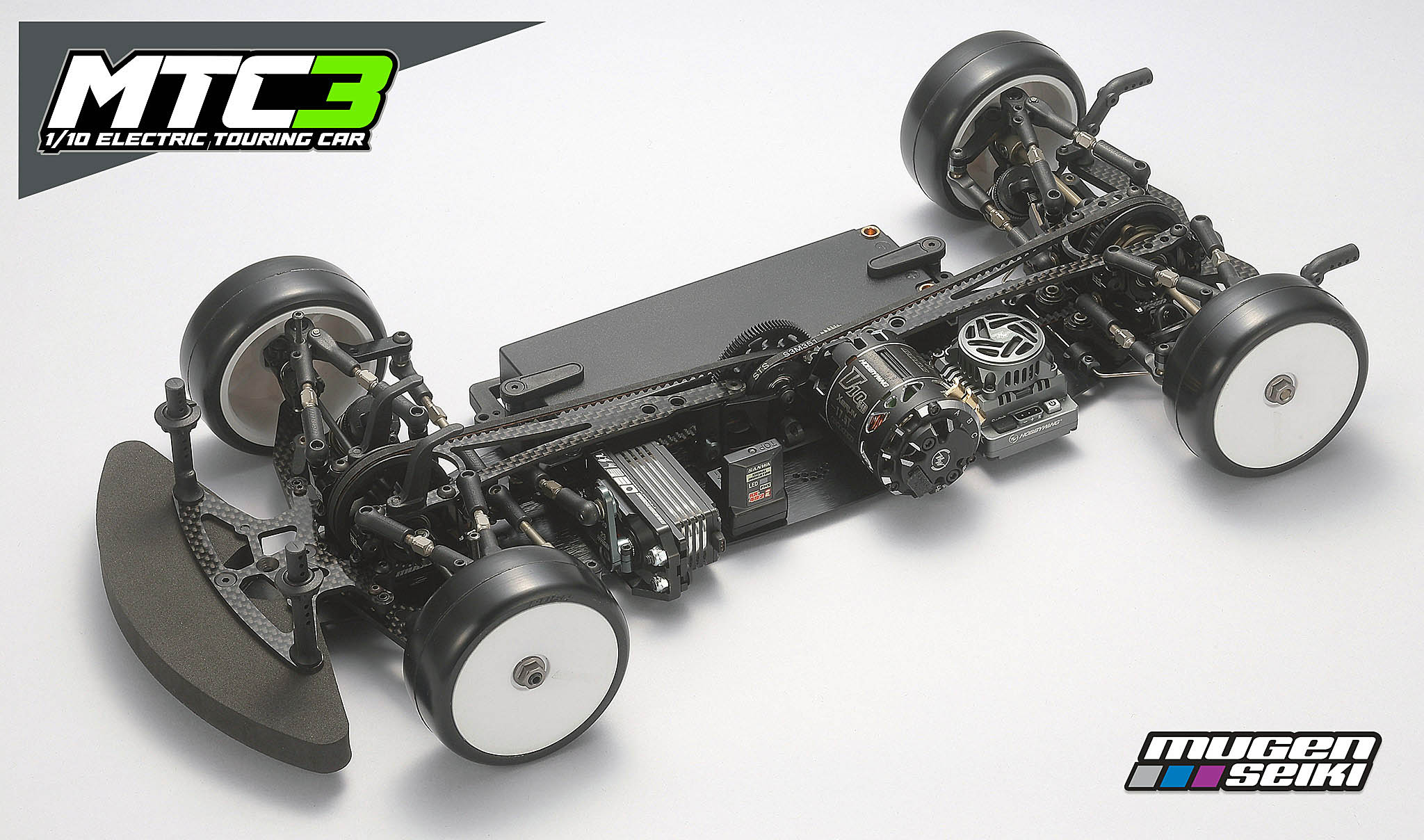

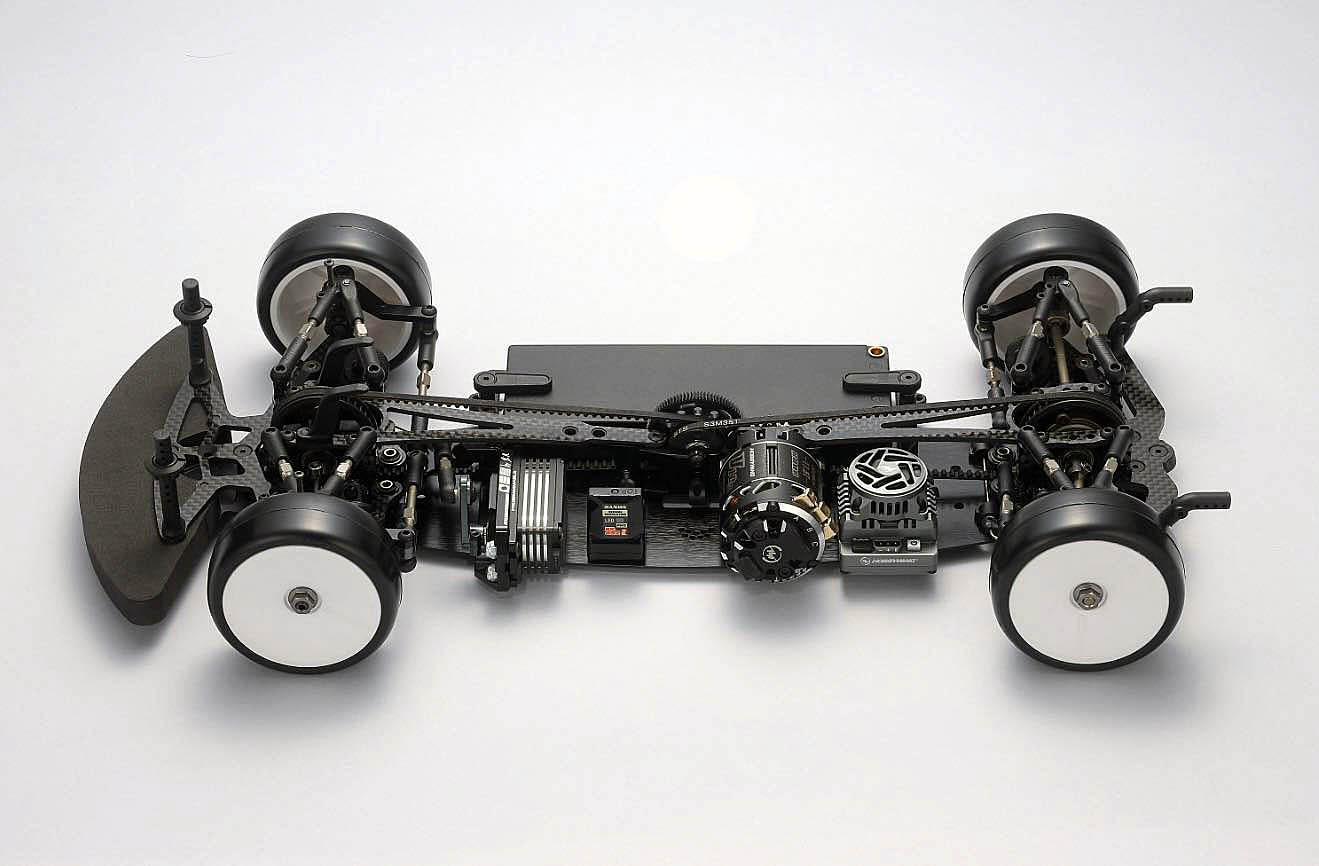

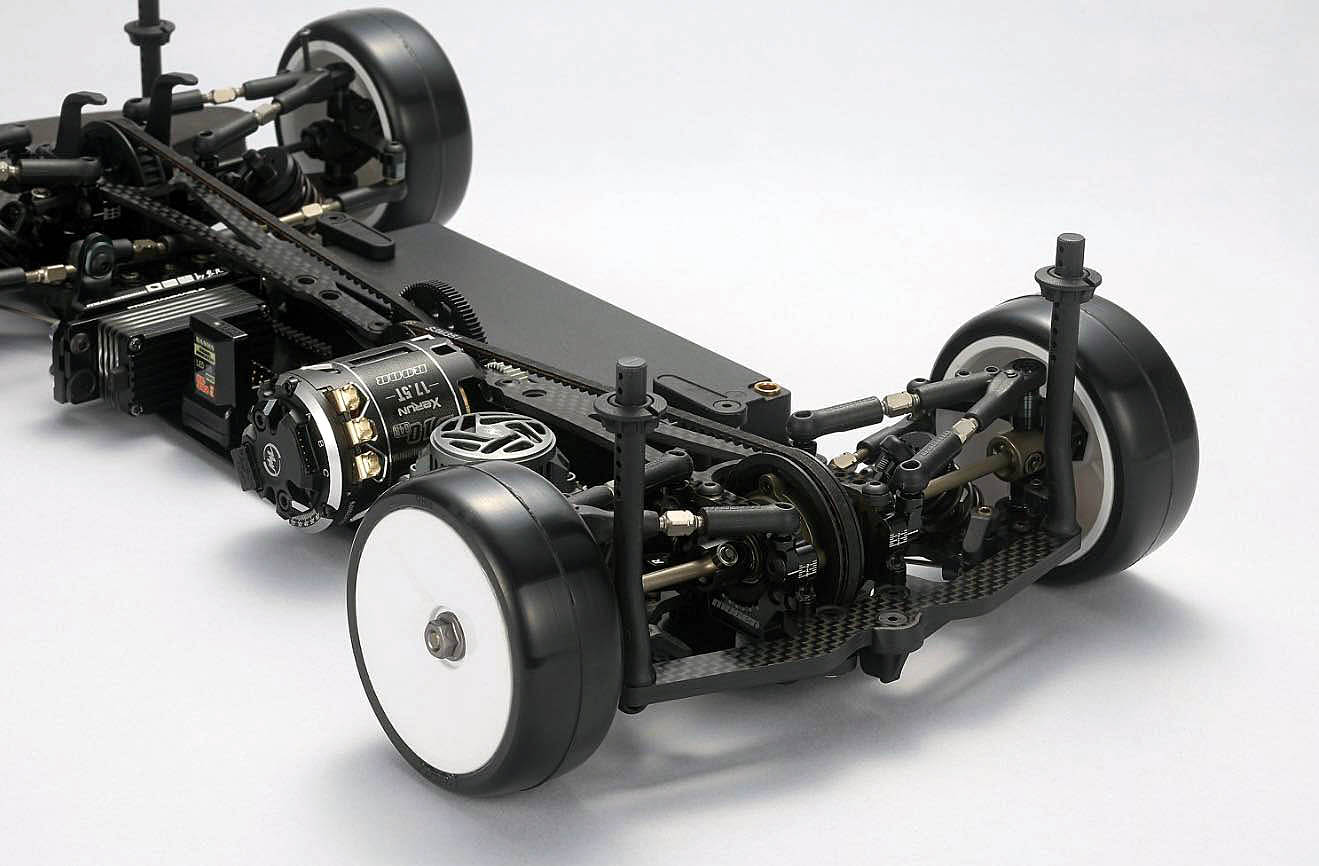

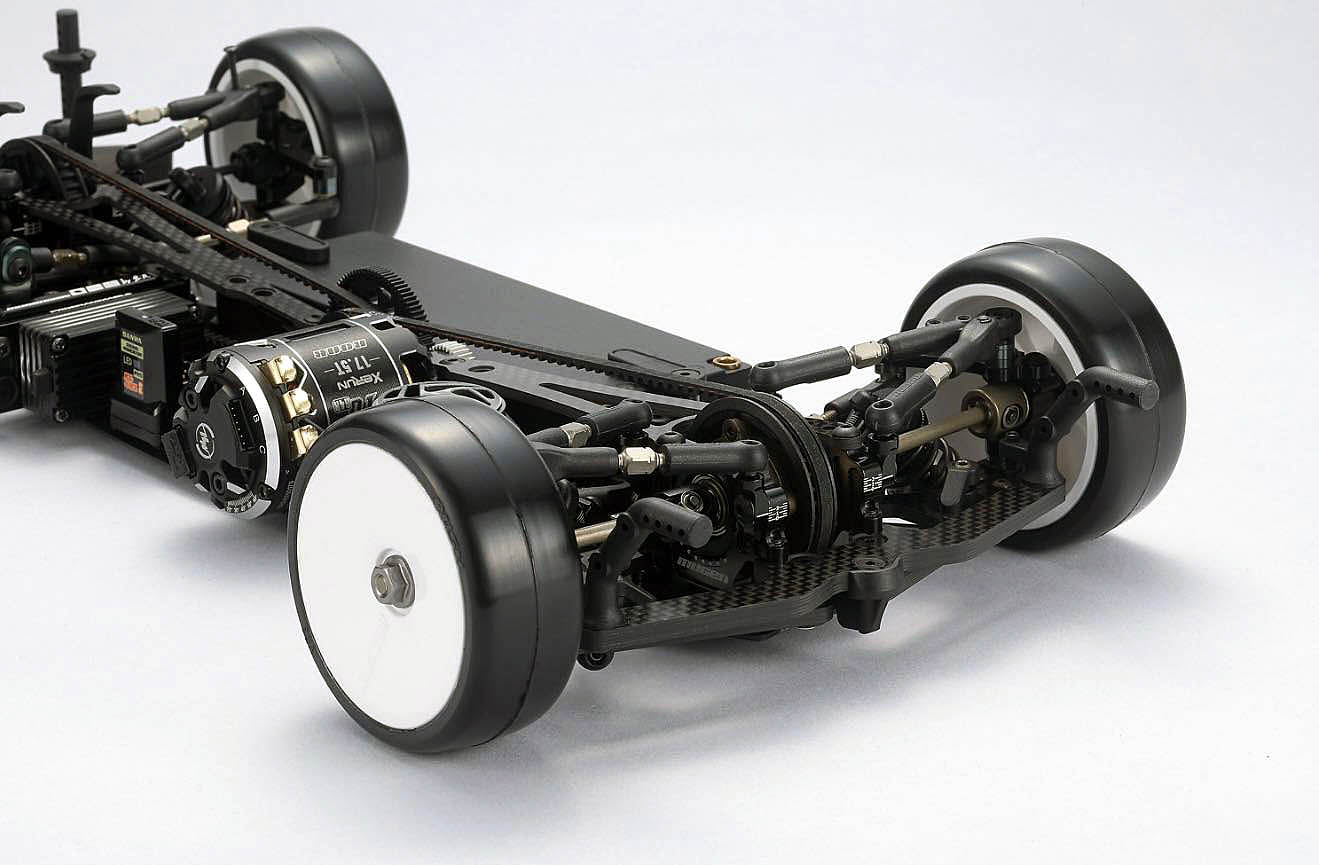

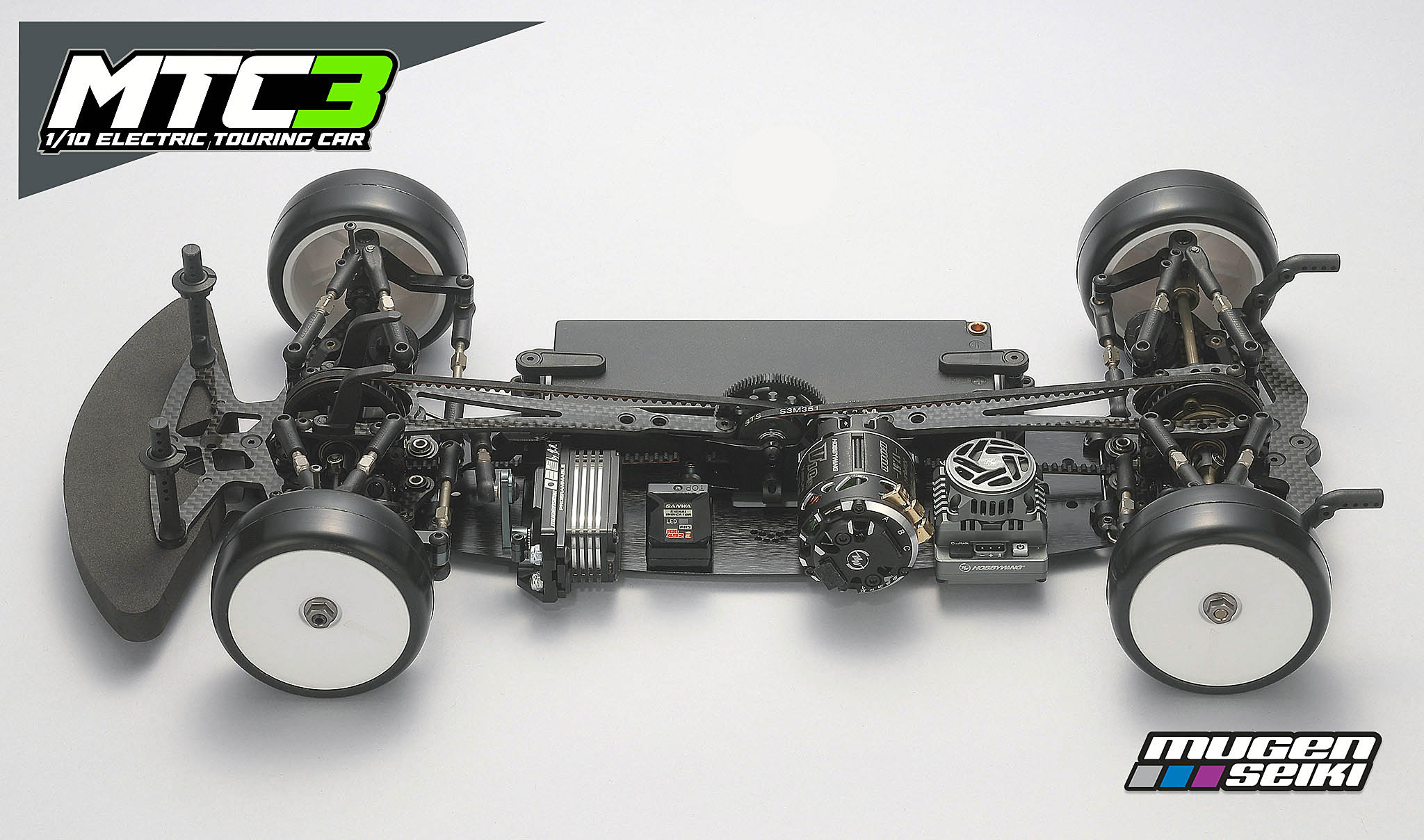

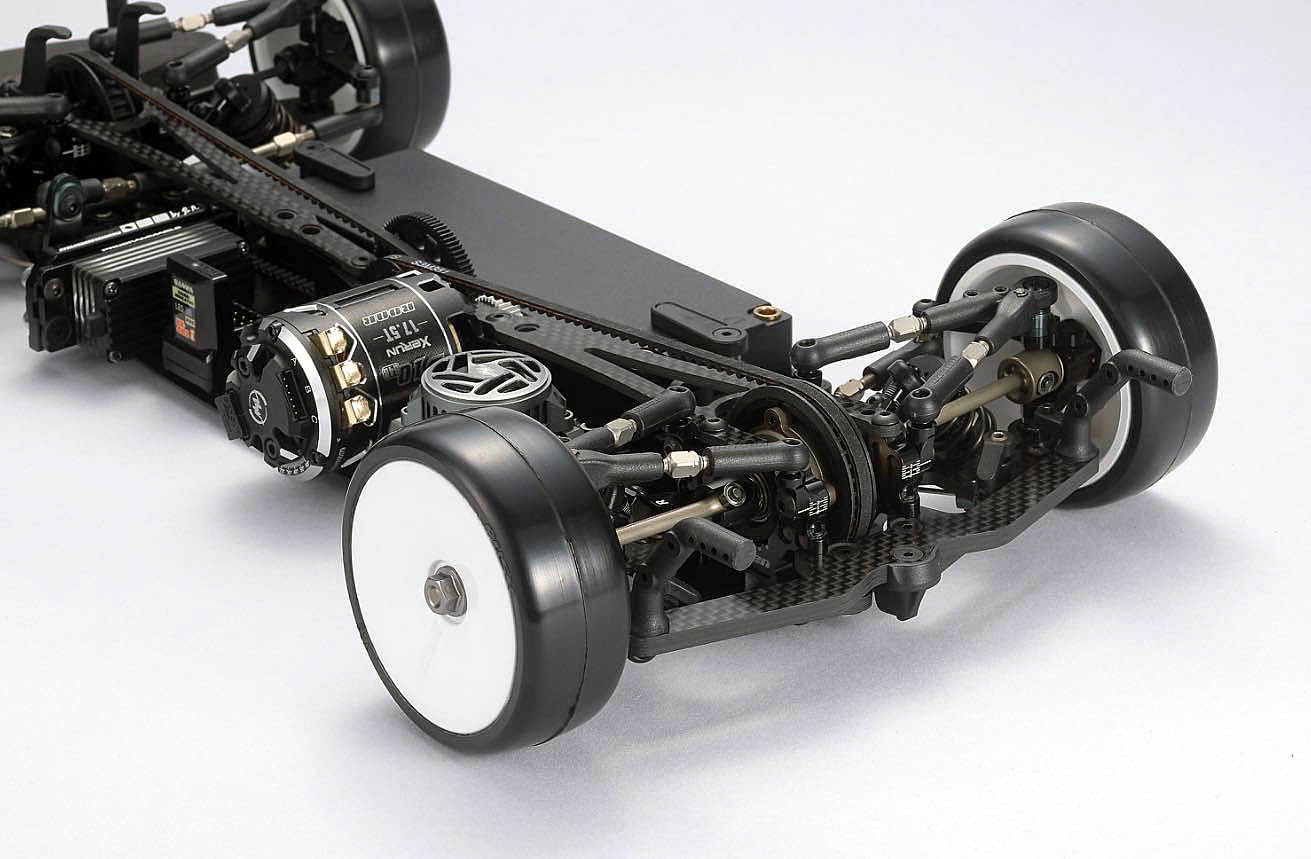

Mugen Seiki is excited to announce the new MTC-3 electric touring car kit. The MTC-3 is an evolution of the highly successful MTC-2 and MTC-2R platform. The prototype was first raced at the 2024 IFMAR World Championship, where the two MTC-3’s entered in the event both qualified for the A-Main final in its first event with Ronald Volker finishing 4th and Jacob Cruz finishing 10th.

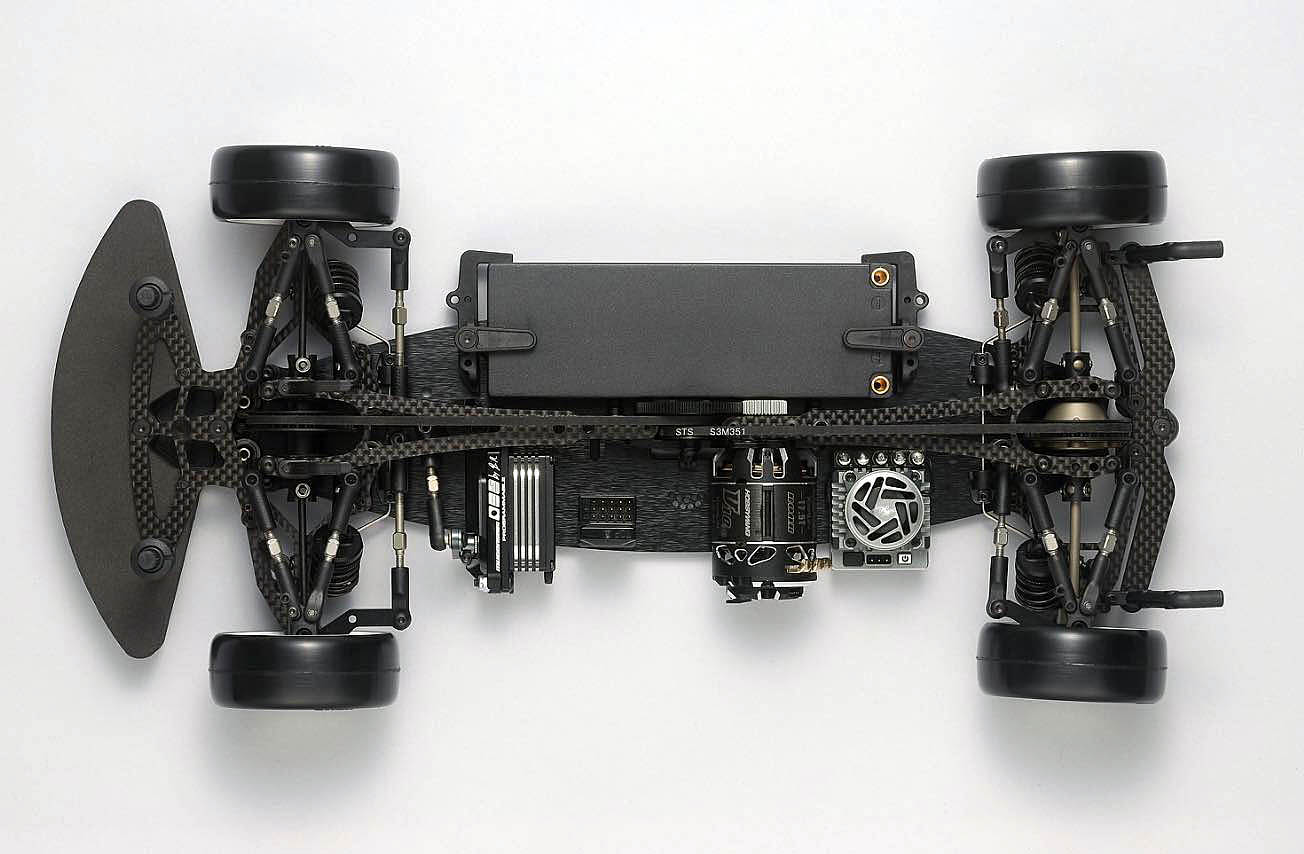

The MTC-3 is coming along with a complete new design with the only parts coming from the MTC-2R being drive shafts, spool, diff, and drive belts. The MTC-3 features a 1.5mm aluminum chassis which will work great on asphalt and carpet. The topdeck design is unique and the short shocks are rounding out a new beautiful new suspension package. The MTC3 features improved handling, tuning, and lap times!

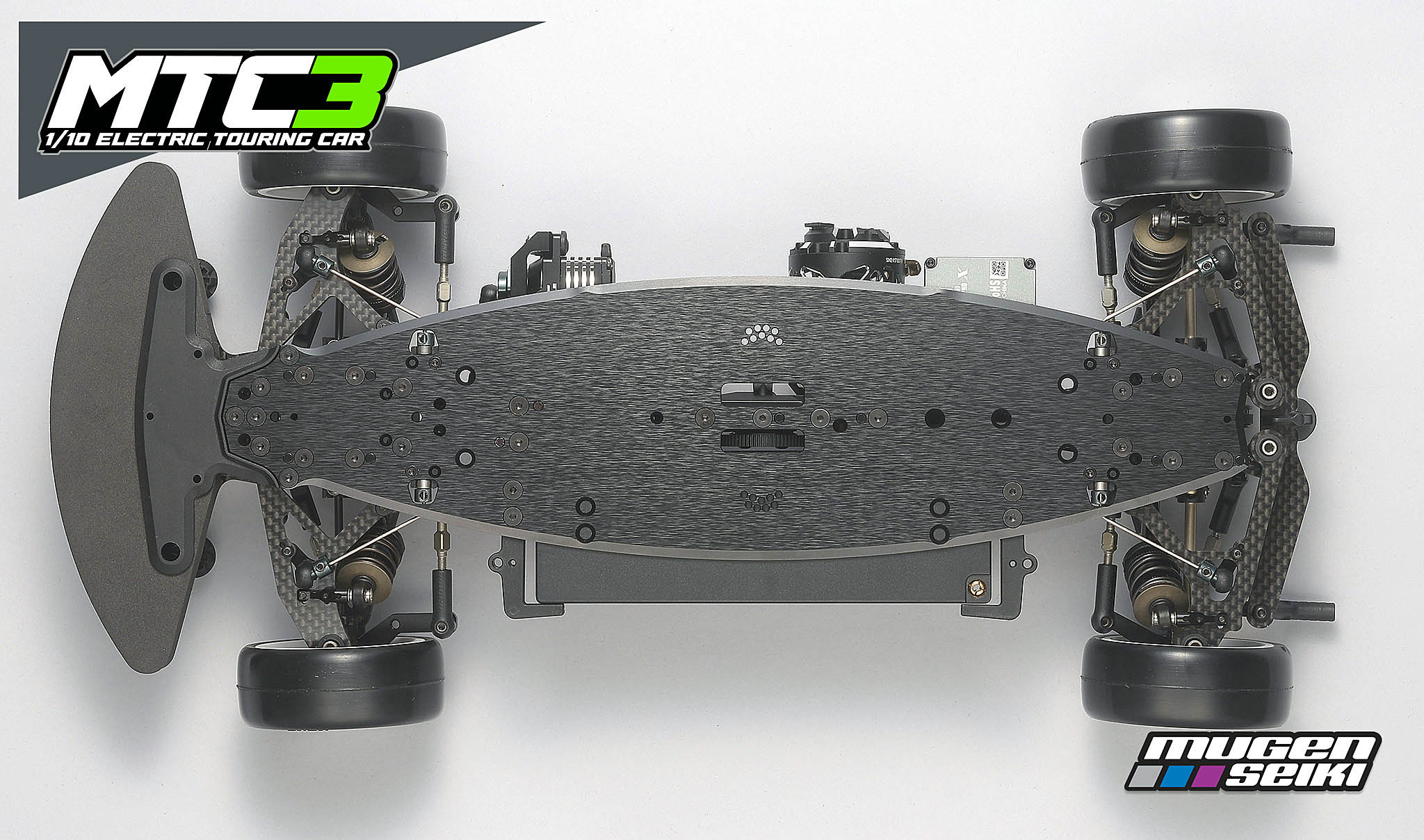

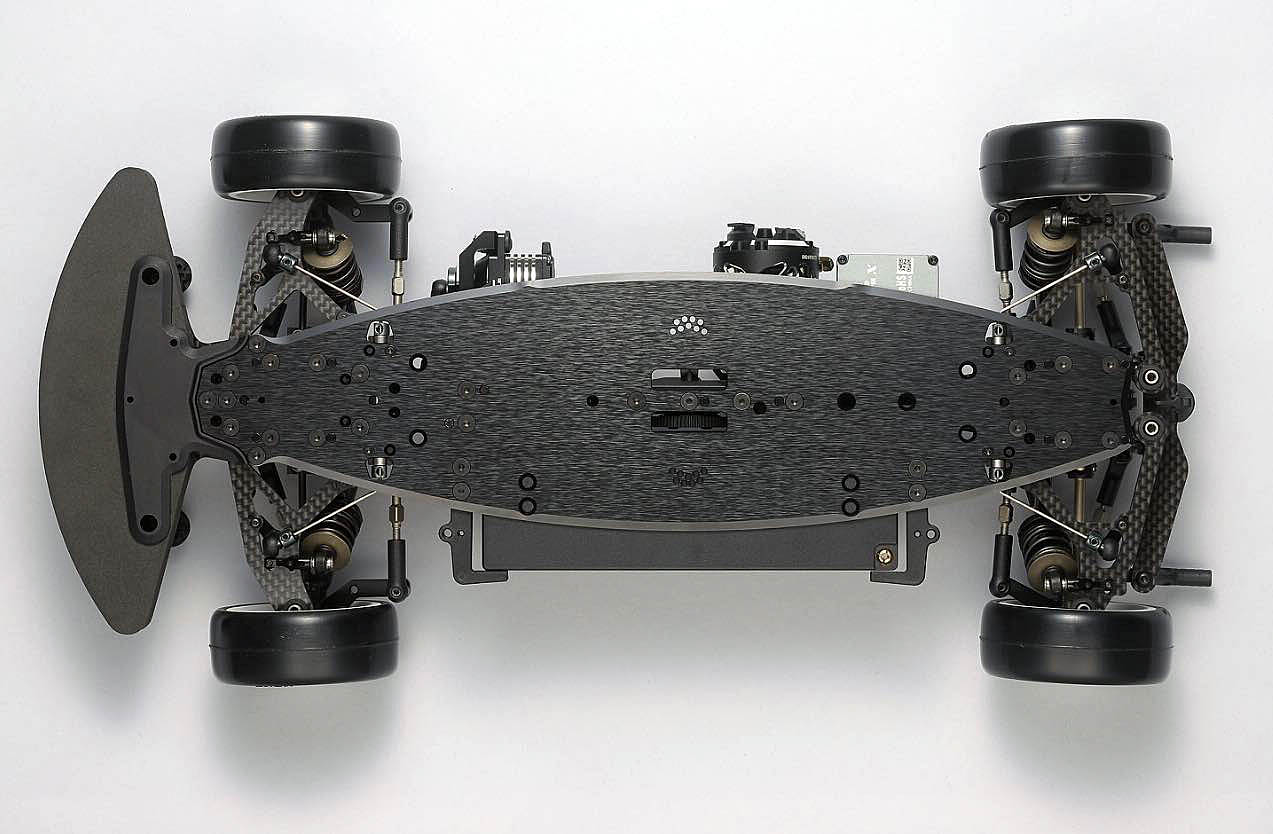

Chassis

  • New 1,5mm aluminum chassis.
  • Used with standard type screws only (no need for special screws).
  • The new chassis provides a wider range of torsion stiffness adjustments to be able to tune for all track conditions.
  • The new chassis eliminates the need for a carbon chassis option.
  • Lower center of gravity for improved cornering (0.5mm and 0.7mm respectively).
  • The chassis design has less overhang to provide more clearance and reduces the chance of the chassis touching the track surface.


    • Suspension
  • New carbon lower arm design.
  • New shock and upper arm angle adjustability - no shims needed, no shims to be misplaced.
  • Quicker and easier to make setup adjustments.

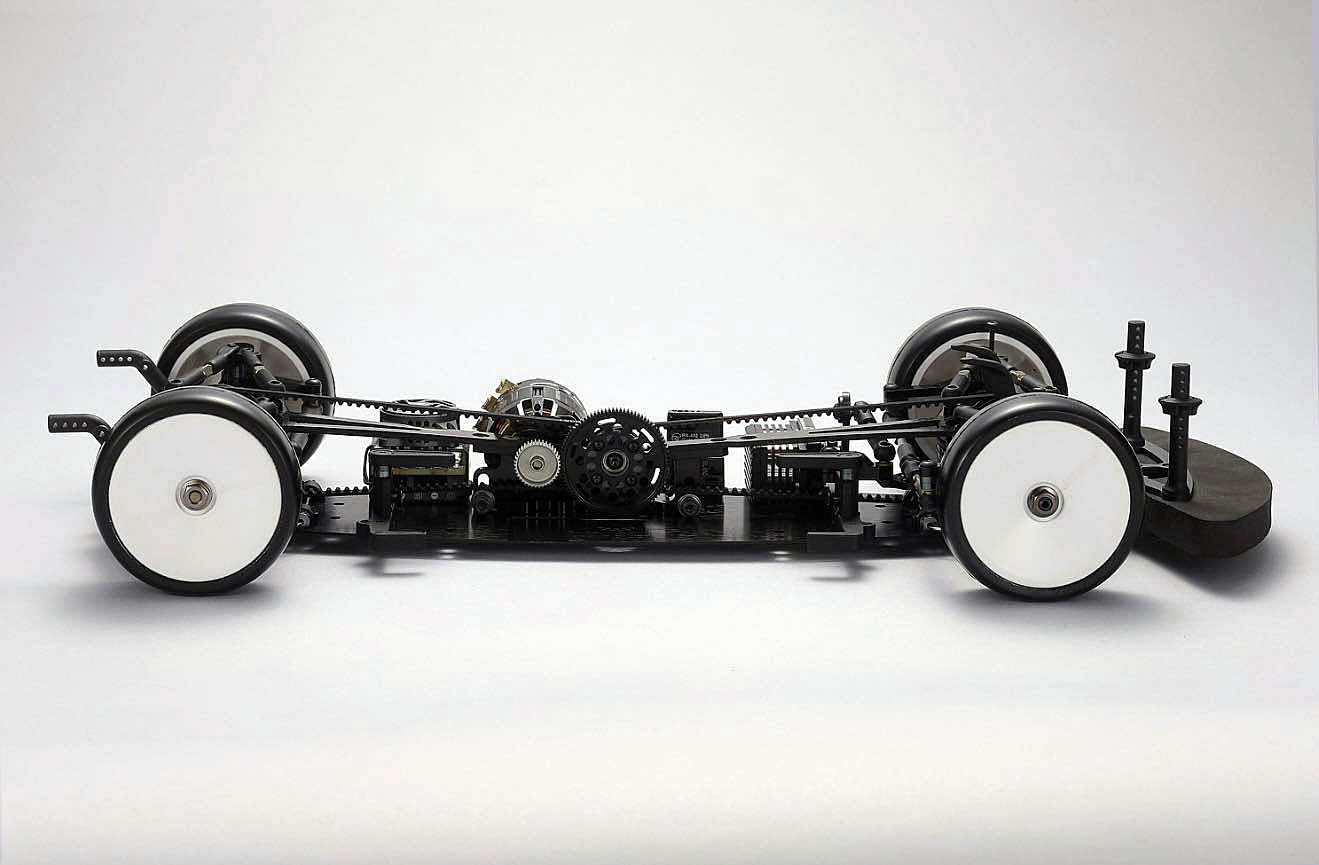

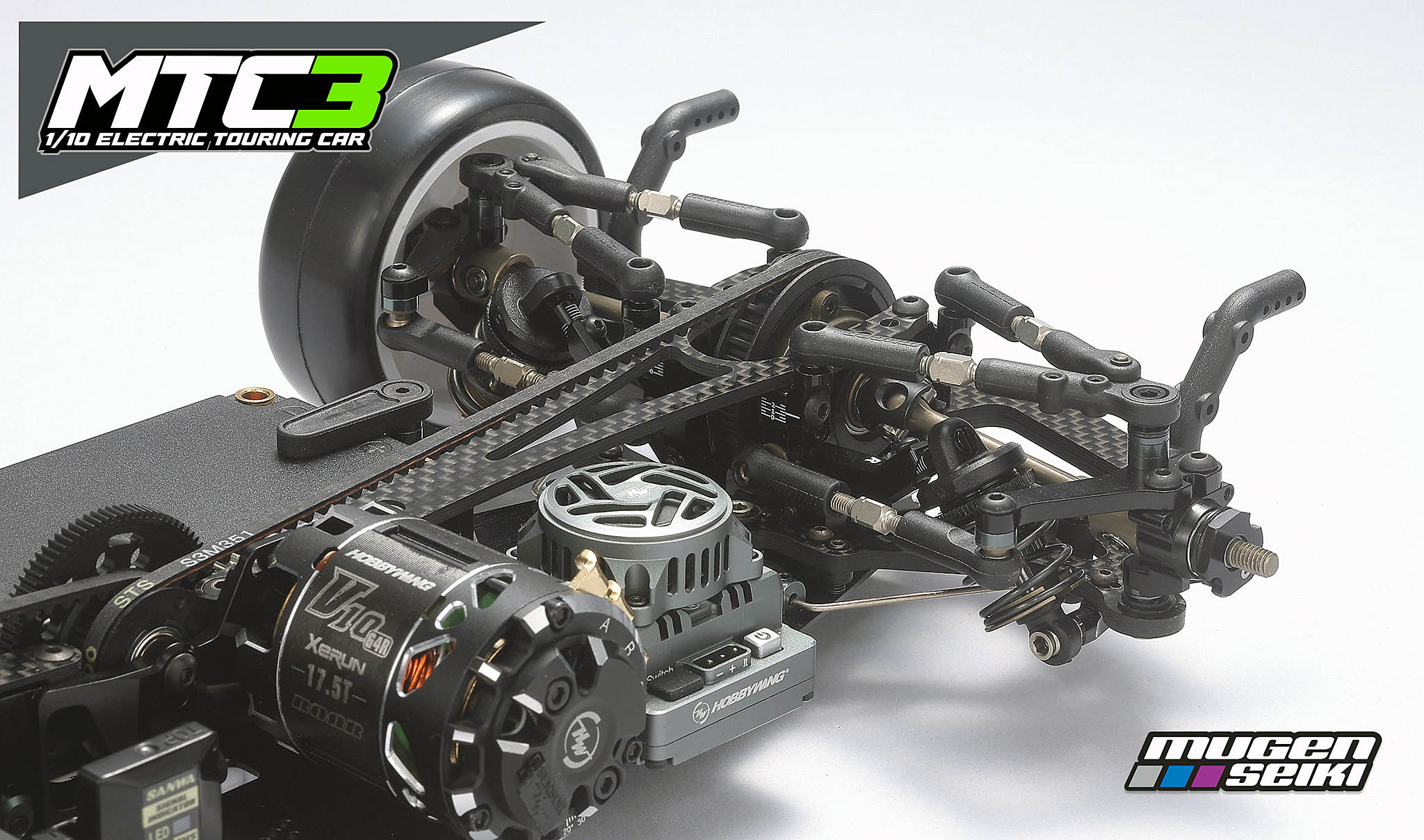

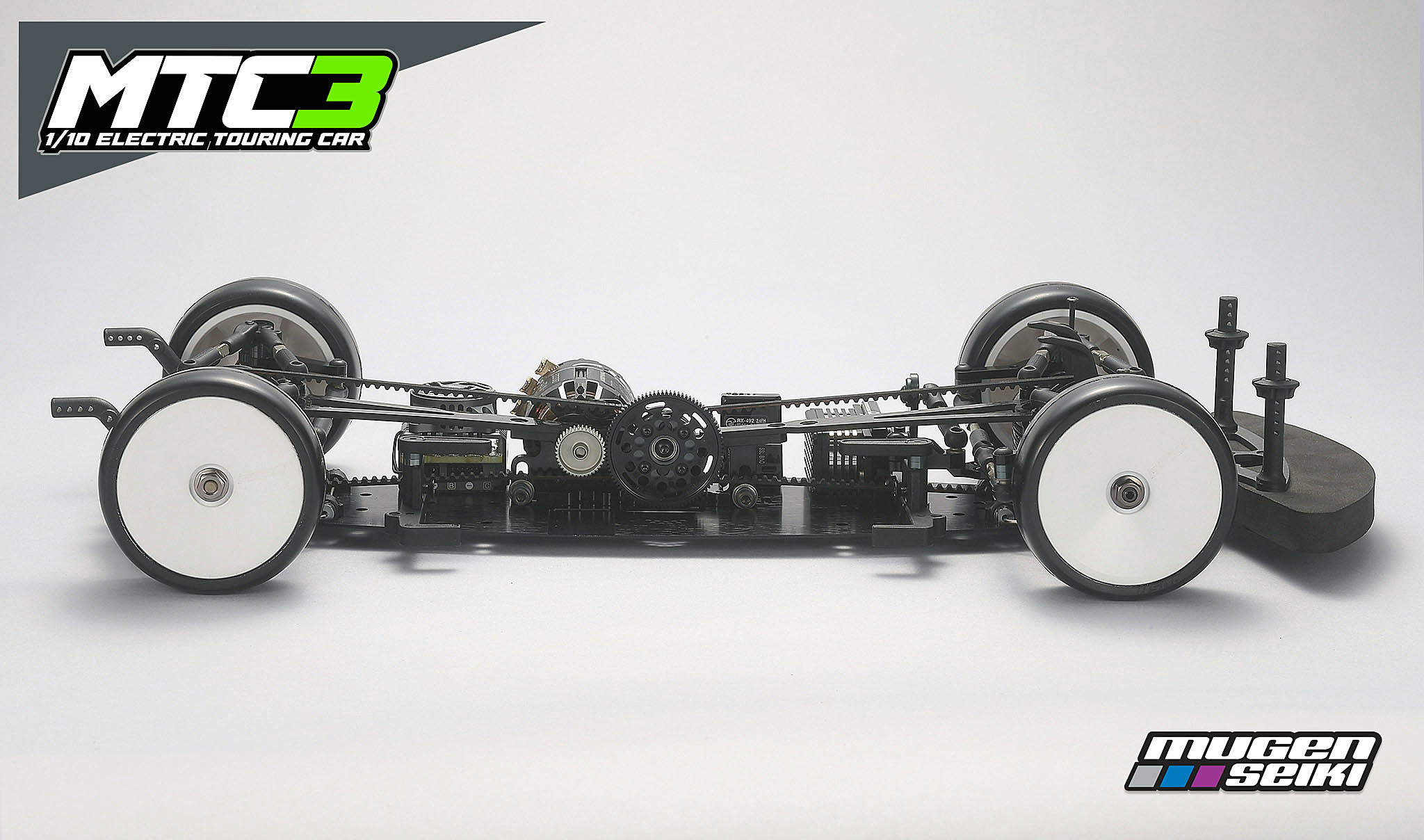

    Motormount
  • New designed aluminum motormount.
  • New adjustable layshaft height.
  • Allows you to use the spur gear in the lowest position possible.
  • Ability to use 90T spur gears for a large range of categories and track conditions (stock and modified).
  • Better weight distribution.


    • Topdeck
  • New carbon topecks with improved topdeck position in the car.
  • New topdeck allowing the upper bulkhead plates to be removed completely.
  • Easy access to the dear differential without disassembling anything else beside the rear topdeck.
  • New bulkheads with compact design.


    • Shocks
  • New shock tower screw directly to the bulkheads - no additional parts needed (possible to use in fixed or active position).
  • New Short Shocks provide lower center of gravity and improved geomety.
  • New range of ultra-short shock sorings.
  • Reduced weight of the shock package.

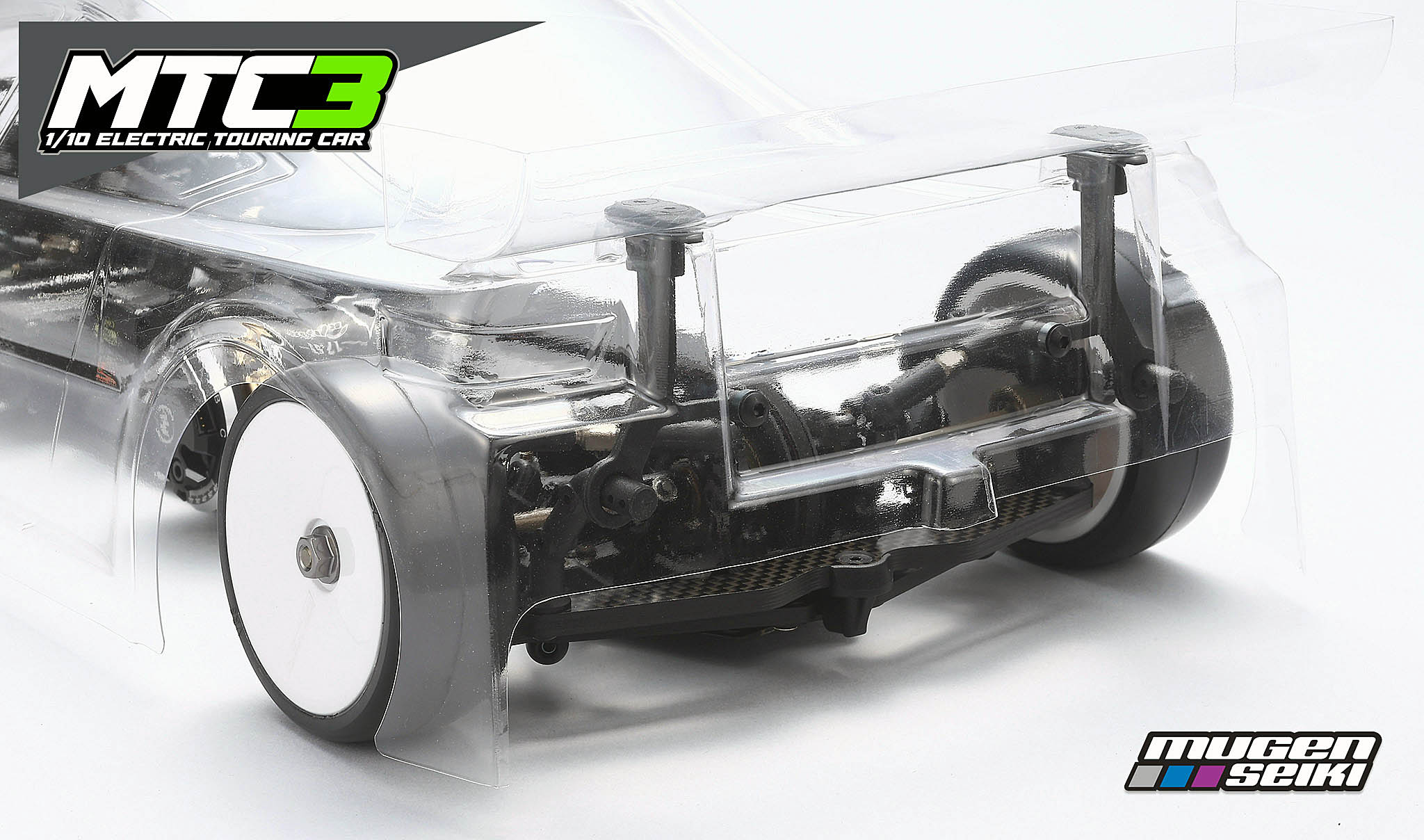

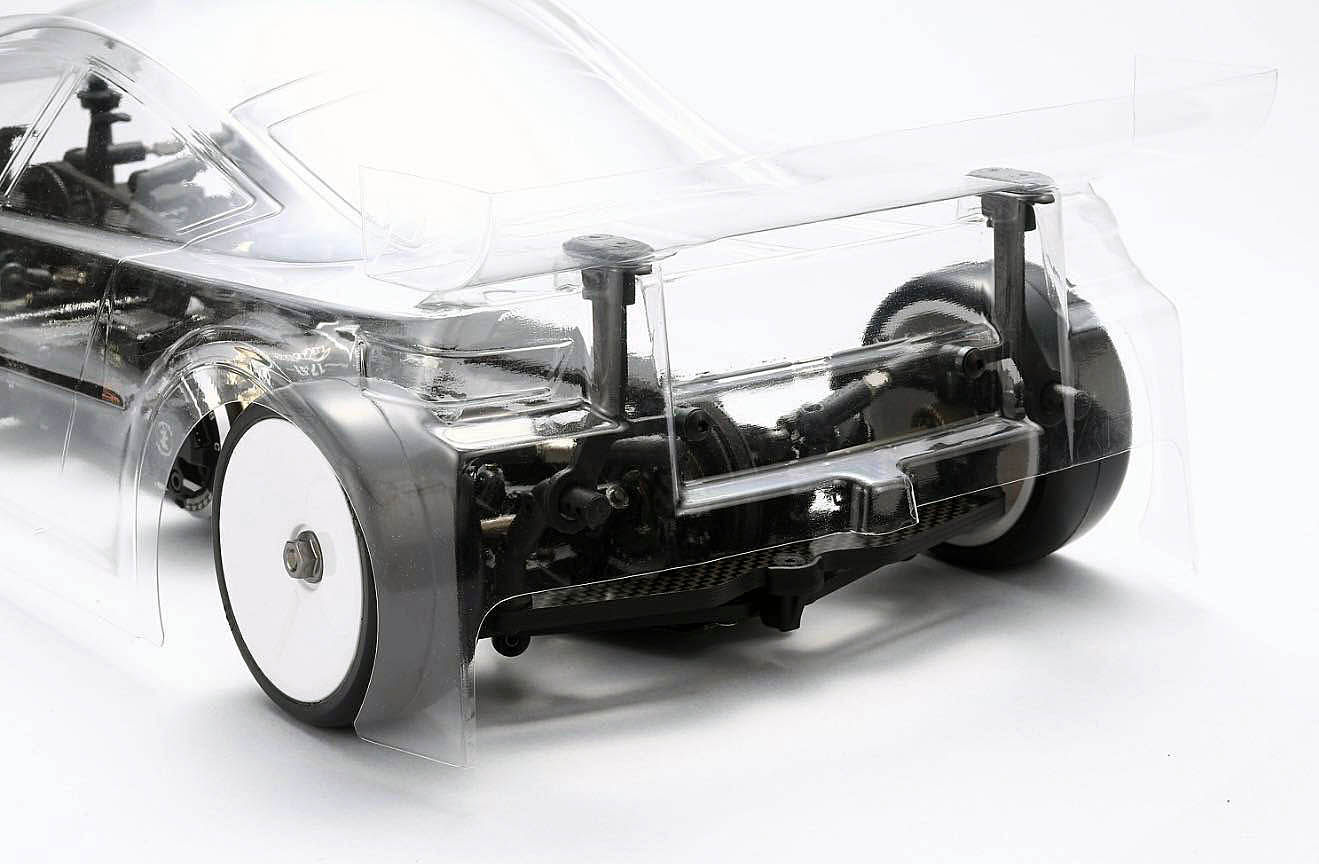

    • New Bodyposts
  • Easier to mount the body shell.
  • The front has two distances to make body prep easier.
  • The rear has three options available for mounting the body (horizontal, vertical & horizontal with additional part to mount into the wing stay of the bodyshell).
  • The rear has an adjustable suspension up travel stopper included in the kit.


    • Other new features
  • New body support included in the MTC3 kit.
  • New upper arms with new design using a 6mm ball.
  • Two bodystop positions.

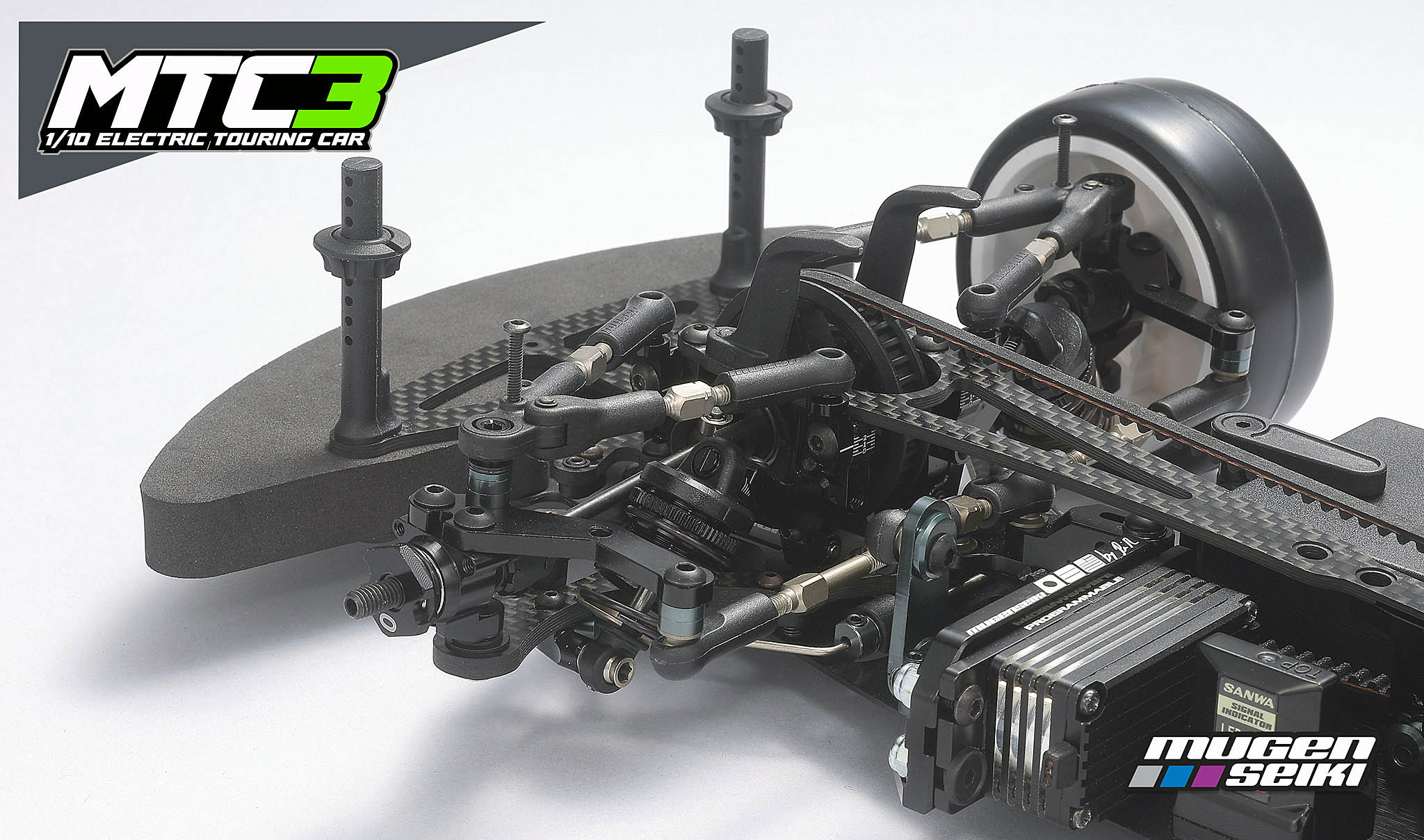

  • Lightweight bumper - carbon upper plate includes an adjustable suspension uptravel limiter.

    		•
