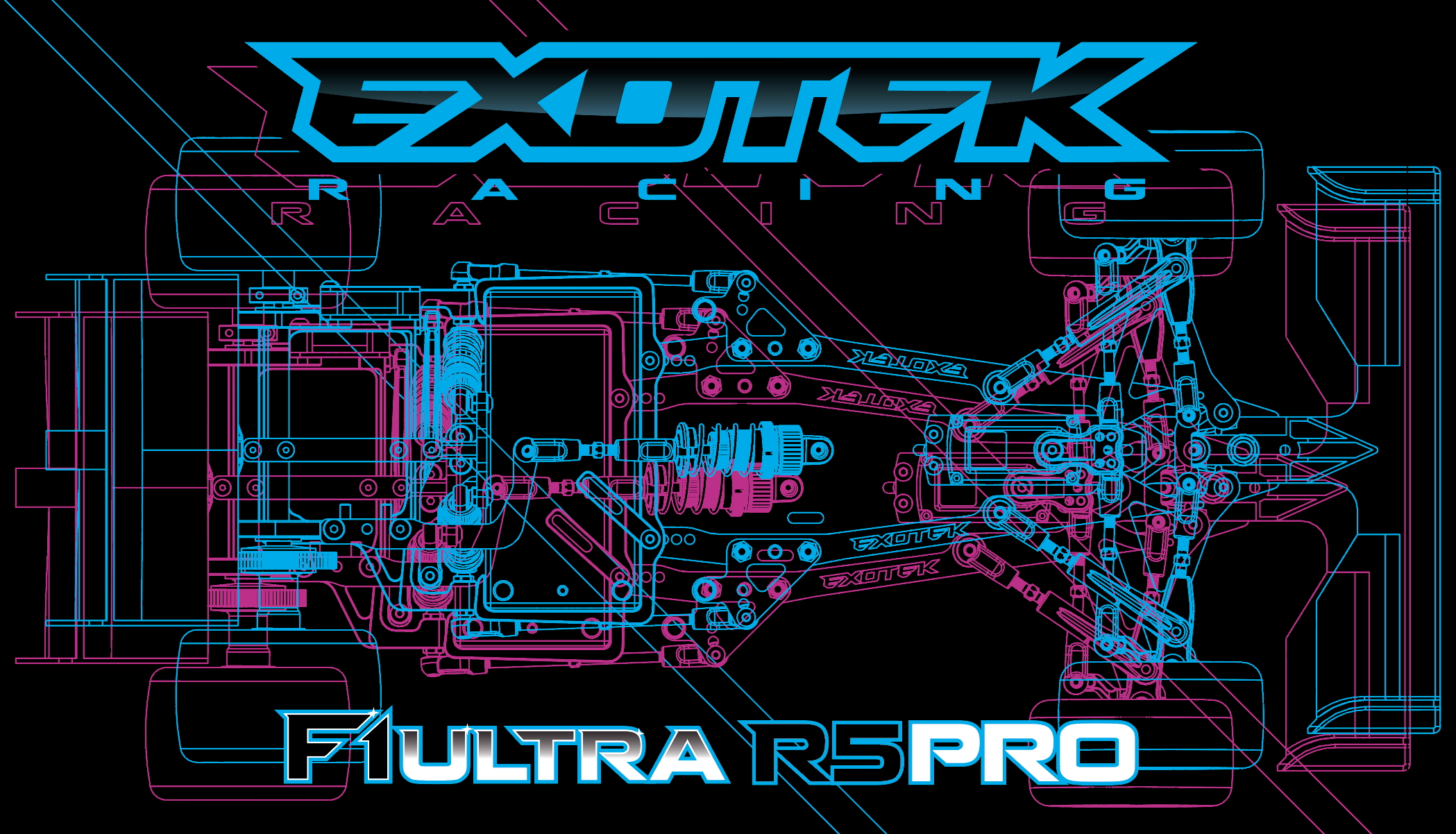

The F1 ULTRA R5 PRO is a cutting edge high-performance F1 racing kit that evolves all of the great features of the original F1Ultra into a perfected race machine.
The 'PRO' kit includes the must have option parts that powered the team to multiple class wins and titles.
Some of the details:

  • New 2.5mm low CG 1-piece 7075 chassis for superior high and low grip asphalt characteristics.
  • New carbon fiber adjustable battery tray.
  • New heavy duty alloy and carbon fiber rear wing mount system included for improved rear grip.
  • New heavy duty extra long side links for less flex and more consistency.
  • New heavy duty front alloy and steel off set axle steering hubs for improved handling.
  • New +2mm front carbon fiber arms.
  • New wide rear shock tower.
  • New heavy duty alloy front pivot pin cups.
  • Extra narrow 72mm chassis for less chassis scrub through corners.
  • Adjustable forward and back servo positioning for easy ackerman/ steering geometry adjustments.
  • Patented floating pod rear suspension system for superior rubber tire traction.
  • No center rear pod ball pivot, which means much improved chassis roll for unmatched corner speeds.
  • Adjustable camber and caster via turnbuckles for easy and exact set up changes, with no additional expensive parts needed.
  • Easy front roll center changes via shims on the inner camber mounts.
  • 3 oil filled shocks with all machined bodies and internals for velvety smooth operation and proper sealing.
  • 1 piece heavy duty machined alloy front bulkhead provides rock solid tweak free front suspension mounting.
  • 1 Piece 7075 alloy rear pod plate for a tweak free heavy duty design, adds rear traction and improves motor cooling.
  • High performance ball diff set included.
  • Simplified direct steering to servo design for reduced play, reduced parts count and precise steering feel.
  • Integrated 30mm fan mount on the left pod.
  • Heavy duty motor mount with upper and lower motor attachment for less motor flexing to prolong spur gear life.
  • Easy grip/ easy removal custom e-clips on the front suspension pins.
  • One piece steel front suspension pins for less play.
  • New double bolt front wing mount.

REQUIRED TO COMPLETE (not included)
  • For inline battery mounting (ie carpet racing) here
  • 1:10 Scale Electric Motor
  • SMALL SIZED Electronic Speed Controls (TEKIN RS SPEC ESC fits and works very well). May need to remove esc fan for other esc's.
  • LOW PROFILE TC type steering Servo (no off road servos)- see servo picture detail.
  • “Shorty” 4000-4800mah LCG Shorty Pack.
  • Battery Charger
  • 2-Channel Surface Radio System
  • 1:10 Scale F1 Wheels and Rubber (or Foam) Tires
  • 1:10 Scale Polycarbonate F1 Body
  • Polycarbonate-Specific Spray Paint for Body
  • Servo Tape (3M brand is best)
  • Kit building tools
