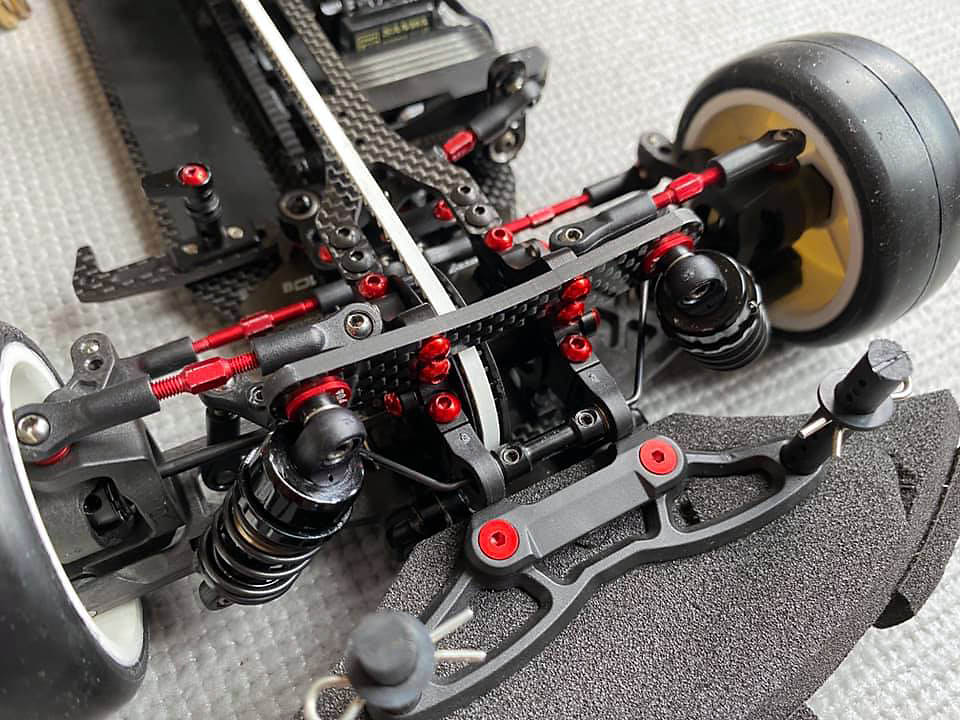

Hello everyone, I like to share with you my Heemstede track IF14-2 modified basic setup that I found over the last few weeks of tests.

For this setup i have tested in different conditions and have used several different type of tires.

The Heemstede track is fast and smooth with medium to high traction in the evenings.

I believe this is a very nice basic setup for Modified motor users for most conditions and I feel this should work on many tracks around the world.

Used option parts:

• CM-A001-450 : 450 shock oil
• CM-A002-100 : 10K diff oil
• CM-A004-03 : 3x5 shim set (0.1,0.2,0.3)
• CM-A005-05 : Aluminium washer red 0.5mm
• CM-A005-10 : Aluminium washer red 1.0mm
• CM-A005-20 : Aluminium washer red 2.0mm


• T061-1.3 : Anti-Roll bar rear 1.3mm
• T091 : Alu Adjustable Servo Horn (Sanwa)
• T094B : Front Balance Weight L/R 10gr
• T100 : Alu Hex Wheel Hub (4.5mm)
• T121 : VZ Steering block Graphite
• T123 : VZ Rear Upright Graphite
• T138 : Alu Shock Spring Retainer
• T158 : Titan Ball End 4.9mm short
• T159 : Titan Ball End 4.9mm medium
• T160 : Titan Ball End 4.9mm long
• T162 : Alu Eccentric Bearing Holder 0.5
• T179-44.5: Alu Lower Suspension Block 44.5mm
• T182-0.8 : Alu Suspension Plate 0.8mm
• T185-8.0. : Alu Steering Plate 8.0mm
• T201-0.4 : Lower Suspension Holder Spacer 0.4
• T222-0.4 : Alu Shock Mount Bushing 0.4mm
• T240 : Alu Front Spool Outdrive
• T241 : Alu Diff Outdrive
• T243 : Alu Top Deck Bridge-Flex
• T245 : IF14-2 Aluminium/Titanium Screw Set
• T246 : Low Friction Drive Belt Front 399mm
• T247 : Low Friction Drive Belt Rear 309mm


• SMJ 1124: Zero Gap Foam Tape
• SMJ 1147: SMJ Ultra Joint Grease
• SMJ 1148: SMJ Joint Lubricant
• SMJ 1175: SMJ Racing Weight 5gr/10pcs
• SMJ 1188: SMJ Super HighSpeed Coolfan 30mm
• SMJ 1191: SMJ Teflon Battery Tape
