I’ve received a few messages regarding my bodyshell measurements for the TC10/4, so I thought I’d make a quick post about it. Please note that the following measurements are for the Xtreme Twister Speciale and the Lensbodies Ghibli 3.0.

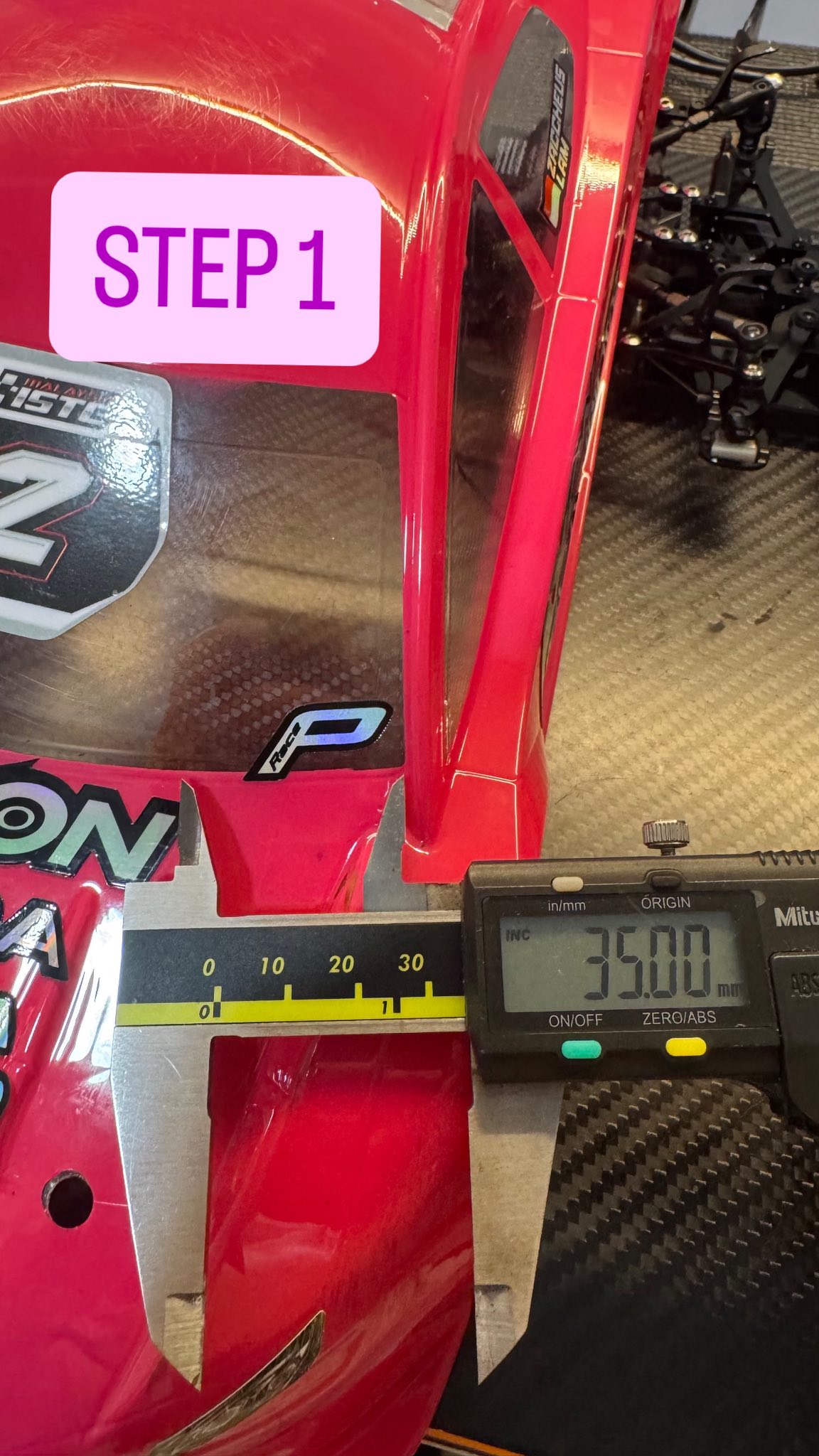

Step 1: Using a vernier caliper, I measure 35mm from the side of the windshield and make a small scratch on the body as a reference mark.

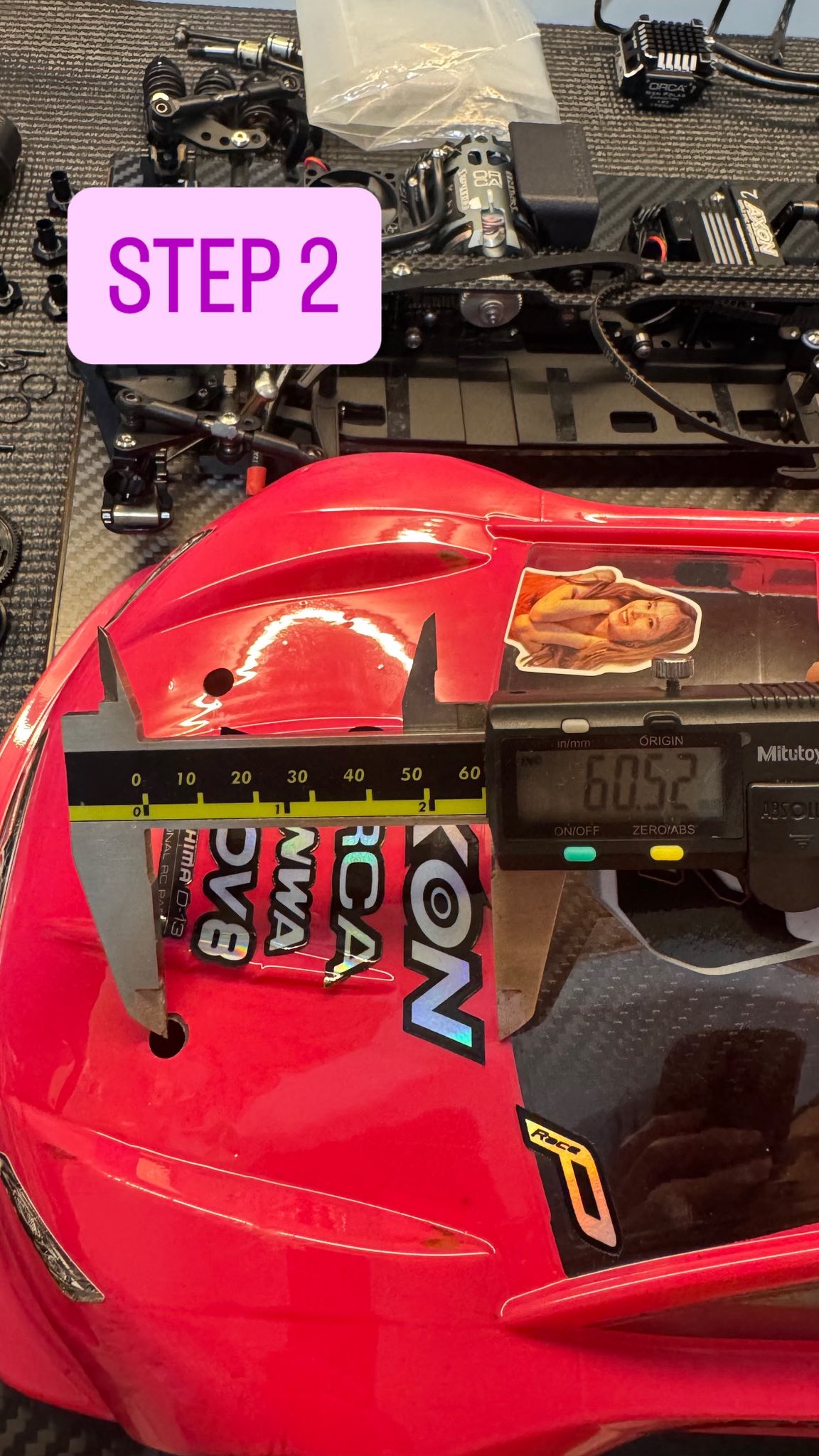

Step 2: From there, I measure 60.5mm down from the lower windshield line, using the scratch mark created previously as the datum.

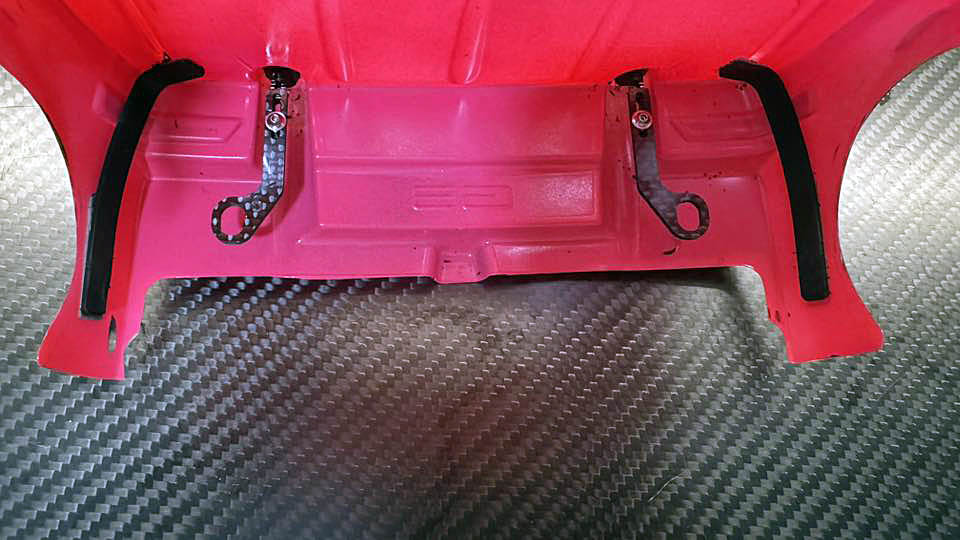

For the rear, I use the INOV8 RC rear body mounts, paired with the Type 6 carbon piece.

Source:

Z. Lam
