Awesomatix AFS Adjustable Front Suspension Set for A12X
Gamechanger Frontend - that's my best personal description of it.
No more hassle with shims to set droop and ride height!
Super easy setting of camber and caster via screwing!
Here our full original product text:

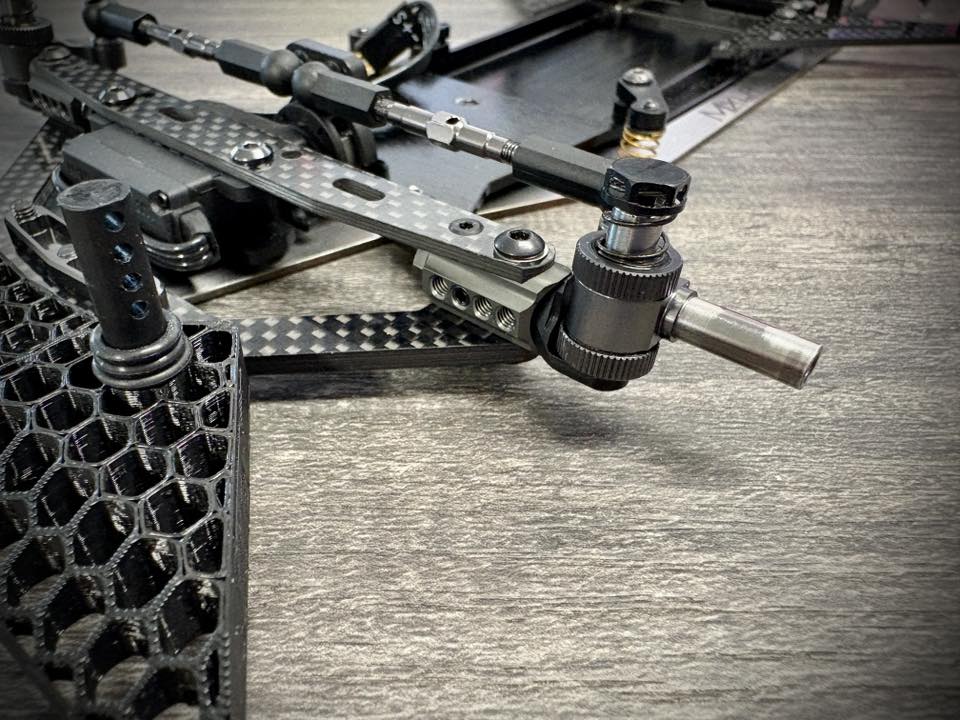

The optional A12-AFS set is our next-generation front suspension system for the A12X / A12WC platforms. Its main advantage: you can adjust caster, camber, ride height and droop with the front wheels installed - without changing any shims, caster posts or any disassembly.
Important: The A12-AFS set cannot be used with the standard C1205X or C1201X components.
Key Feature:
- Full front-end tuning without removing the wheels.
- Faster, cleaner adjustments compared to traditional 1/12 pan-car suspensions.
- Compatible with standard 1/12 setup stations or an angle gauge for camber.
- Camber range: ±1.75°
- Selectable caster angles: 3°, 4°, 5°, 6°
- Stepless ride-height adjustment
- Stepless downstop adjustment
Compatibility & Required Parts:
Servo plate and suspension plates are not included.
To run the AFS system, choose the correct AFS suspension plates + a matching AFS servo plate for your needs/conditions.
Suspension / Servo plate pairing:
- C1205AFS -> use with C1201AFS
- C1205AFS-1.5 -> use with C1201AFS-1.5
- C1205AFS-5.0 -> use with C1201AFS-5.0 |
|
|
|
|
|
