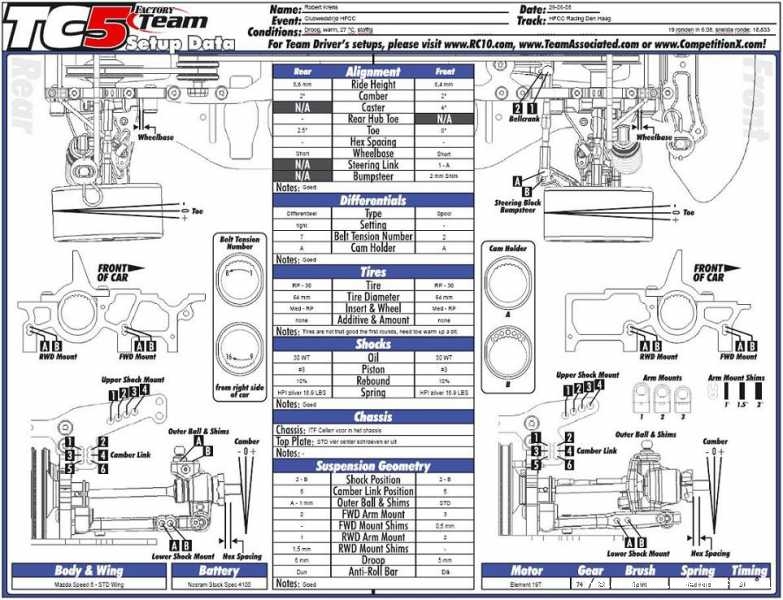

- Team Associated TC5 - Robert Krens - HPCC Racing - 29.06.2008 -



Here in Holland a lot of tracks are a bit understeered. So there is a lot of steer in my car. If you want to get rid of that, try softer springs at the rear, more toe at the rear and other Ackerman settings.

Rear--- Front
Ride Height
5,6m-----5,4mm
Camber
2-----2
Caster
------4
Rear Hub Toe
0------
Toe
2------0
Hex Spacing
-------
Wheel Base
Short-----Short
Steeringlink
------1 - A
Bumpsteer
------2mm
Differentials
Diff-----Spool
Setting
Free, but not slipping
Belt tension number
7-----2
Cam Holder
A-----A





Tires
RP-30-----RP-30
Additive + amount
Tire Tweak 100% 100%
Suspension Geometry
Shock posistion

2-B------2-B
Camberlink
5------5
Outerball en Shimms
A-1mm ------ std
FWD Arm mounts
2-----3
FWD Mount shims
-------0,5mm
RWD Arm mounts
1------2
RWD Mount shims
1.5mm------
Droop
5mm------6mm
Antiroll barr
Thin------ Medium
Battery position:
Forward
Shocks
30WT-----30WT
Piston
#3-----#3
Rebound
10%------10%
Springs
HPI silver 16,9------HPI silver 16,9
