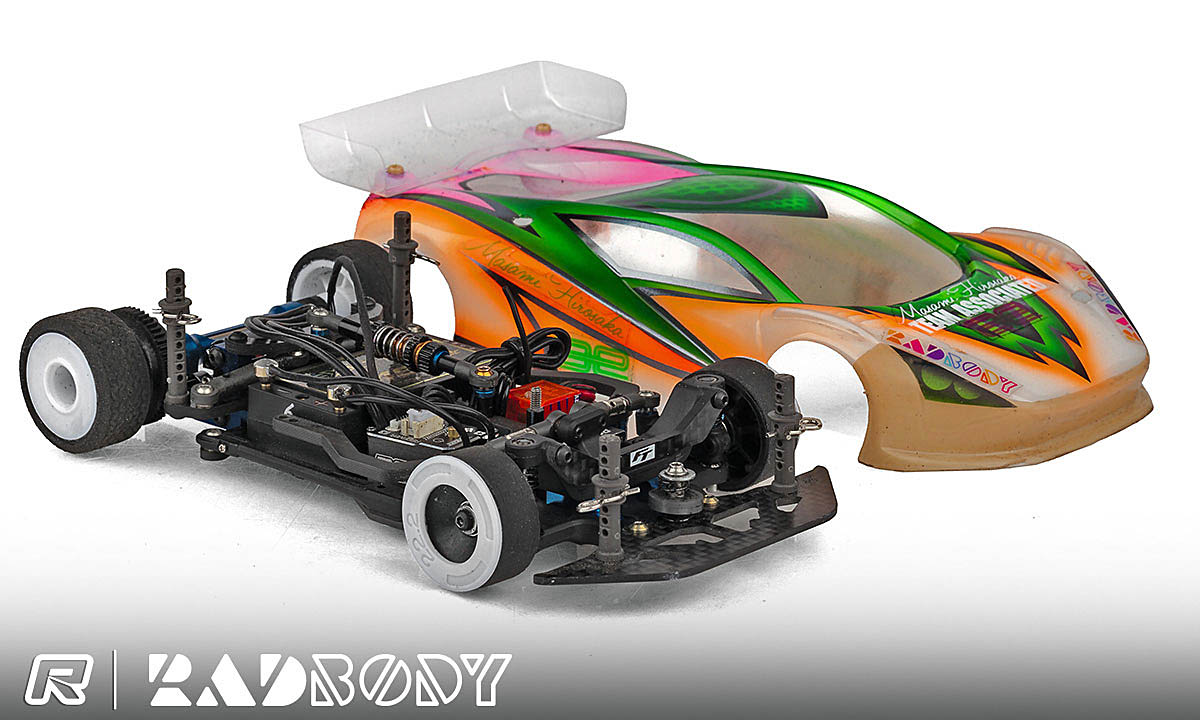

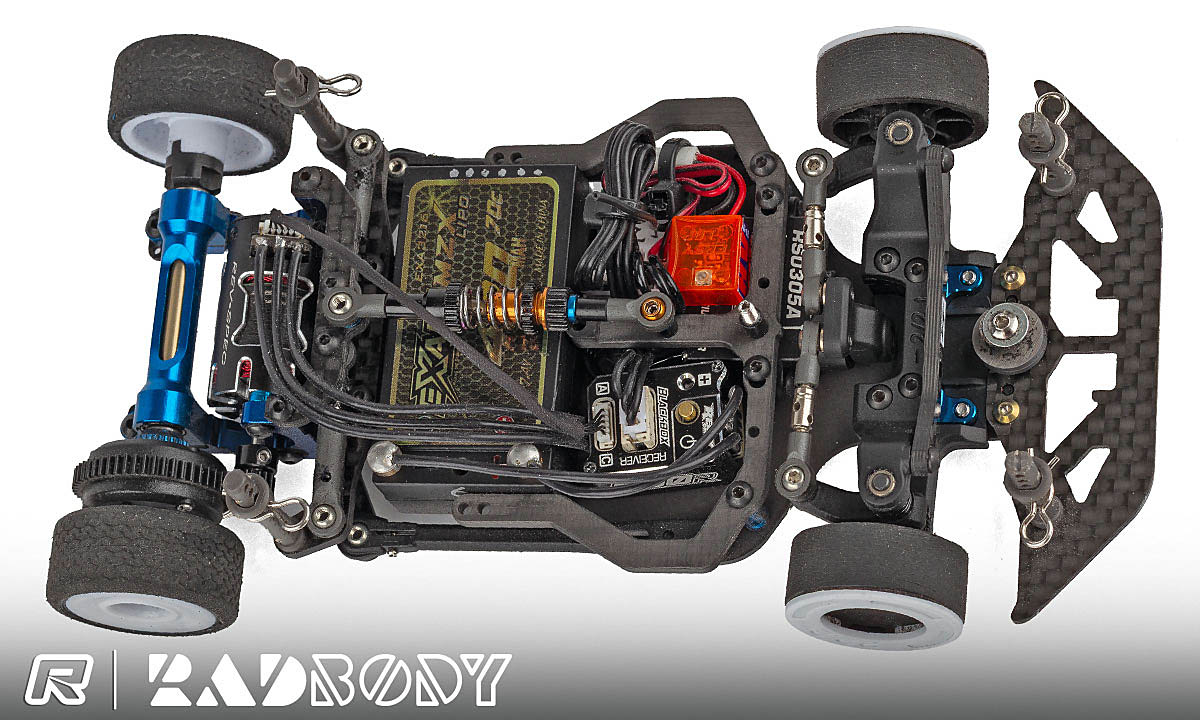

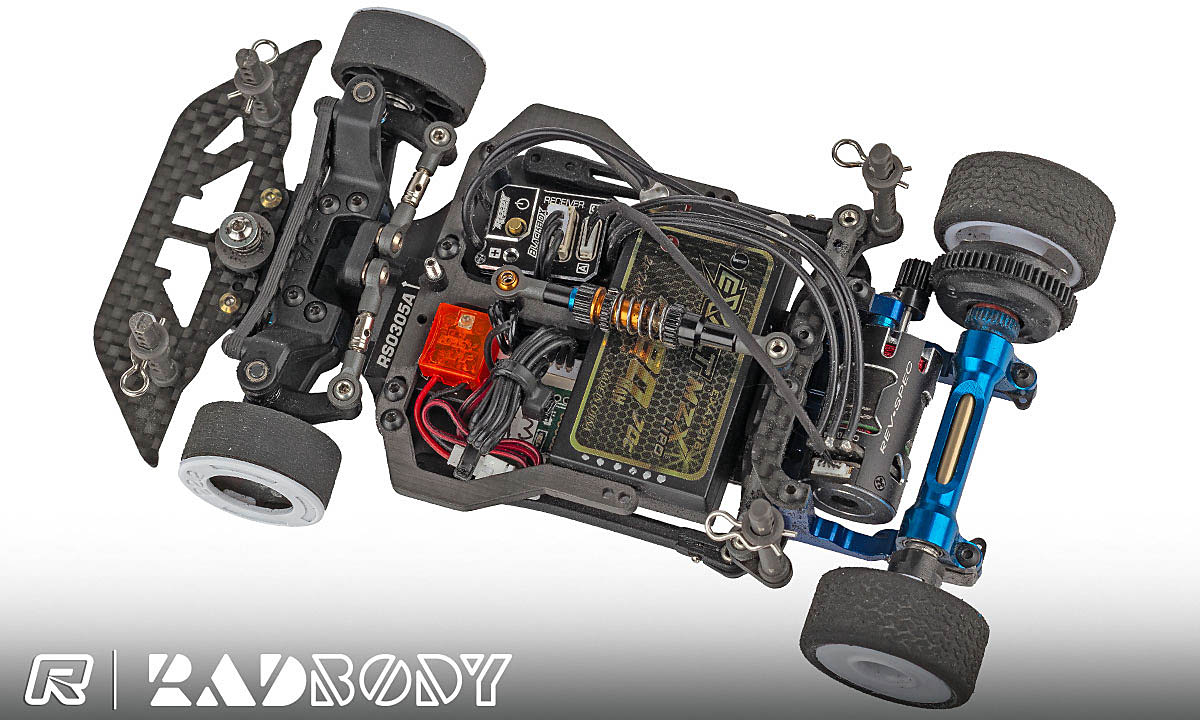

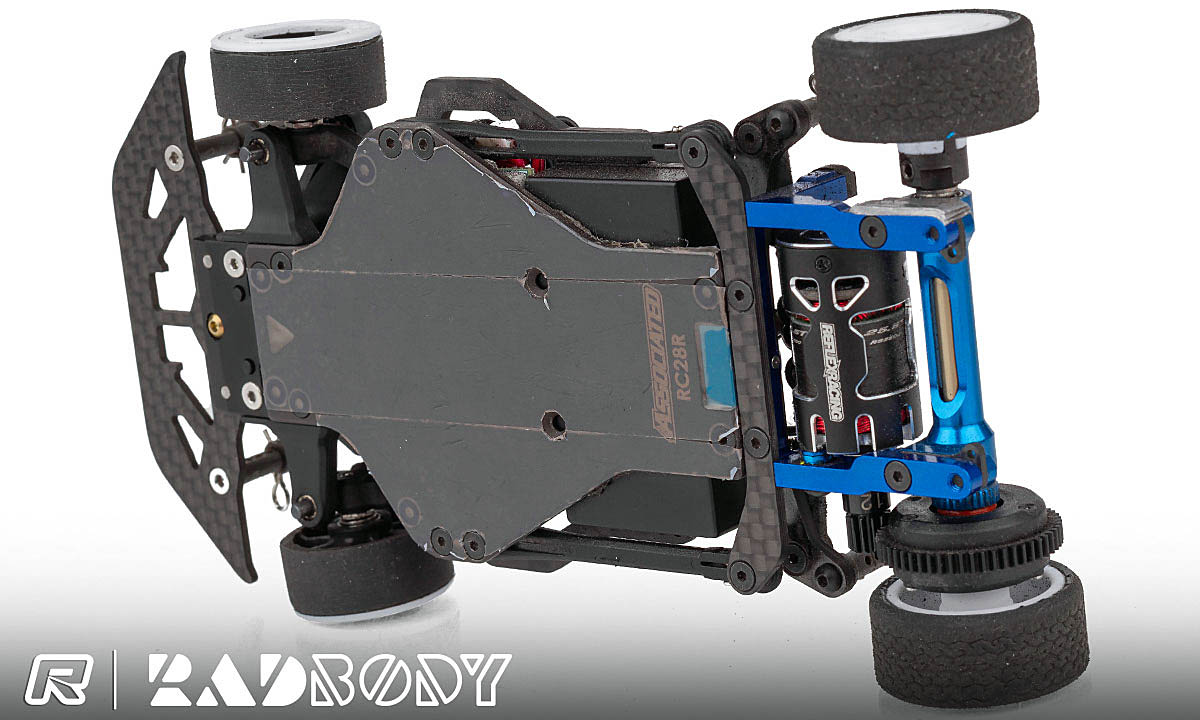

Chassis: Team Associated RC28R
ESC: Reedy Blackbox 300R

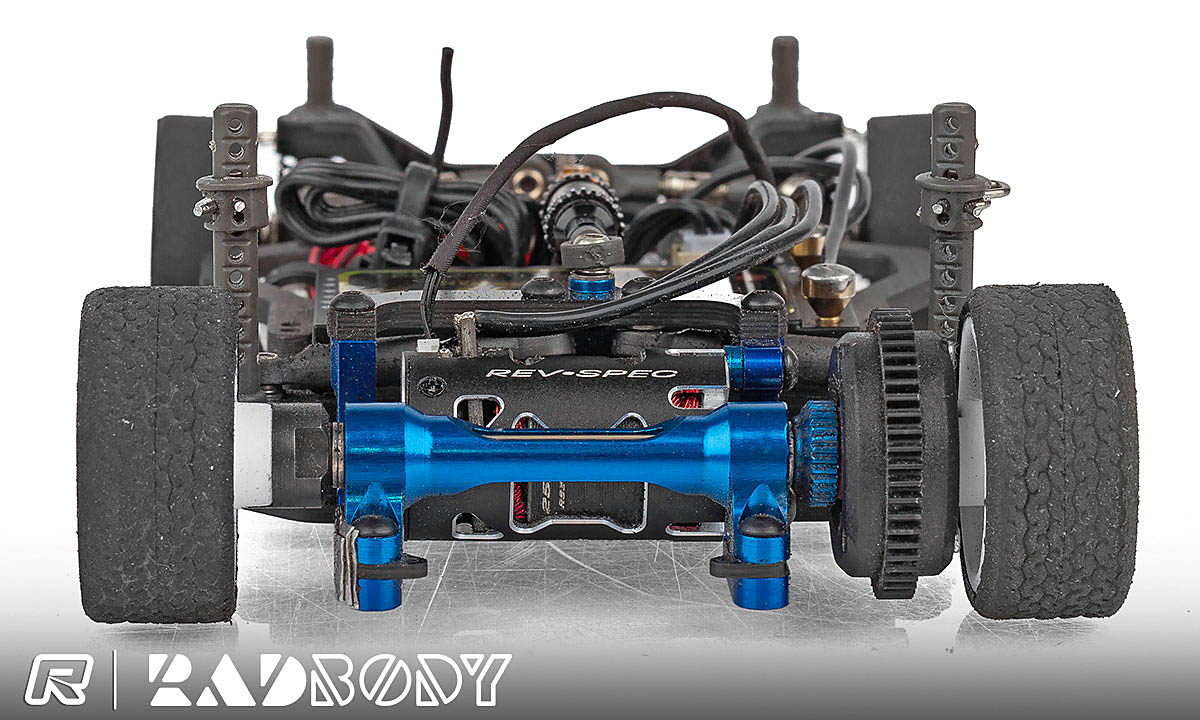

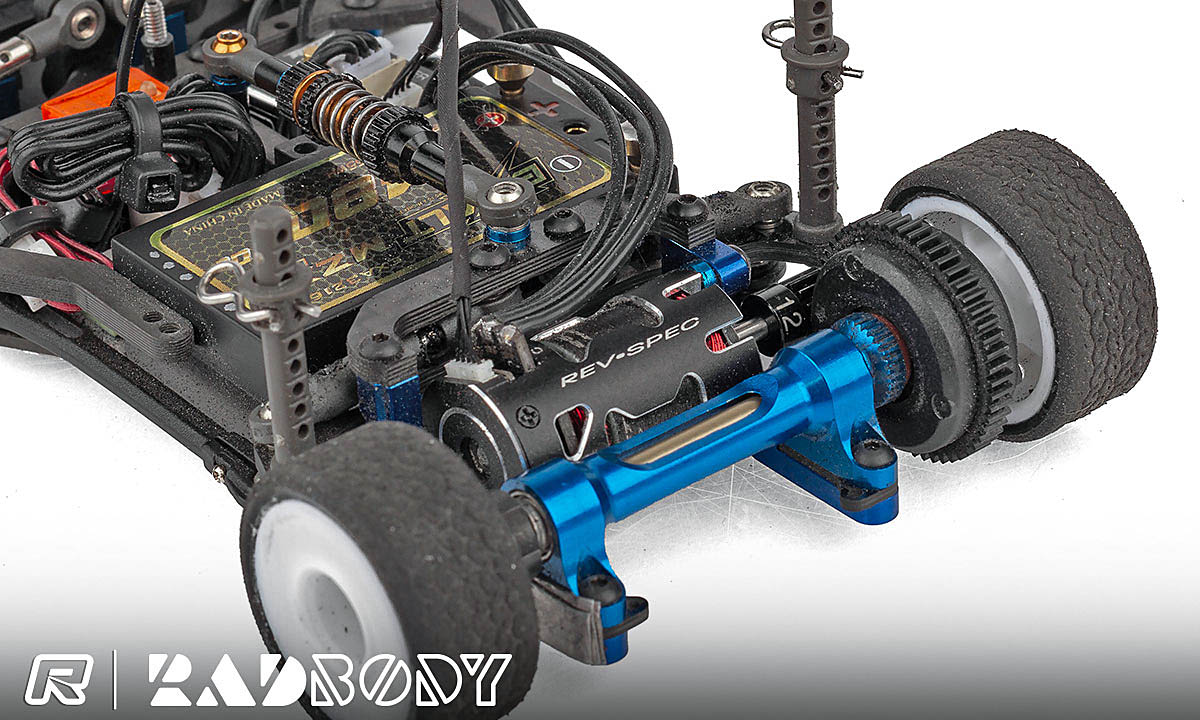

Motor: Reflex Revspec 3500kV 25.5T

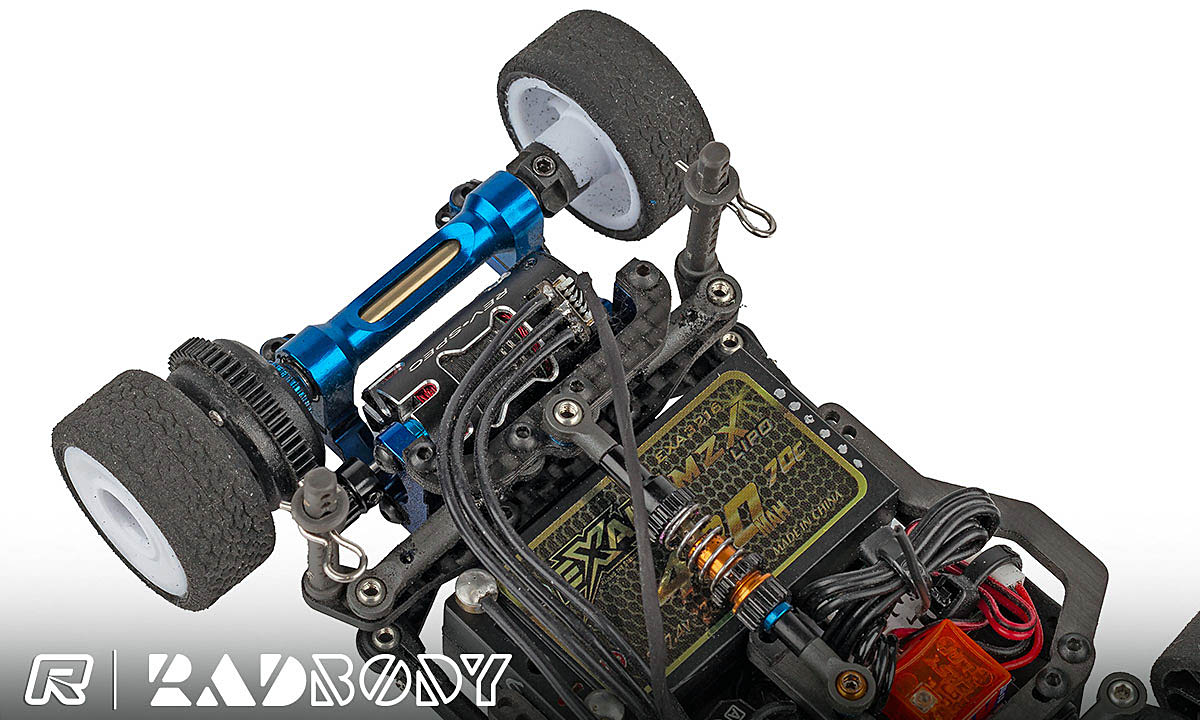

Battery: Exalt MZX 480mAh
Radio: KO Propo EX-NEXT stick (custom) with KR-243XT receiver
Servo: Reedy RS0305A
Tires (Front/Rear): PN Racing KSK 30/Marka V1 Radial 10

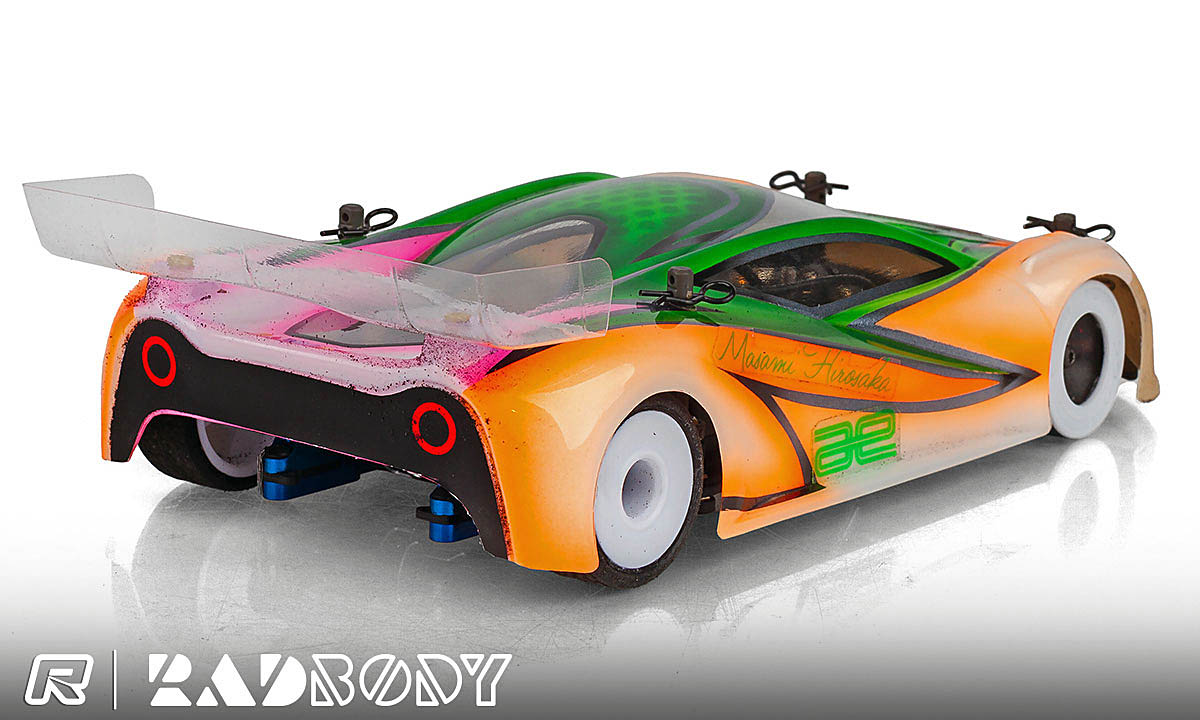

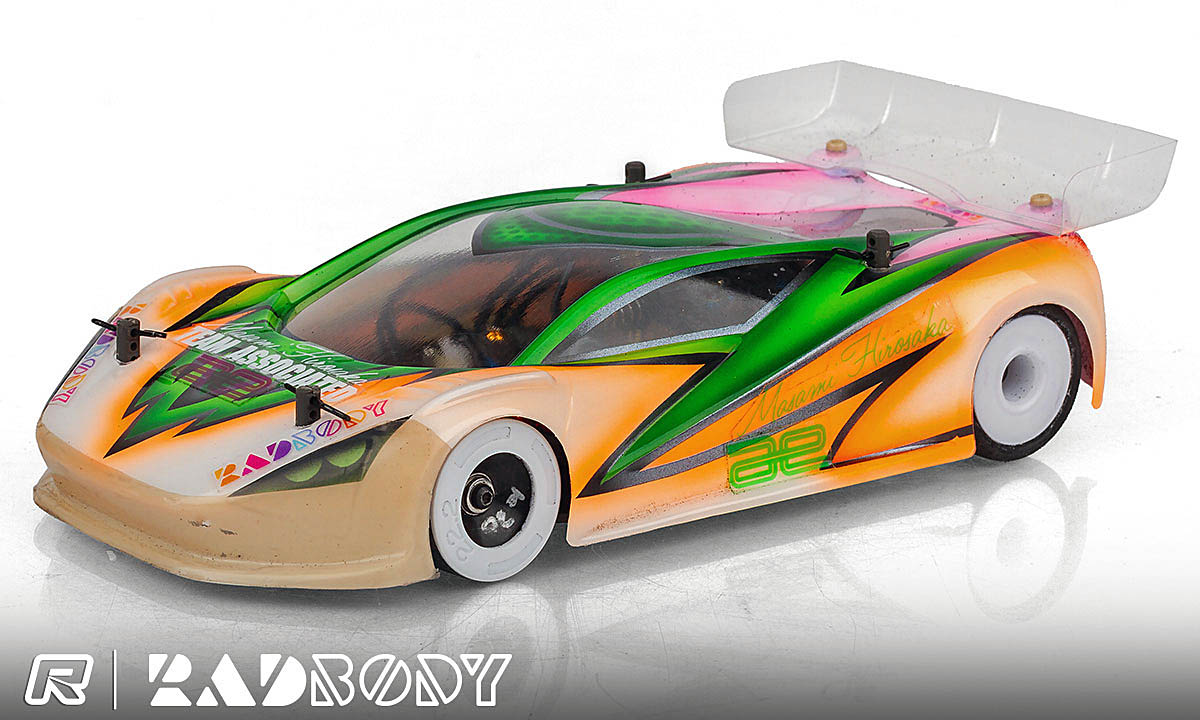

Body: Radbody Mako X2 with Mako X option 0.5mm bump wing

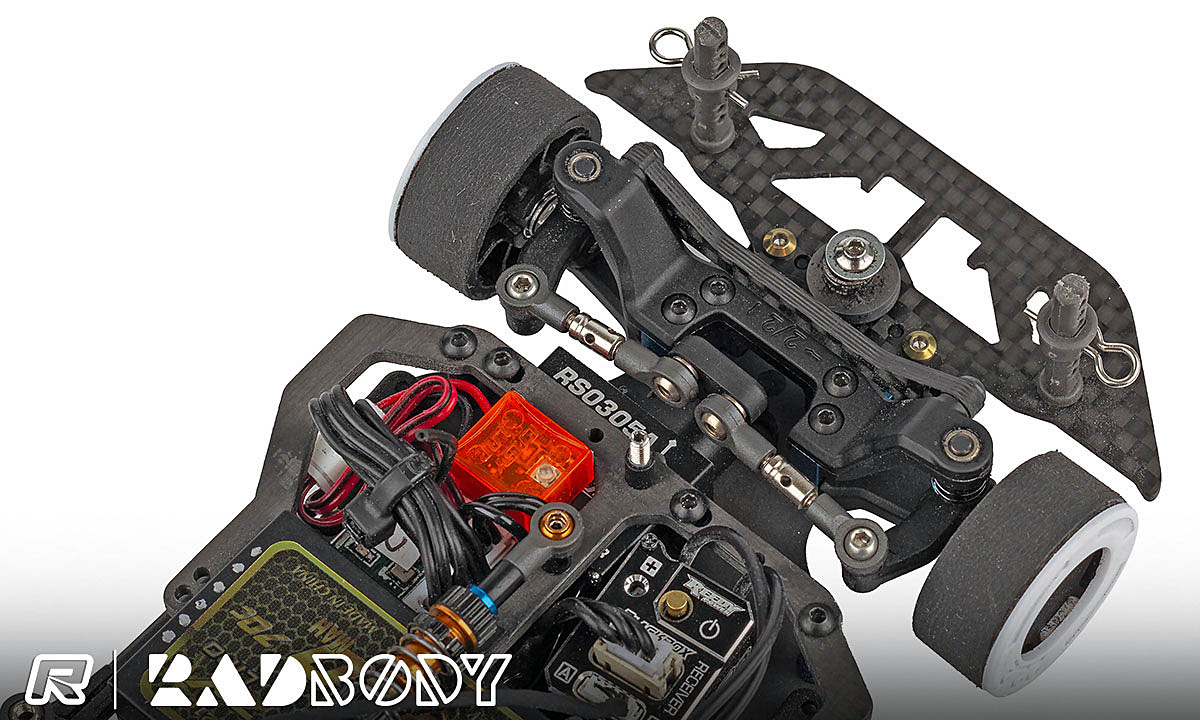

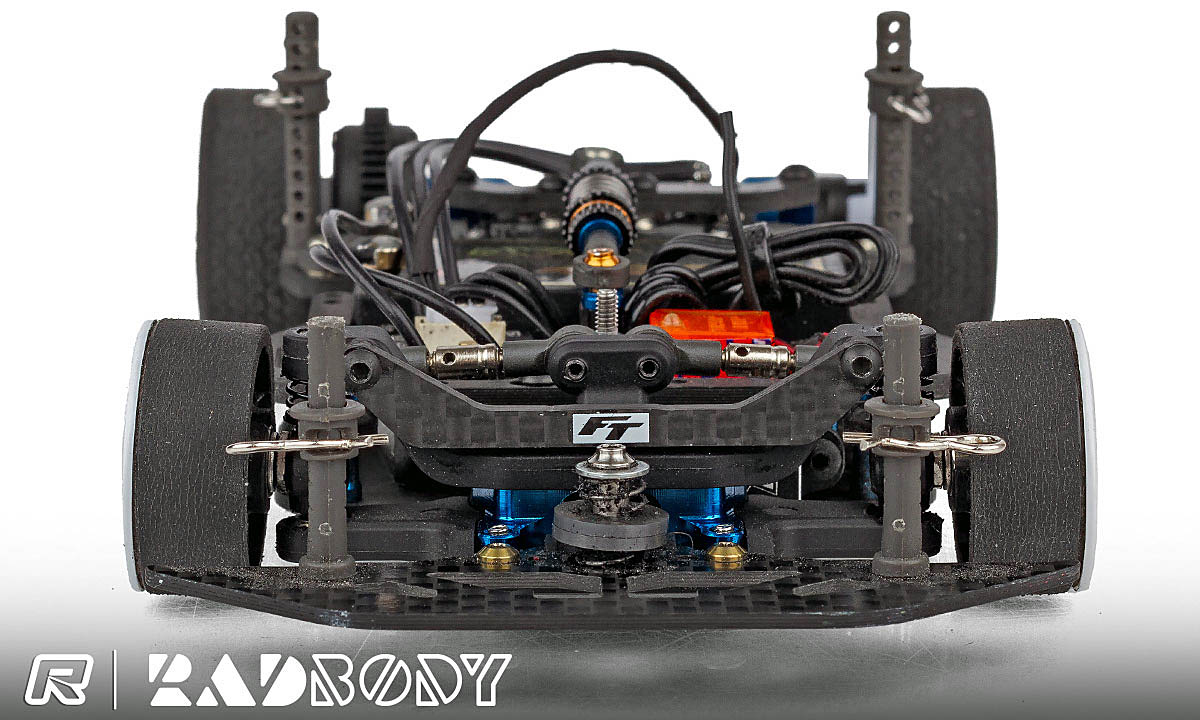

Notes: Masami’s car is fitted with Factory Team titanium extended front axles and front brace. It also uses a DAS Speed 24mm lipo conversion, Reflex top shock extended to 46mm overall length (+11mm), high clearance steel bumper, and mass damper.

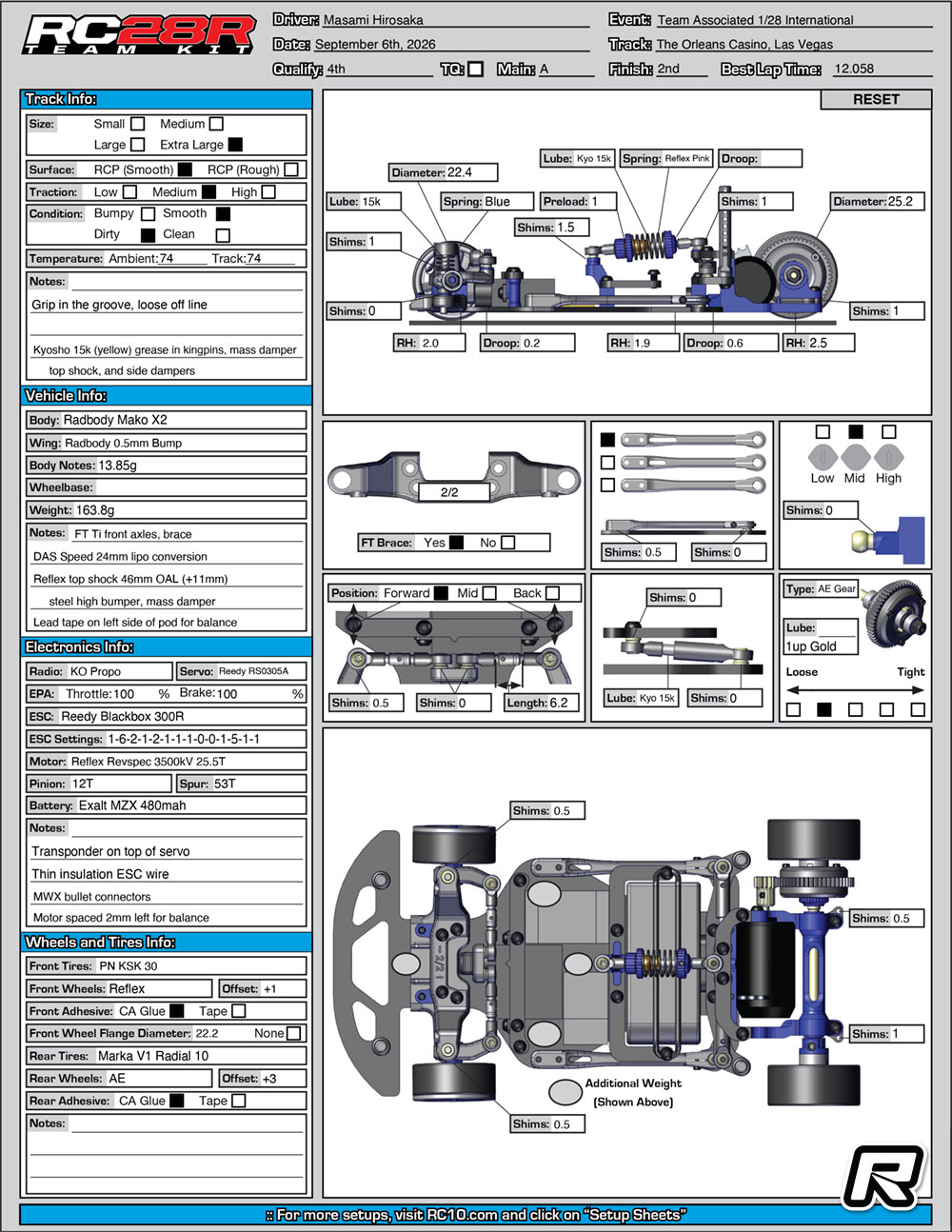

Settings:
2/2 camber/caster
Soft side links
+1.5mm front wheel offset (+1mm wheel, +0.5mm shim)
76mm front track width (without disks)
77.5mm rear track width
Front tire diameter 22.4mm

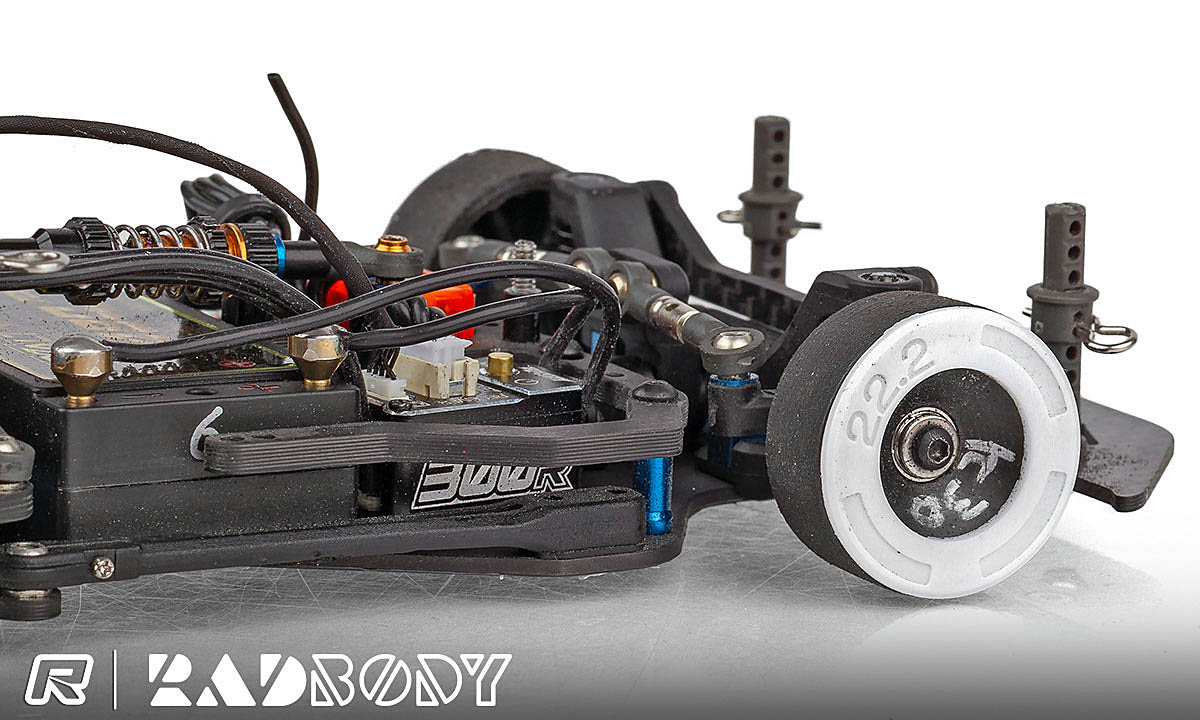

Reflex 22.2 disk
Ride height (F/R): 2.0/1.9mm
Kyosho 15k (yellow) grease in top shock, kingpins, side dampers, mass damper
1up gold grease (light) in the gear diff
|
