Associated Nitro Engines

#2916 AE .15X Pull Start Engine box

The Team Associated .12 and .15 pull start engines are ABC engines, having an Aluminum piston with a Brass sleeve, Chrome plated. They have TRUE 90° porting. If you've ever looked into the exhaust ports of some other engines, you've noticed that the exhaust port in the sleeve is not lined up with the exhaust port in the crankcase. It's cheaper to manufacture that way, but it also cuts down on horsepower. In Associated's engine's exhaust port, the sleeve lines up perfectly with the exhaust port in the crankcase. The 90° porting enables the intake ports to be correctly aligned for better air flow, too. All this means more horsepower to you.

Associated's Engine Replacement Policy means you (as the original owner of any size AE engine) will be able to replace your old, worn-out engine for a new one for only half the manufacturer's suggested retail cost! This policy replaces like for like--.12 for a .12, for example, not .12 to .15. No upgrades.

You can transfer your GT engine to the GT2. Here's how:

—If you have a GT RTR, which has our #2916 AE engine, you'll need our #29006 SG crankshaft to adapt the engine to use on the GT2.

—If you have a threaded crankshaft engine in your GT kit, you'll need the #2312 NTC3 clutch nut to use your engine in a GT2.

—You can use whatever side exhaust style manifold and muffler combination you ran on your old GT, as long as the muffler has a mount on the tip that is compatible with the muffler mount wire on the GT2.

—If your GT motor is side exhaust, it can be used in the GT2 with the proper accompanying hardware (#2312 clutch nut and AE side exhaust manifold: #7735 pullstart or #7736 non-pullstart).

—If your current muffler does not have a mount on it, then you should use the FT blue muffler with the mount on it that comes with the FT GT2.

#2912 AE .12 Pull Start Engine

—SG crankshaft.
—Recommended for on road cars, like Associated's Nitro TC3. Also fits the GT2.
—Side exhaust.
—90-degree ported.
—ABC construction.
—Engine Replacement Policy.

If you want to turn this AE pullstart engine into a non-pullstart engine, use our backplate #29034.

#2915 AE .15X Pull Start Engine

—SG crankshaft.
—Recommended for the GT2 and 1:10 touring cars such Associated's Nitro TC3.
—90-degree ported.
—ABC construction. Aluminum piston and chrome-plated brass sleeve for greater durability. Machined 7075 aluminum rod for outstanding strength.
—Side exhaust.
—Air filter with rubber boot and dual-stage foam air filter elements included for maximum engine protection.
—Engine Replacement Policy.

If you want to this your AE pullstart engine into a non-pullstart engine, use our backplate #29034.

#2916 AE .15X Pull Start Engine

—Standard (universal) crankshaft. Universal crankshaft fits all 1:10 on and off road cars.
—90-degree ported.
—ABC construction. Aluminum piston and chrome-plated brass sleeve for greater durability. Machined 7075 aluminum rod for outstanding strength.
—Side exhaust.
—Air filter with rubber boot and dual-stage foam air filter elements included for maximum engine protection.
—Engine Replacement Policy.

This engine with its universal crankshaft can fit all 1:10 on road and off road kits. The included GT clutch nut allows you to fit the #2916 engine in the GT. With the included threaded shaft it will fit your GT2 when you add the #2312 clutch nut adapter.

If you want to turn this AE pullstart engine into a non-pullstart engine, use our backplate #29034.

#25300 AE .21 Dual Start Engine (rated at 2.1 HP)

—SG crankshaft.
—Comes standard in the Associated Monster GT.
—Direct replacement.
—Dual Start System. Pull start or drill start.
—Large, finned cylinder head.
—Slide valve carburetor.
—Dual stage, high volume air cleaner.
—Engine Replacement Policy.

Will not fit GT2 or NTC3.

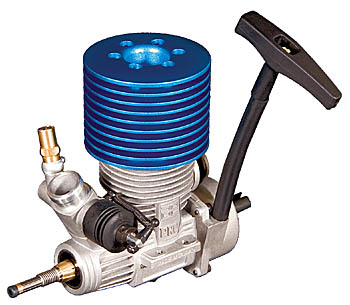

#25354 AE PRO 4.60 Dual Start Engine (rated at 3.8 HP)

—SG crankshaft.
—Comes standard in the #20501 Monster GT SE.
—Direct replacement.
—Dual Start System. Pull start or drill start.
—Large, finned cylinder head.
—Slide valve carburetor.
—Dual stage, high volume air cleaner.
—Engine Replacement Policy.

Will not fit GT2 or NTC3.

More Information

Engine Replacement Policy
Engine Warranty

.12 Engine Parts Listing and Drawings
.15 Engine Parts Listing and Drawings
.21 Engine Parts Listing and Drawings
4.60 Engine Manual, Parts Listing, and Drawings
