- Tamiya TRF201X - Jimmy Wright - Anti-Squat -


Something that isn't spelled out in the manual for the 201 is the anti squat settings. The list below shows "J" parts which come in the 201 kit and are part of the plastic "J" parts tree. The 54XXX numbers are aluminum Hop Ups that can be purchased separately.

Here is a short guide to help you tune for better performance.
  • J5 and 54243 (upside down)- 2.0*
  • J5 and J1 (no Shim) - 2.5*
  • J5 and J1 (1mm Shim) - 3.0* (kit stock)
  • J5 and J1 (2mm shims) - 3.5*
  • etc.
J1 can be replaced with 54243
J5 can be replaced with 54242 (no shims needed as they have 1mm built in)

J5 can also be replaced with 54291 or 54292 for added toe in. (no shims needed as they also have 1mm built in)

54242

54243

54291

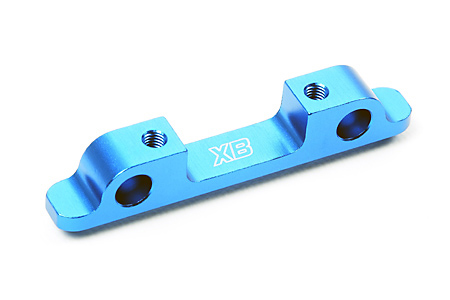

54292
