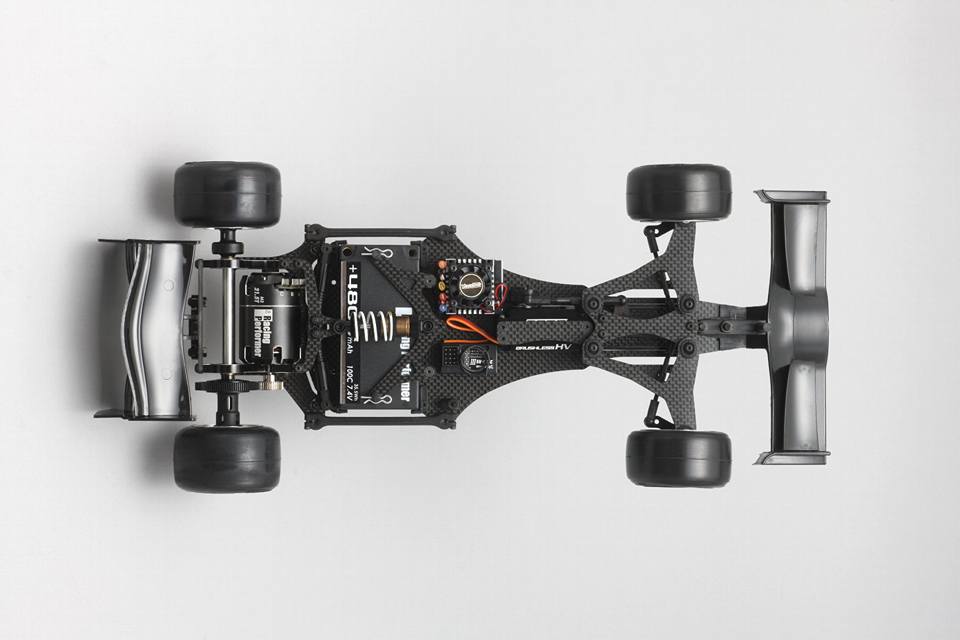

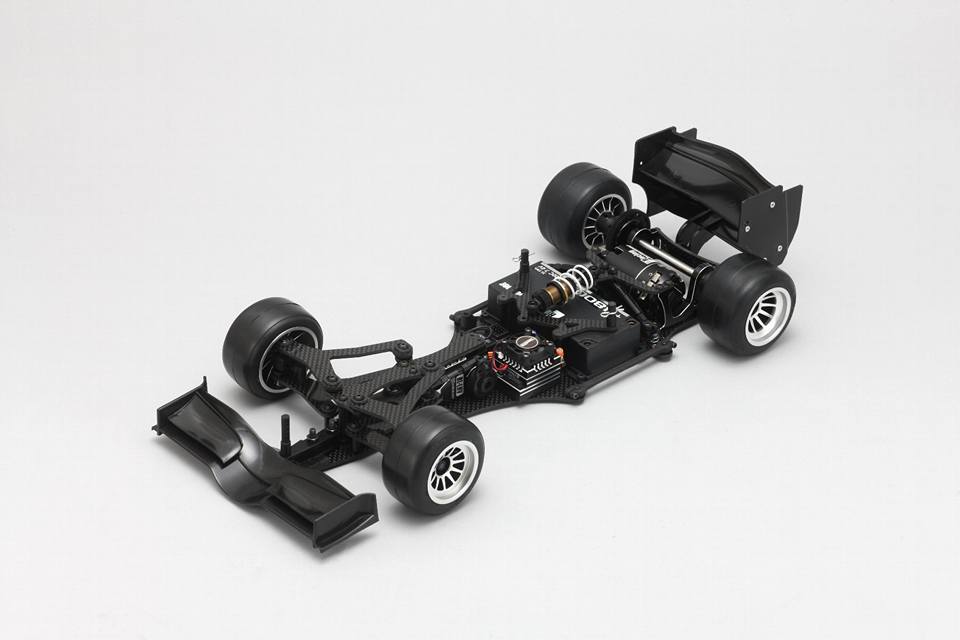

- Team Yokomo YR10 Formula Chassis Kit -

The YR-10 is a high-end F1 style racer loaded with uber-ness. Scale realism was also a priority with the YR-10, proof of that can be seen with its narrow chassis and with its design to be run primarily with rubber tires.

An ETS-ready, full competition Formula chassis kit developed in response to the rapidly growing Formula class in Europe.

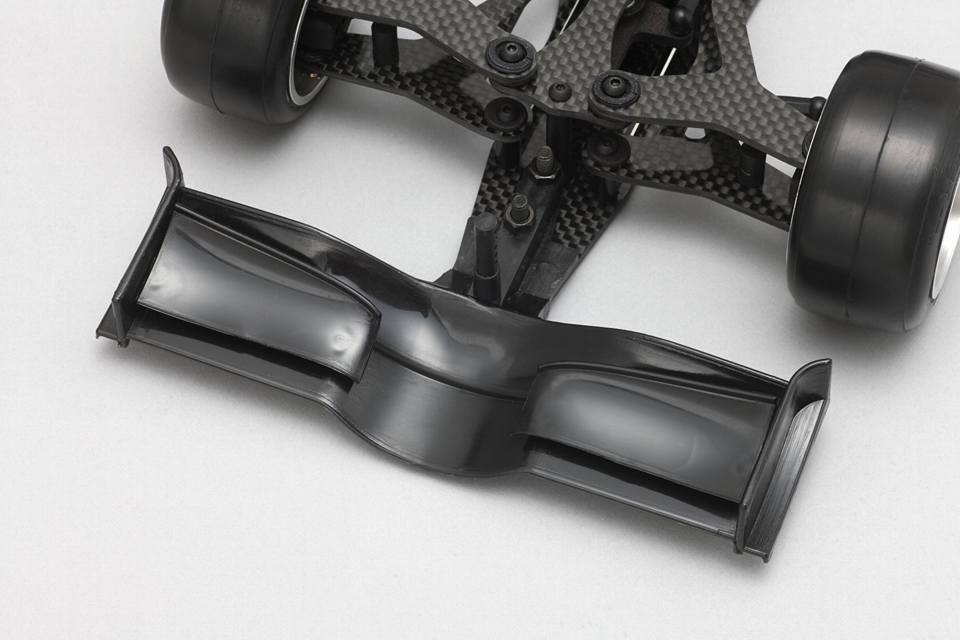

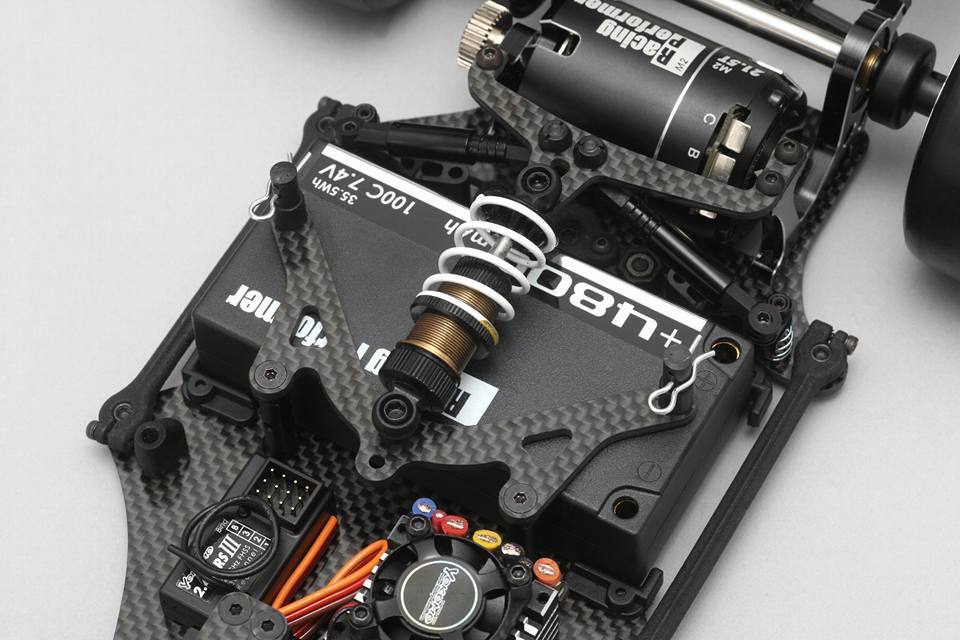

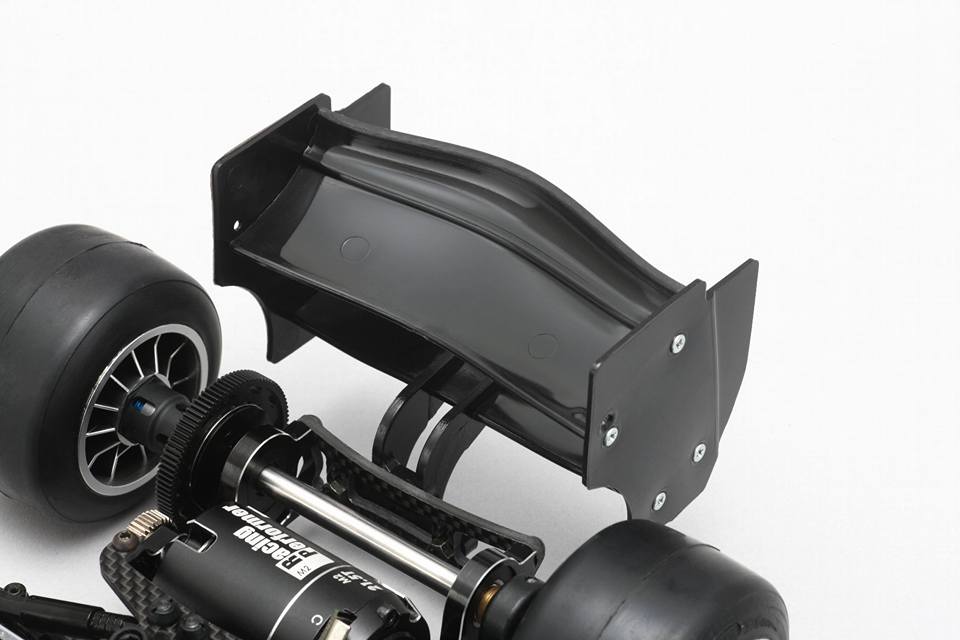

Our latest competition chassis has been specifically designed around the narrow-width chassis specifications and scale realistic rubber tyres. The front end features rigid graphite arms with a kingpin and coil spring suspension, adjustable to two tread width settings. The aluminum front bulkhead has been split to allow a floating servo mount, and to allow the main chassis to flex unobstructed for smooth, consistent performance. The rear end features long side links and a large volume pitching damper to extract as much grip as possible from the rubber tyres. Larger size roll shocks ensure that traction is there when called for by throttle input. The kit will come ready for Euro Touring Series formula class racing, with RIDE XR tyres and Mon-Tech spec wings included.

Mon-Tech formula body coming soon! (Sold separately)

Features:

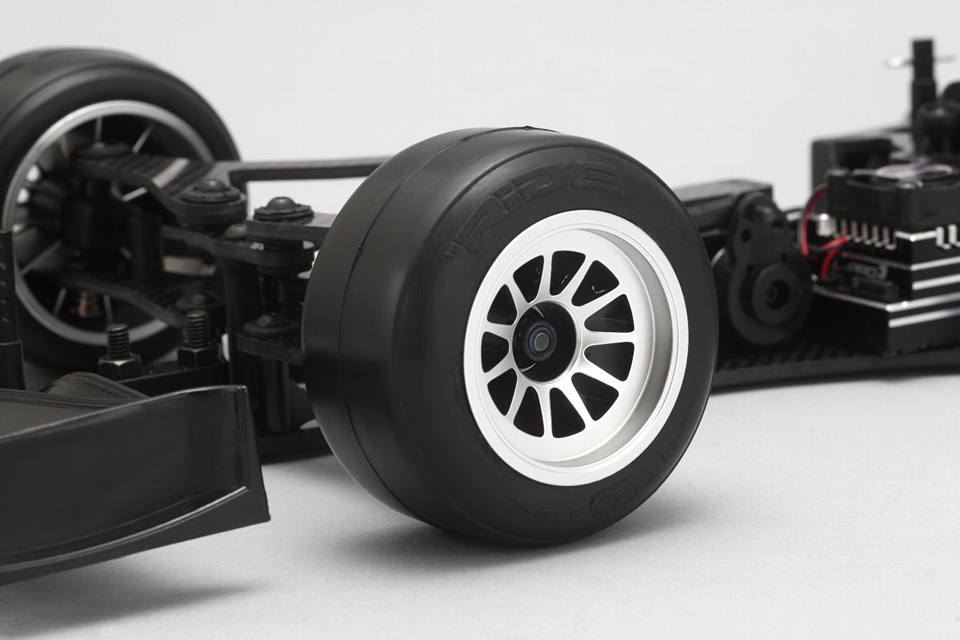

New chassis for narrow rubber tires (190mm width)

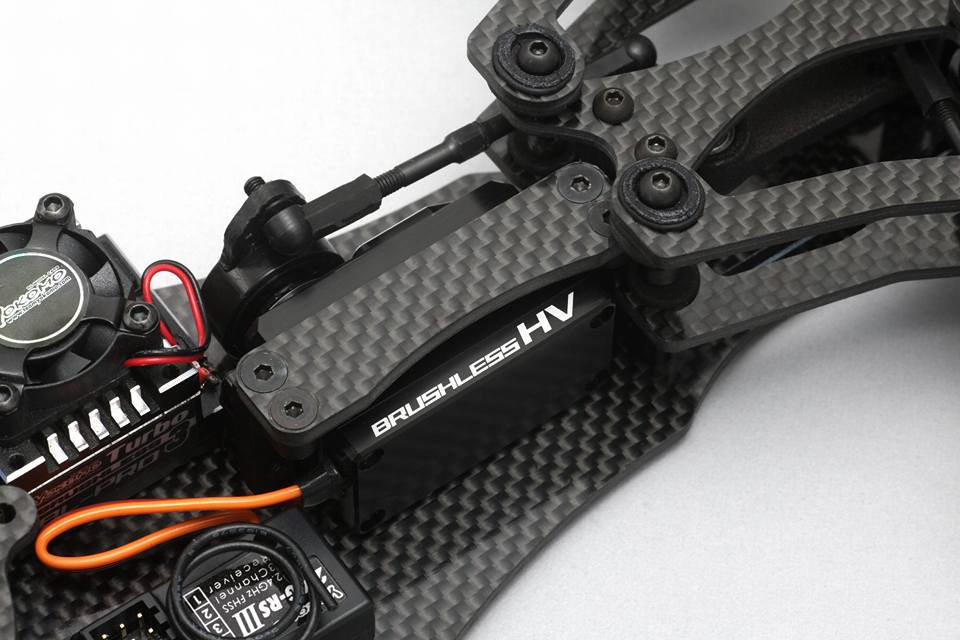

Floating Servo Stay
Flexible battery layout
Adjustable front ride heigth
Adjustable rear ride heigth

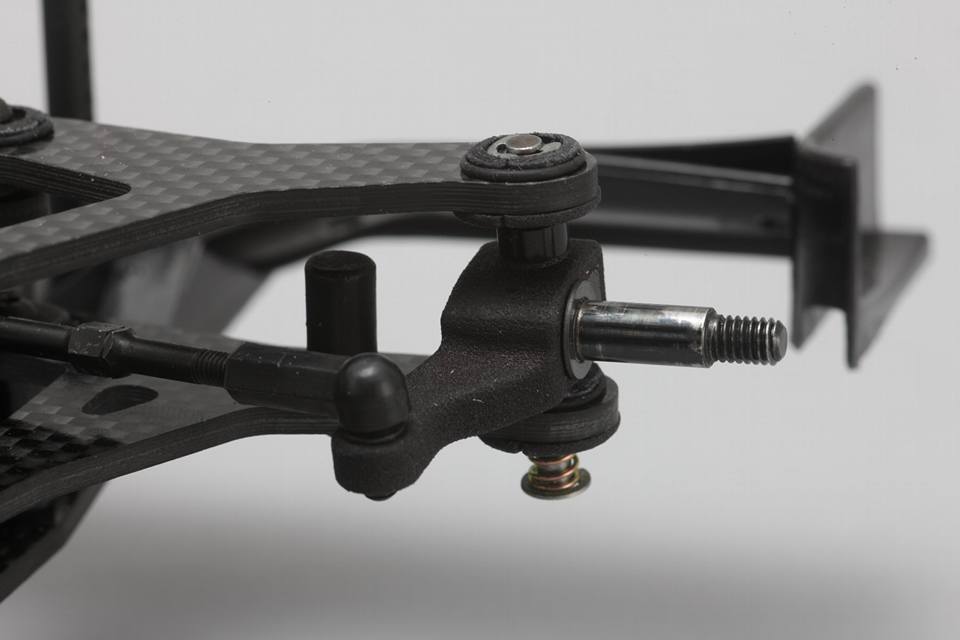

Inline, Trail adjustable front steering knuckle
Large sized center damper

New Parts:
New 2.5mm thick Main Chassis for Short size LiPo Battery mount

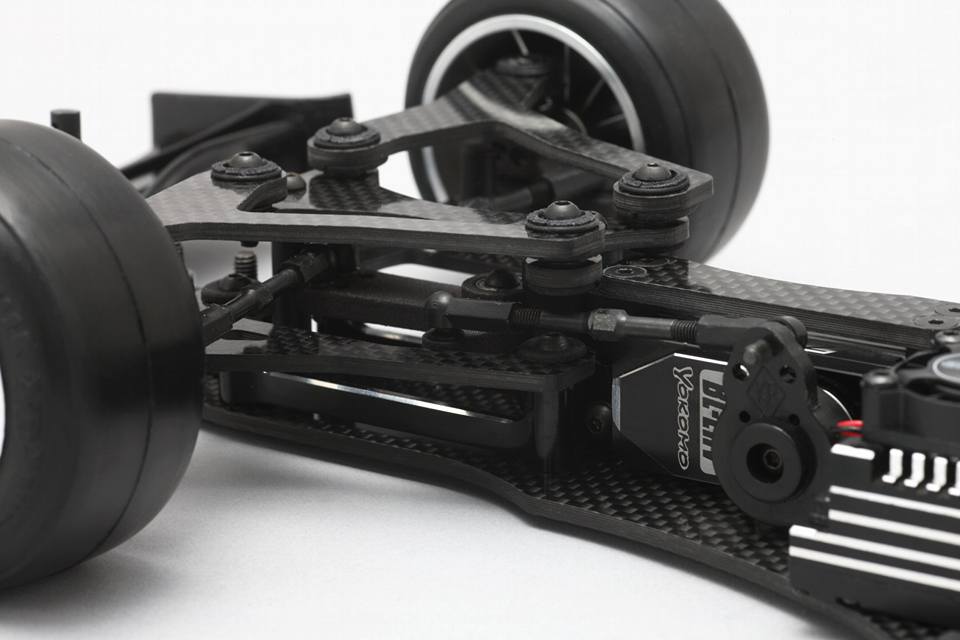

New Front king pin suspension

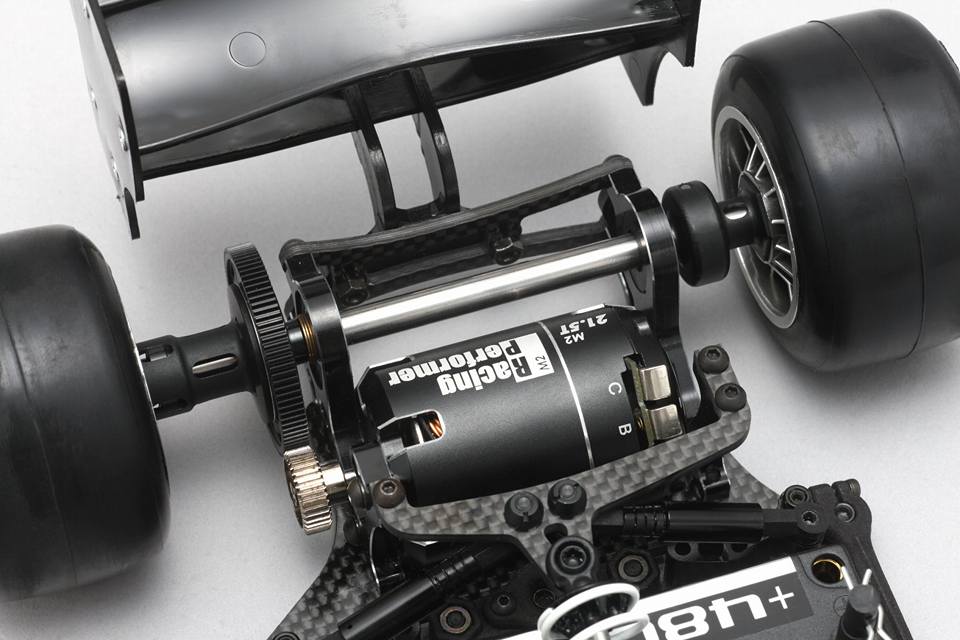

New 7075 Duralmin Rear bulk head
New Role Damper

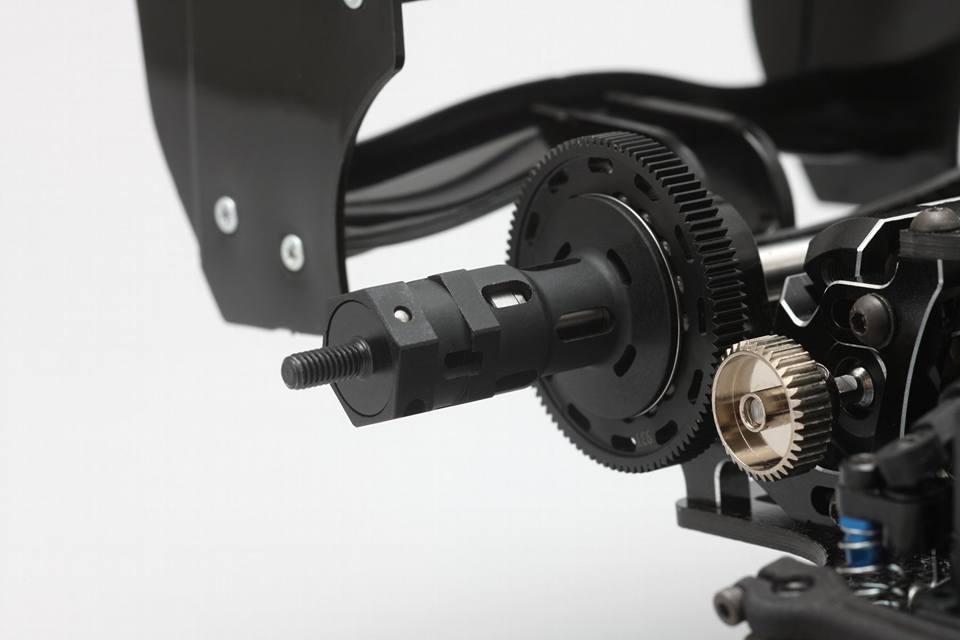

New Differential Hub with one piece thrust bearing
New Long Side Link
New Sliding Rear Center link pivot
New Steering lack
