VTX10R-BE x Speed Passion MMM Competition Ver.3.0 brushless motor setup 17.5R

I was changed to silver 12.5mm rotor of options from the standard 12.3mm rotor. Magnetic force is turned strongly compared to the rotor of the standard, silver rotor can be expected torque up. You have changed the rotor is expected to be a characteristic torque focus further by making it 12.5mm 0.2mm thick the rotor outer diameter further.

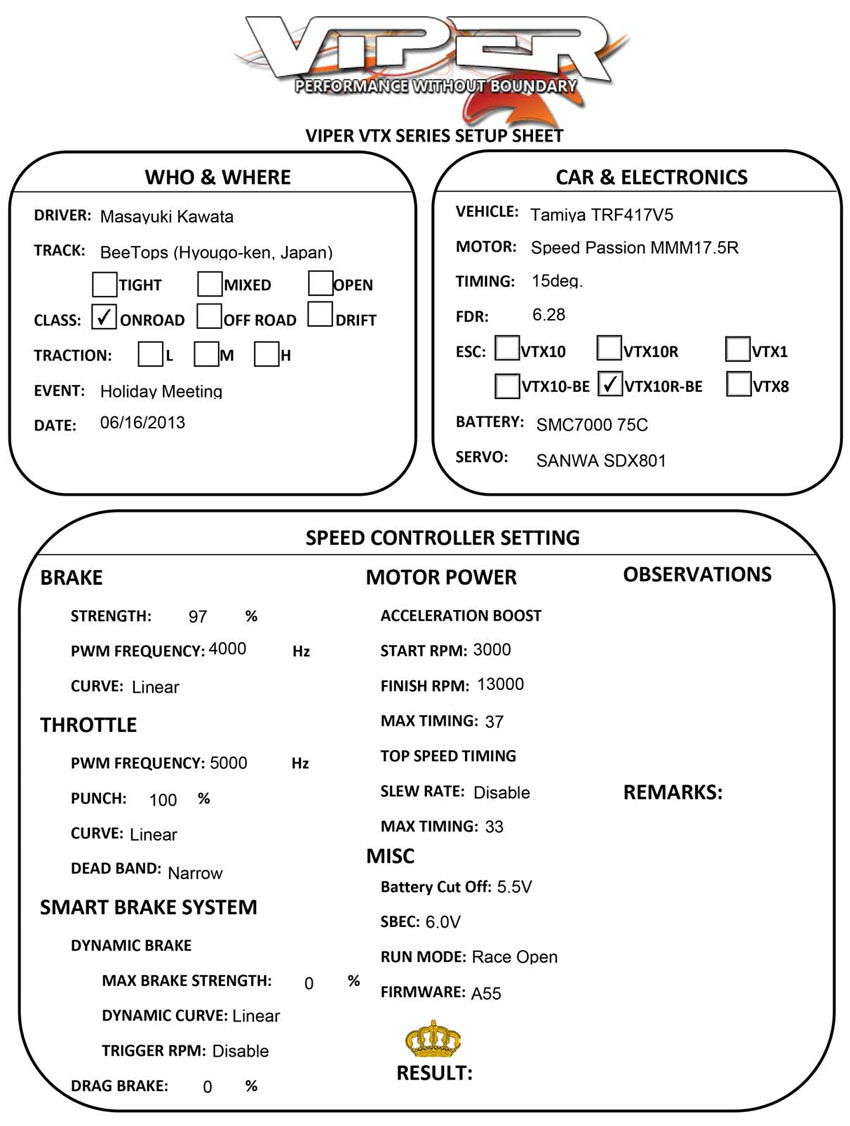

The changes that you make in the setup of the Viper VTX10R-BE, has been increased to 33-30 MAX TIMING of the top speed timing. Growth of top speed, so dropped slightly because you changed the rotor, this is a change to make up for it.

There was no need to change if you change the rotor of other items. There is enough power, it is easy to set up and control.

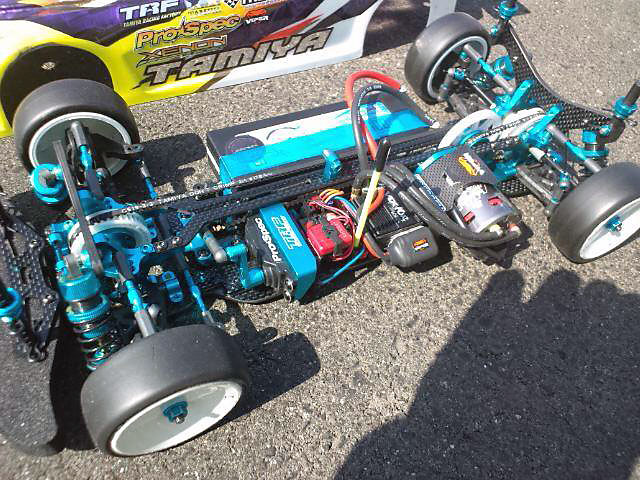

Since the outside air temperature is getting higher, you must use the attention to temperature control of the motor. I use as a motor cooling crazy fan of the Zeppin Racing (30mm) from this time. Have enough air volume, seems to be able to respond well to the heat of midsummer.
