- Touring Car - Fan placement, power consumption and weight information -



The ESC is place further to the front of the car by standing the receiver (RX461). All the wires are removed to allow clear view. Since all cars are different, just use this for reference only.

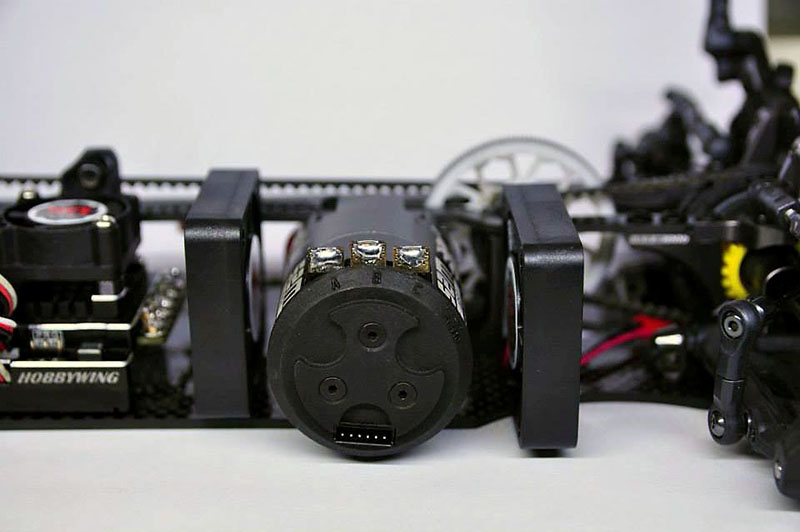

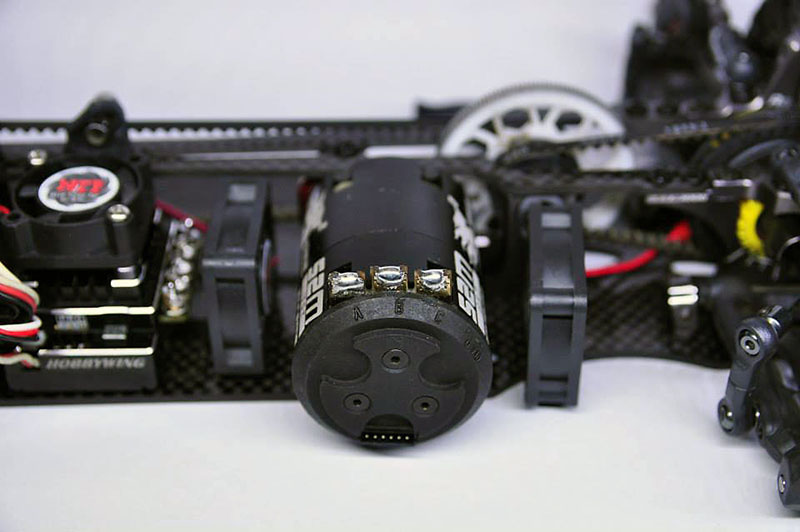

Configuration: 2 fans (2 x 40mm)
Placement : 1 x front and 1 x back of motor
Total fans weight: 30g
Current draw @8.4V : 0.9A
Thrust : ~16g

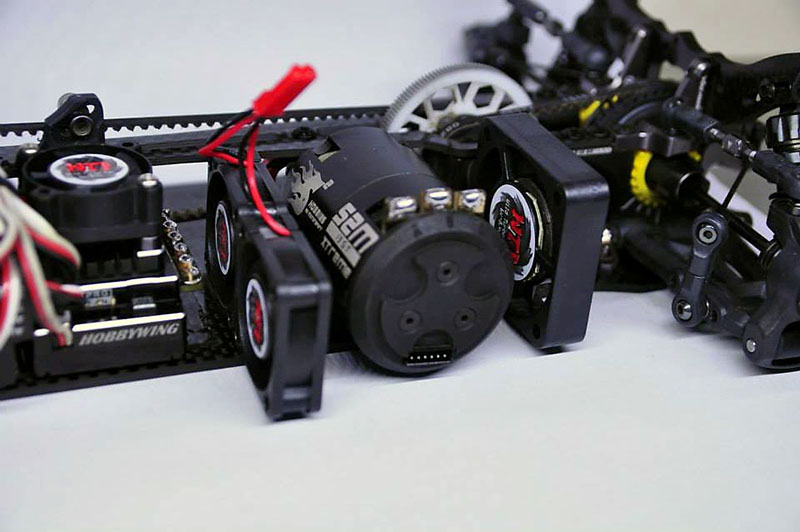

Configuration: 3 fans (Twin 30mm + Single 40mm)
Placement : 2 x front and 1 x back of motor
Total fans weight: 30g
Current draw @8.4V : 1.25A
Thrust : ~19g

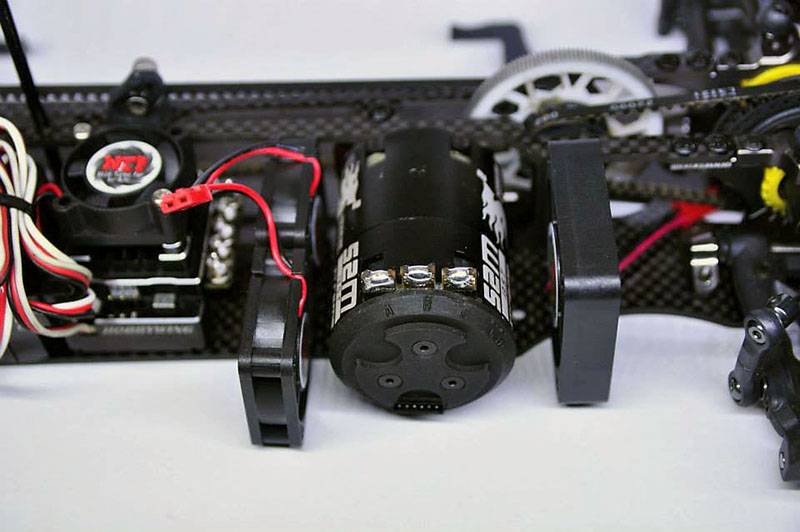

Configuration: 2 fans (1 x 40mm + 1 x 30mm)
Placement : 1 x front and 1 x back of motor
Total fans weight: 22.5g
Current draw @8.4V : 0.85A
Thrust : ~13.5g



Configuration: 2 fans (1 x 30mm + 1 x 30mm)
Placement : 1 x front and 1 x back of motor
Total fans weight: 15g
Current draw @8.4V : 0.82A
Thrust : ~11g



Configuration: 2 fans (1 x 30mm + 1 x 34mm)
Placement : 1 x front and 1 x back of motor
Total fans weight: 20g
Current draw @8.4V : 0.87A
Thrust : ~13.5g



Configuration: 2 fans (1 x 34mm + 1 x 40mm)
Placement : 1 x front and 1 x back of motor
Total fans weight: 27.5g
Current draw @8.4V : 0.9A
Thrust : ~15.5g
